HIGH-MOUNTED STOP LAMP

EXL-177

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

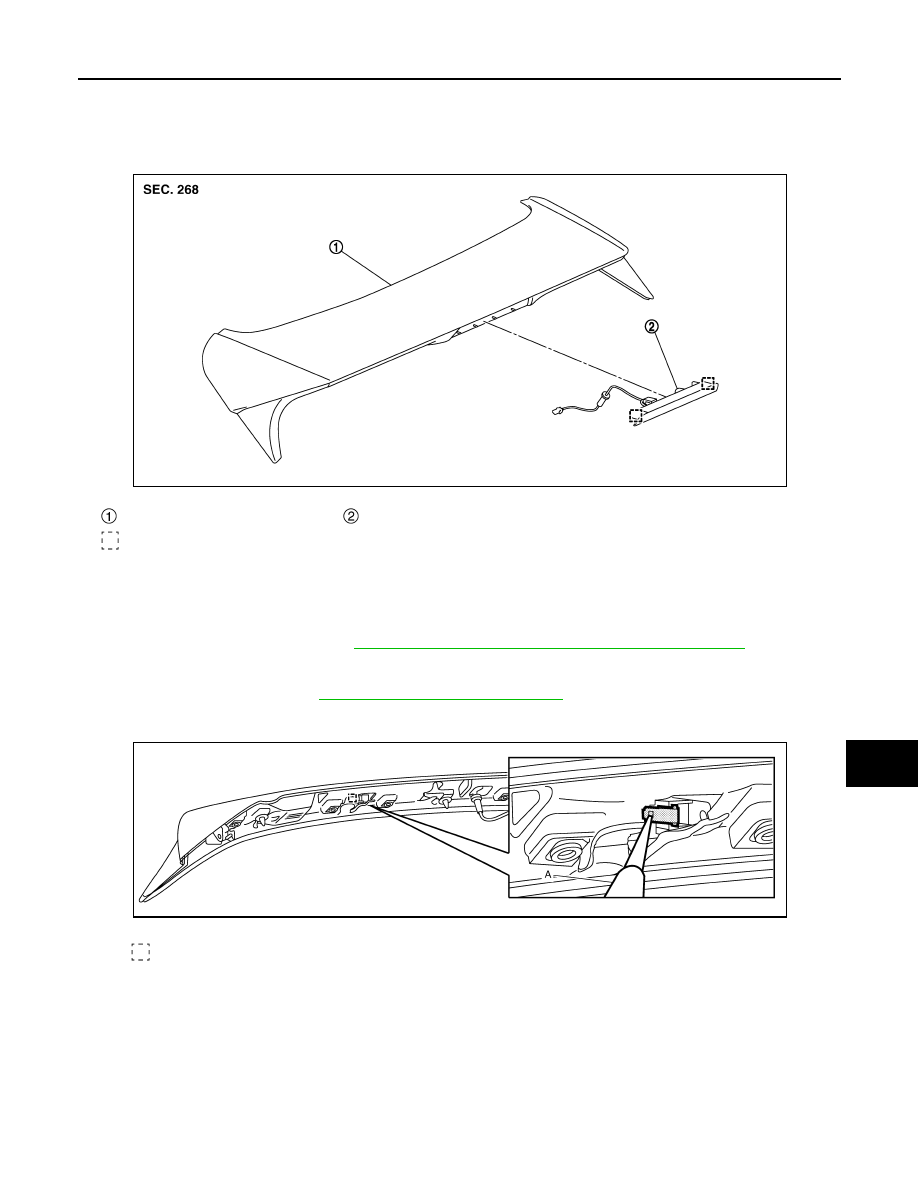

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000010338878

Removal and Installation

INFOID:0000000010338879

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-46, "Removal and Installation"

.

2.

Disengage high-mounted stop lamp fixing metal clips using a remover tool (A), and then remove high-
mounted stop lamp unit.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010338880

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
high-mounted stop lamp unit as a set.

Rear spoiler

High-mounted stop lamp unit

: Metal clip

JMLIA5102ZZ

: Metal clip

JMLIA5136ZZ

EXL-178

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

LICENSE PLATE LAMP

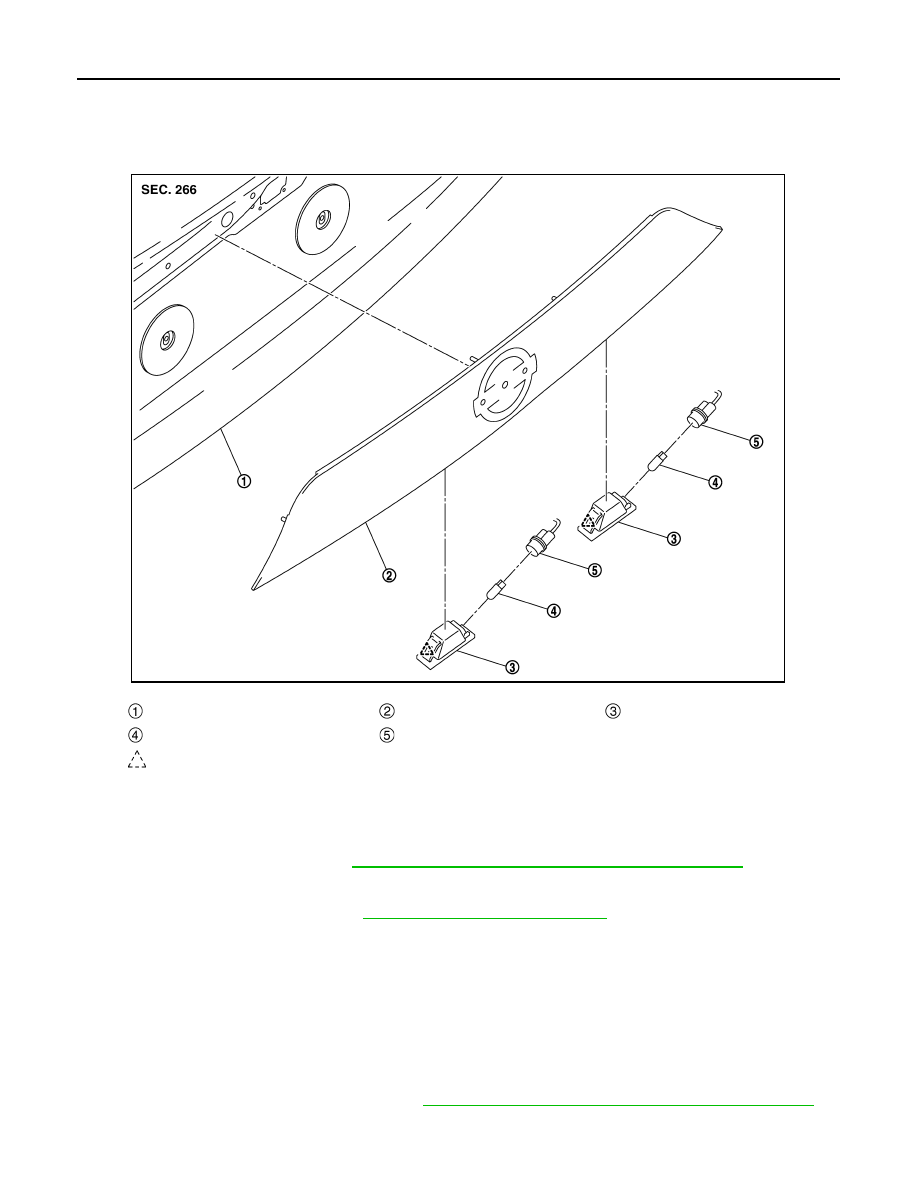

LICENSE PLATE LAMP

Exploded View

INFOID:0000000010338881

Removal and Installation

INFOID:0000000010338882

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Disconnect license plate lamp harness connector.

3.

Disengage license plate lamp housing fixing pawl, and then remove license plate lamp housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010338883

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.

Back door panel

Back door finisher

License plate lamp housing

License plate lamp bulb

License plate lamp bulb socket

: Pawl

JMLIA5101ZZ

LICENSE PLATE LAMP

EXL-179

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

EXL-180

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR REFLEX REFLECTOR

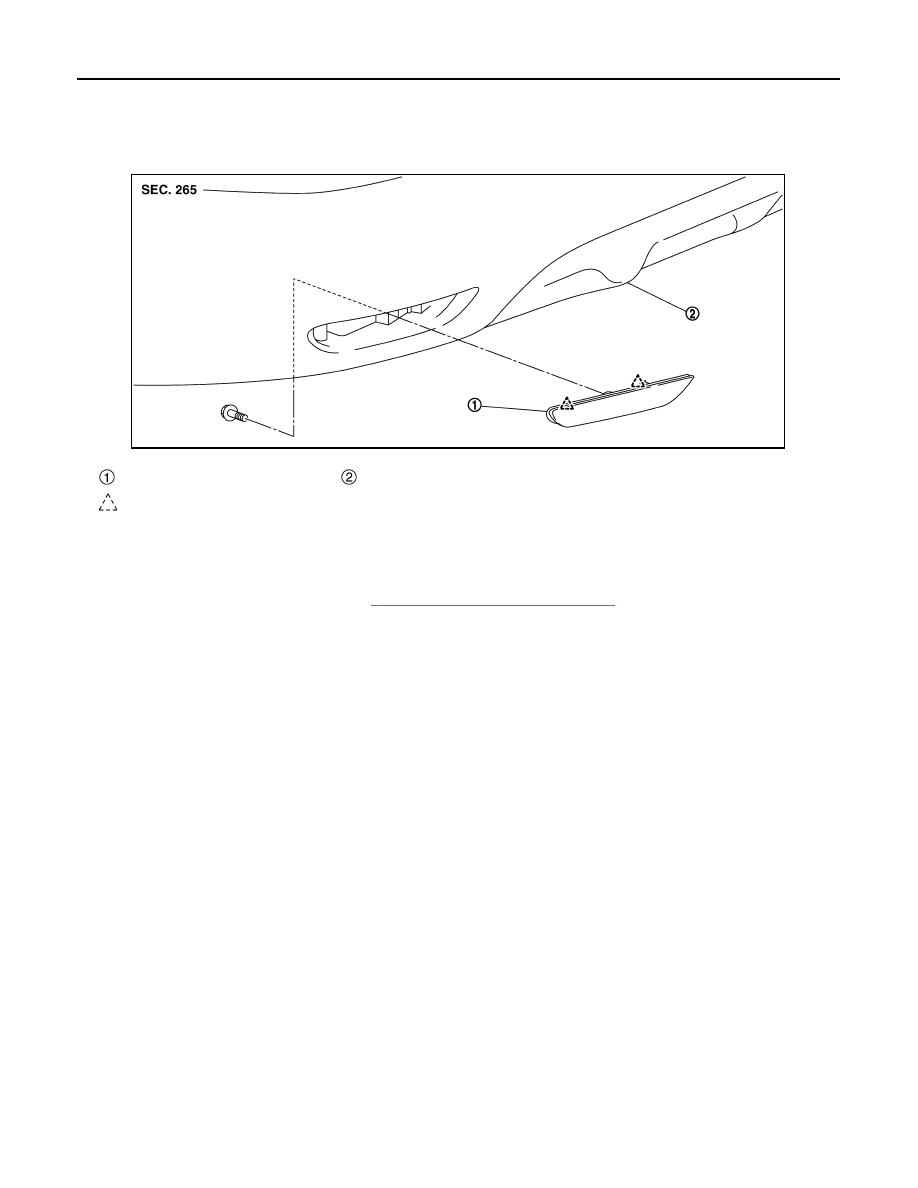

REAR REFLEX REFLECTOR

Exploded View

INFOID:0000000010338884

Removal and Installation

INFOID:0000000010338885

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-23, "Removal and Installation"

.

2.

Remove rear reflex reflector mounting bolt and pawls, and then remove rear reflex reflector.

INSTALLATION

Install in the reverse order of removal.

Rear reflex reflector

Rear bumper fascia assembly

: Pawl

JMLIA5103ZZ
