HEIGHT SENSOR

EXL-169

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEIGHT SENSOR

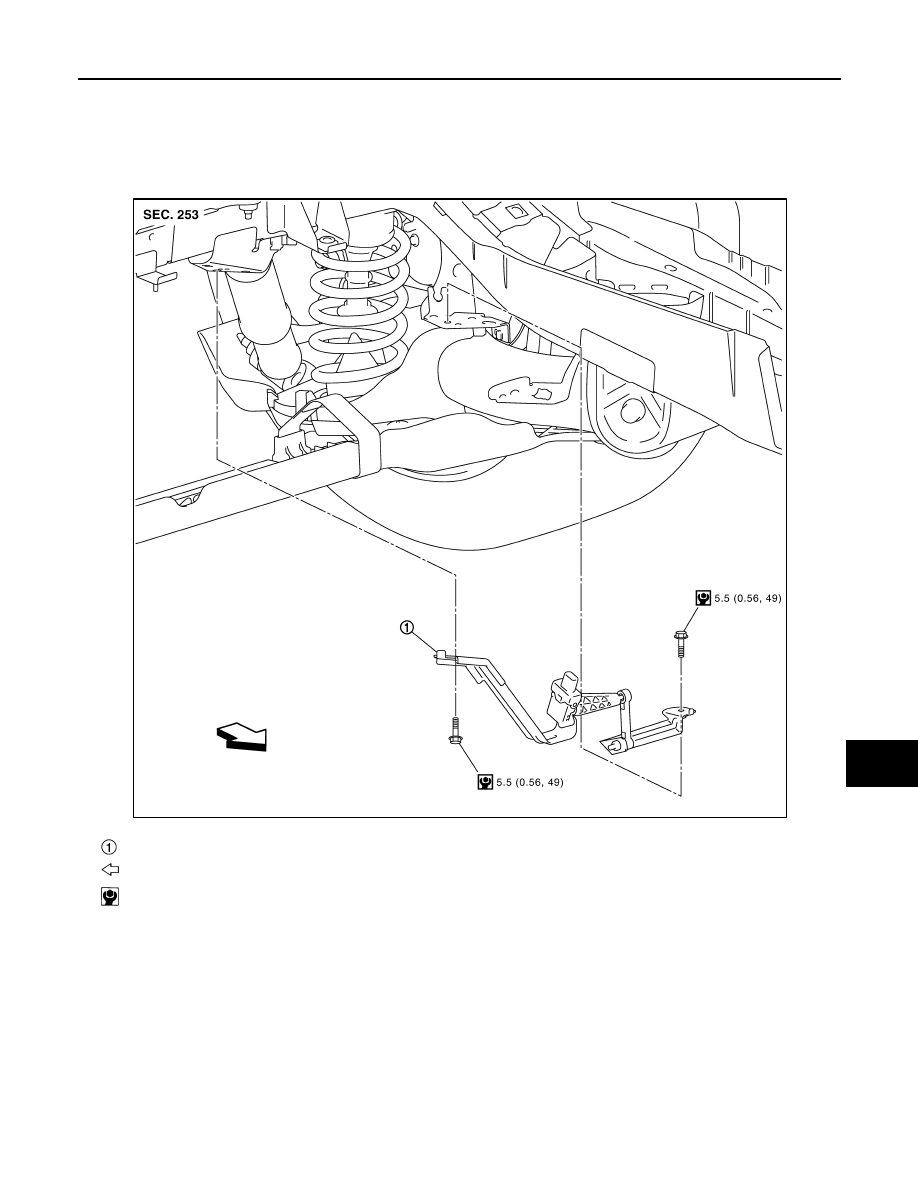

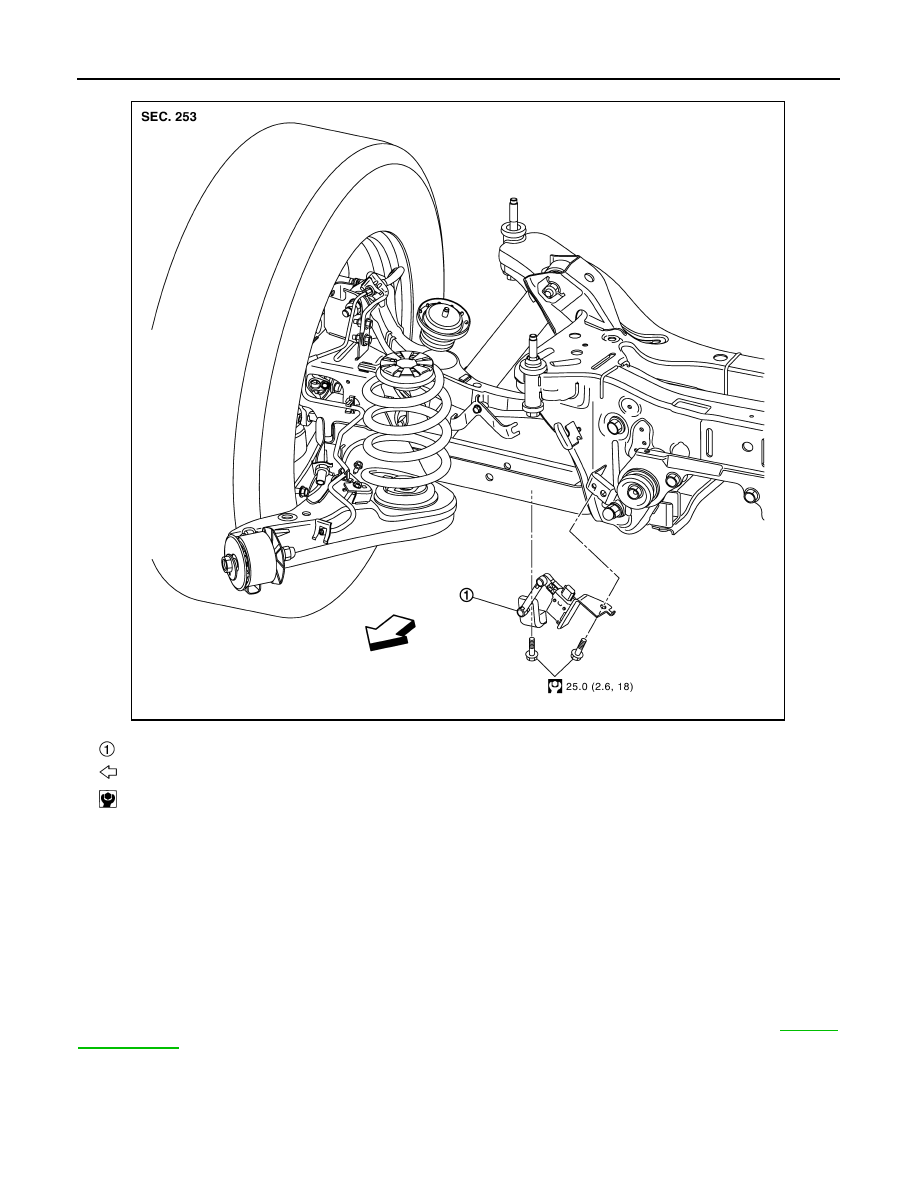

Exploded View

INFOID:0000000010338873

2WD

4WD

Height sensor

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5096GB

EXL-170

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HEIGHT SENSOR

Removal and Installation

INFOID:0000000010338874

REMOVAL

1.

Disconnect height sensor harness connector.

2.

Remove height sensor assembly mounting bolts.

3.

Remove height sensor assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform

SENSOR INITIALIZE

 when removing the height sensor. Refer to

EXL-74,

"Description"

Height sensor

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5097GB

LIGHT & RAIN SENSOR

EXL-171

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000010431500

Refer to

WW-92, "Exploded View"

.

Removal and Installation

INFOID:0000000010431501

REMOVAL

Remove light & rain sensor. Refer to

WW-92, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-172

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

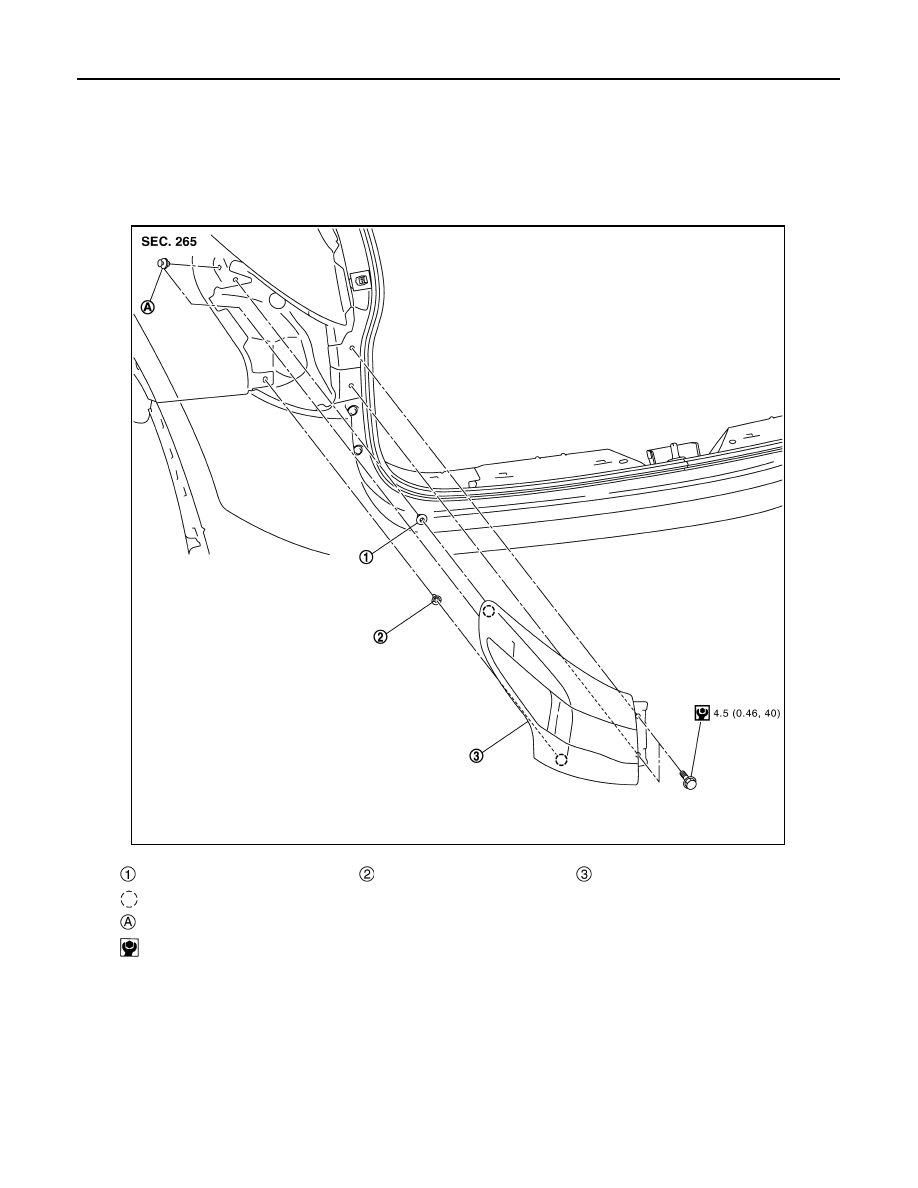

Exploded View

INFOID:0000000010338875

REMOVAL

Body Side

Back Door Side

Grommet A

Grommet B

Rear combination lamp

: Clip

: Clip

: N·m (kg-m, in-lb)

JMLIA5098GB
