Removal and Installation

INFOID:0000000010338851

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove front combination lamp assembly mounting bolts.

3.

Pull out front combination lamp assembly forward the vehicle.

4.

Disconnect front combination lamp assembly harness connectors.

5.

Remove front combination lamp assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to the following:
• LHD MODELS: Refer to

EXL-153, "LHD : Description"

.

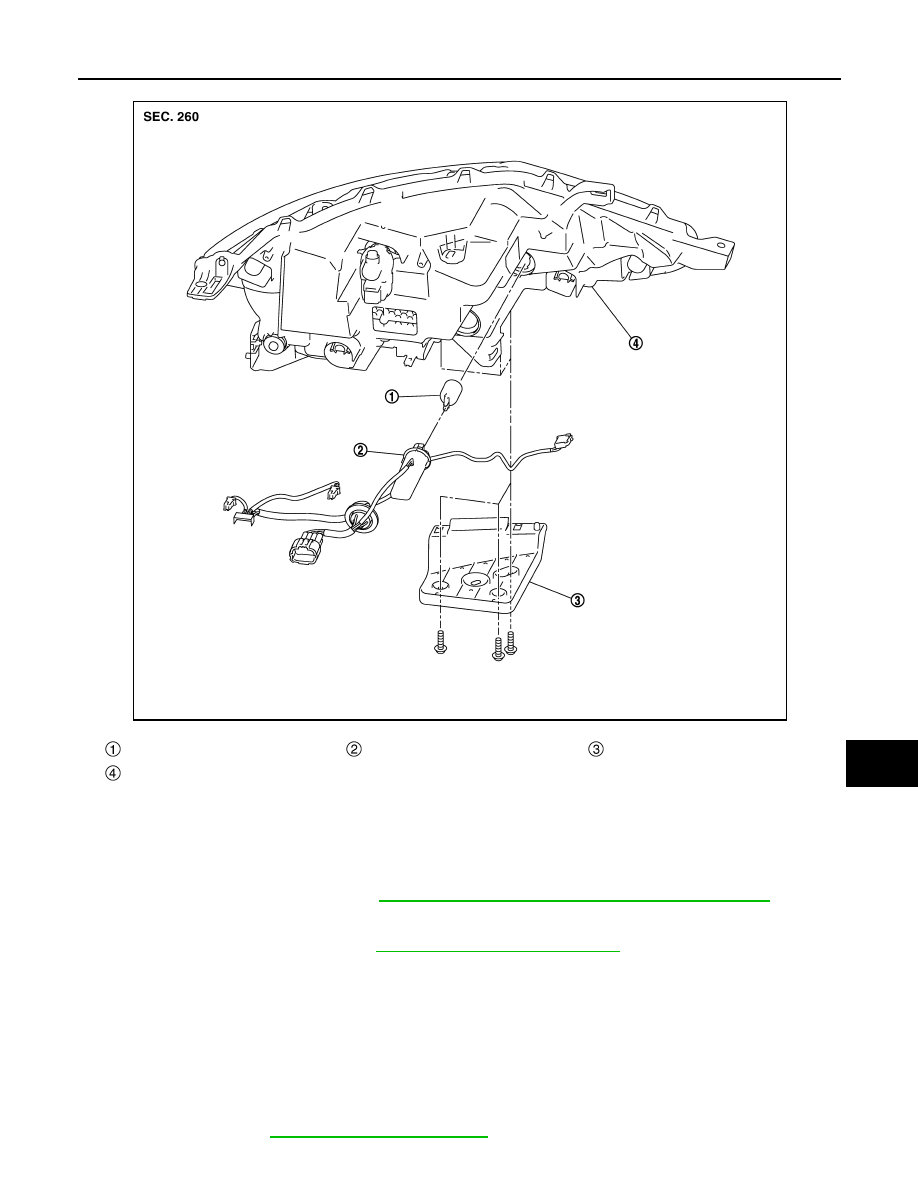

Front turn signal lamp bulb

Front turn signal lamp bulb socket

Front combination lamp bracket

Front combination lamp housing

JMLIA5092ZZ

EXL-162

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

• RHD MODELS: Refer to

EXL-155, "RHD : Description"

.

Replacement

INFOID:0000000010431361

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

HEADLAMP BULB (LO)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

DAYTIME RUNNING LIGHT/ PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

FRONT TURN SIGNAL LAMP BULB

LH side

1.

Remove air duct. Refer to the following.
• HRA2DDT: Refer to

EM-23, "Removal and Installation"

.

• MR20DD: Refer to

EM-147, "Removal and Installation"

.

• K9K: Refer to

EM-279, "Removal and Installation"

.

• R9M: Refer to

EM-380, "Removal and Installation"

.

2.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

3.

Remove front turn signal lamp bulb socket from front combination lamp housing.

4.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

RH side

1.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

2.

Remove front turn signal lamp bulb socket from front combination lamp housing.

3.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

Disassembly and Assembly

INFOID:0000000010338853

DISASSEMBLY

1.

Remove front combination lamp bracket mounting screws, and then remove front combination lamp
bracket from front combination lamp housing.

2.

Disconnect front combination lamp harness connectors.

3.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

4.

Remove front turn signal lamp bulb socket from front combination lamp housing.

5.

Remove front turn signal lamp bulb from front turn signal lamp bulb socket.

ASSEMBLY

Note the following item, and then install in the reverse order of removal.

CAUTION:

• After installing the bulb, install the bulb socket securely watertightness.
• After installation, perform aiming adjustment. Refer to following.
- LHD models: Refer to

EXL-154, "LHD : Aiming Adjustment Procedure"

.

FRONT COMBINATION LAMP

EXL-163

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

- RHD models: Refer to

EXL-156, "RHD : Aiming Adjustment Procedure"

.

EXL-164

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000010338858

Removal and Installation

INFOID:0000000010338859

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front fender protector to make work space. Refer to

EXT-32, "Removal and Installation"

.

2.

Disconnect front fog lamp harness connector.

3.

Remove front fog lamp fixing bolt, and then remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-158, "Aiming Adjustment Procedure"

Replacement

INFOID:0000000010338860

CAUTION:

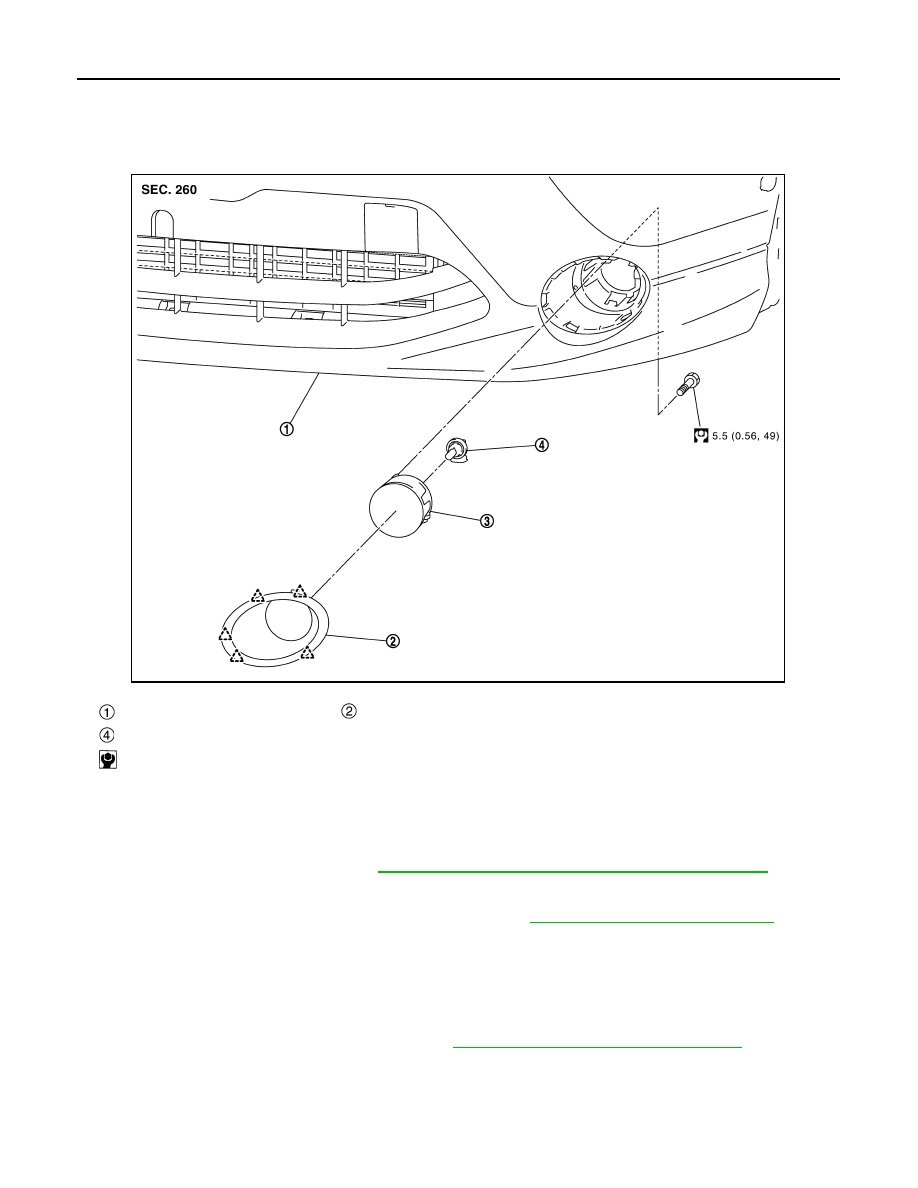

Front bumper fascia

Front bumper finisher

Front fog lamp

Front fog lamp bulb

: N·m (kg-m, in-lb)

JMLIA5093GB
