REAR COMBINATION LAMP

EXL-173

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

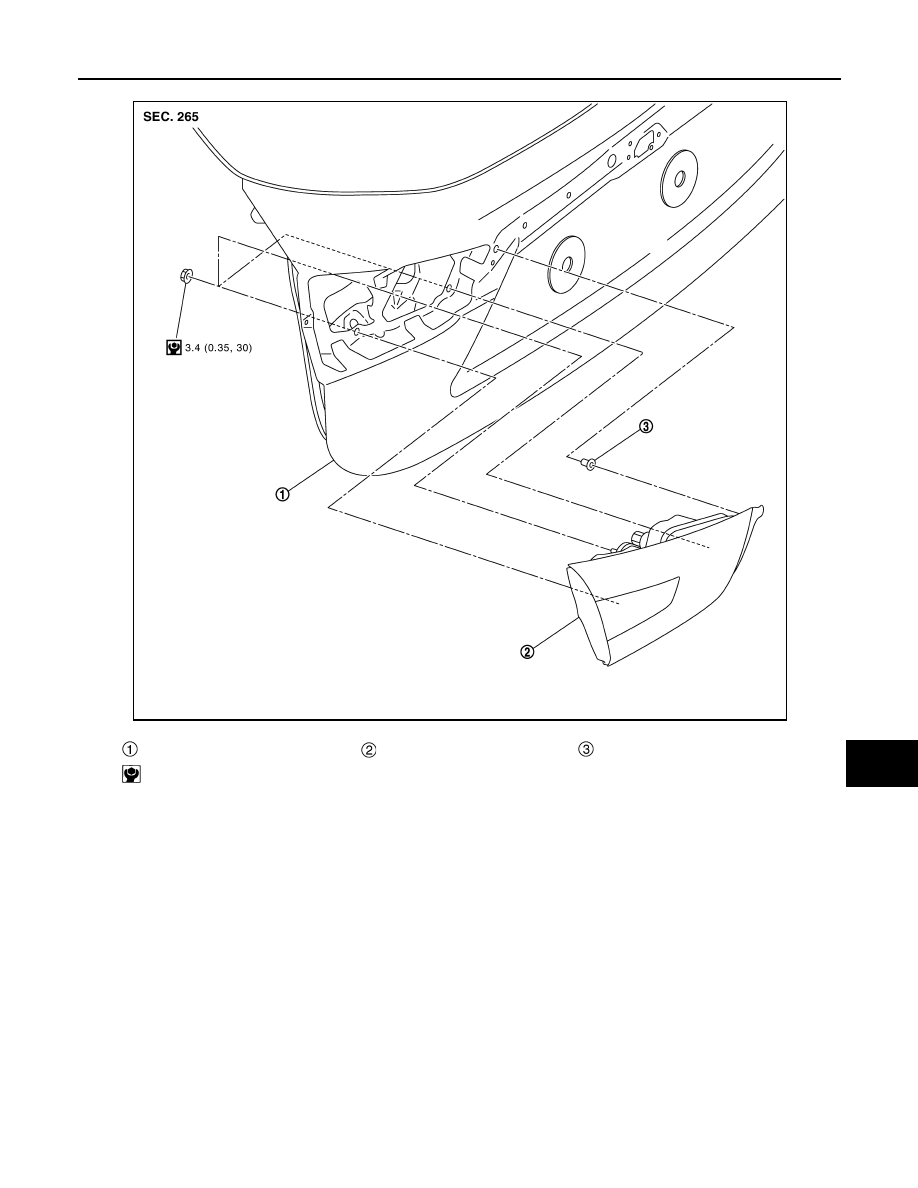

DISASSEMBLY

Back door panel

Rear combination lamp

Grommet

: N·m (kg-m, in-lb)

JMLIA5099GB

EXL-174

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

Removal and Installation

INFOID:0000000010338876

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• When removing, always use a remover tool that is made of plastic.

REMOVAL

Rear Combination Lamp (body side)

1.

Fully open trunk lid.

2.

Remove rear combination lamp mounting bolts

.

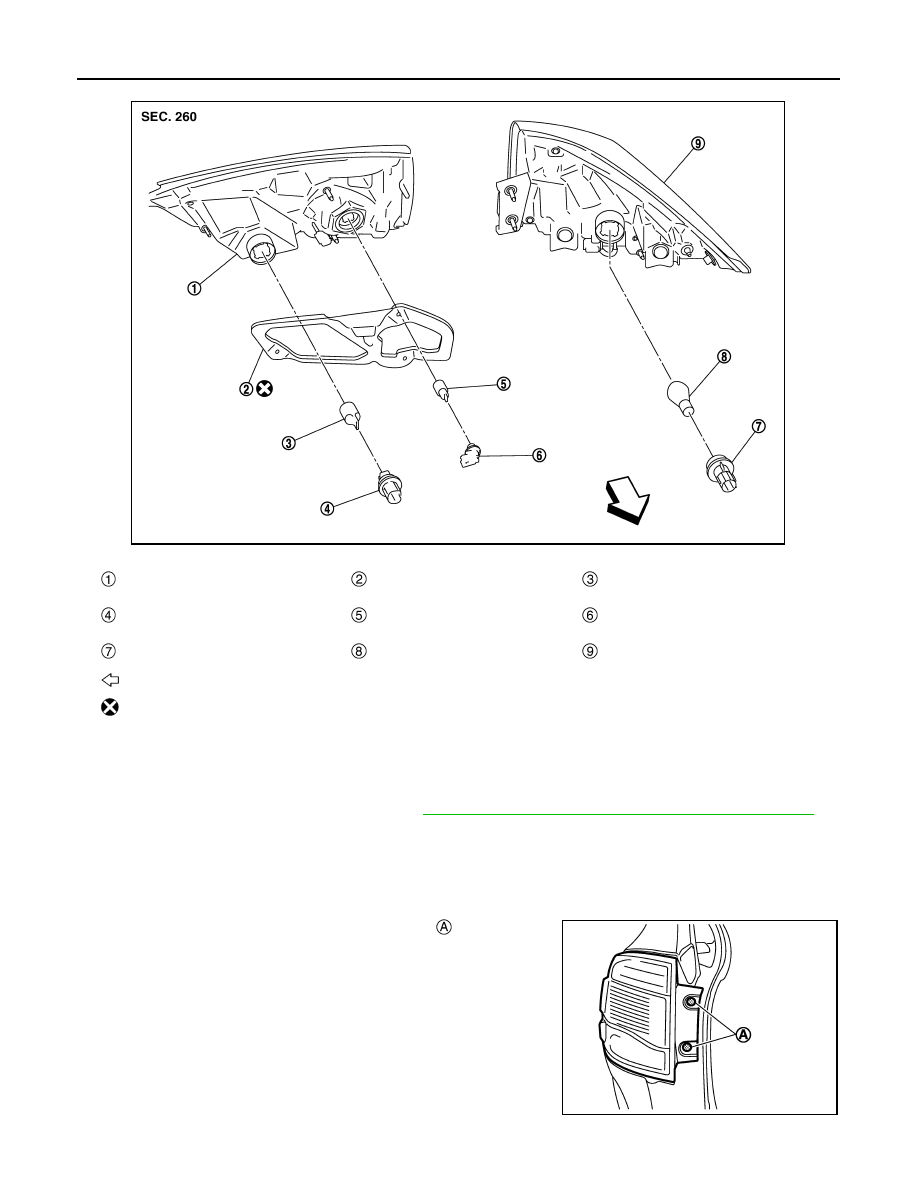

Rear combination lamp housing
(back door side)

Seal packing

Rear fog lamp bulb
 (driver side only)

Rear fog lamp bulb socket
 (driver side only)

Back-up lamp bulb

Back-up lamp bulb socket

Rear turn signal lamp bulb socket

Rear turn signal lamp bulb

Rear combination lamp housing
 (body side)

: Vehicle front

: Always replace after every disassembly

JMLIA5407ZZ

JMLIA5137ZZ

REAR COMBINATION LAMP

EXL-175

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

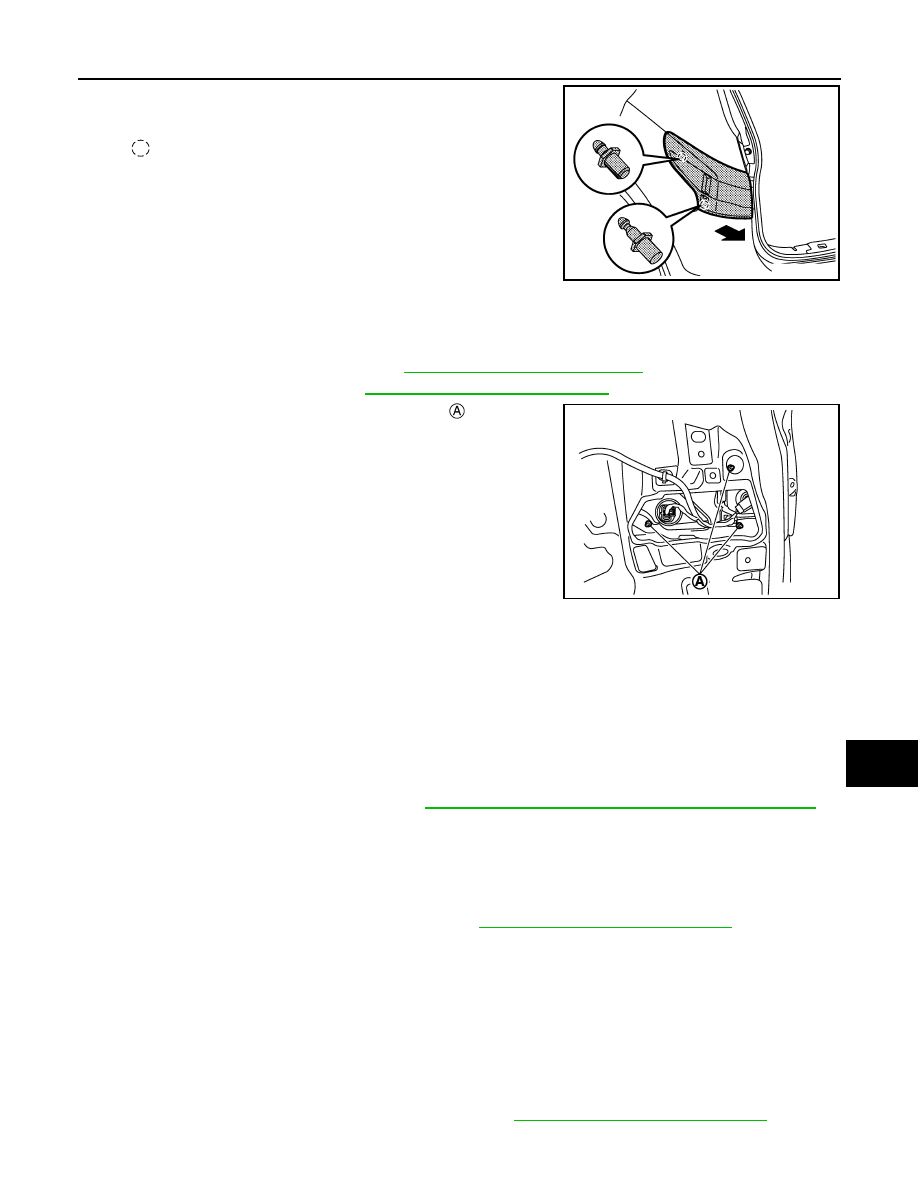

3.

Pull rear combination lamp toward vehicle rear to disengage fix-
ing clips.

4.

Disconnect rear combination lamp harness connectors, and then remove rear combination lamp from
body panel.

Rear Combination Lamp (back door side)

1.

Remove back door inner finisher. Refer to

INT-31, "Removal and Installation"

.

2.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

3.

Remove rear combination lamp mounting nuts

 and discon-

nect rear combination lamp harness connectors.

4.

Pull rear combination lamp toward vehicle rear to remove rear combination lamp from back door.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Always replace seal packing with new part after every removal.

Replacement

INFOID:0000000010338877

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

STOP/TAIL LAMP

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
rear combination lamp assembly as a set.

REAR FOG LAMP (DRIVER SIDE ONLY)

1.

Remove rear combination lamp (back door side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate rear fog lamp bulb socket counterclockwise, and then remove rear fog lamp bulb socket.

: Clip

JMLIA5138ZZ

JMLIA5139ZZ

EXL-176

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

3.

Remove rear fog lamp bulb from rear fog lamp bulb socket.

BACK-UP LAMP

1.

Remove rear combination lamp (back door side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.
