AUTO RETRACTABLE DOOR MIRROR CIRCUIT

MIR-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

Component Function Check

INFOID:0000000011405237

1.

CHECK FUNCTION

1.

Turn the door mirror open/close switch to “AUTO”.

2.

Turn ignition switch ON.

3.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

4.

Select “RETRACTABLE MIRROR” in “ACTIVE TEST” mode.

5.

Touch “On” check that it works normally.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

MIR-59, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000011405238

1.

CHECK DOOR MIRROR OPEN RELAY AND DOOR MIRROR CLOSE RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect door mirror open relay and door mirror close relay connector.

3.

Check voltage between door mirror open relay and door mirror close relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• 10 A fuse (#28)
• Harness for open or short between door mirror remote control switch harness connector and battery termi-

nal.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK BCM INPUT SIGNAL CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between door mirror open relay and door mirror close relay harness connector and BCM
harness connector.

3.

Check continuity between BCM harness connector and ground.

(+)

(

−

)

Voltage (V)

(Approx.)

Door mirror open/close relay

Connector

Terminal

M100

1

Ground

Battery voltage

M101

1

5

Door mirror open/close relay

BCM

Continuity

Connector

Terminal

Connector

Terminal

M100

2

M70

58

Existed

M101

BCM

Ground

Continuity

Connector

Terminal

M70

58

Not existed

MIR-60

< DTC/CIRCUIT DIAGNOSIS >

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connector.

4.

CHECK OPEN/CLOSE MOTOR GROUND CIRCUIT

1.

Disconnect door mirror remote control switch connector.

2.

Check continuity between door mirror remote control switch harness connector and door mirror open relay
harness connector.

3.

Check continuity between door mirror remote control switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK DOOR MIRROR OPEN RELAY

Check door mirror open relay.
Refer to

MIR-61, "Component Inspection (Door Mirror Open Relay)"

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace harness or connector.

6.

CHECK DOOR MIRROR CLOSE RELAY

Check door mirror close relay.
Refer to

MIR-61, "Component Inspection (Door Mirror Close Relay)"

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace harness or connector.

7.

CHECK BCM FUNCTION

1.

Turn the door mirror open/close switch to AUTO.

2.

Connect door mirror remote control switch connector, door mirror open relay, door mirror close relay and
BCM connector.

3.

Turn ignition switch ON.

4.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

5.

Select “RETRACTABLE MIRROR” in “ACTIVE TEST” mode.

6.

Touch “On” and check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

door mirror remote control switch

Door mirror open relay

Continuity

Connector

Terminal

Connector

Terminal

D6 (LHD models)

D36 (RHD models)

7

M100

5

Existed

door mirror remote control switch

Ground

Continuity

Connector

Terminal

D6 (LHD models)

D36 (RHD models)

7

Not existed

(+)

(

−

)

Condition

Voltage (V)

(Approx.)

BCM

Connector

Terminal

M70

58

Ground

RETRACTABLE
MIRROR

ON

0

OFF

Battery voltage

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

MIR-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

>> INSPECTION END

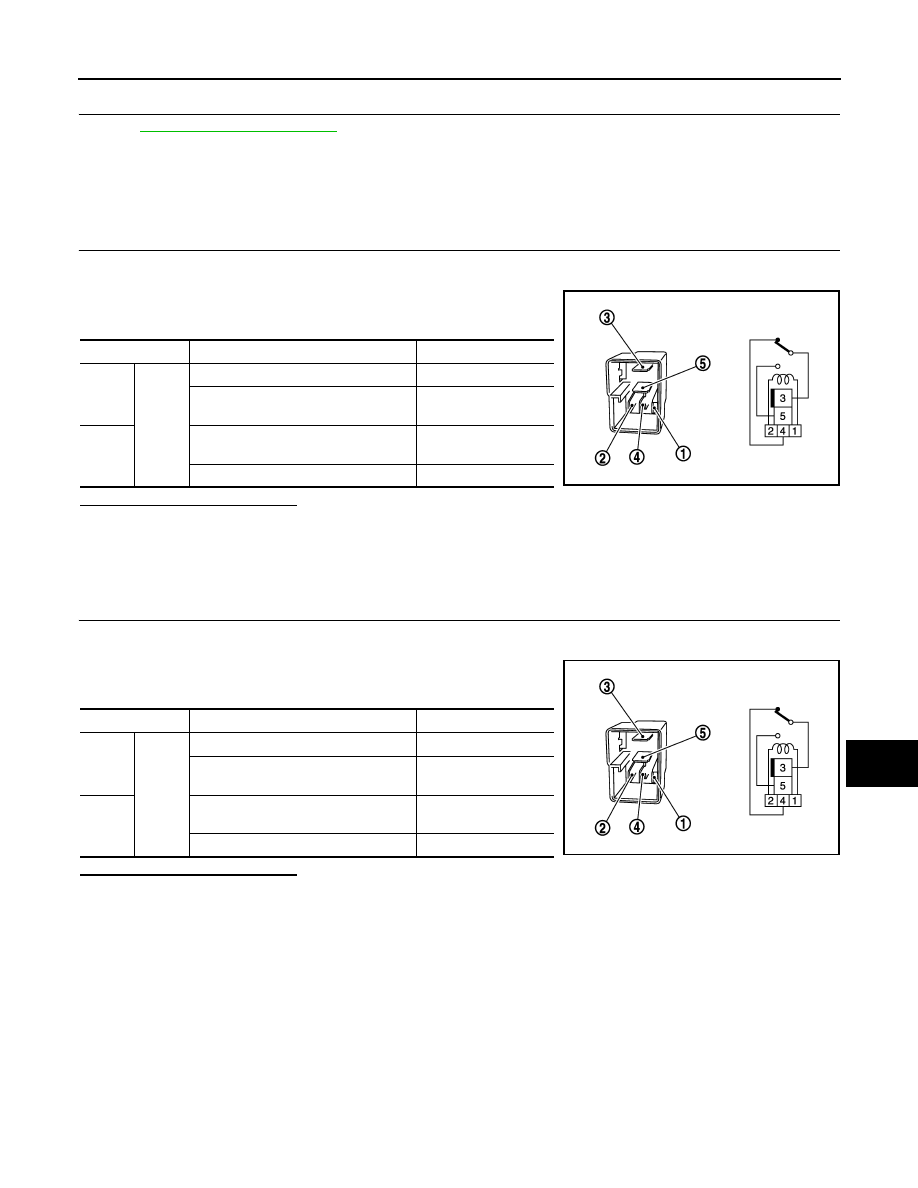

Component Inspection (Door Mirror Open Relay)

INFOID:0000000011405239

1.

CHECK DOOR MIRROR OPEN RELAY

1.

Turn ignition switch OFF.

2.

Remove door mirror open relay.

3.

Check the continuity between door mirror open relay terminals
under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror open relay.

Component Inspection (Door Mirror Close Relay)

INFOID:0000000011405240

1.

CHECK DOOR MIRROR OPEN/CLOSE RELAY

1.

Turn ignition switch OFF.

2.

Remove door mirror close relay.

3.

Check the continuity between door mirror close relay terminals
under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror close relay.

Terminal

Condition

Continuity

4

3

No current supply

Existed

12 V direct current supply between ter-
minals 1 and 2.

Not existed

5

12 V direct current supply between ter-
minals 1 and 2.

Existed

No current supply

Not existed

JMLIA0997ZZ

Terminal

Condition

Continuity

4

3

No current supply

Existed

12 V direct current supply between ter-
minals 1 and 2.

Not existed

5

12 V direct current supply between ter-
minals 1 and 2.

Existed

No current supply

Not existed

JMLIA0997ZZ

MIR-62

< SYMPTOM DIAGNOSIS >

ELECTRIC FOLDABLE DOOR MIRROR DOES NOT OPERATE

SYMPTOM DIAGNOSIS

ELECTRIC FOLDABLE DOOR MIRROR DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000011378323

1.

CHECK DOOR MIRROR (OPEN/CLOSE MOTOR) CIRCUIT

Check door mirror (open/close motor) circuit.
Refer to

MIR-54, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 1.
