Nissan Qashqai J11. Manual - part 1634

BRM-364

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

Rear Side Member Extension

INFOID:0000000010313743

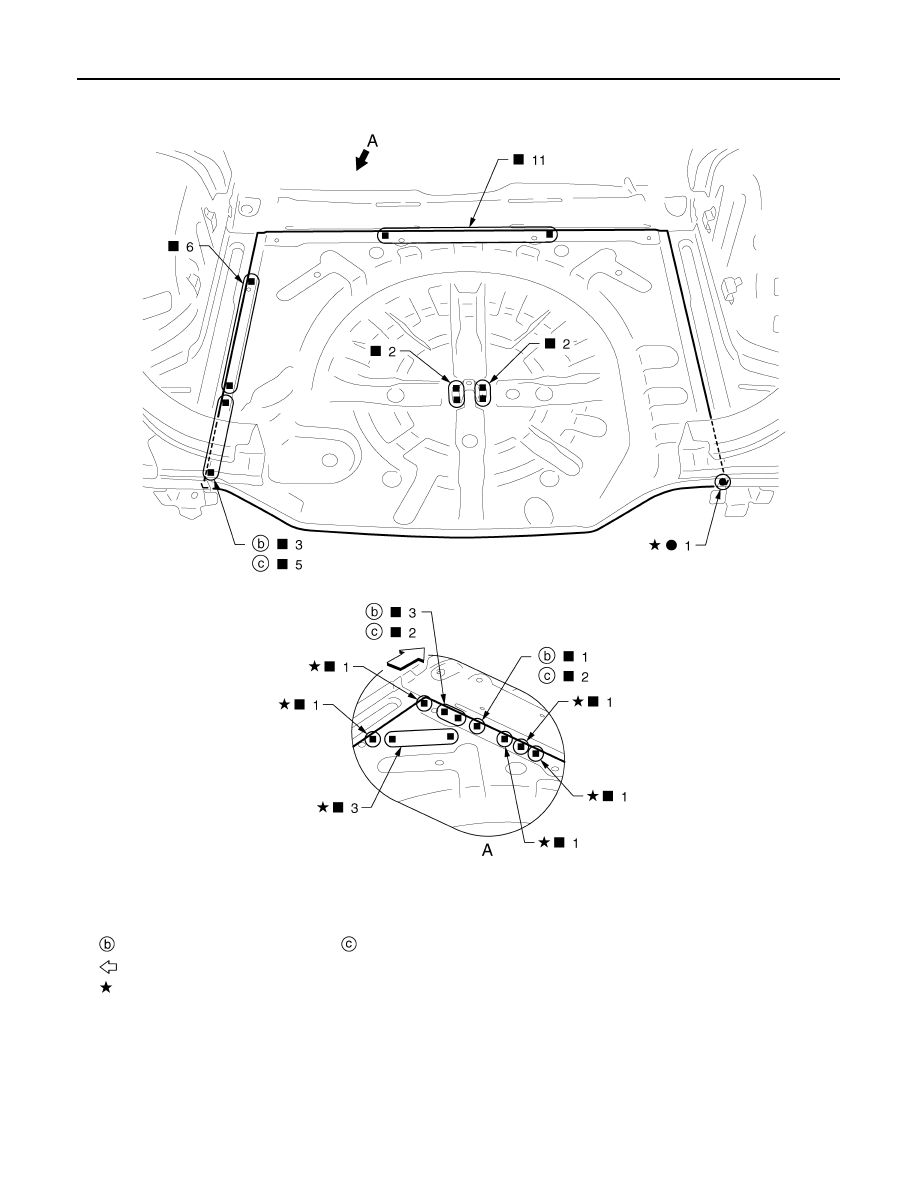

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

z

Spare wheel clamp bracket assem-
bly

JSKIA4030ZZ

REPLACEMENT OPERATIONS

BRM-365

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

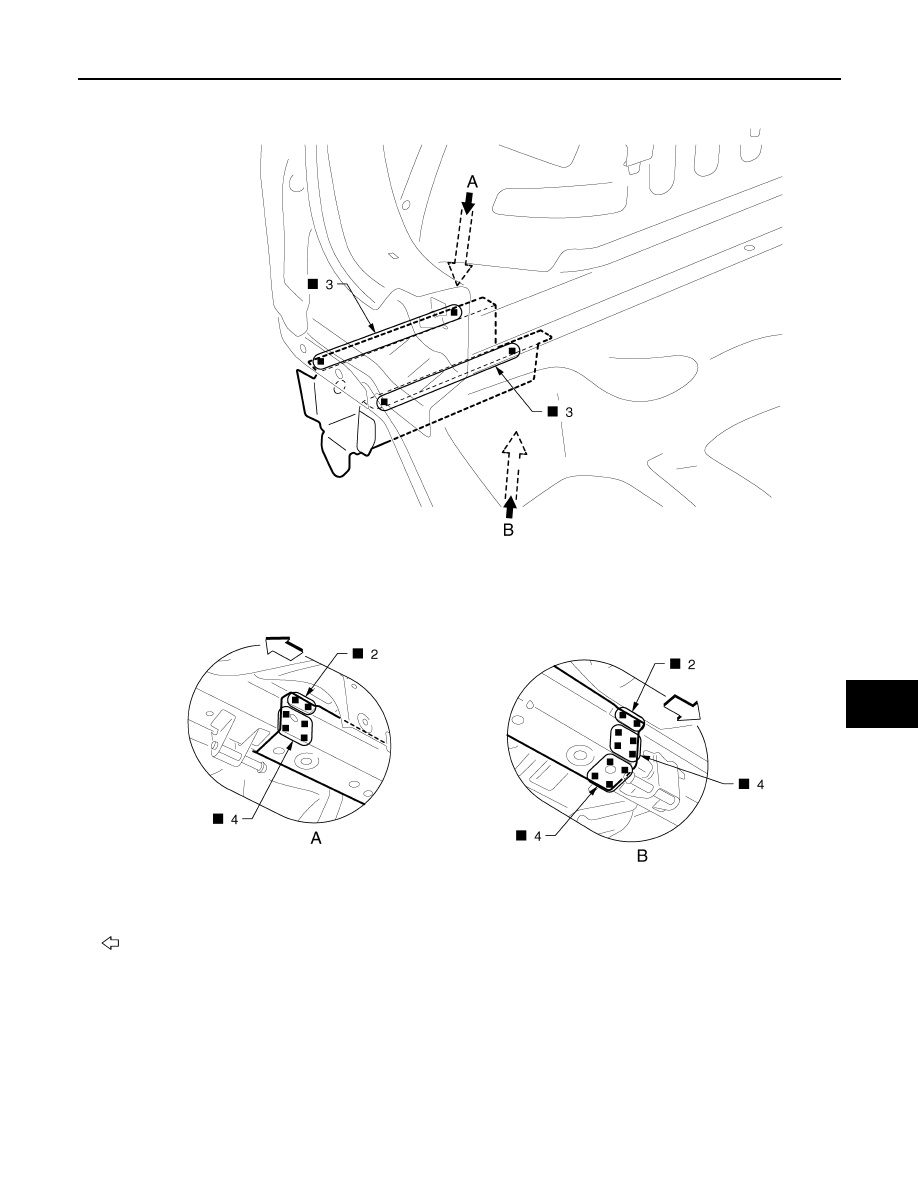

: Vehicle front

Replacement part

z

Rear side member extension assem-
bly

JSKIA4031ZZ

BRM-366

< SERVICE DATA AND SPECIFICATIONS (SDS)

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

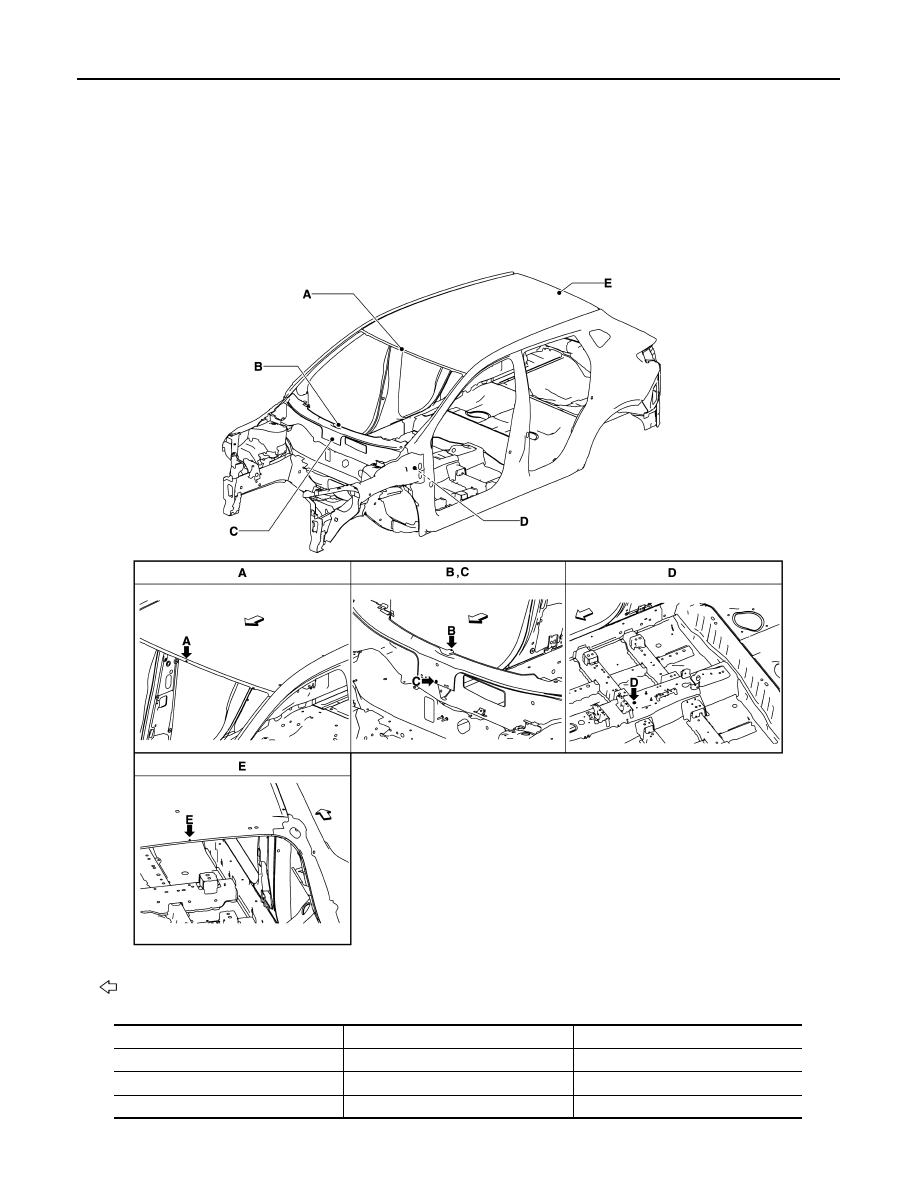

Body Center Marks

INFOID:0000000010499741

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA3903ZZ

BODY ALIGNMENT

BRM-367

< SERVICE DATA AND SPECIFICATIONS (SDS)

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000010499743

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

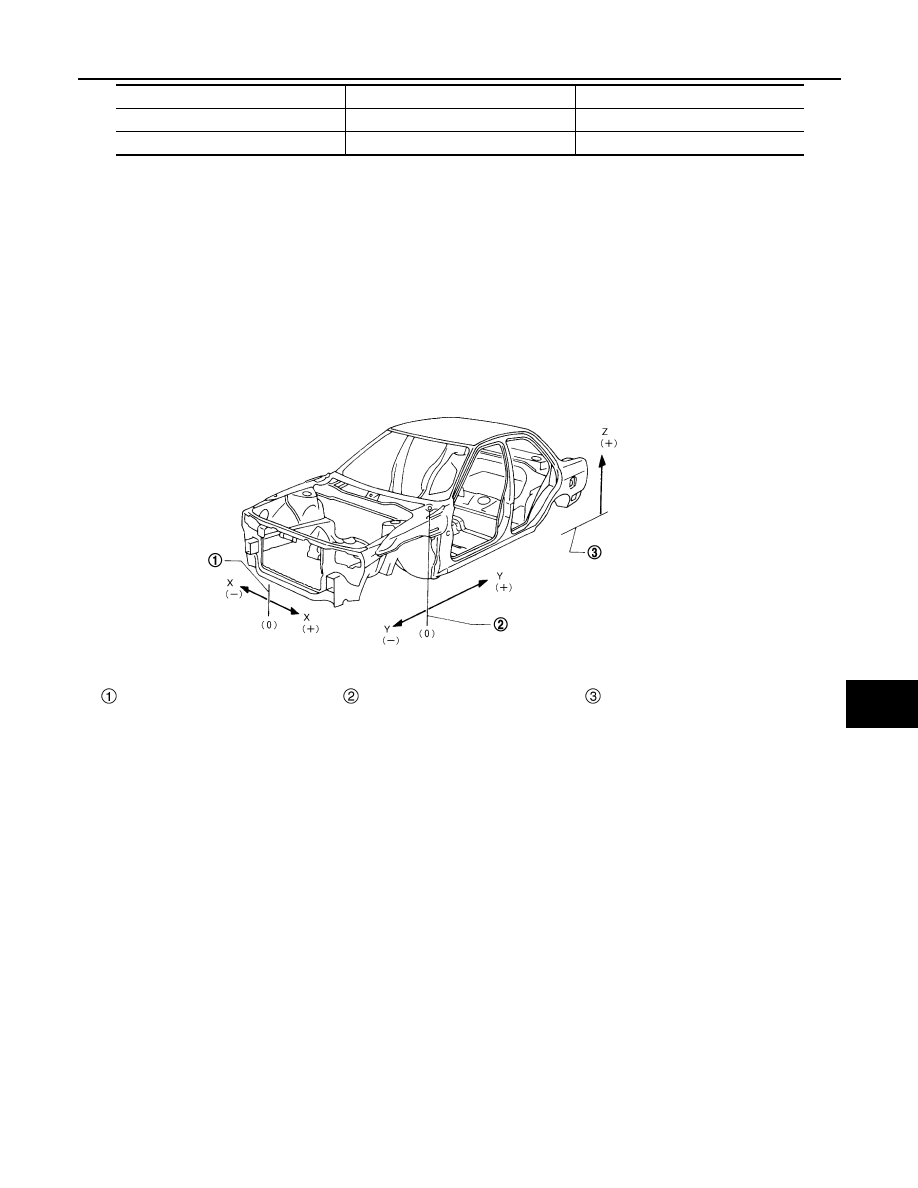

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment (R9M Engine Models)

INFOID:0000000010499744

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

D

Trans control reinforcement

Hole 12

×

14 (0.47

×

0.55)

E

Rear roof

Embossment

Points

Portion

Marks

Vehicle center

Front axle center

Imaginary base line

JSKIA0073GB
