Nissan Qashqai J11. Manual - part 1633

BRM-360

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

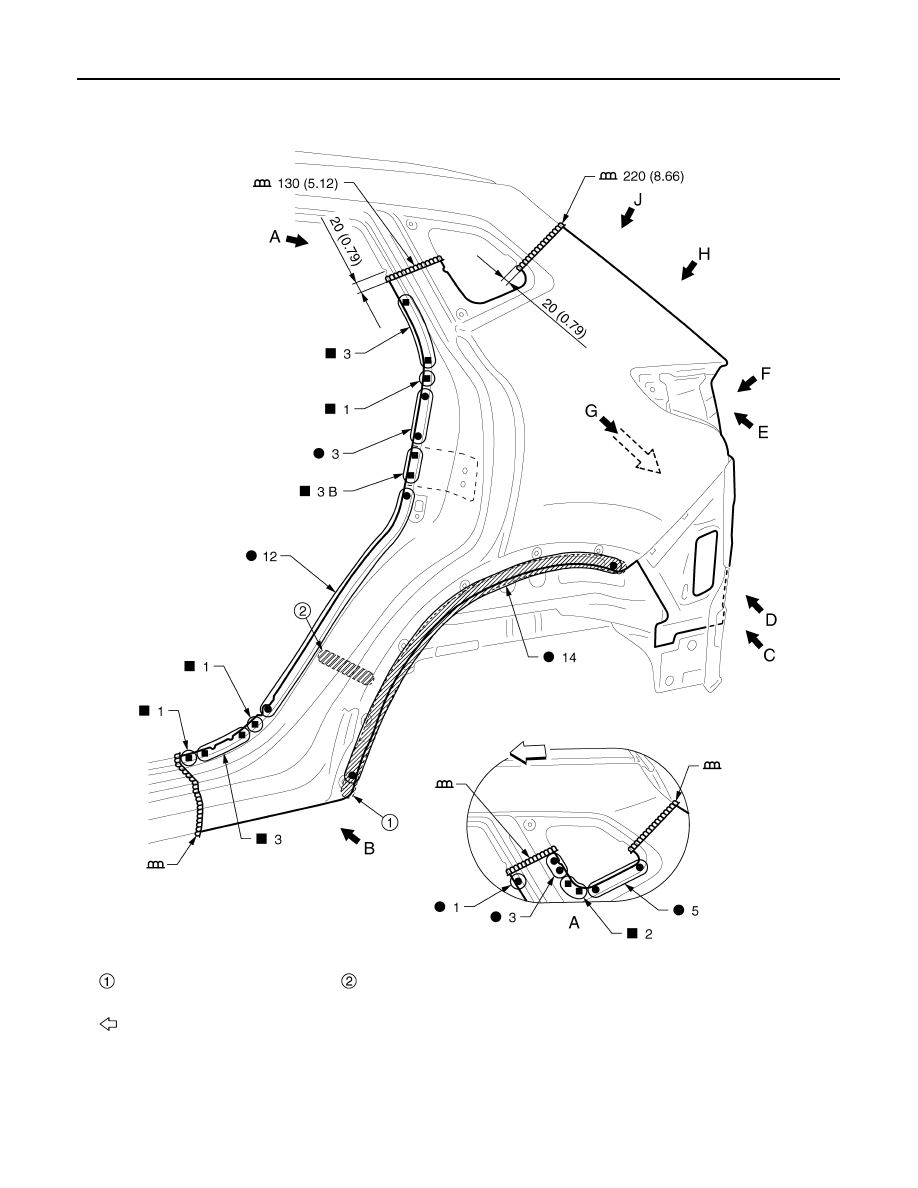

Rear Fender

INFOID:0000000010313735

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender assembly

z

Rear fender extension complete

z

Striker retainer assembly

JSKIA4020GB

REPLACEMENT OPERATIONS

BRM-361

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4021GB

BRM-362

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

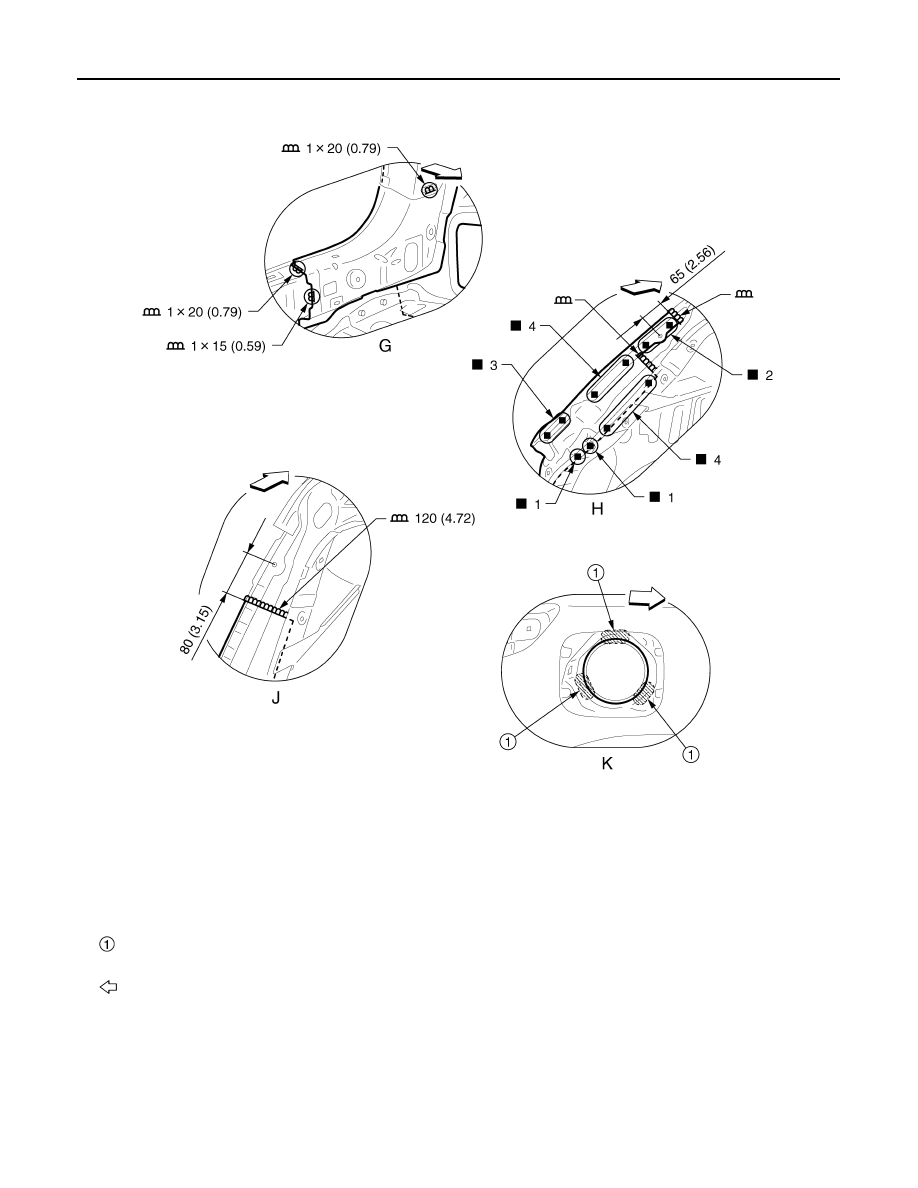

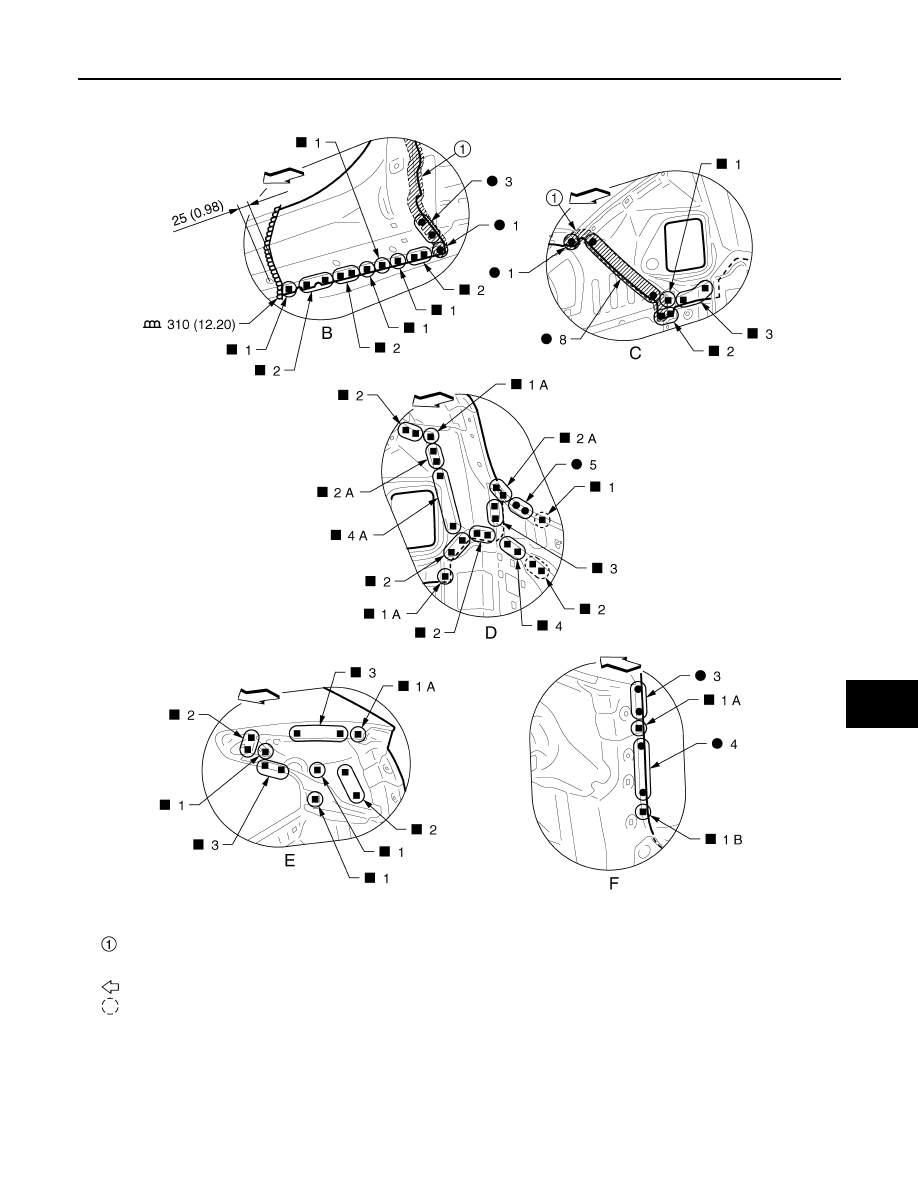

View J: Before installing rear fender assembly
View G: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA4022GB

REPLACEMENT OPERATIONS

BRM-363

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

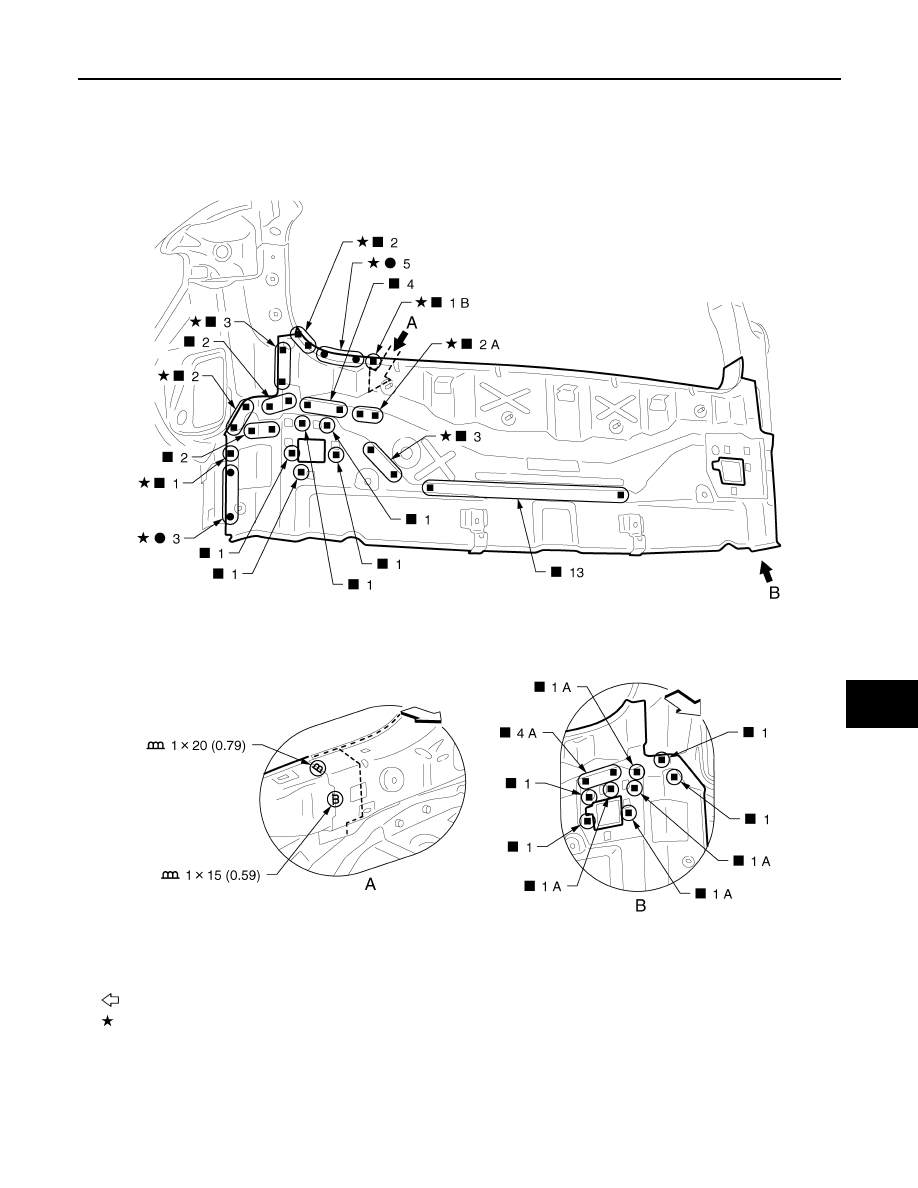

Rear Panel

INFOID:0000000010313741

Rear Floor Rear

INFOID:0000000010313742

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Upper rear panel assembly

JSKIA4029GB
