Nissan Qashqai J11. Manual - part 1632

BRM-356

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

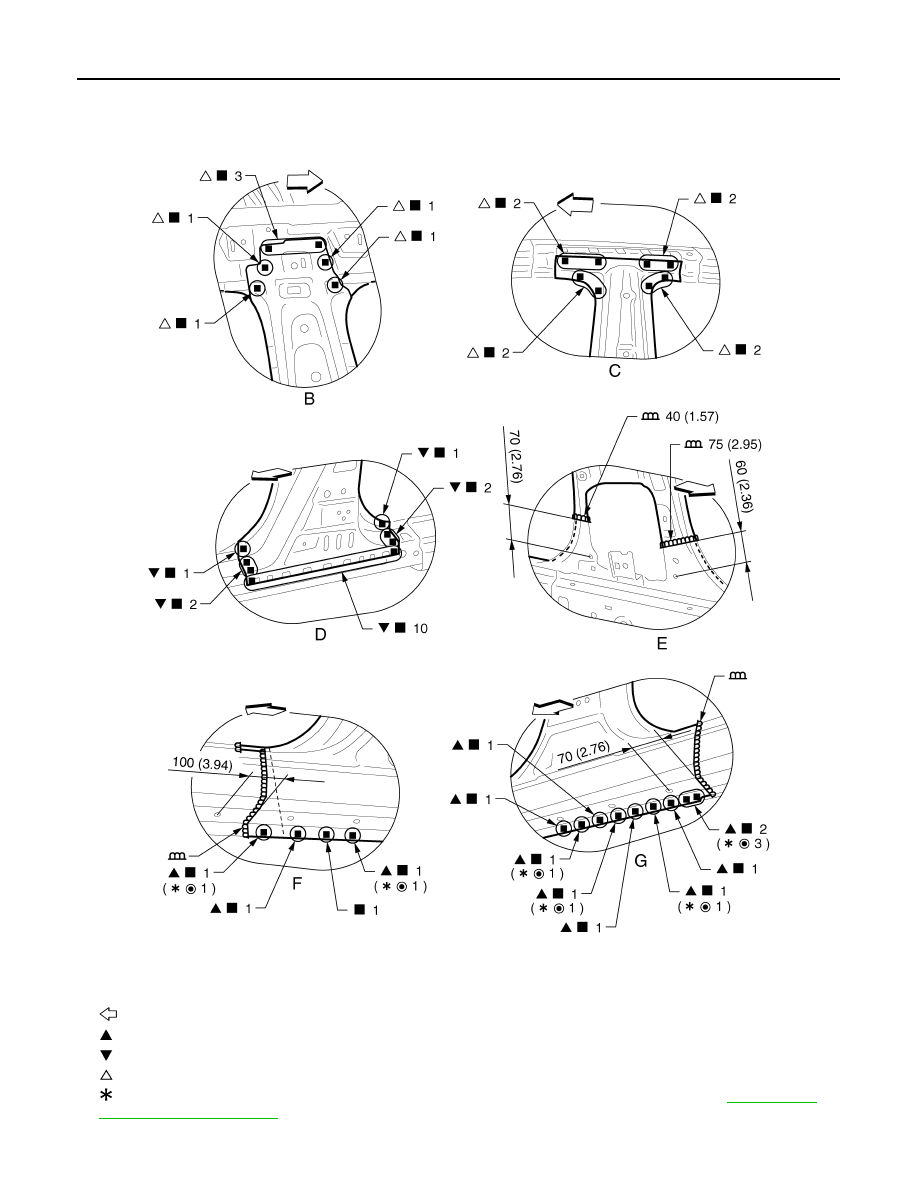

Replacement part

z

Outer front side body

z

Center pillar hinge brace assembly

z

Inner center pillar assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4013GB

REPLACEMENT OPERATIONS

BRM-357

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

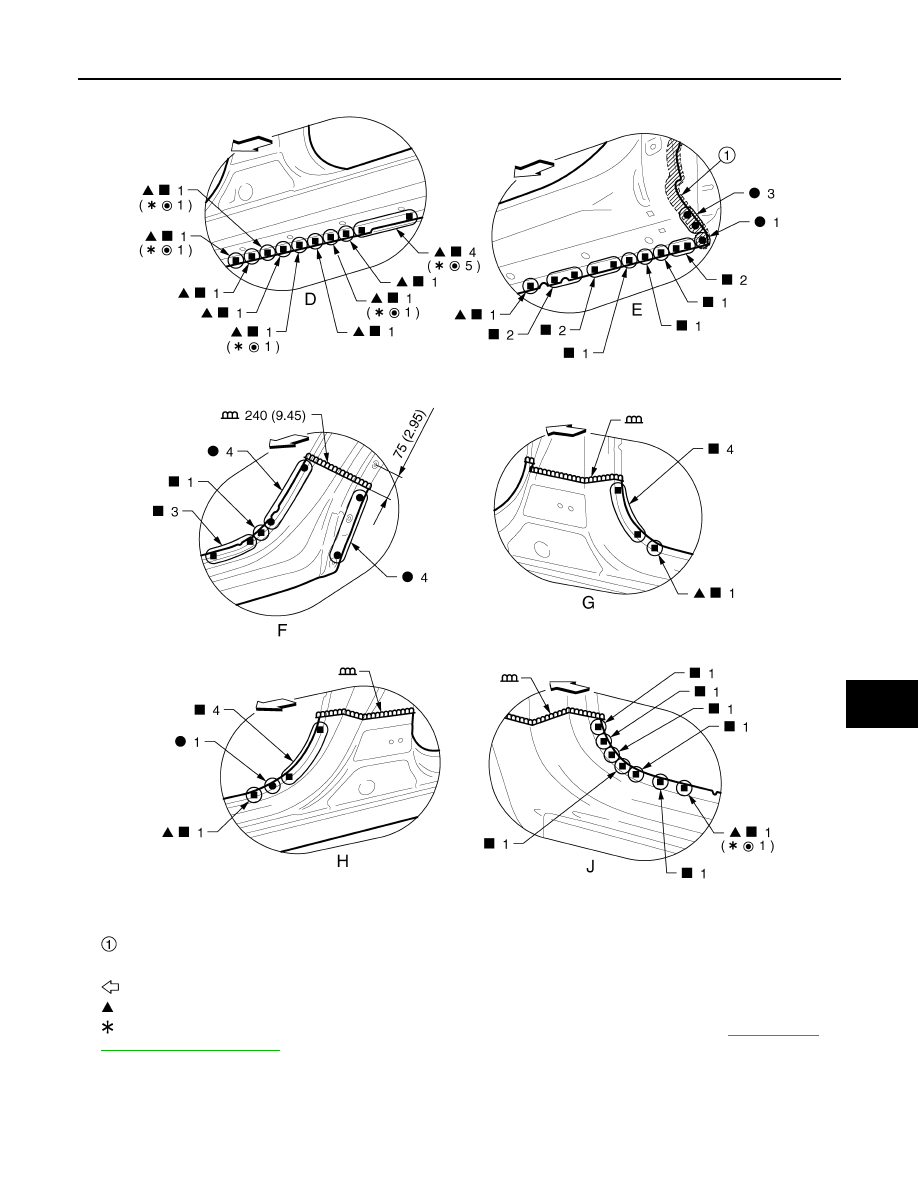

View C and D: Before installing outer front side body

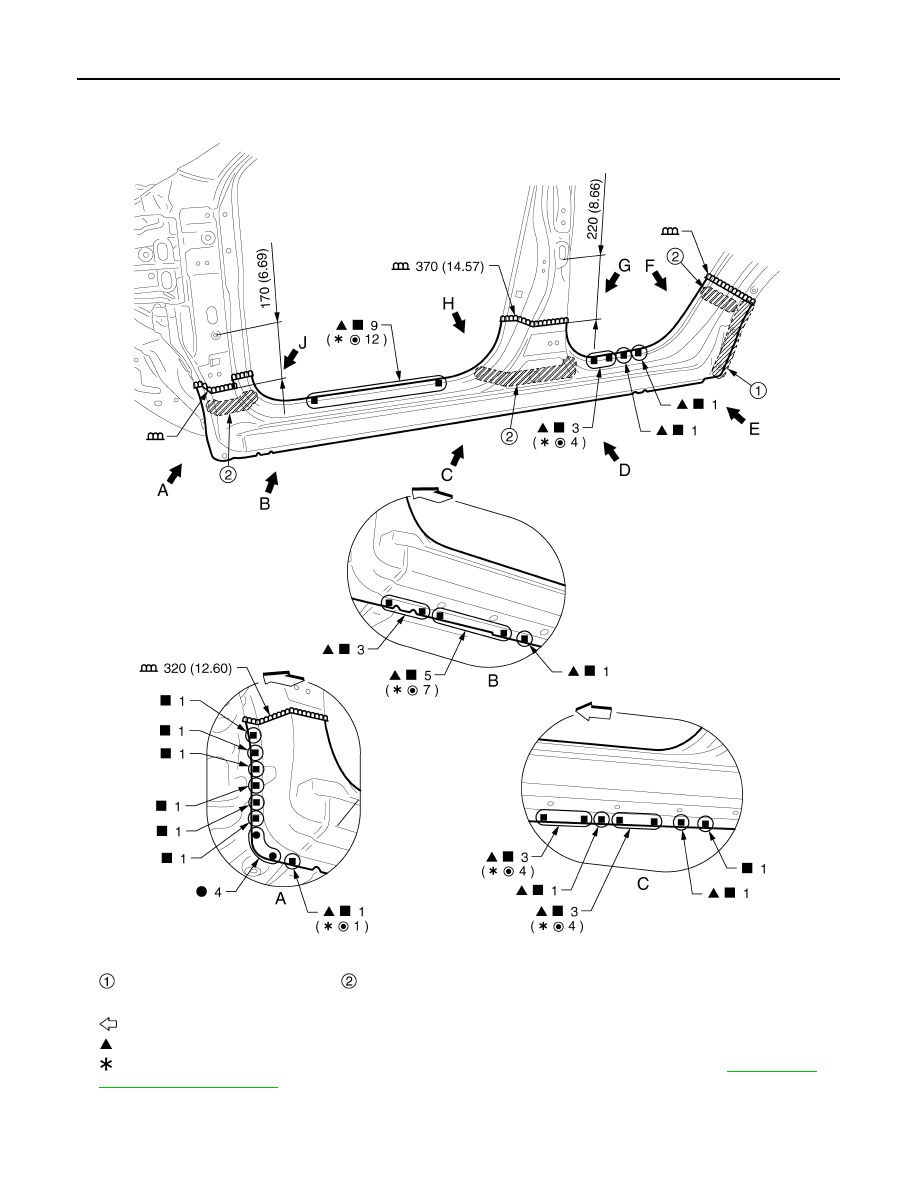

Outer Sill (Partial Replacement)

INFOID:0000000010313731

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4014GB

BRM-358

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

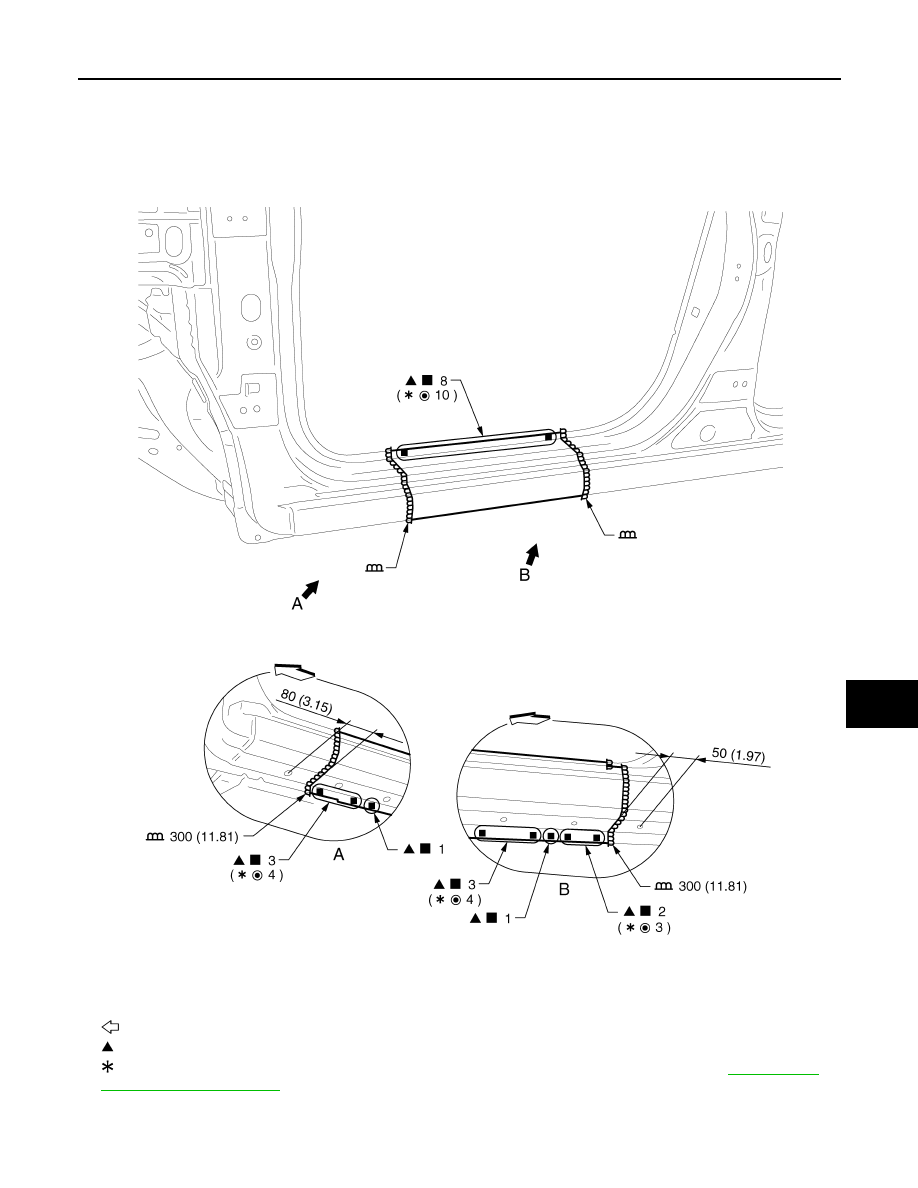

Outer Sill

INFOID:0000000010313732

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4015GB

REPLACEMENT OPERATIONS

BRM-359

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4016GB
