Nissan Qashqai J11. Manual - part 1630





BRM-348

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

View B: Before installing front suspension mounting rear bracket assembly

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member assembly

z

Side member closing plate assembly

z

Front suspension mounting rear
bracket assembly

JSKIA4005ZZ

REPLACEMENT OPERATIONS

BRM-349

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

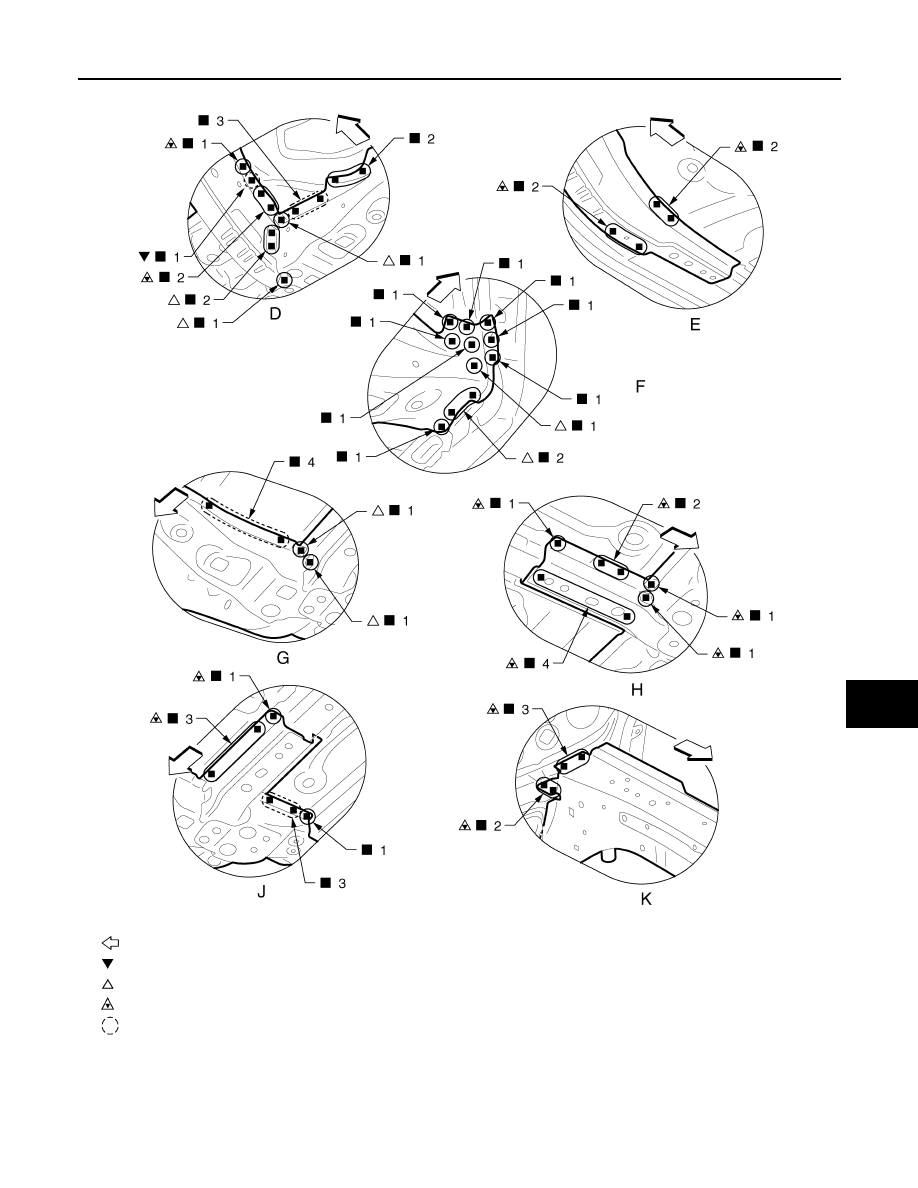

View E: Before installing front suspension mounting rear bracket assembly

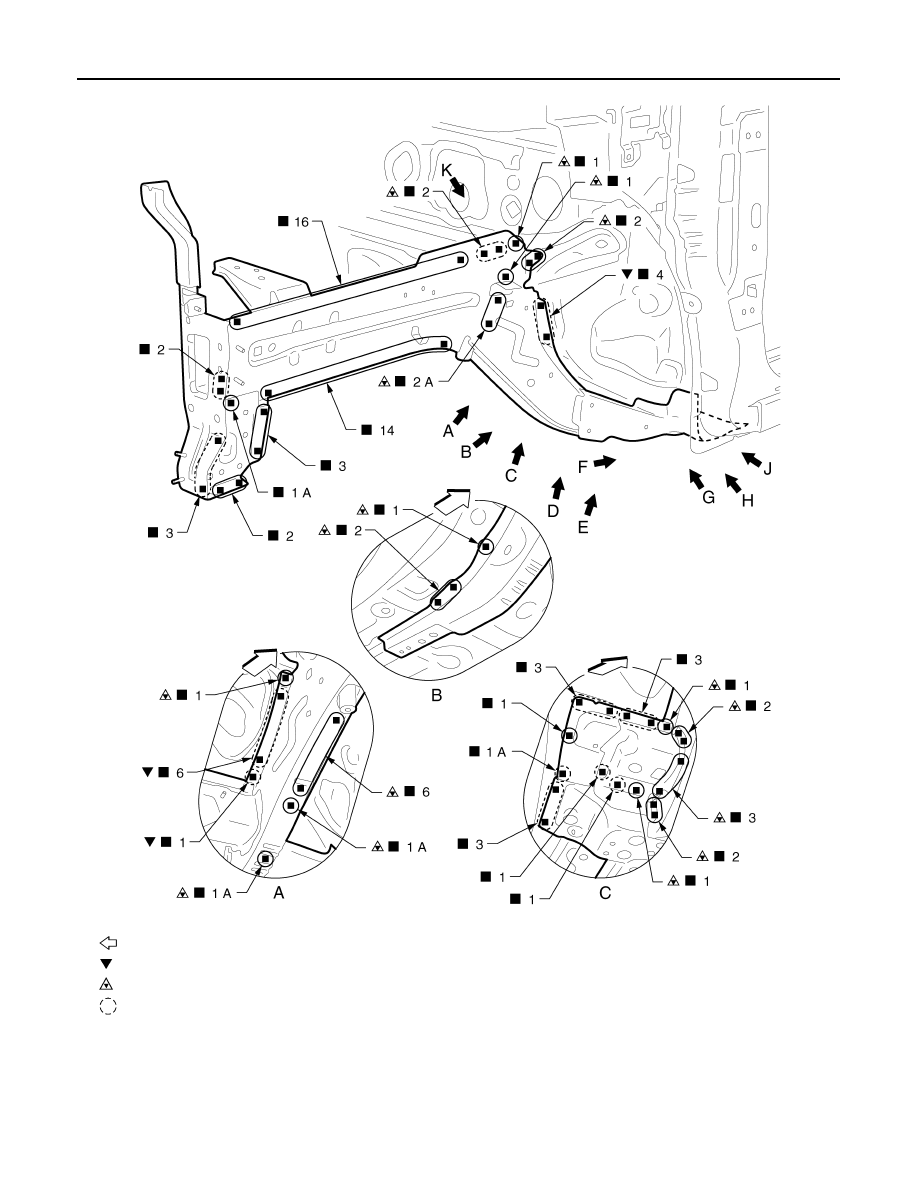

Front Side Member (Partial Replacement)

INFOID:0000000010313728

Work after side radiator core support is removed.

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

JSKIA4006ZZ

B

R

M

- 3

5

0

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

POINT

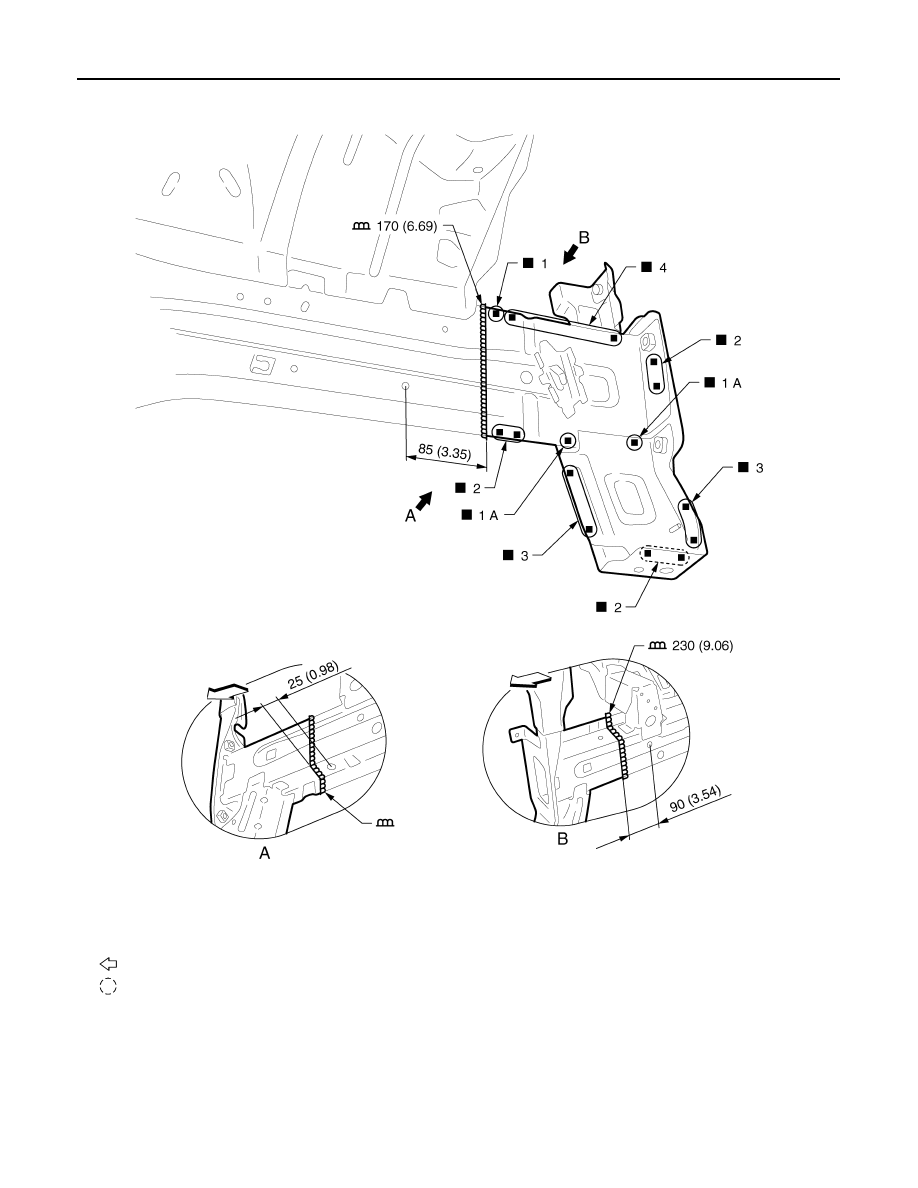

The front side member on the left can also be replaced partially by cutting at the position shown in the figure.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member assembly (RH)

z

Side member closing plate assembly
(RH)

JSKIA4007GB

REPLACEMENT OPERATIONS

BRM-351

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

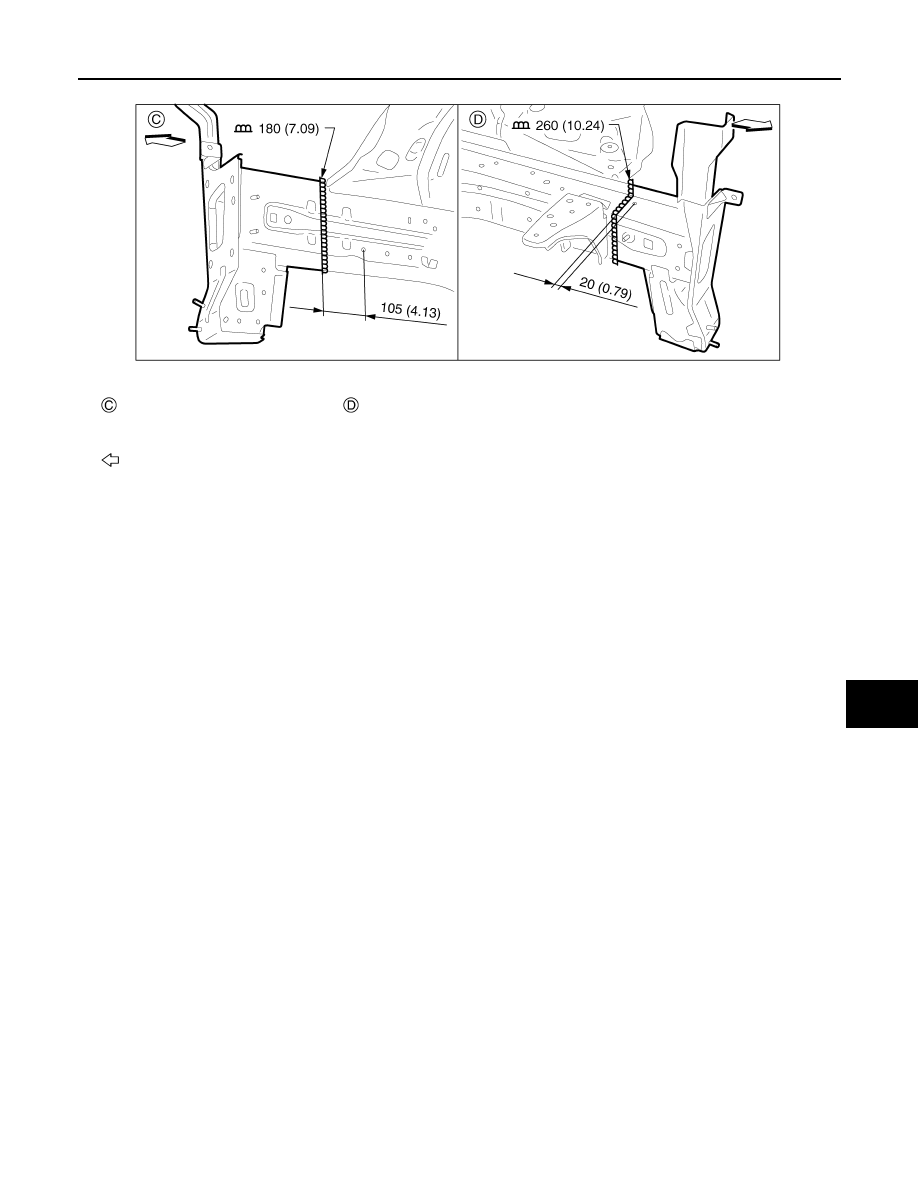

Front Pillar

INFOID:0000000010313729

Work after hoodledge reinforcement assembly is removed.

Side member closing plate assembly
cutting position (LH)

Front side member assembly cutting
position (LH)

Unit: mm (in)

: Vehicle front

Replacement part

z

Front side member assembly (LH)

z

Side member closing plate assembly
(LH)

JSKIA4008GB
