[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

: Vehicle front

Replacement part

z

Front strut housing assembly

z

Hoodledge reinforcement assembly

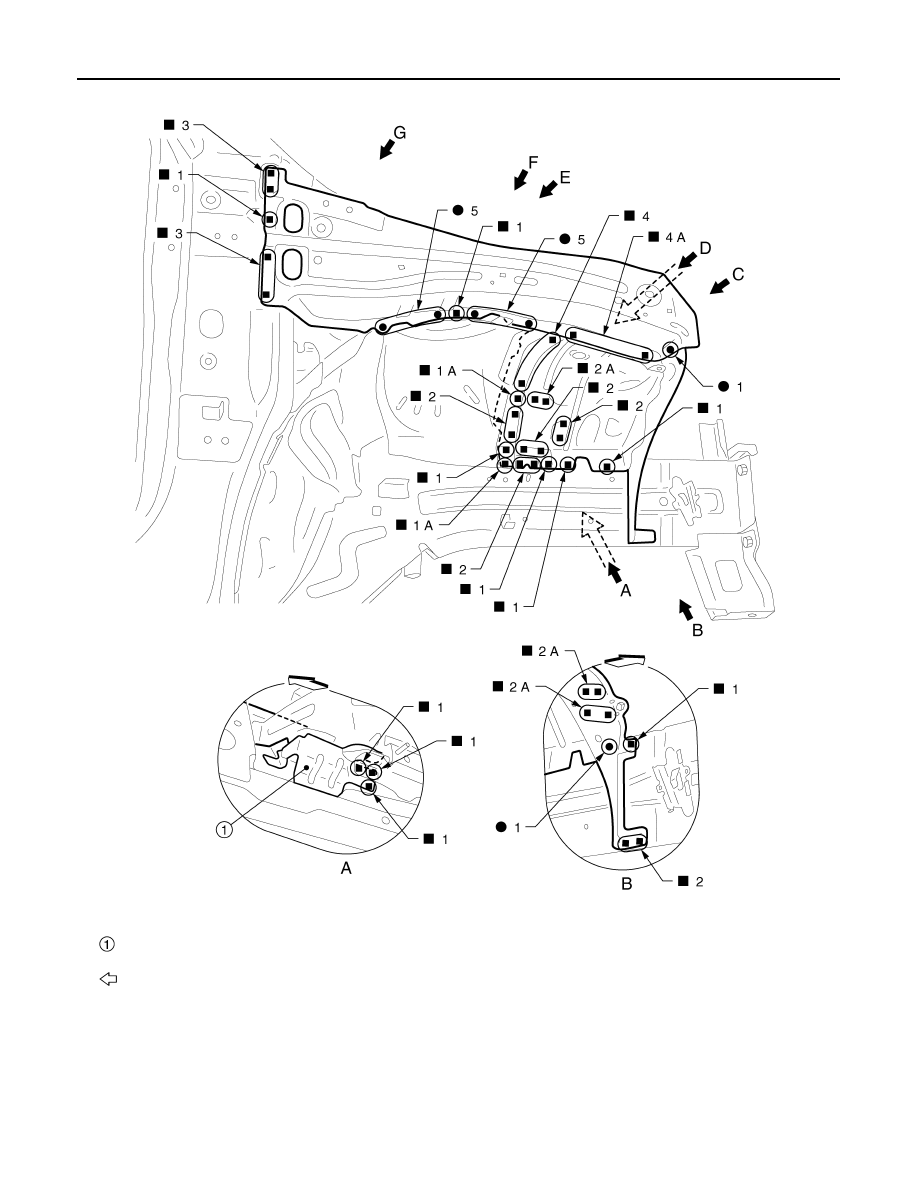

JSKIA4001ZZ

REPLACEMENT OPERATIONS

BRM-345

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

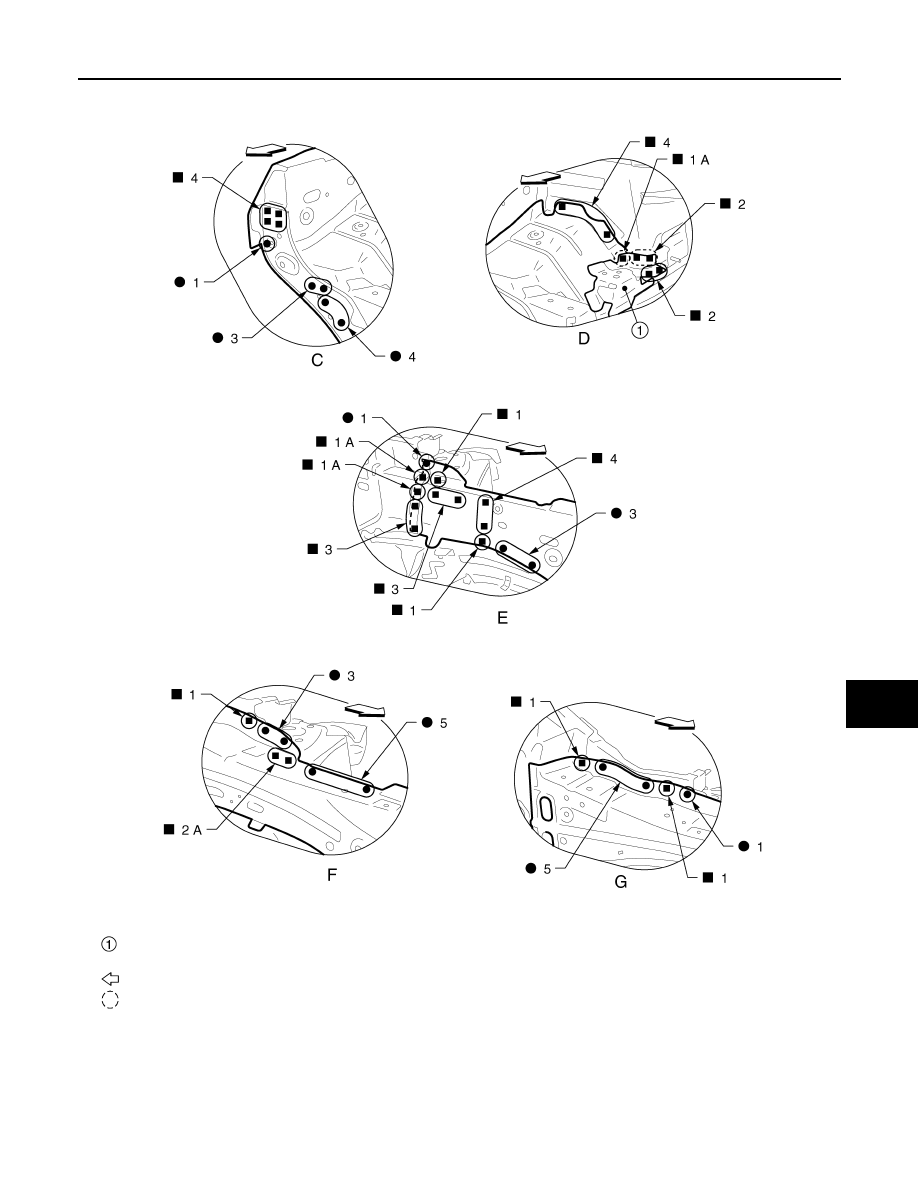

View F: Before installing hoodledge reinforcement assembly

Hoodledge (Partial Replacement)

INFOID:0000000010313726

Work after radiator core support is removed.
Remove the engine mounting bracket reinforcement (reusable) for easier installation.

: Vehicle front

JSKIA4002ZZ

BRM-346

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

REPLACEMENT OPERATIONS

Engine mounting bracket reinforce-
ment (reusable)

: Vehicle front

Replacement part

z

Hoodledge reinforcement assembly

z

Upper hoodledge assembly

z

Lower front hoodledge

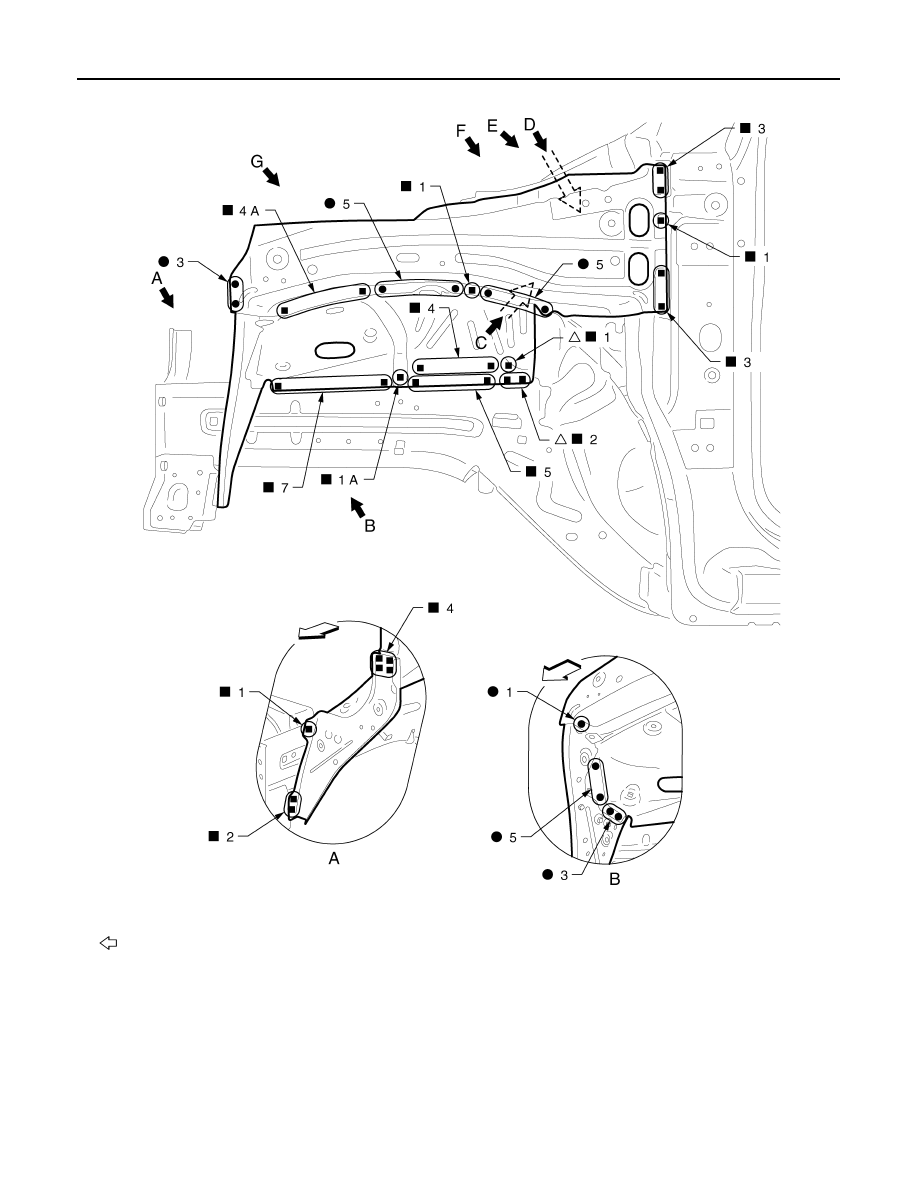

JSKIA4003ZZ

REPLACEMENT OPERATIONS

BRM-347

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

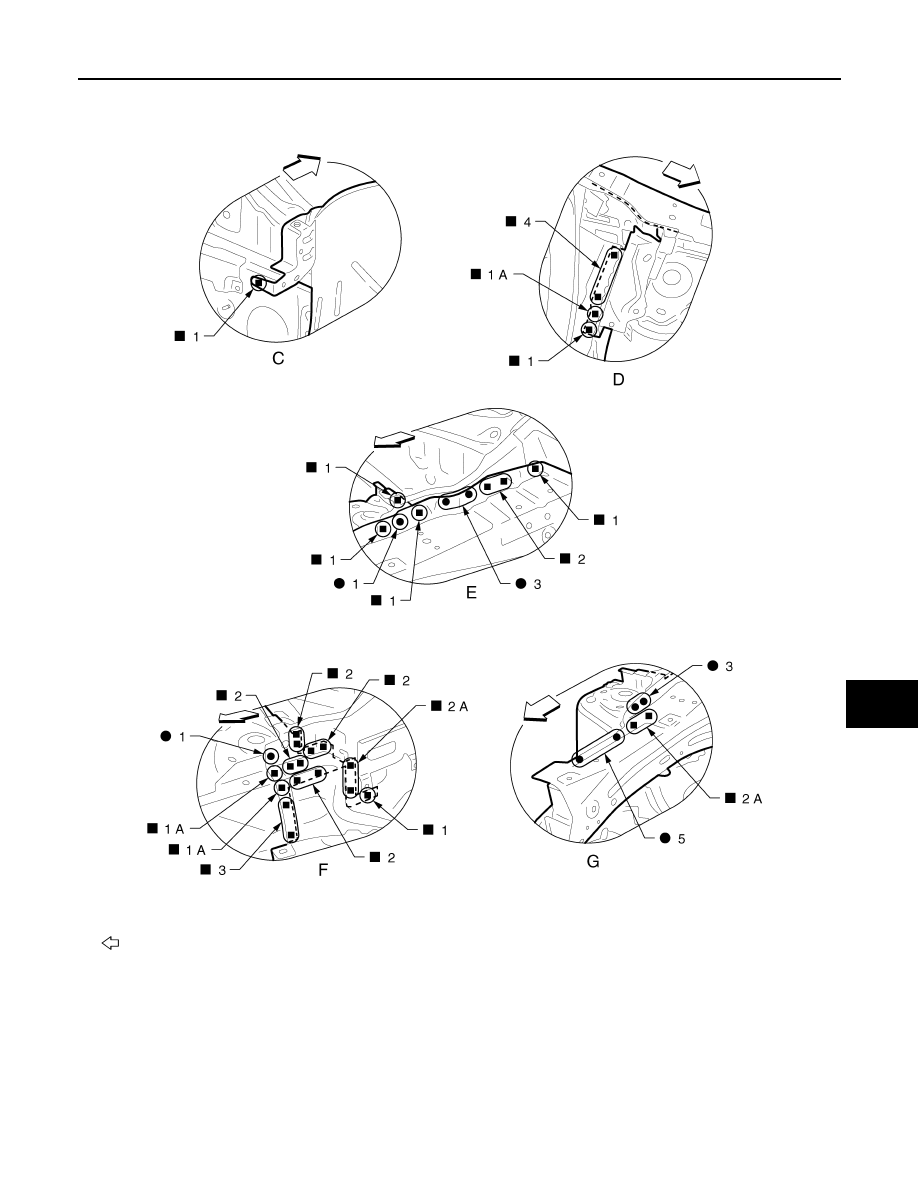

View E: Before installing hoodledge reinforcement assembly

Front Side Member

INFOID:0000000010313727

Work after radiator core support and hoodledge are removed.

Engine mounting bracket reinforce-
ment (reusable)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4004ZZ
