CORROSION PROTECTION

Left side

Right side

: Vehicle front

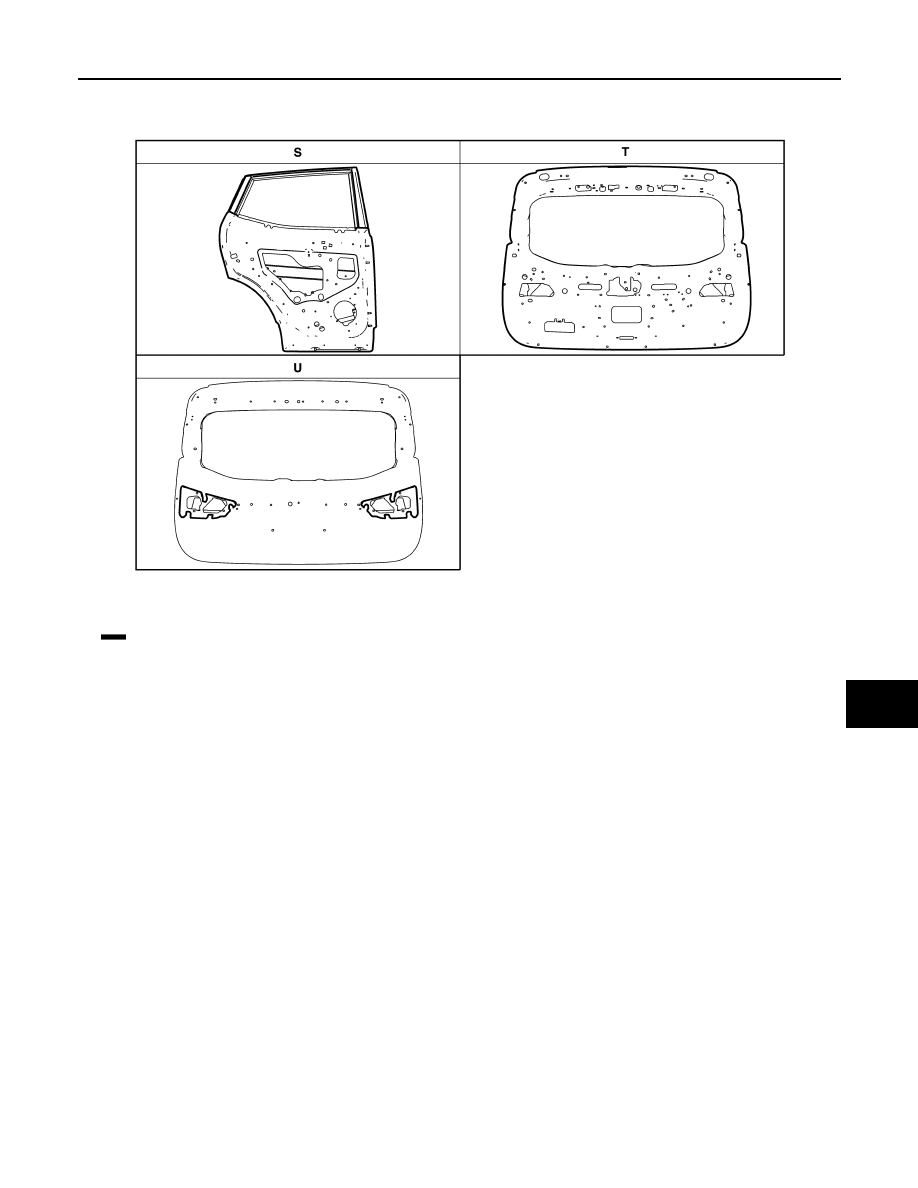

: Sealed portions

JSKIA3990ZZ

CORROSION PROTECTION

BRM-337

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

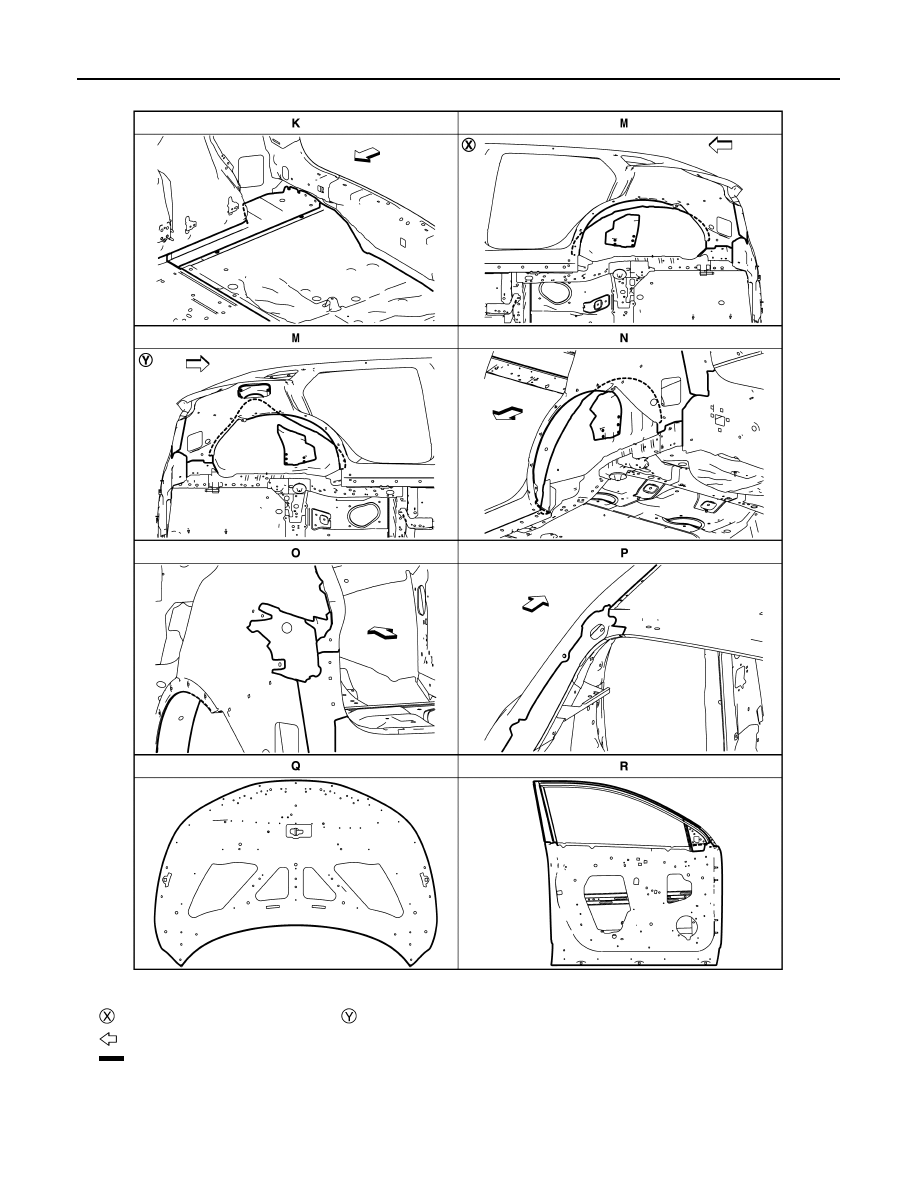

: Sealed portions

JSKIA3991ZZ

BRM-338

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

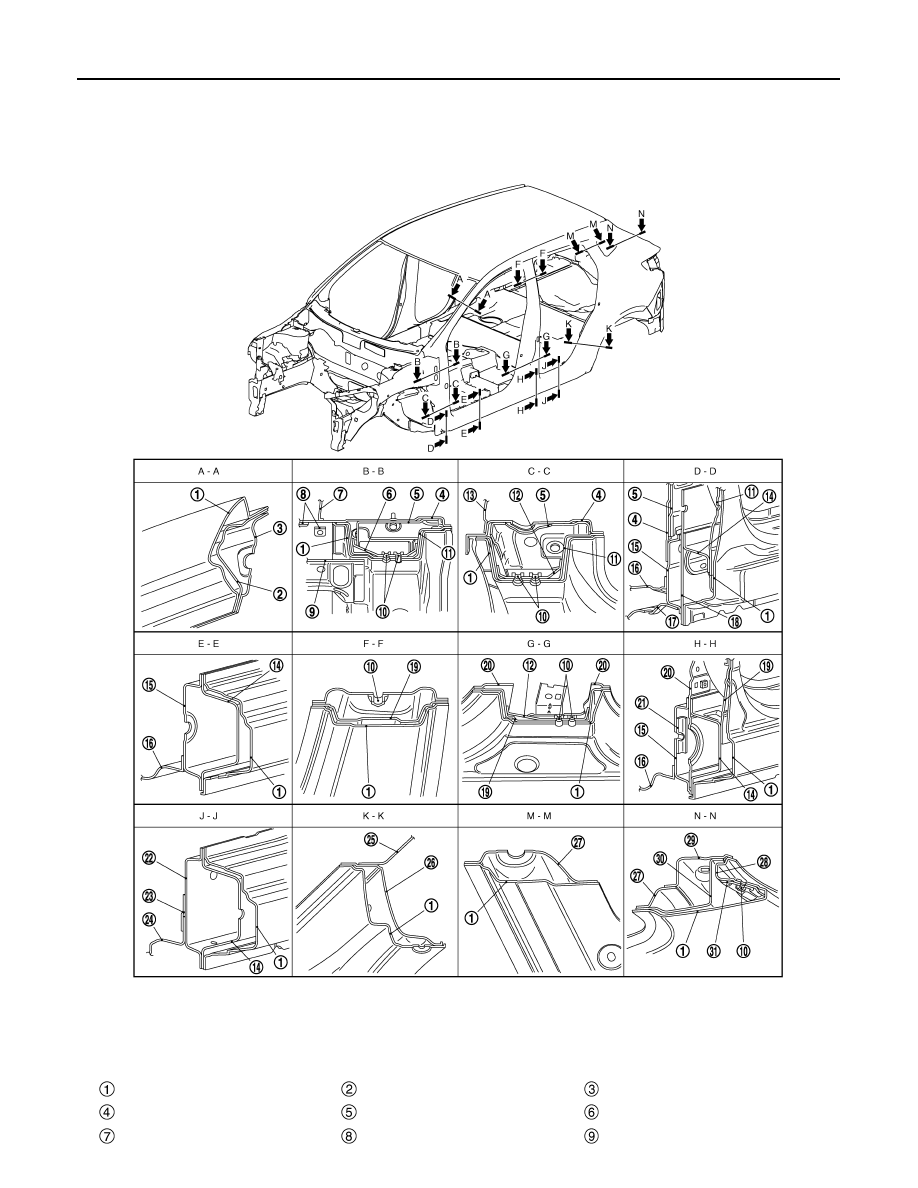

BODY CONSTRUCTION

BODY CONSTRUCTION

Body Construction

INFOID:0000000010499739

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Inner front pillar reinforcement

Upper hinge plate

Upper dash

Side dash reinforcement

Hoodledge reinforcement

JSKIA3902ZZ

BODY CONSTRUCTION

BRM-339

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Weld nut

Lower front pillar hinge brace

Lower hinge plate

Lower dash

Outer sill reinforcement

Inner sill

Front floor

Front side member outrigger

Lower front pillar reinforcement

Center pillar hinge brace

Inner center pillar

Weld plate

Inner sill extension

Rear seat crossmember

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear pillar

Rear fender extension

Rear roof rail brace

Upper back pillar reinforcement

Back door stay reinforcement
