Nissan Qashqai J11. Manual - part 1544





BRM-4

Body Exterior Paint Color ....................................

314

PRECAUTION ............................................

315

PRECAUTIONS  ...............................................

315

Precautions for Removing Battery Terminal  ..........

315

REPAIRING HIGH STRENGTH STEEL  ..........

317

High Strength Steel (HSS) .....................................

317

PREPARATION ..........................................

321

REPAIRING MATERIAL  ..................................

321

Foam Repair  ..........................................................

321

BODY COMPONENT PARTS  .........................

323

Ultra High Strength Steel Part  ...............................

323

Underbody Component Parts  ................................

323

Body Component Parts  .........................................

326

REMOVAL AND INSTALLATION ..............

330

CORROSION PROTECTION ...........................

330

Description .............................................................

330

Anti-corrosive Wax  ................................................

330

Undercoating .........................................................

331

Stone Guard Coat ..................................................

332

Body Sealing  .........................................................

333

BODY CONSTRUCTION  .................................

338

Body Construction  .................................................

338

REPLACEMENT OPERATIONS  .....................

340

Description .............................................................

340

Welding of Ultra High Strength Steel  .....................

341

Radiator Core Support ...........................................

343

Hoodledge .............................................................

343

Hoodledge (Partial Replacement)  .........................

345

Front Side Member  ................................................

347

Front Side Member (Partial Replacement) .........

349

Front Pillar  .............................................................

351

Center Pillar  ...........................................................

355

Outer Sill (Partial Replacement) ............................

357

Outer Sill ...............................................................

358

Rear Fender  ..........................................................

360

Rear Panel ............................................................

363

Rear Floor Rear ...................................................

363

Rear Side Member Extension ................................

364

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

366

BODY ALIGNMENT .........................................

366

Body Center Marks  ................................................

366

Description .............................................................

367

Engine Compartment (R9M Engine Models)  .........

367

Engine Compartment (Except for R9M Engine
Models) ..................................................................

370

Underbody .............................................................

373

Passenger Compartment .......................................

375

Rear Body .............................................................

378

LOCATION OF PLASTIC PARTS  ....................

380

Precautions for Plastics  ........................................

380

Location of Plastic Parts  .......................................

381

EXCEPT FOR EUROPE AND RUSSIA (RHD)

VEHICLE INFORMATION .........................

383

BODY EXTERIOR PAINT COLOR ...................

383

Body Exterior Paint Color ...................................

383

PRECAUTION ...........................................

384

PRECAUTIONS  ................................................

384

Precautions for Removing Battery Terminal  .........

384

REPAIRING HIGH STRENGTH STEEL  ...........

386

High Strength Steel (HSS)  ....................................

386

PREPARATION .........................................

390

REPAIRING MATERIAL ...................................

390

Foam Repair  .........................................................

390

BODY COMPONENT PARTS  ..........................

392

Ultra High Strength Steel Part ...............................

392

Underbody Component Parts  ...............................

392

Body Component Parts .........................................

395

REMOVAL AND INSTALLATION .............

399

CORROSION PROTECTION  ...........................

399

Description ............................................................

399

Anti-corrosive Wax ................................................

399

Undercoating .........................................................

400

Stone Guard Coat  .................................................

401

Body Sealing .........................................................

402

BODY CONSTRUCTION  ..................................

407

Body Construction .................................................

407

REPLACEMENT OPERATIONS  ......................

409

Description ............................................................

409

Welding of Ultra High Strength Steel  ....................

410

Radiator Core Support  ..........................................

412

Hoodledge .............................................................

412

Hoodledge (Partial Replacement) .........................

414

Front Side Member  ...............................................

416

Front Side Member (Partial Replacement) ........

418

Front Pillar .............................................................

420

Center Pillar  ..........................................................

424

Outer Sill (Partial Replacement)  ...........................

426

Outer Sill ..............................................................

427

Rear Fender ..........................................................

429

Rear Panel ...........................................................

432

Rear Floor Rear ...................................................

432

Rear Side Member Extension  ...............................

433

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

435

BODY ALIGNMENT  .........................................

435

BRM-6

< VEHICLE INFORMATION >

[FOR EUROPE (LHD)]

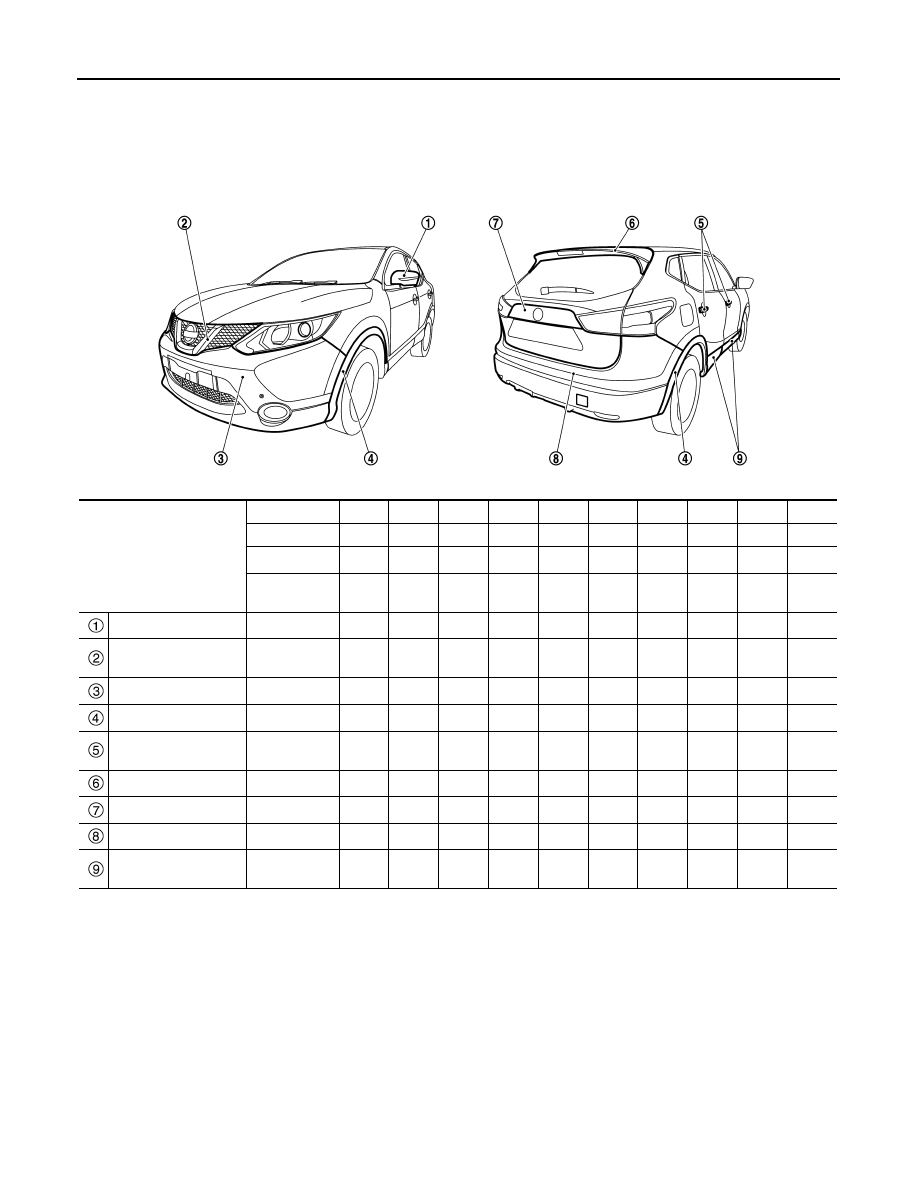

BODY EXTERIOR PAINT COLOR

VEHICLE INFORMATION

BODY EXTERIOR PAINT COLOR

Body Exterior Paint Color

INFOID:0000000010287967

NOTE:

• S: 1-Coat solid

• 2M: 2-Coat Metallic

• 2S: 2-Coat solid

• 3P: 3-Coat pearl

• 2PM: 2-Coat Pearl metallic

Component

Color code

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Description

White

Black

Silver

Black

Gray

Red

Brown

Blue

Red

White

Paint type

 note

S

2M

2M

2M

2M

2PM

2M

2M

2S

3P

Standard
clear coat

–

×

×

×

×

×

×

×

×

×

Door mirror cover

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Front grille molding

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Front bumper fascia

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Fillet  molding

Material  color

–

–

–

–

–

–

–

–

–

–

Door outside handle

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Rear spoiler

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Back door finisher

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Rear bumper fascia

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Door outside lower
molding

Material  color

–

–

–

–

–

–

–

–

–

–

JSKIA3881ZZ

PRECAUTIONS

BRM-7

< PRECAUTION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTION

PRECAUTIONS

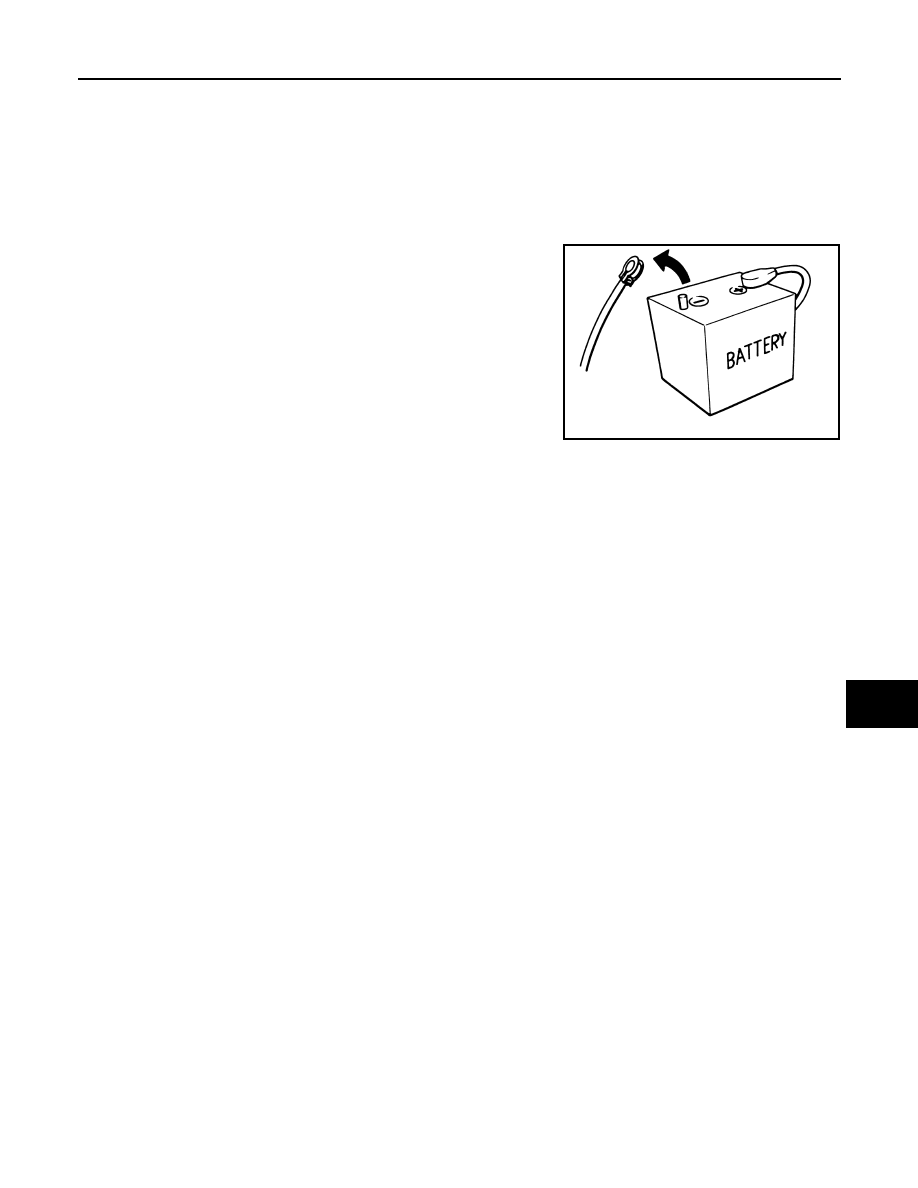

Precautions for Removing Battery Terminal

INFOID:0000000010503253

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes
