SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-27

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

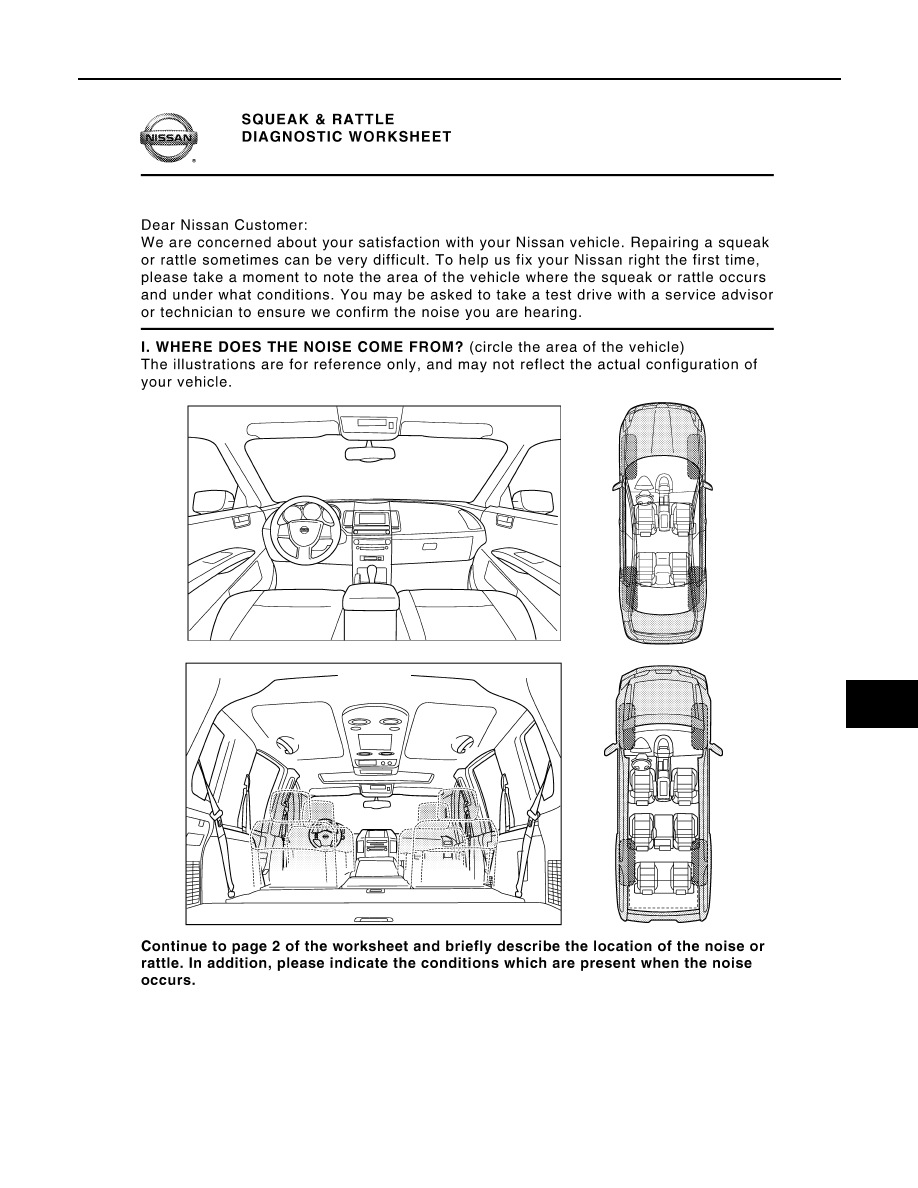

Diagnostic Worksheet

INFOID:0000000010286650

PIIB8740E

RF-28

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

SUNSHADE MOTOR ASSEMBLY

RF-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

REMOVAL AND INSTALLATION

SUNSHADE MOTOR ASSEMBLY

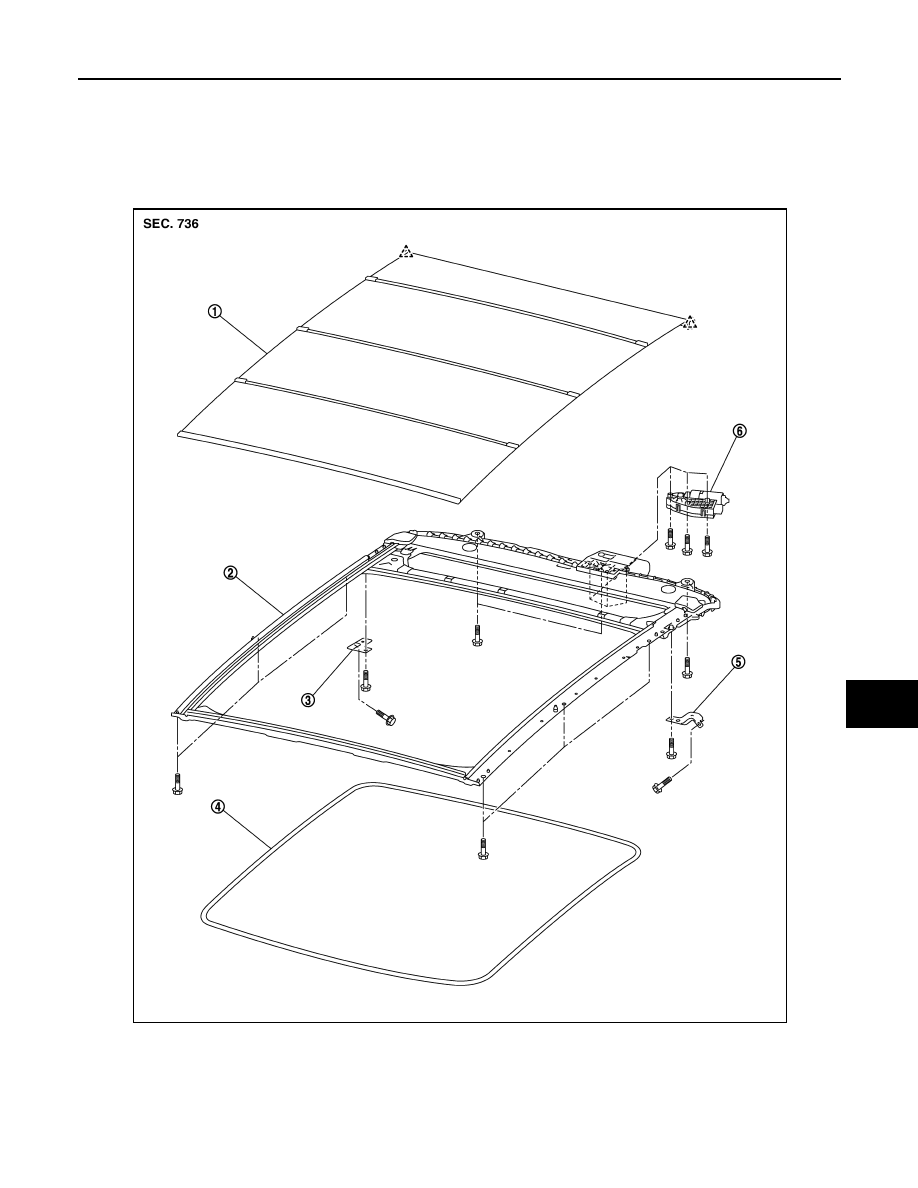

Exploded View

INFOID:0000000010286668

1.

Sunshade assembry

2.

Sunshade unit assembly

3.

Rear sunshade bracket RH

4.

Welt

5.

Rear sunshade bracket LH

6.

Sunshade motoer

JMKIB3238ZZ

RF-30

< REMOVAL AND INSTALLATION >

SUNSHADE MOTOR ASSEMBLY

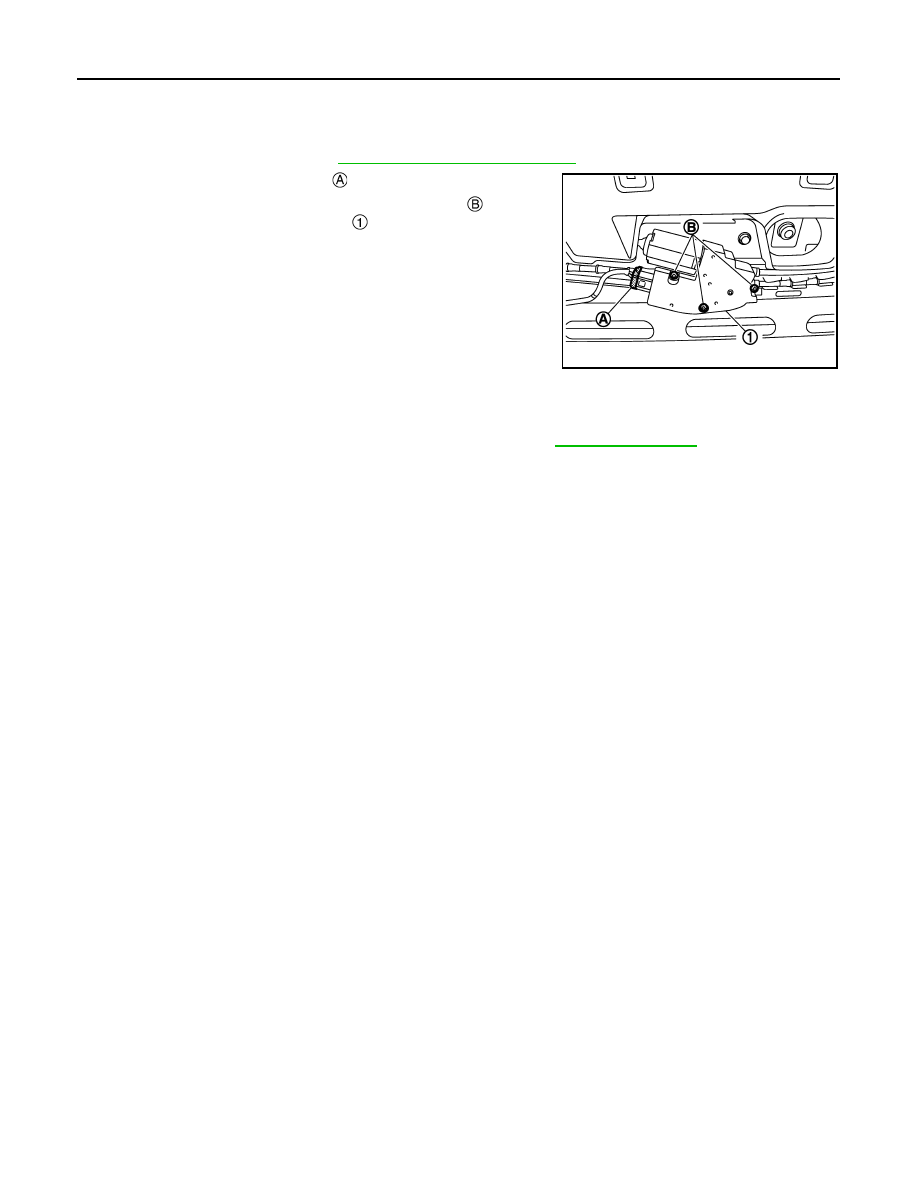

Removal and Installation

INFOID:0000000010286669

REMOVAL

1.

Remove the headlining. Refer to

INT-25, "Removal and Installation"

.

2.

Disconnect harness connectoer

.

3.

Remove the sunshade motor mounting TORX bolts

, and then

remove sunshade motor assembly

.

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
After install the sunshade motor, perform additional service. Refer to

RF-14, "Description"

.

JMKIB3269ZZ
