Nissan Qashqai J11. Manual - part 1530





SUNSHADE UNIT ASSEMBLY

RF-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE UNIT ASSEMBLY

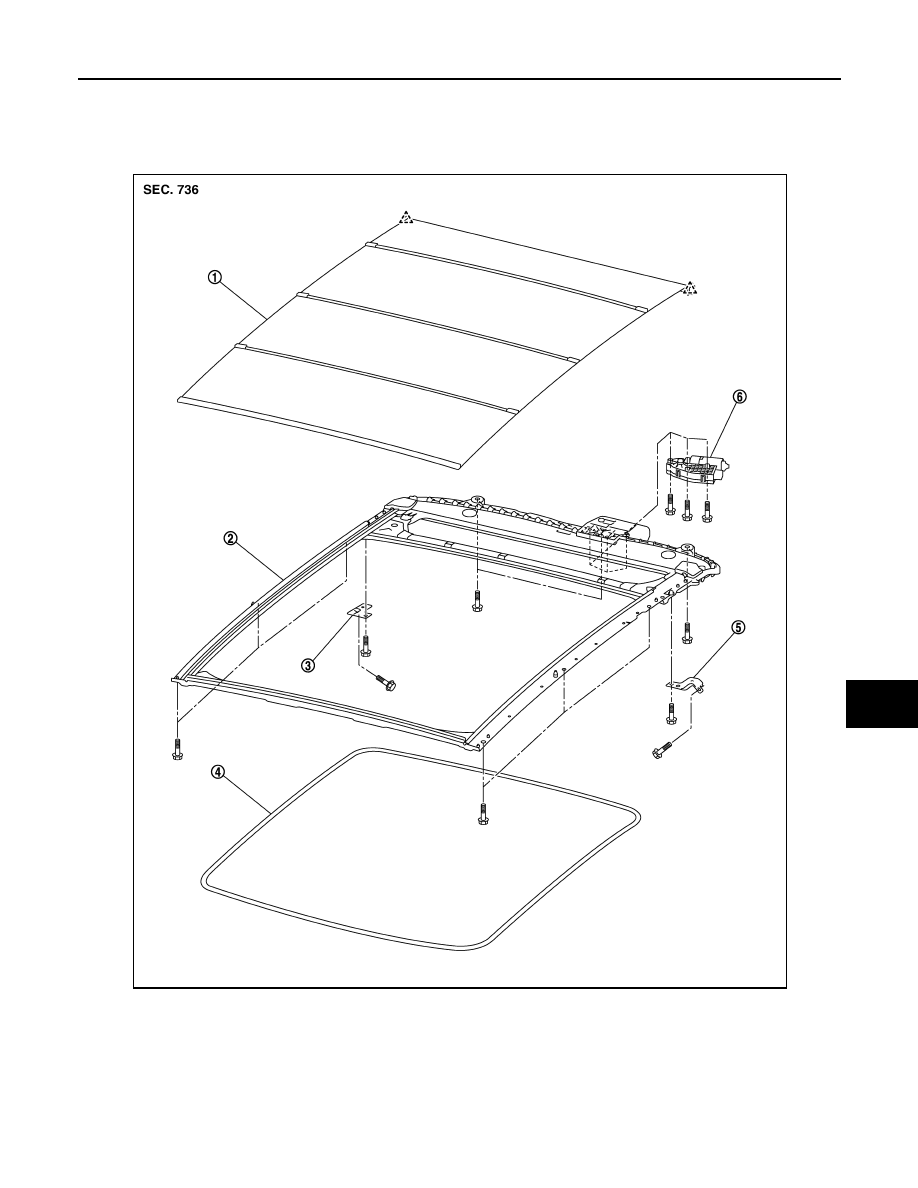

Exploded View

INFOID:0000000010438449

Removal and Installation

INFOID:0000000010286671

REMOVAL

CAUTION:

1.

Sunshade assembry

2.

Sunshade unit assembly

3.

Rear sunshade bracket RH

4.

Welt

5.

Rear sunshade bracket LH

6.

Sunshade motoer

JMKIB3238ZZ

RF-32

< REMOVAL AND INSTALLATION >

SUNSHADE UNIT ASSEMBLY

• Always work with a helper.
• Fully open the sunshade before removal.
• Never operate sunshade motor assembly after removal.
• When taking sunshade unit assembly out, use cloths to protect the seats and trim from damage.

1.

Fully open the sunshade.

2.

Remove the headlining. Refer to

INT-25, "Removal and Installation"

3.

Remove the sunshade motor assembly. Refer to

RF-30, "Removal and Installation"

.

4.

Remove the harness clamp.

5.

Remove the TORX bolt.

6.

Remove the rear sunshade bracket.

7.

Remove the mounting bolt from the side rail.

8.

Remove the unit side bolts of the sunshade front bracket and loosen the body side bolts.

9.

Remove the bolt from the rear end, and then remove sunshade unit assembly.

10. Remove the sunshade from vehicle.

INSTALLATION

1.

Temporarily tighten the mounting bolts to the sunshade front bracket.

2.

Place the front end of the rail onto the sunshade front bracket.

3.

Temporarily tighten the mounting bolts to the rear end of sunshade unit assembly.

4.

Temporarily tighten the mounting bolts to the rear sunshade bracket.

5.

Tighten the installation points diagonally excluding the installation point of the sunshade bracket around
the roof.

6.

Tighten the sunshade front and rear bracket bolts, of the vehicle side, and then tighten the bolt of the rail
side.

7.

Tighten the mounting bolt to the rear end.

8.

Install the sunshade motor assembly. Refer to

RF-30, "Removal and Installation"

.

9.

Install the headlining. Refer to

INT-25, "Removal and Installation"

Disassembly and Assembly

INFOID:0000000010286672

DISASSEMBLY

1.

Remove sunshade motor assembly. Refer to

RF-30, "Removal and Installation"

2.

Remove sunshade assembly. Refer to

RF-33, "Removal and Installation"

ASSEMBLY

Assemble in the reverse order of disassembly.
NOTE:
After installation sunshade motor, perform additional service. Refer to

RF-14, "Description"

.

SUNSHADE

RF-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

Exploded View

INFOID:0000000010438750

Removal and Installation

INFOID:0000000010286674

REMOVAL

1.

Remove sunshade unit assembly. Refer to

RF-31, "Removal and Installation"

.

1.

Sunshade assembry

2.

Sunshade unit assembly

3.

Rear sunshade bracket RH

4.

Welt

5.

Rear sunshade bracket LH

6.

Sunshade motoer

JMKIB3238ZZ

RF-34

< REMOVAL AND INSTALLATION >

SUNSHADE

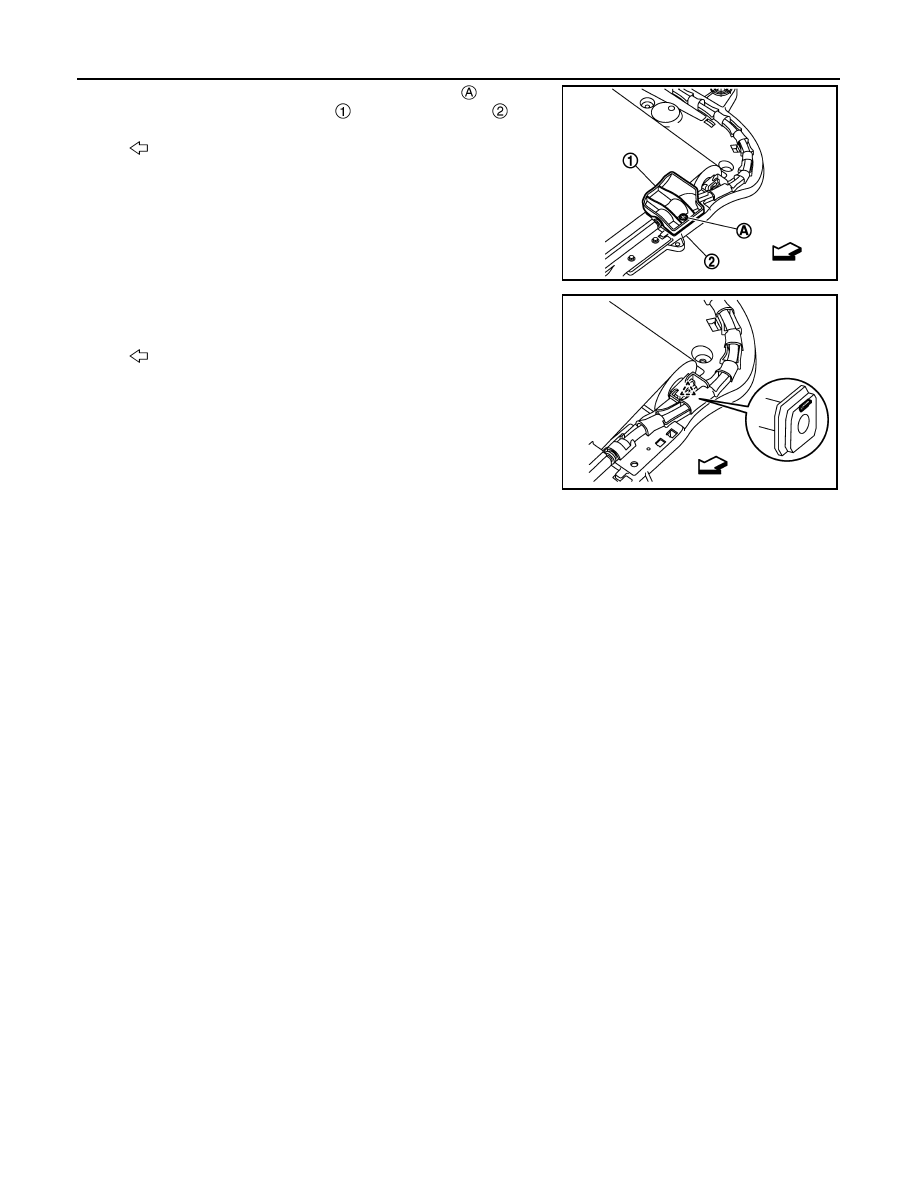

2.

Remove sunshade guide bracket fixing screw

 and then

remove sunshade guide bracket

 from sunshede unit

3.

Disengage sunshade fixing pawls, and then remove sunshade
from sunshade unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIB3267ZZ

: Vehicle front

JMKIB3268ZZ
