ENGINE OIL

Draining

INFOID:0000000010284208

WARNING:

• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer: try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.

1.

Put vehicle horizontally.

2.

Warm up engine, and check for oil leakage from engine components.

3.

Stop engine and wait for 10 minutes.

4.

Loosen oil filler cap.

5.

Remove drain plug and then drain engine oil.

Refilling

INFOID:0000000010284209

1.

Refill with new engine oil.
• Refer  to

MA-59, "Fluids and Lubricants"

.

• The refill capacity depends on the oil temperature and drain time.

Use these specifications for reference only.
Always use the dipstick to the determine when the proper amount
of oil is in the engine.

CAUTION:

• Be sure to clean drain plug and install with new washer.
• The refill capacity depends on the oil temperature and drain time. Use these specifications for ref-

erence only.
Always use the dipstick to the determine when the proper amount of oil is in the engine.

2.

Warm up engine and check area around drain plug and oil filter for oil leakage.

3.

Stop engine and wait for 10 minutes.

4.

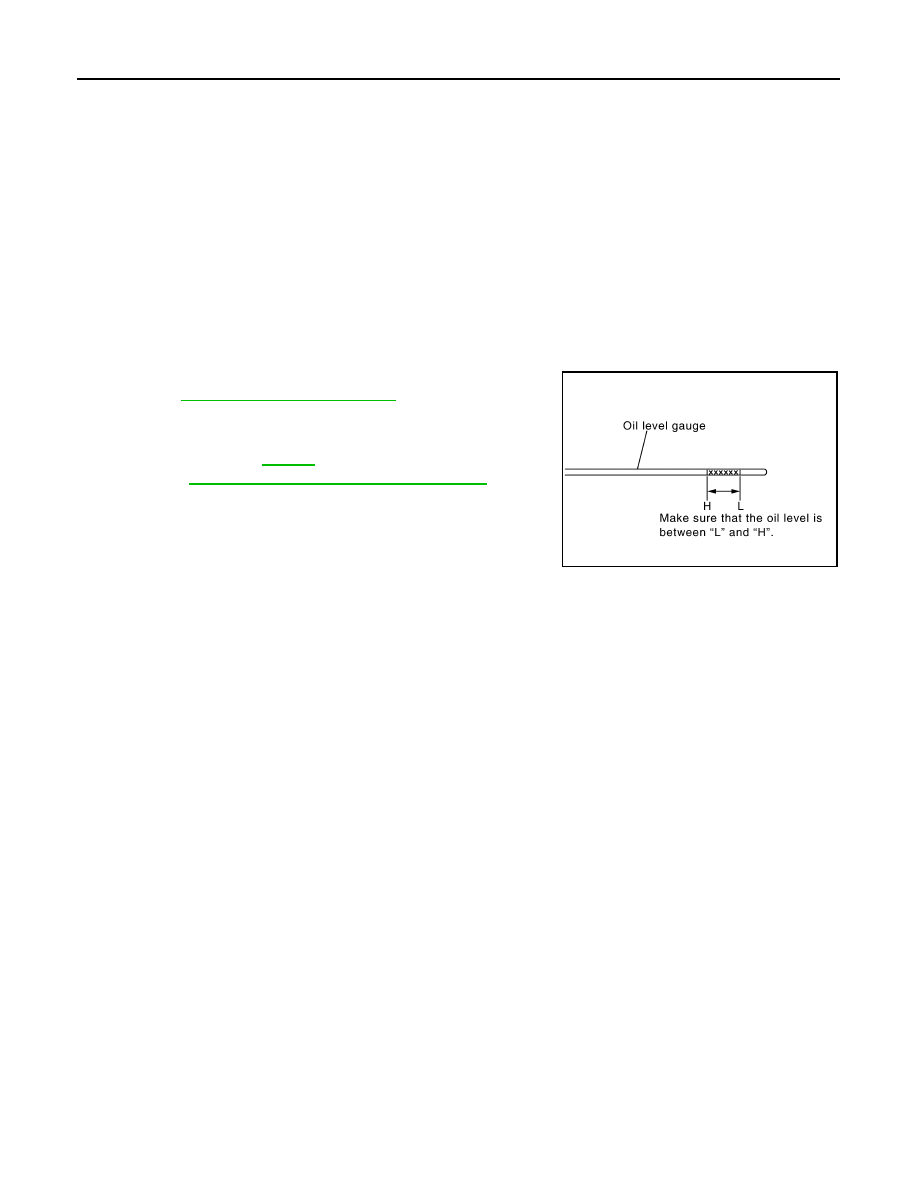

Check oil level.

Oil capacity (Approximate)

: Refer to

LU-42,

"Periodical Maintenance Specification"

.

MBIB0548E

OIL FILTER

LU-37

< PERIODIC MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

Replacement

INFOID:0000000010284210

1.

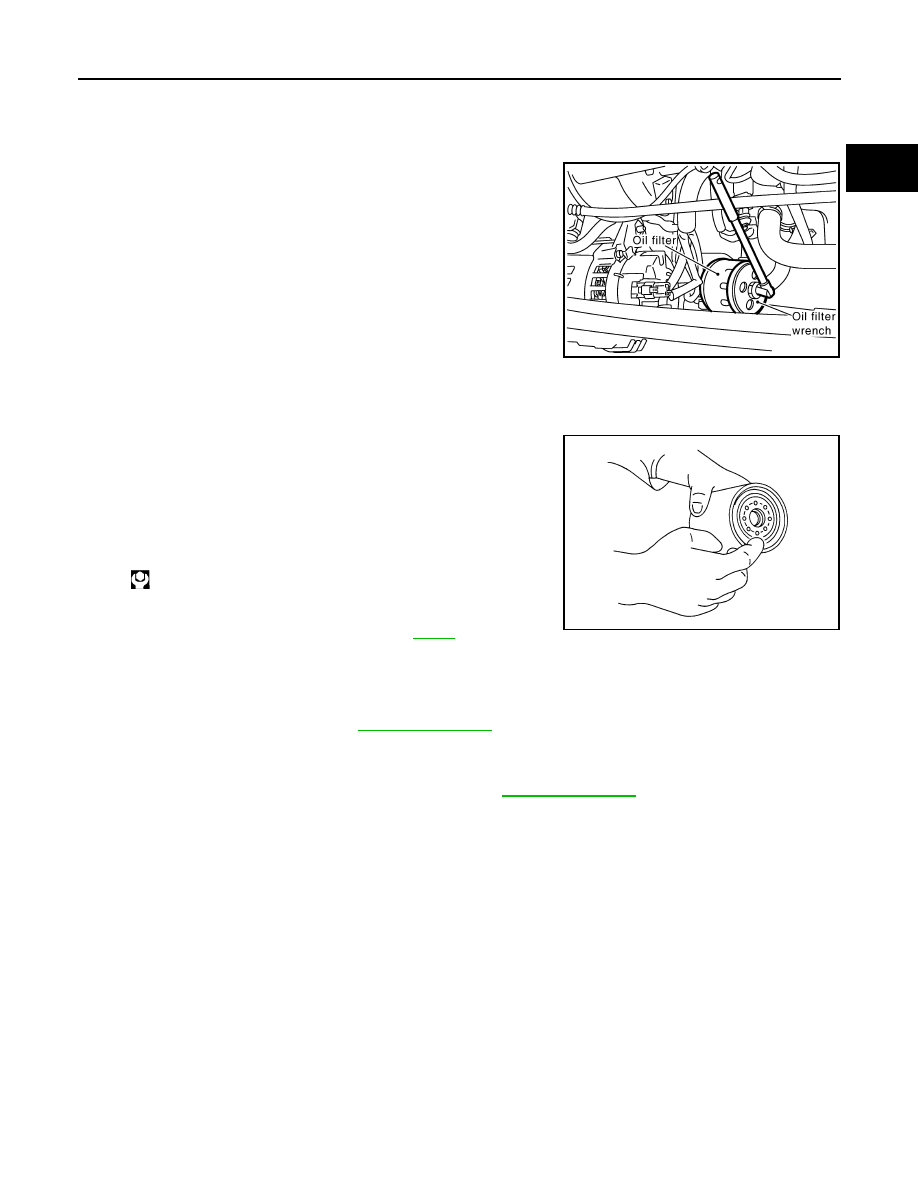

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
remove oil filter.

CAUTION:

• Be careful not to get burned when the engine and engine

oil are hot.

• When removing, prepare a shop cloth to absorb any oil

leakage or spillage.

• Do not allow engine oil to adhere to the drive belts.
• Completely wipe off any oil that adhere to the engine and

the vehicle.

2.

Remove foreign materials adhering to the oil filter installation
surface.

3.

Install oil filter bracket to oil cooler.

CAUTION:

Install oil filter bracket, positioning lug in the hole of oil cooler.

4.

Apply engine oil to the oil seal contact surface of the new oil fil-
ter.

5.

Install the oil filter until it comes into contact with the oil seal on
the engine bracket.

6.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
tighten oil filter.

7.

After warming up the engine, check for engine oil leakage.

8.

Check oil level and add engine oil. Refer to

LU-35

.

Inspection

INFOID:0000000010284211

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-35, "Inspection"

.

2.

Start the engine, and check there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-35, "Inspection"

.

: 14 N·m (1.4 kg-m, 10 ft-lb)

MBIB0551E

SMA010

LU-38

< REMOVAL AND INSTALLATION >

[K9K]

OIL FILTER BRACKET

REMOVAL AND INSTALLATION

OIL FILTER BRACKET

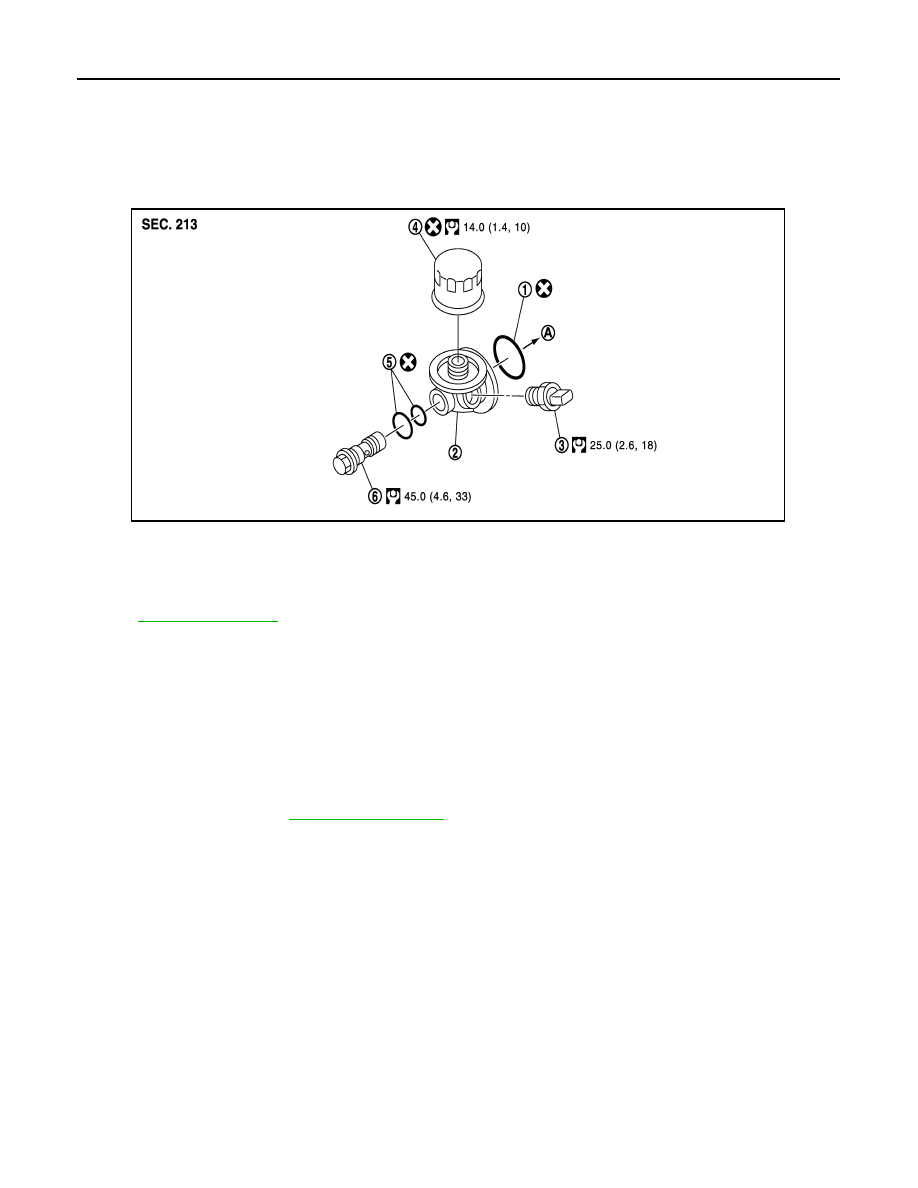

Exploded View

INFOID:0000000010284212

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010284213

REMOVAL

CAUTION:

• Be careful not to get burned when the engine and engine oil are hot.
• When removing, prepare a shop cloth to absorb any oil leakage or spillage.
• Do not allow engine oil to adhere to the drive belts.
• Completely wipe off any oil that adhere to the engine and the vehicle.

1.

Remove oil filter. Refer to

LU-37, "Replacement"

.

2.

Remove oil filter bracket.

INSTALLATION

Install in the reverse order of removal.

1.

O-ring

2.

Oil filter bracket

3.

Oil pressure switch

4.

Oil filter

5.

O-ring

6.

Connecting bolt

A.

To oil cooler

E1BIA0012GB

OIL COOLER

LU-39

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL COOLER

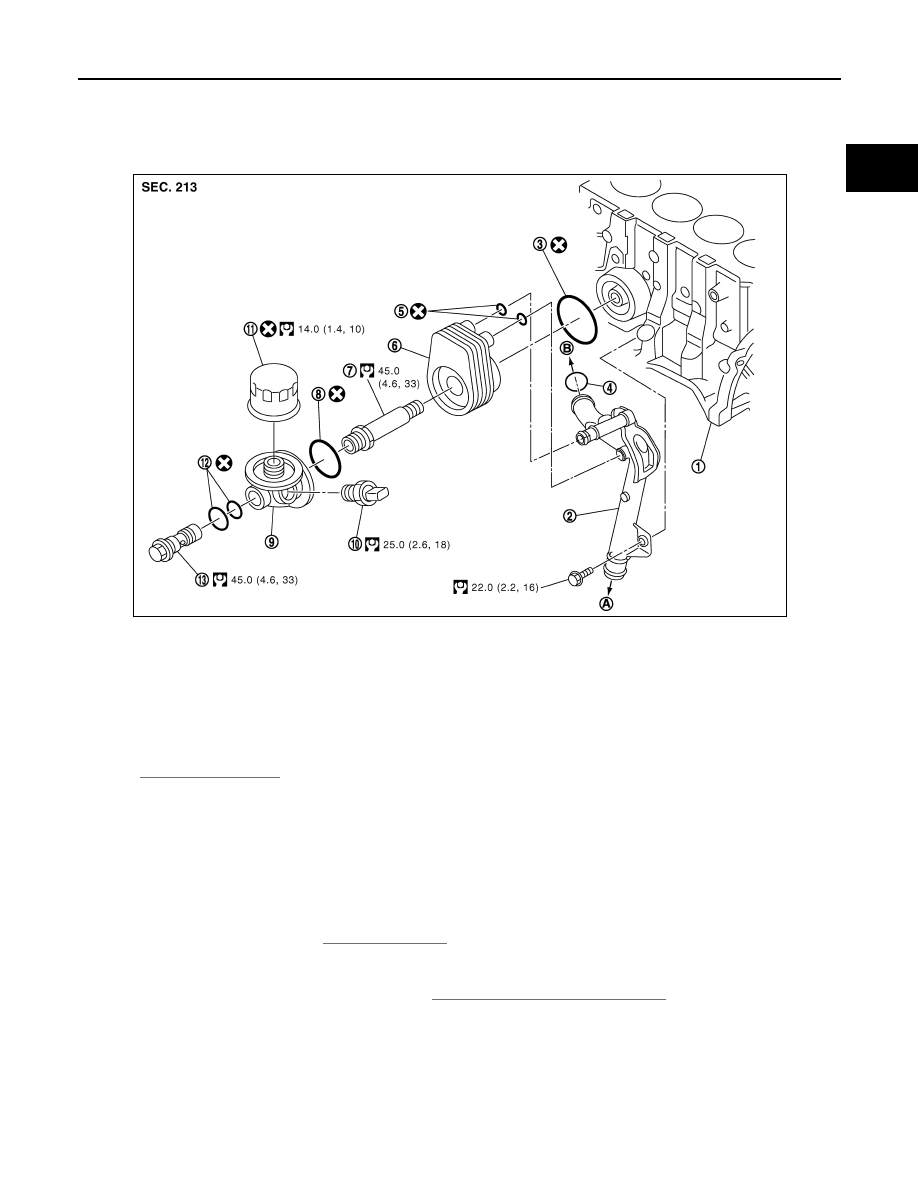

Exploded View

INFOID:0000000010284214

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010284215

CAUTION:

• Be careful not to get burned when the engine and engine oil are hot.
• When removing, prepare a shop cloth to absorb any oil leakage or spillage.
• Completely wipe off any oil that adhere to the engine and the vehicle.

REMOVAL

1.

Drain engine coolant. Refer to

CO-65, "Draining"

.

CAUTION:

Perform when engine is cold.

2.

Remove oil filter and oil filter bracket. Refer to

LU-38, "Removal and Installation"

.

3.

Remove water hoses from oil cooler.

4.

Remove oil cooler.

INSTALLATION

Installation is in reverse order of removal.
• Replace the O-ring of the oil cooler.
• Confirm that no foreign objects are adhering to the installation planes of the oil cooler and block.

1.

Cylinder block

2.

Water pipe

3.

O-ring

4.

O-ring

5.

O-ring

6.

Oil cooler

7.

Connecting stud

8.

O-ring

9.

Oil filter bracket

10. Oil pressure switch

11.

Oil filter

12. O-ring

13. Connecting bolt

A.

To radiator lower hose

B.

To water pump

E1BIA0011GB
