OIL COOLER

Inspection

INFOID:0000000010284216

INSPECTION AFTER REMOVAL

Check oil cooler for cracks and clogging by blowing through coolant inlet. If necessary, replace oil cooler
assembly.

OIL PUMP

LU-41

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL PUMP

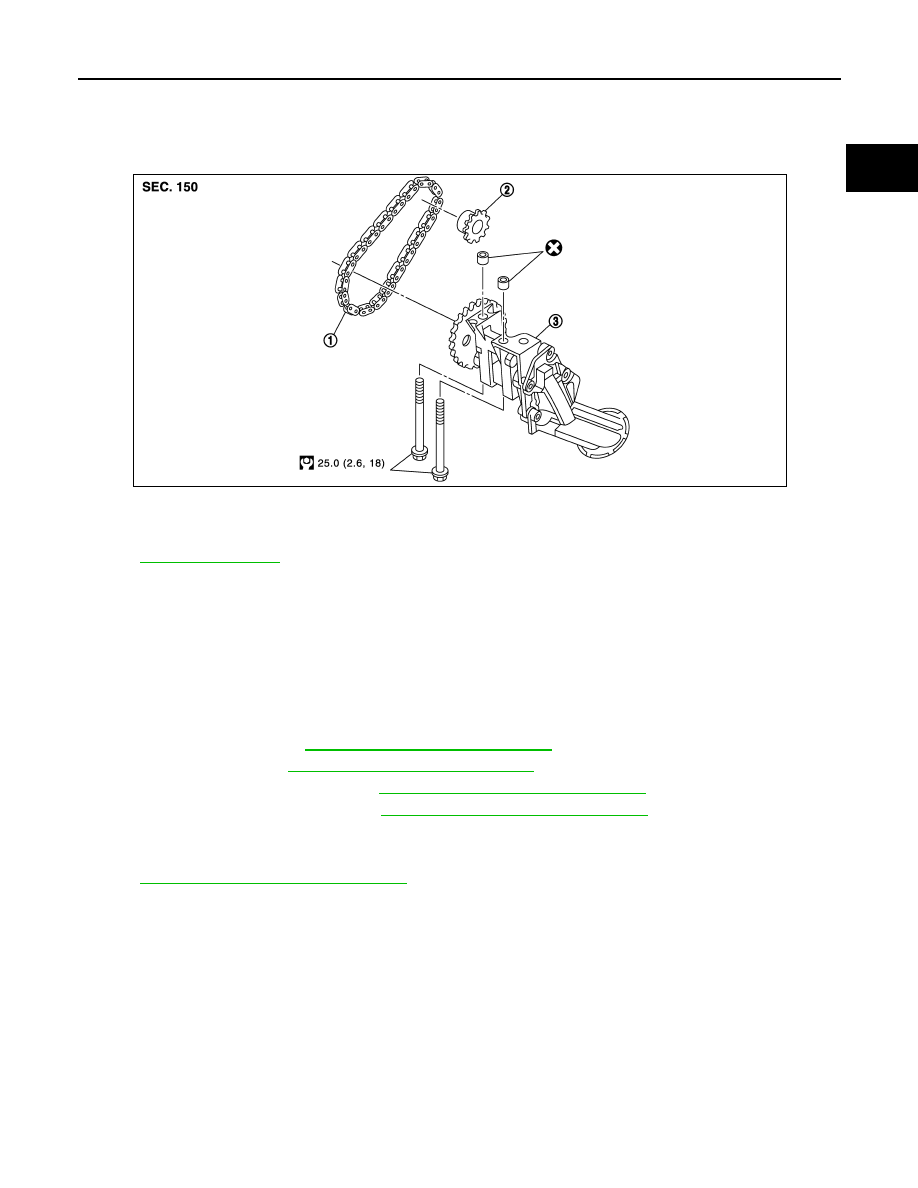

Exploded View

INFOID:0000000010284217

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010284218

REMOVAL

1.

Remove the following parts.
• Battery negative cable
• Undercover
• RH front wheel

2.

Remove right side splash cover.

3.

Remove drive belt. Refer to

EM-278, "Removal and Installation"

.

4.

Remove oil pan. Refer to

EM-296, "Removal and Installation"

.

5.

Remove rear oil seal retainer. Refer to

EM-331, "Disassembly and Assembly"

.

6.

Remove oil pump drive chain. Refer to

EM-331, "Disassembly and Assembly"

.

7.

Remove oil pump assembly.

INSTALLATION

Refer to

EM-331, "Disassembly and Assembly"

.

1.

Oil pump drive chain

2.

Crankshaft sprocket (oil pump drive
chain)

3.

Oil pump

E1BIA0028GB

LU-42

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000010284219

ENGINE OIL CAPACITY (APPROXIMATE)

Unit: ·(Imp

qt)

Engine Oil Pressure

INFOID:0000000010284220

 kPa (bar, kg/cm

2

, psi)

 kPa (bar, kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

With oil filter change

4.55 (4)

Without oil filter change

4.39 (3-7/8)

Dry engine (overhaul)

4.71 (4-1/8)

Engine speed

Approximate discharge pressure

Idle speed

More than 80 (0.8, 0.81, 11.6)

4,000 rpm

More than 340 (3.4, 3.46, 49.3)

Maximum pressure

520 (5.2, 5.3, 75.4)

PRECAUTIONS

LU-43

< PRECAUTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Liquid Gasket

INFOID:0000000010508728

REMOVAL OF LIQUID GASKET

• After removing the mounting bolts and nuts, separate the mating

surface using a seal cutter and remove the liquid gasket.

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap the gasket applied area.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.

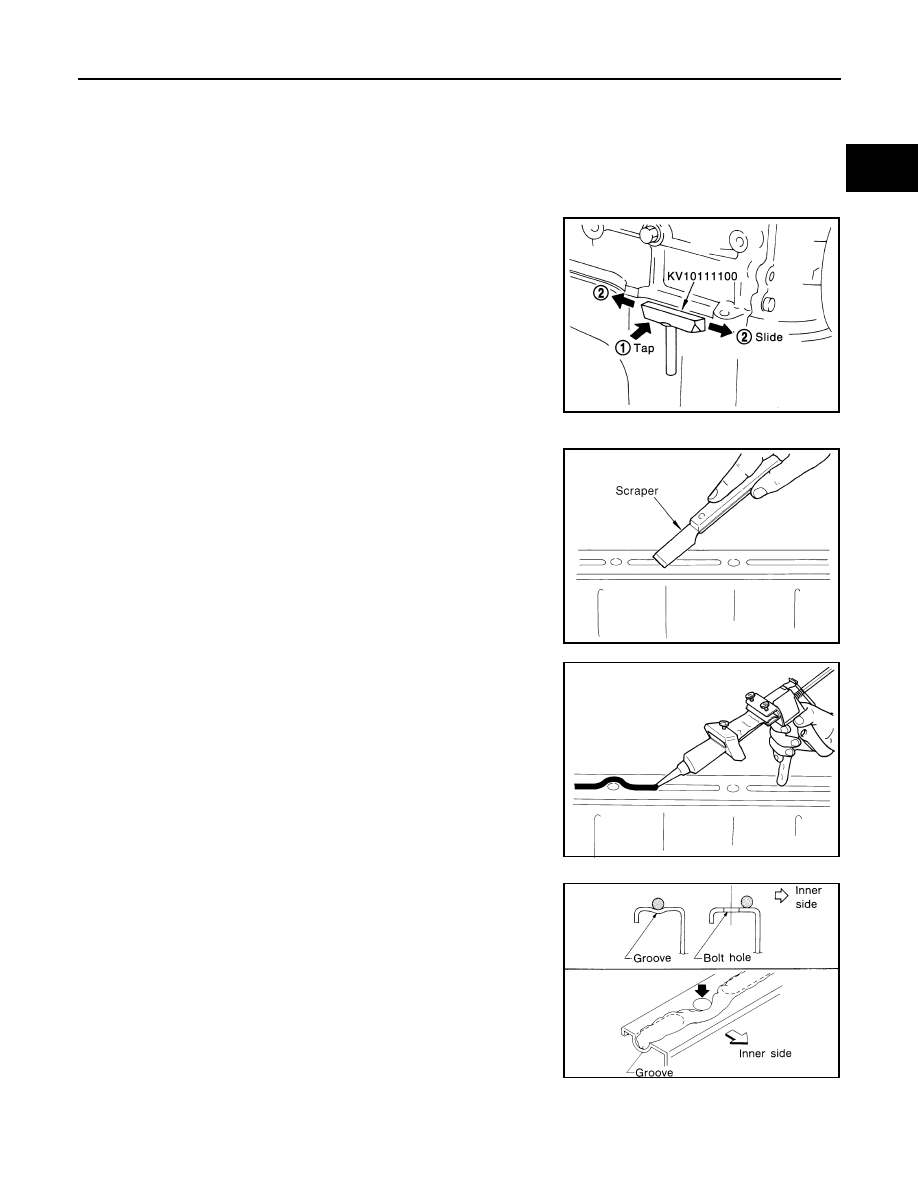

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.
• Remove the liquid gasket completely from the groove of the

gasket application surface, mounting bolts and bolt holes.

2.

Wipe the gasket application surface and the mating surface with
white gasoline (lighting and heating use) to remove adhering
moisture, grease and foreign materials.

3.

Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.

4.

Apply the gasket without breaks to the specified location with the
specified dimensions.
• If there is a groove for the liquid gasket application, apply the

gasket to the groove.

• As for the bolt holes, normally apply the gasket inside the

holes. If specified, it should be applied outside the holes. Make
sure to read the instruction in this manual.

• Within five minutes of gasket application, install the mating

component.

• If the liquid gasket protrudes, wipe it off immediately.
• Do not retighten after the installation.
• After 30 minutes or more have passed from the installation, fill

the engine oil and coolant.

CAUTION:

If there are instructions in this manual, observe them.

PBIC0275E

PBIC0003E

EMA0622D

SEM159F
