PREPARATION

DLK-837

< PREPARATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

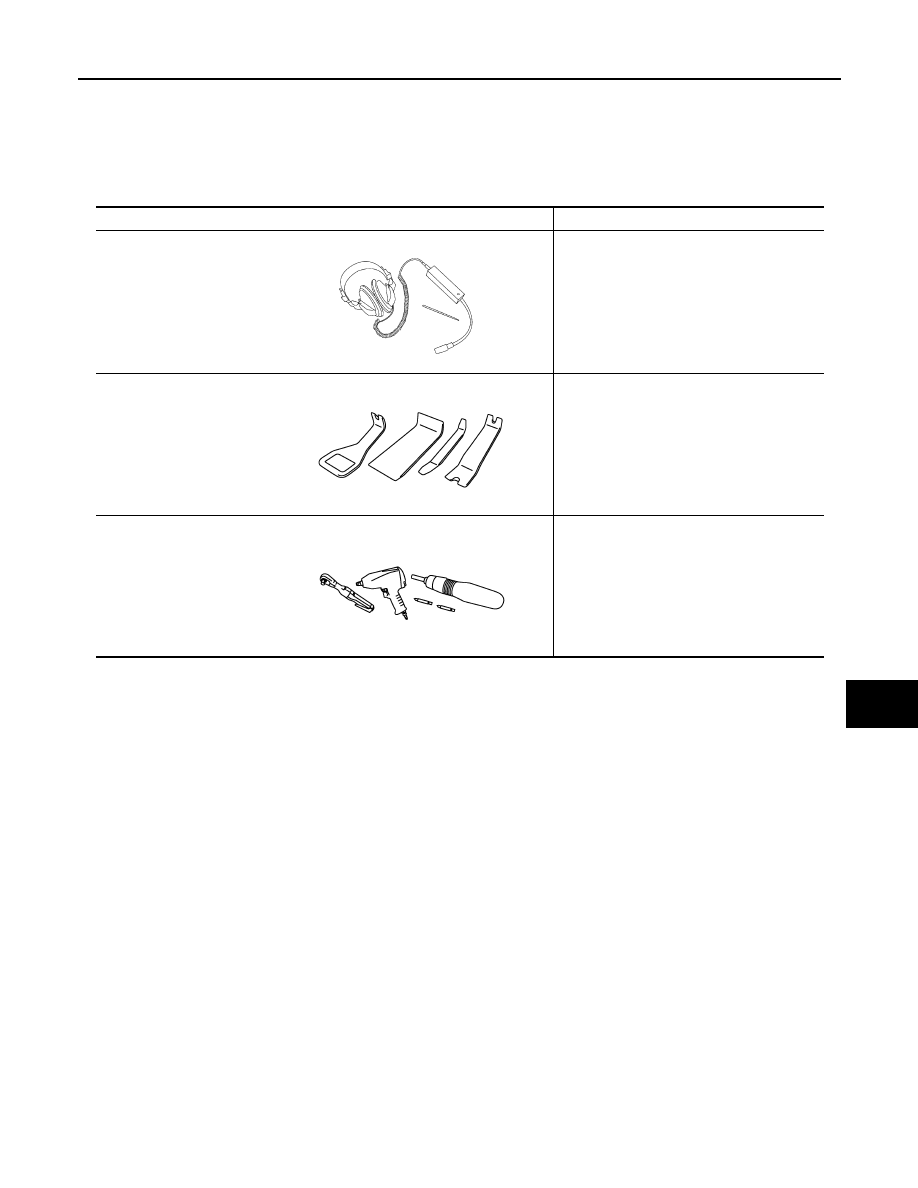

Commercial Service Tools

INFOID:0000000010672481

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-838

< SYSTEM DESCRIPTION >

[TYPE 6]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

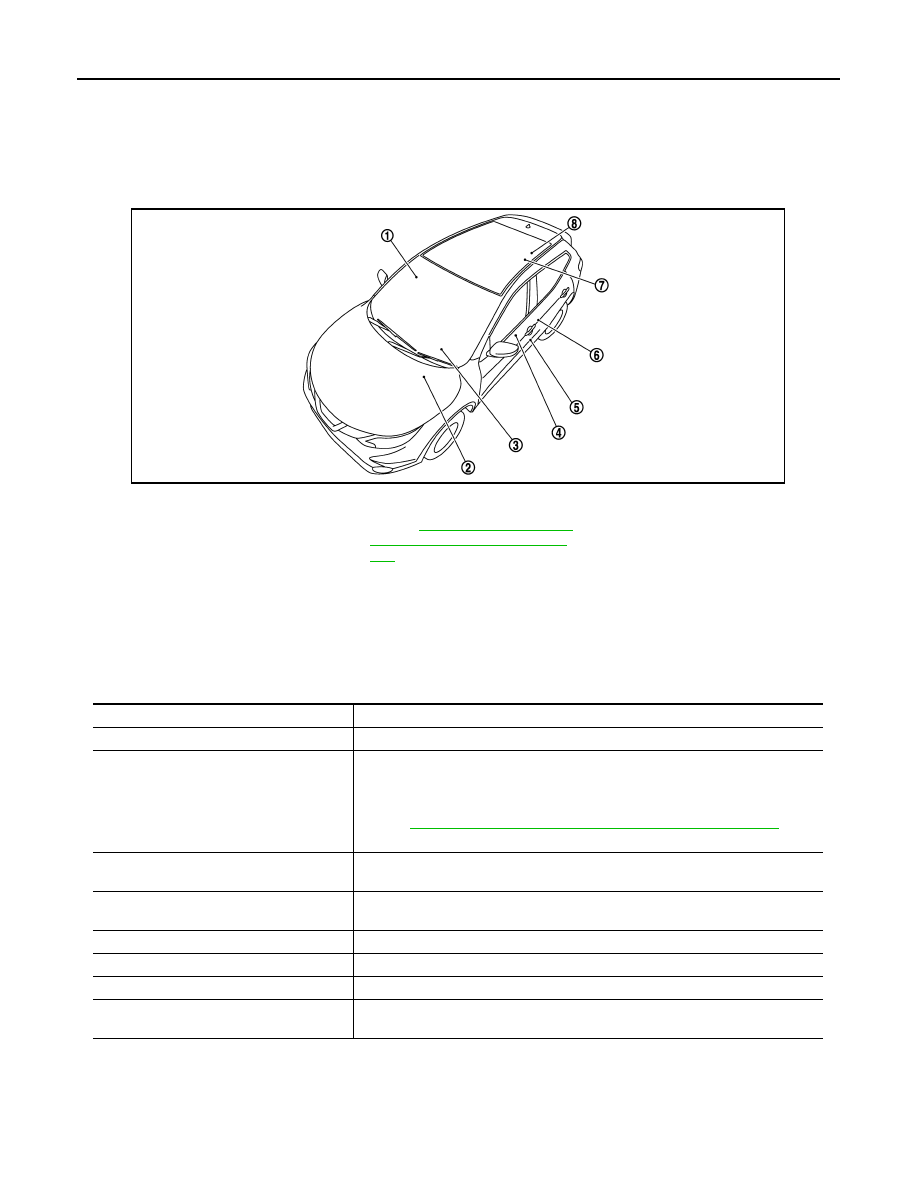

Component Parts Location

INFOID:0000000010672482

Component Description

INFOID:0000000010672483

1.

Power window main switch
(door lock/unlock switch)

2.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

3.

Combination meter

4.

Front power window switch (passen-
ger side) (door lock and unlock
switch)

5.

Door lock assembly

6.

Door switch

7.

Back door lock assembly

8.

Back door opener switch

JMKIB3273ZZ

Item

Function

Back door lock assembly

Opens the back door with the back door open signal from BCM.

BCM

BCM detects the vehicle status according to signals from each door switch and
each outside/inside key antenna. BCM transmits drive signal to door lock actuator
when BCM receives operation signal from remote keyless entry receiver and each
switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

Transmits door lock/unlock operation to BCM.

Door switch

Detects door open/close condition.

Keyfob

Transmits button operation to remote keyless entry receiver.

Key switch

Key switch detects that ignition key is inserted into the ignition key cylinder, and
then transmits the signal to BCM.

POWER DOOR LOCK SYSTEM

DLK-839

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

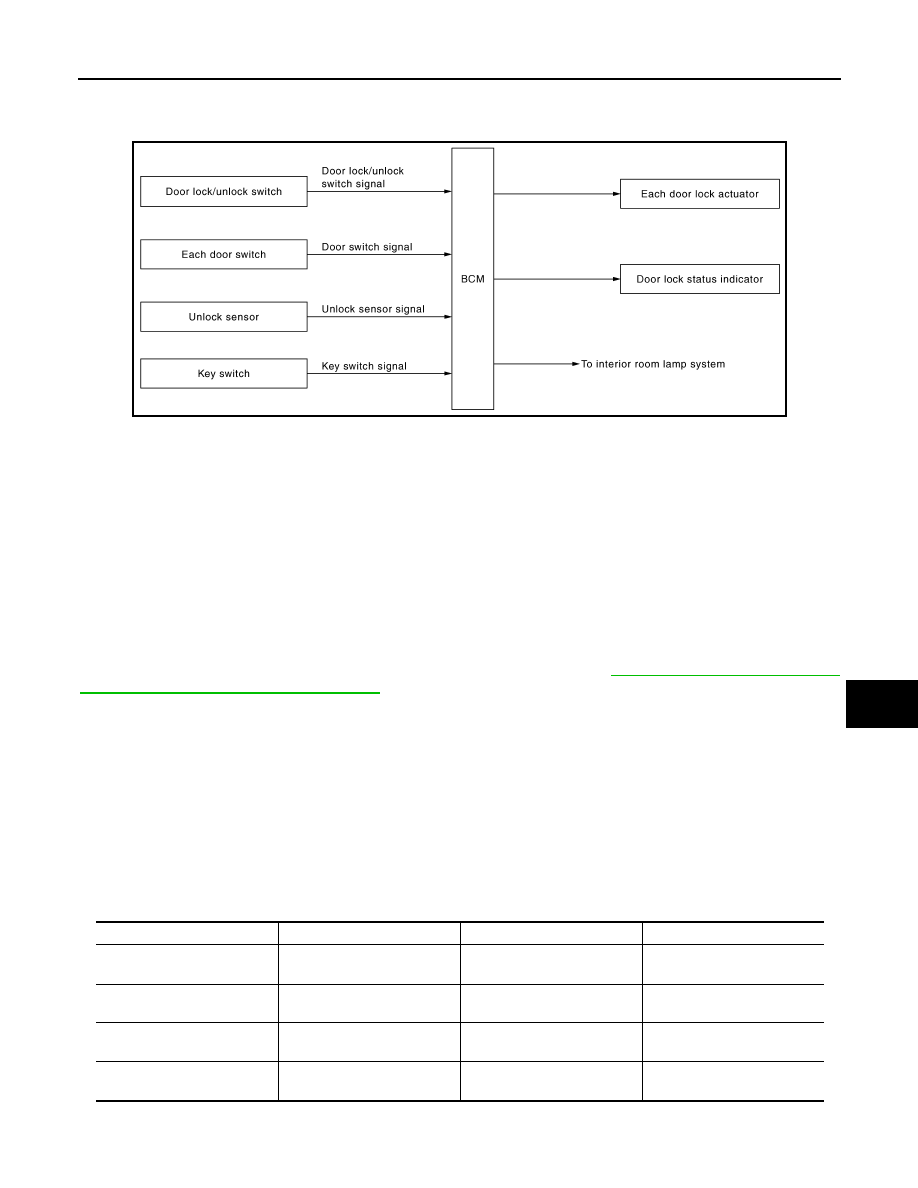

System Diagram

INFOID:0000000010672484

System Description

INFOID:0000000010672485

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives shock status signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the shock status signal to BCM via CAN communication.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition.

JMKIB2483GB

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

DLK-840

< SYSTEM DESCRIPTION >

[TYPE 6]

POWER DOOR LOCK SYSTEM

ON

→

 OFF

–

(All doors are closed

→

 any

door is open) or (All doors are
locked

→

 any door is un-

locked)

–

ON (timer is running)

→

 ON

(timer is stop)

OFF

→

 ON

–

–

ON

→

 ON (30 minutes timer)

ON

→

 OFF

–

Door lock and unlock switch

ON

→

 ON (1 minute timer)

ON

→

 OFF

–

Keyfob or auto door lock func-

tion

Indicator operation

Ignition position

Door status

Lock operation
