DOOR SWITCH

Removal and Installation

INFOID:0000000010672468

REMOVAL

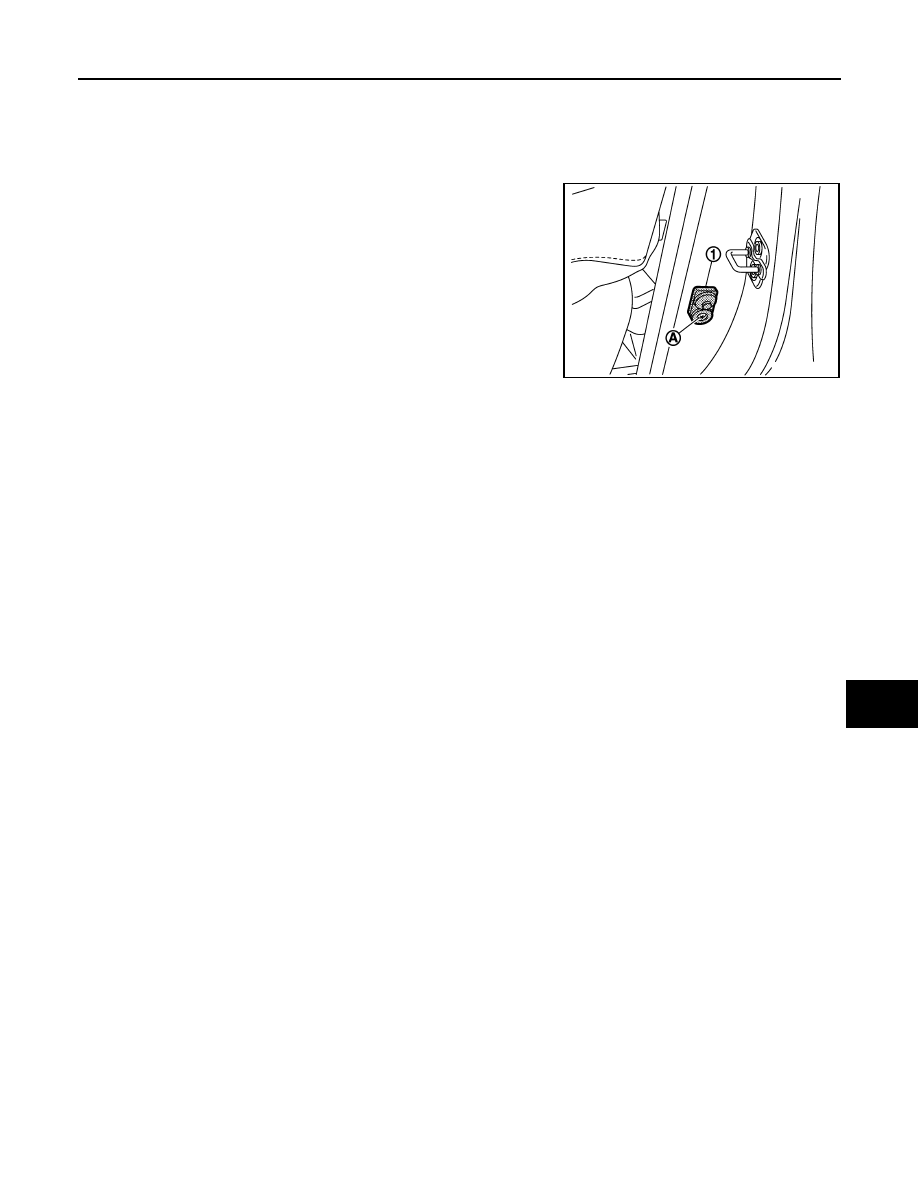

Remove the TORX bolt (A), and then remove door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2173ZZ

DLK-830

< REMOVAL AND INSTALLATION >

[TYPE 5]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

CONSOLE

CONSOLE : Removal and Installation

INFOID:0000000010672469

REMOVAL

1.

Remove the console rear finisher. Refer to

IP-19, "Removal and Installation"

.

2.

Remove the inside key antenna (console) mounting screw

,

and then remove inside key antenna (console)

.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Removal and Installation

INFOID:0000000010672470

REMOVAL

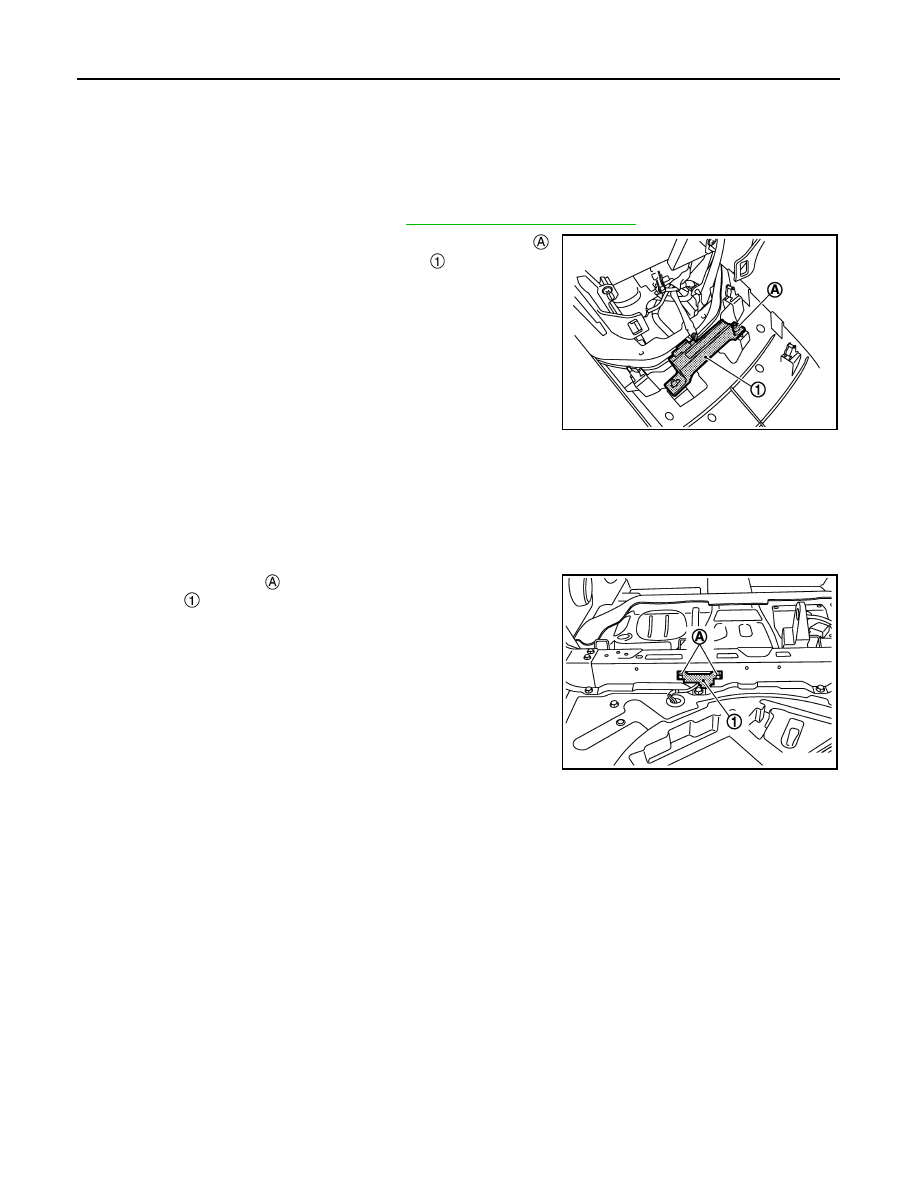

Remove the mounting clip

, and then remove inside key antenna

(luggage room)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3257ZZ

JMKIB3258ZZ

OUTSIDE KEY ANTENNA

DLK-831

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010672471

REMOVAL

Remove the outside handle grip. Refer to

DLK-183, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Removal and Installation

INFOID:0000000010672472

REMOVAL

1.

Remove the rear bumper fascia assembly. Refer to

EXT-24, "Removal and Installation"

.

2.

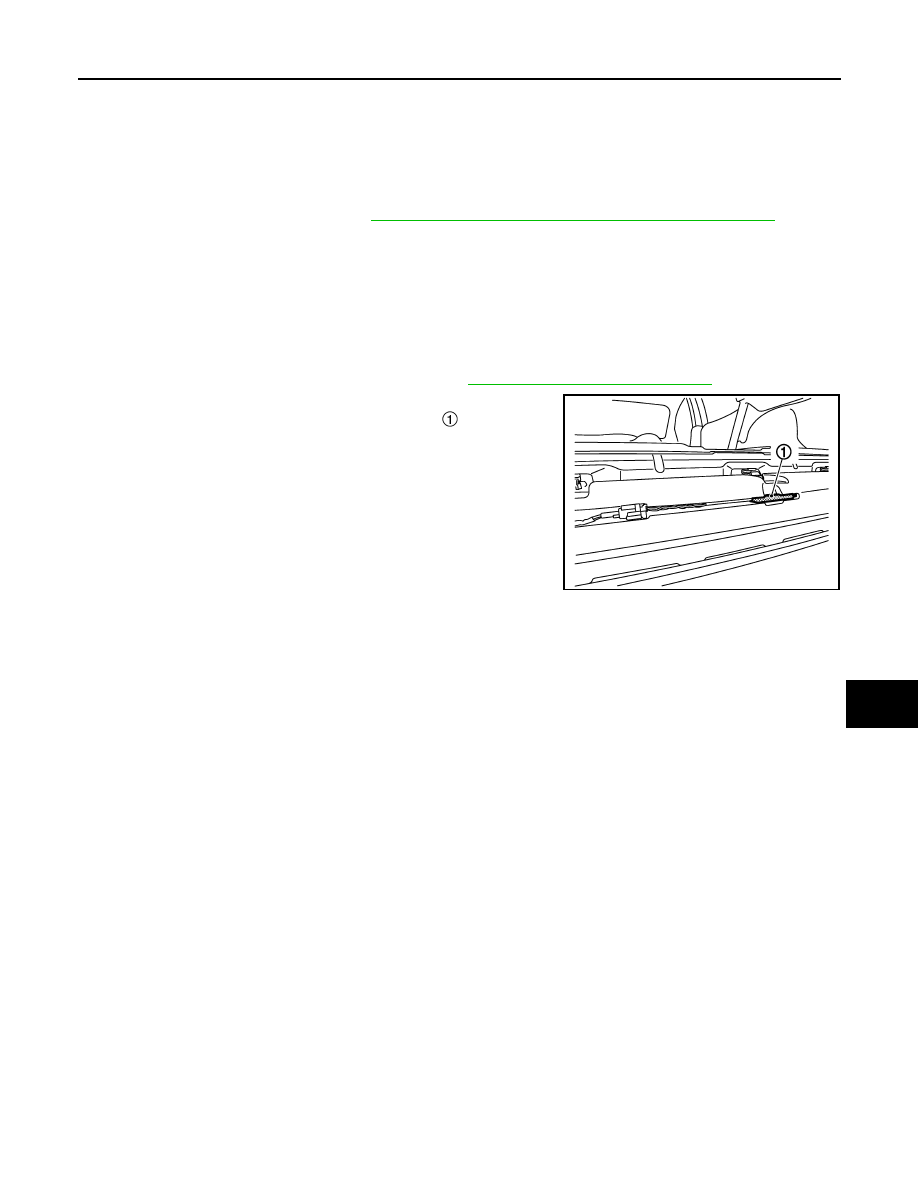

Disconnect outside key antenna (rear bumper) connector, and
then remove outside key antenna (rear bumper)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3259ZZ

DLK-832

< REMOVAL AND INSTALLATION >

[TYPE 5]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010672473

REMOVAL

1.

Remove the front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

.

2.

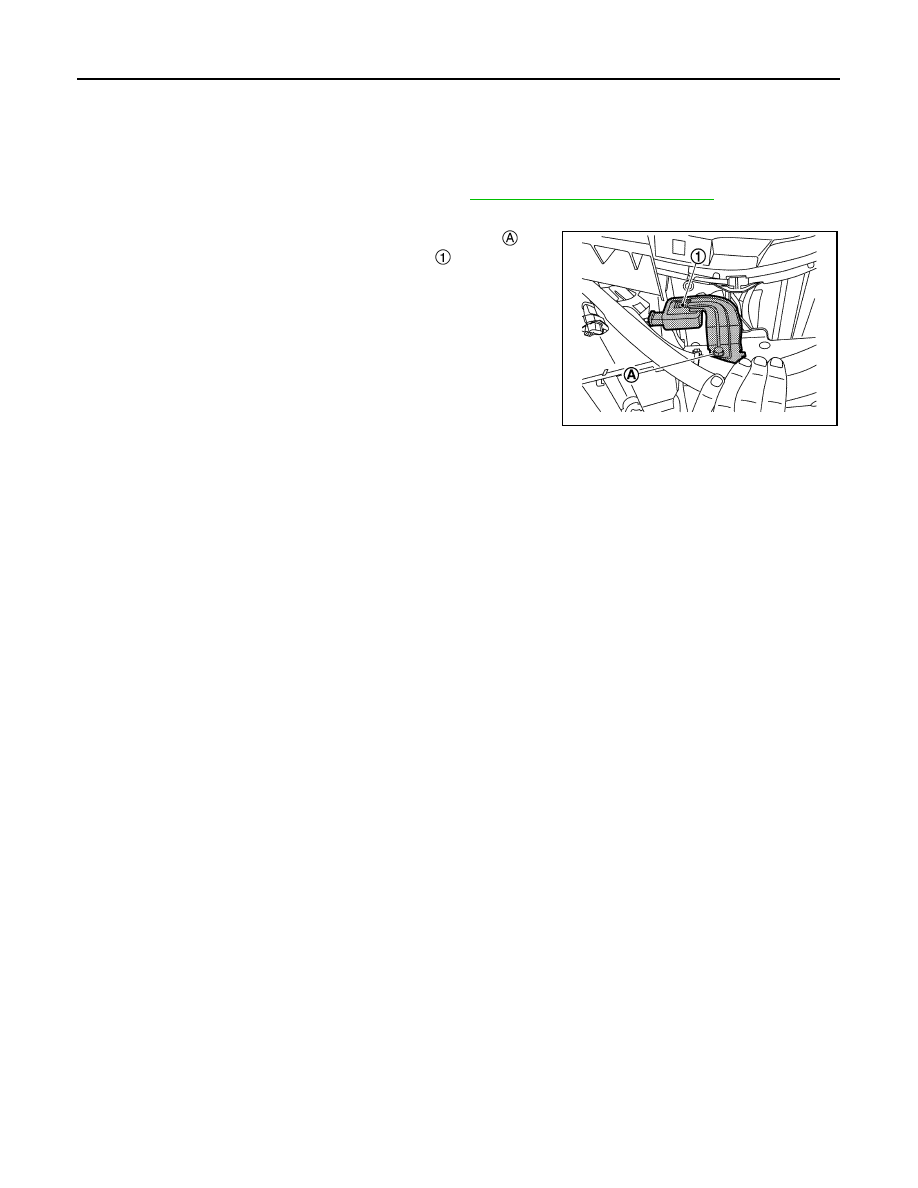

Disconnect Intelligent Key warning buzzer connector.

3.

Remove the Intelligent Key warning buzzer mounting bolt

, and

then remove the Intelligent Key warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2758ZZ
