REMOTE KEYLESS ENTRY SYSTEM

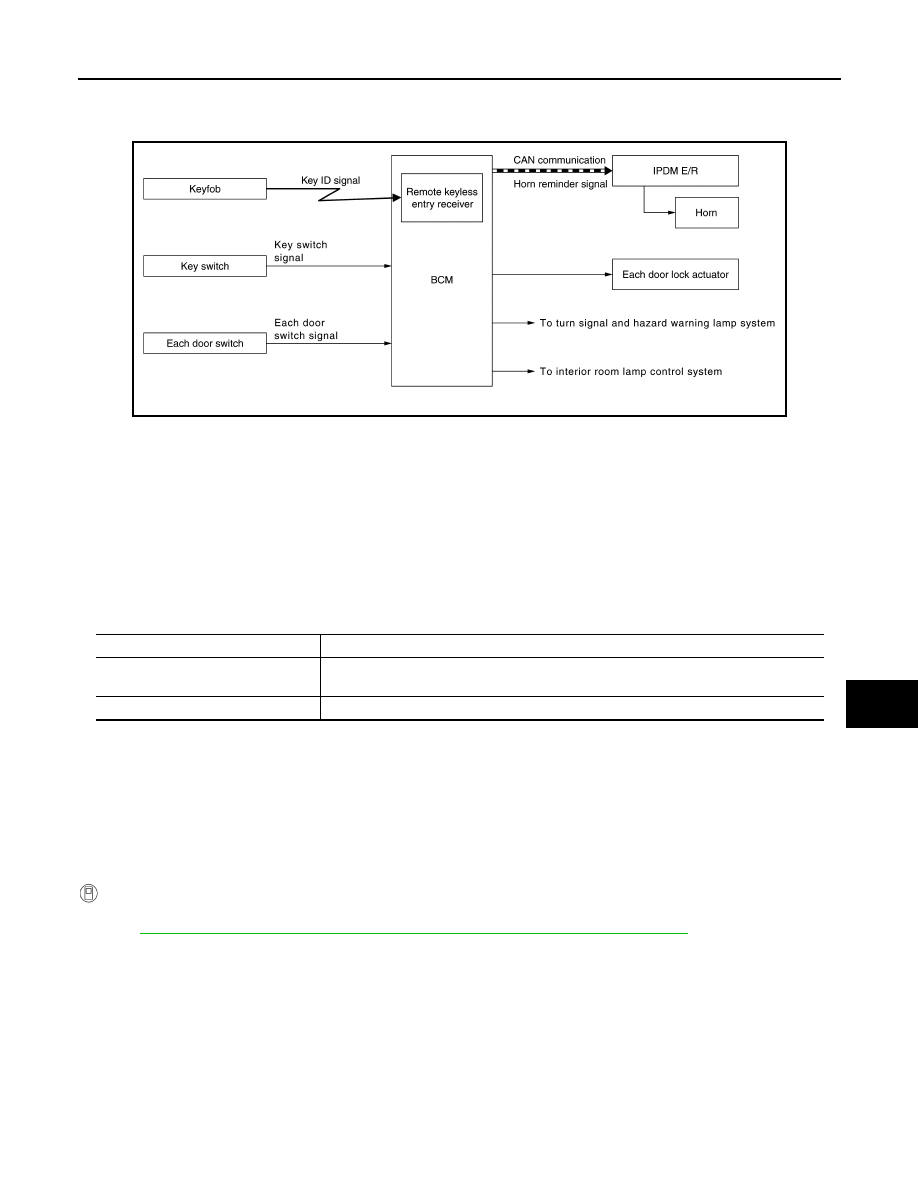

System Diagram

INFOID:0000000010672486

System Description

INFOID:0000000010672487

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, blinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm (3 ft) range of each door, however the operable
range may differ according to surroundings.

SELECTIVE UNLOCK FUNCTION

• When LOCK signal is transmitted from keyfob, all doors are locked.
• When UNLOCK signal is transmitted from keyfob once, driver side door is unlocked.
• Then, if UNLOCK signal is transmitted from keyfob again, all other doors are unlocked.
How to change anti-hijack mode.

 With CONSULT

Selective unlock mode can be set to ON or OFF using CONSULT.
Refer to

DLK-845, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 6)"

.

PANIC ALARM FUNCTION

When keyfob panic alarm button is pressed while ignition switch is OFF, BCM transmits theft warning horn
request signal to IPDM E/R. Then, IPDM E/R turns on and off horn intermittently.
The horn sounds intermittently.
The alarm automatically turns off.
• After 25 seconds
• When BCM receives any signal from keyfob

REMINDER FUNCTION

When doors are locked or unlocked by keyfob, BCM blinks hazard warning lamps as a reminder and transmits
horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.

JMKIB3618GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

DLK-842

< SYSTEM DESCRIPTION >

[TYPE 6]

REMOTE KEYLESS ENTRY SYSTEM

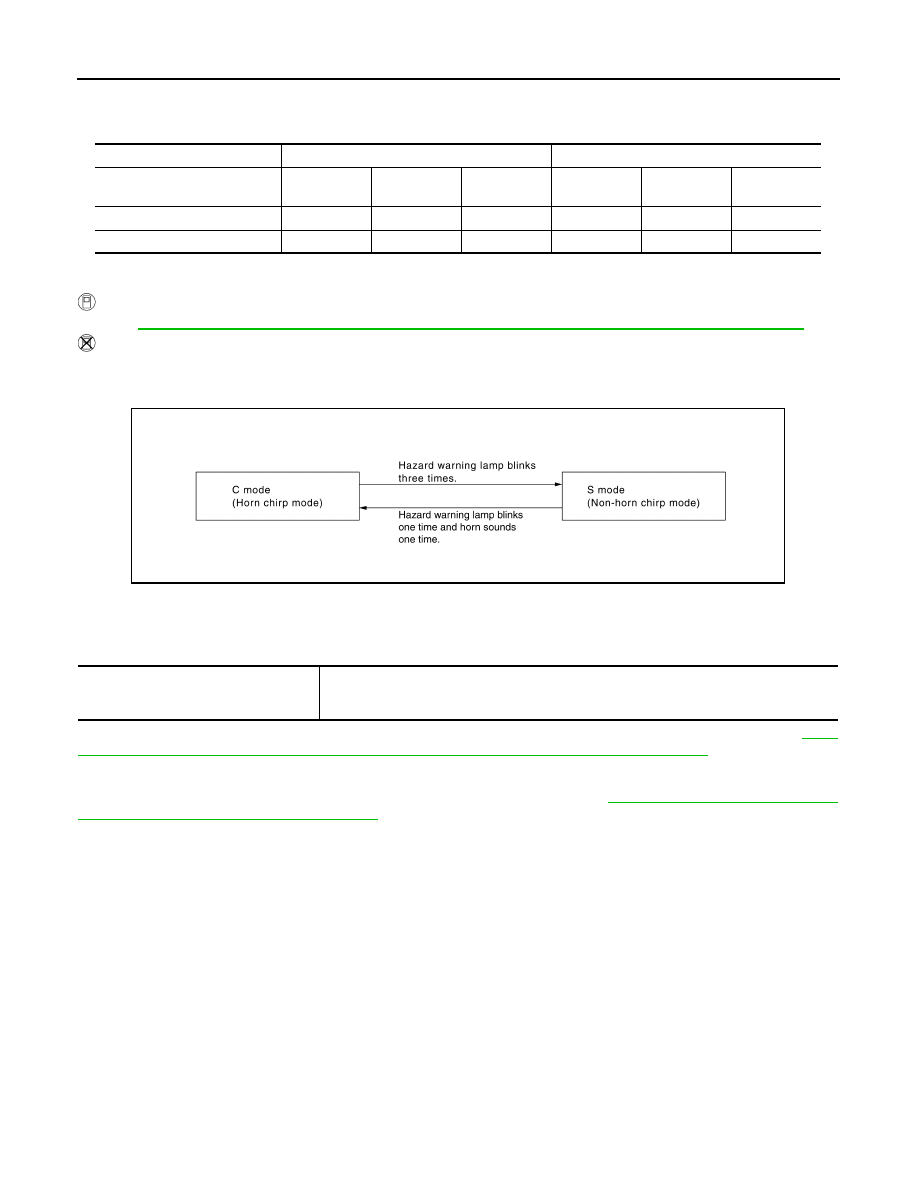

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

Hazard and horn reminder does not operate if ignition switch ON position.
How to change hazard and horn reminder mode

With CONSULT

Refer to

DLK-846, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)"

.

Without CONSULT

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the
following items:

AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 60 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

846, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

C mode

S mode

Keyfob operation

Lock

Unlock

Back door

open

Lock

Unlock

Back door

open

Hazard warning lamp blinks

Twice

Once

—

Twice

—

—

Horn  sound

Once

—

—

—

—

—

JMKIB1365GB

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

BACK DOOR OPENER SYSTEM

DLK-843

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SYSTEM

System Description

INFOID:0000000010672488

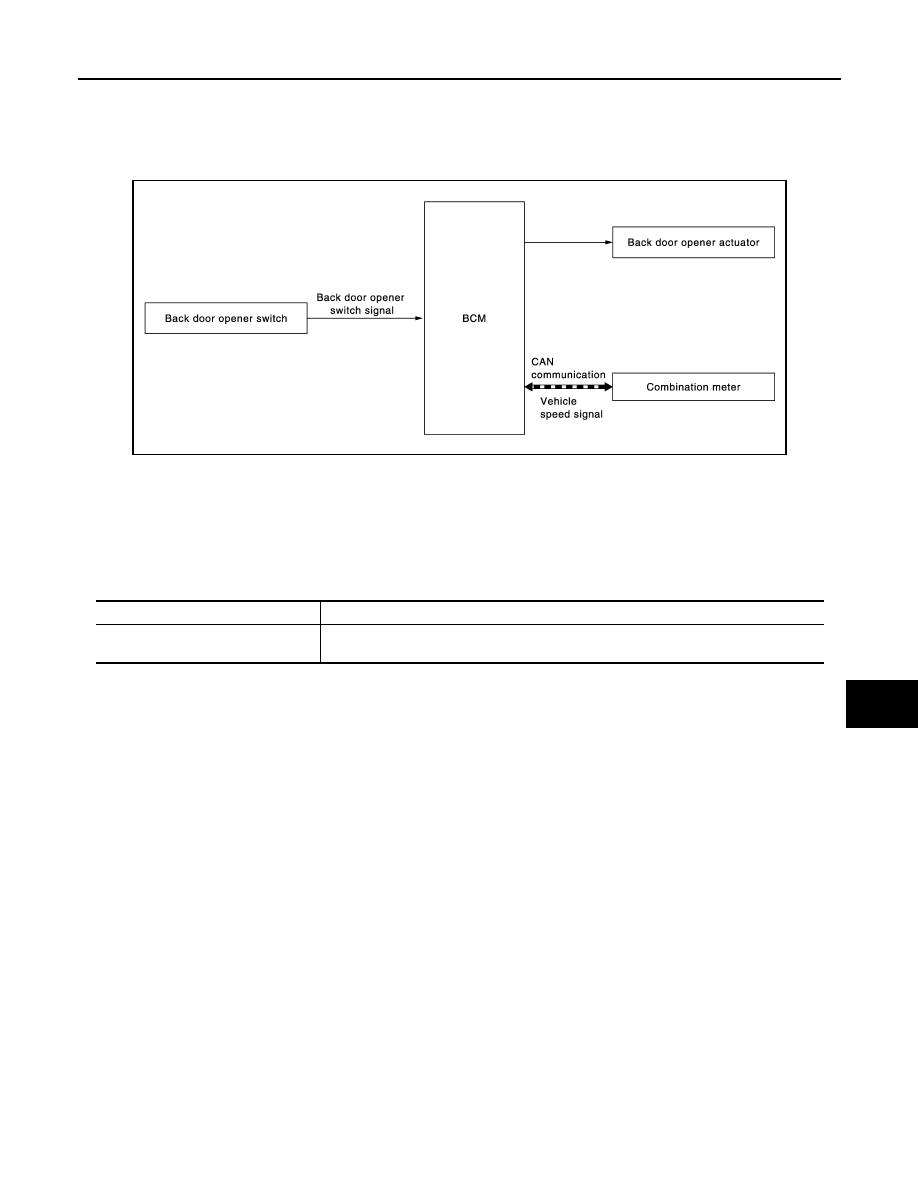

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-844

< SYSTEM DESCRIPTION >

[TYPE 6]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010674528

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

PTC heater control

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×
