BACK DOOR LOCK

DLK-373

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

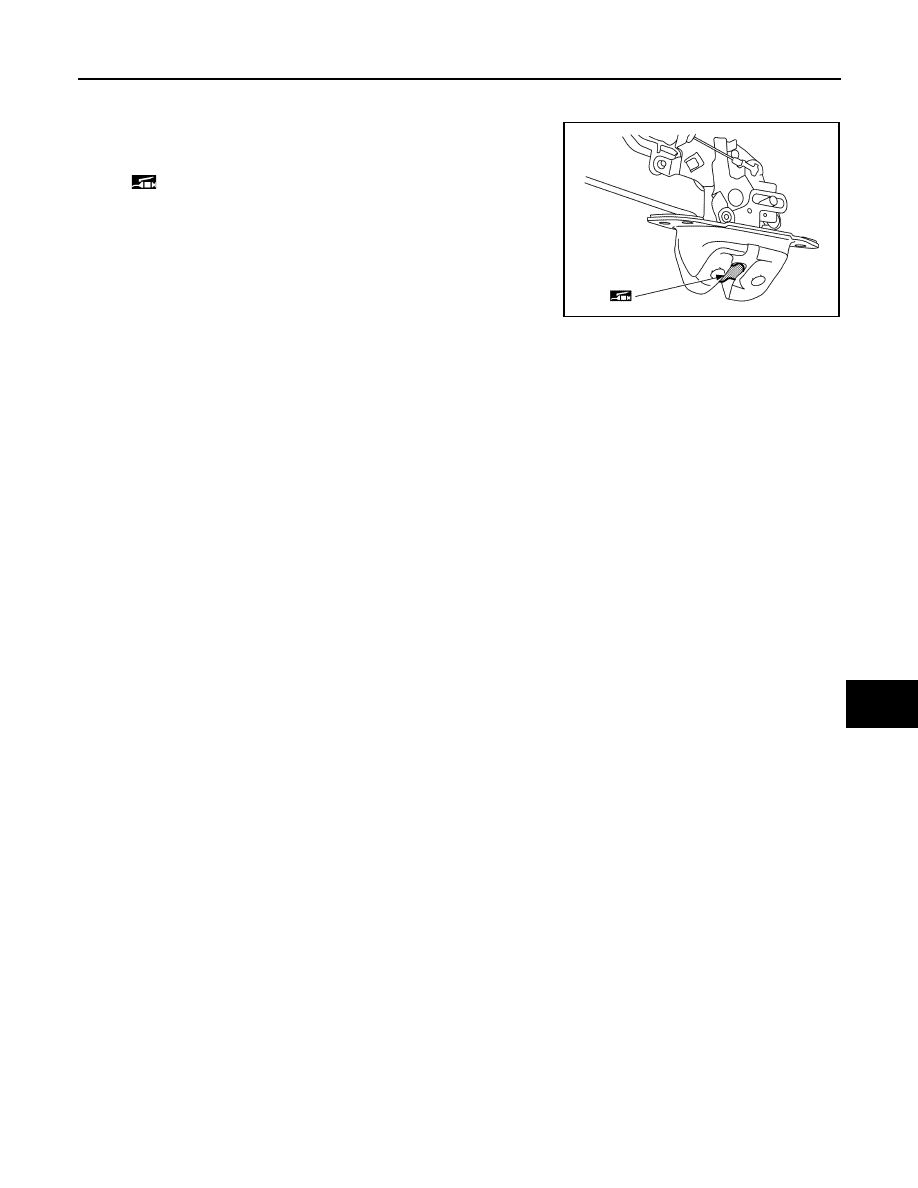

Inspection

INFOID:0000000010478287

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

: Body grease

JMKIB0629ZZ

DLK-374

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

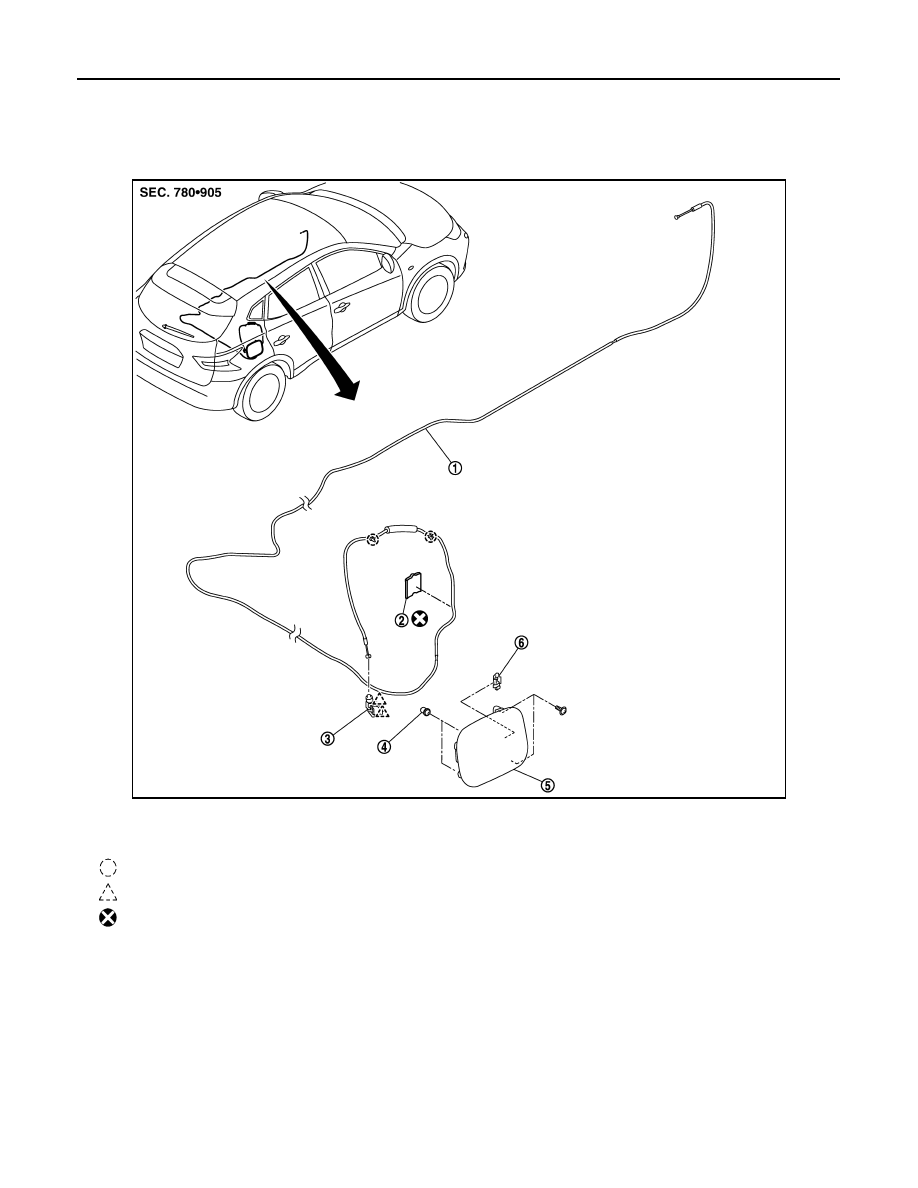

Exploded View

INFOID:0000000010478288

LHD models

JMKIB3264ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

FUEL FILLER LID OPENER

DLK-375

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

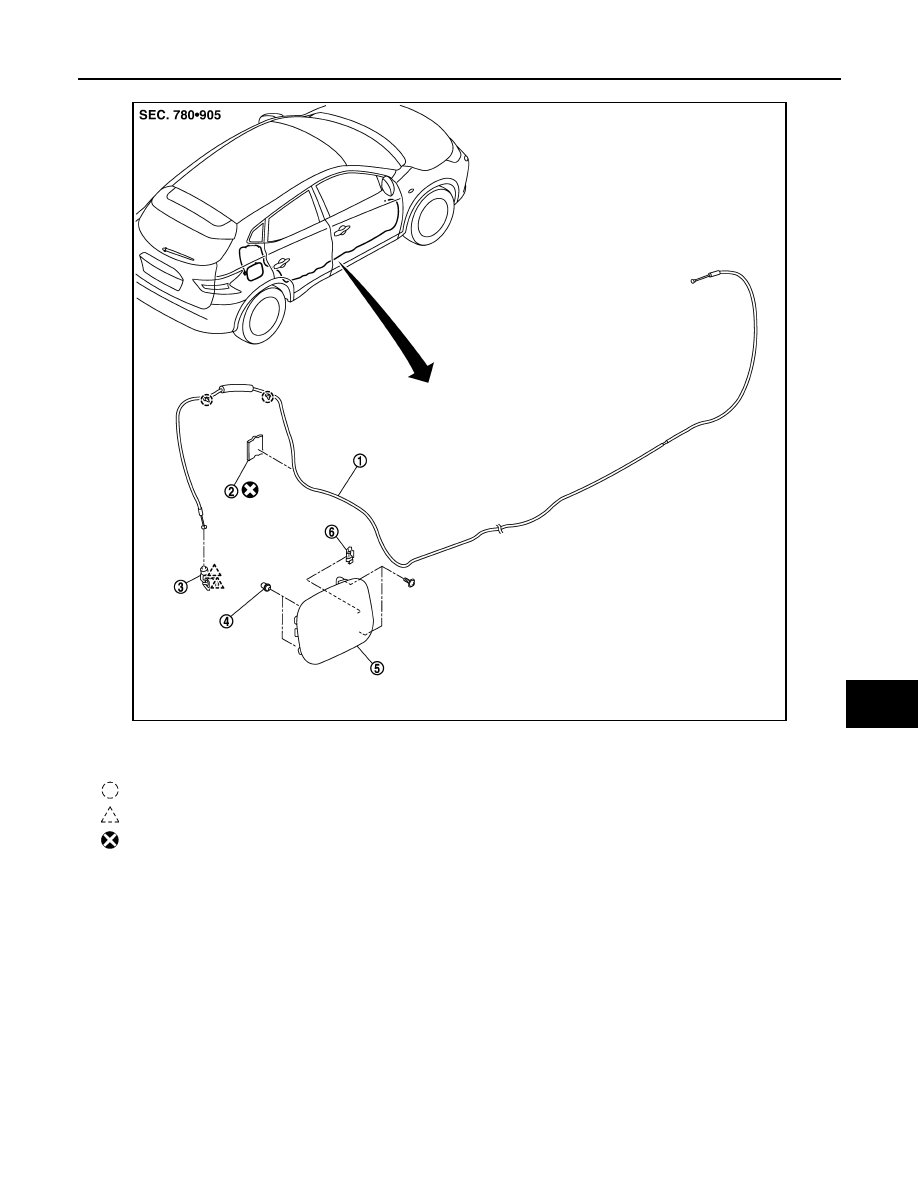

RHD models

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010478289

REMOVAL

1.

Fully open fuel filler lid assembly.

JMKIB3263ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

DLK-376

< REMOVAL AND INSTALLATION >

[TYPE 2]

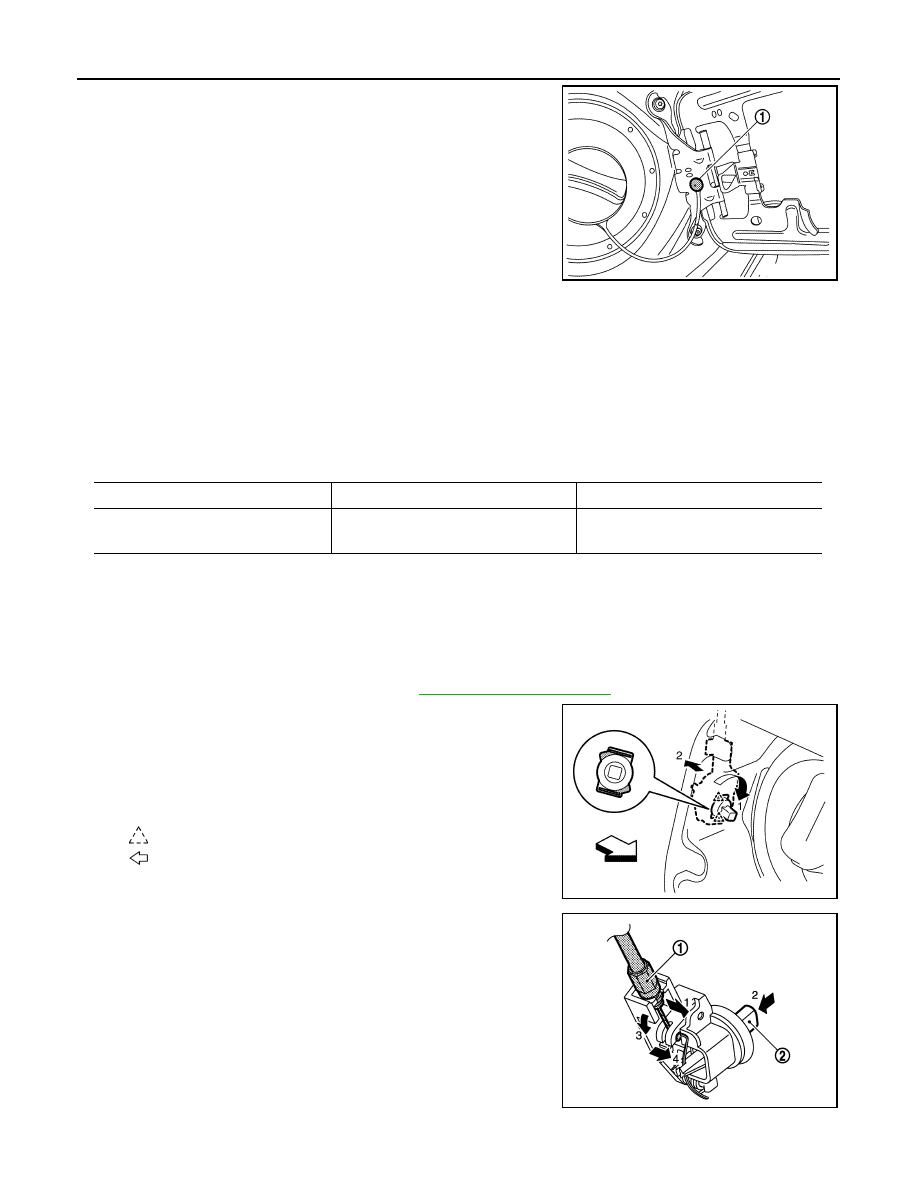

FUEL FILLER LID OPENER

2.

Remove fuel mounting pin (1).

3.

Remove fixing screws, and then remove fuel filler lid assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• After installation, apply the touch-up paint (the body color) onto the head of the fixing screws.
• Apply anti-corrosion wax to mounting surface of fixing screw and fuel filler lid to prevent rust.
NOTE:
The following table shows the specified values for checking normal installation status.

Unit: mm [in]

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000010478290

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

3.

In the order of 1

→

2 as shown in the figure, rotate and disengage

fuel filler lid lock assembly, and then remove fuel filler lid lock
assembly.
NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

4.

In the order of 1

→

4 as shown in the figure. Disengage fuel filler

lid opener cable (1). Remove fuel filler lid opener cable while
pressing stopper pin (2).

JMKIB3183ZZ

Clearance

Evenness

Fuel filler lid – Body side outer

3.7 – 5.3

(0.146 – 0.209)

(-1.0) – (+1.0)

[(-0.039) – (+0.039)]

: Pawl

: Vehicle front

JMKIB1094ZZ

JMKIA5719ZZ
