INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER OPENER CABLE

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000010478291

REMOVAL

LHD models

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

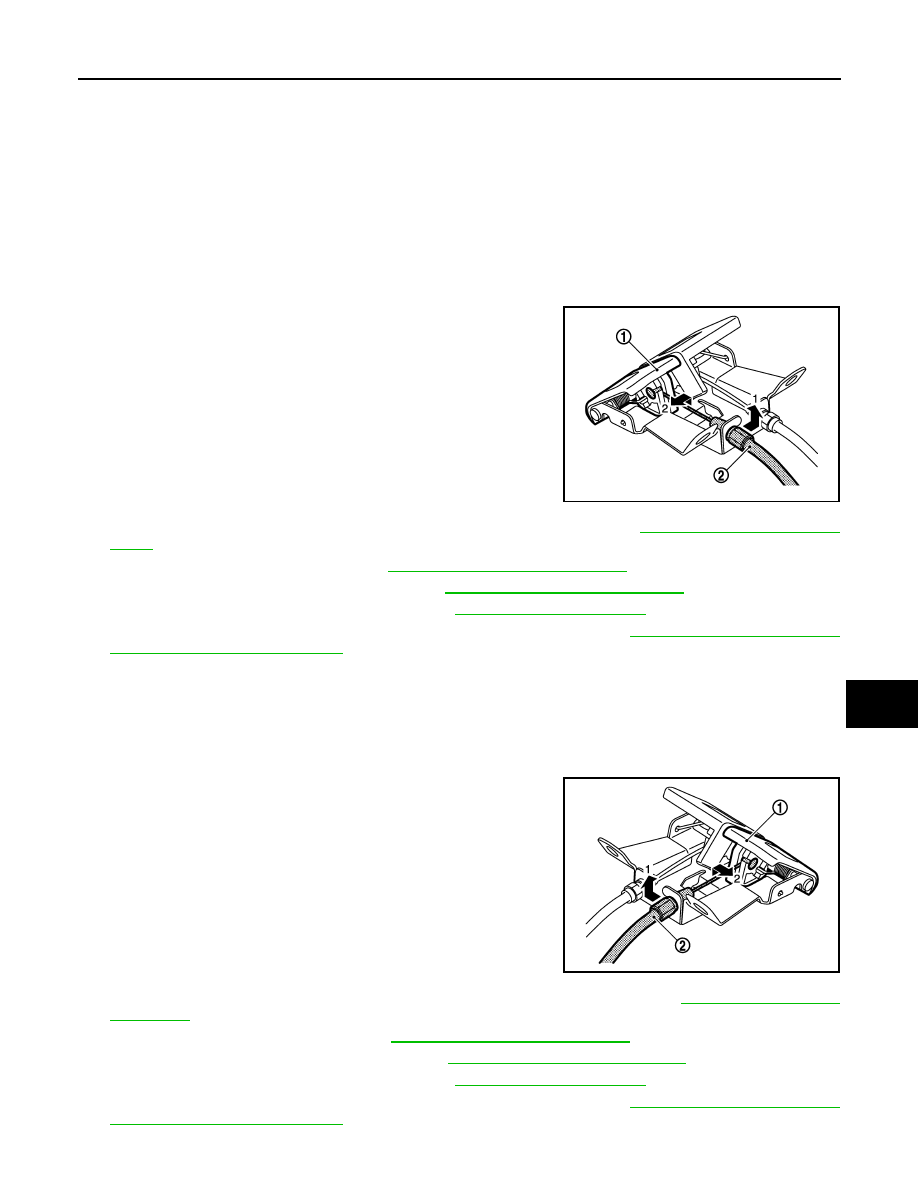

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner LH and rear kicking plate inner LH. Refer to

INT-18, "Removal and Instal-

lation"

.

4.

Remove dash side finisher LH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish LH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-376, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

RHD models

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner RH and rear kicking plate inner RH. Refer to

INT-18, "Removal and

Installation"

.

4.

Remove dash side finisher RH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish RH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-376, "FUEL FILLER LID

LOCK : Removal and Installation"

.

JMKIA5901ZZ

JMKIA5672ZZ

DLK-378

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse cable protector. Always replace it with a new one when it is removed.
• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

DOOR SWITCH

DLK-379

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR SWITCH

Removal and Installation

INFOID:0000000010504911

REMOVAL

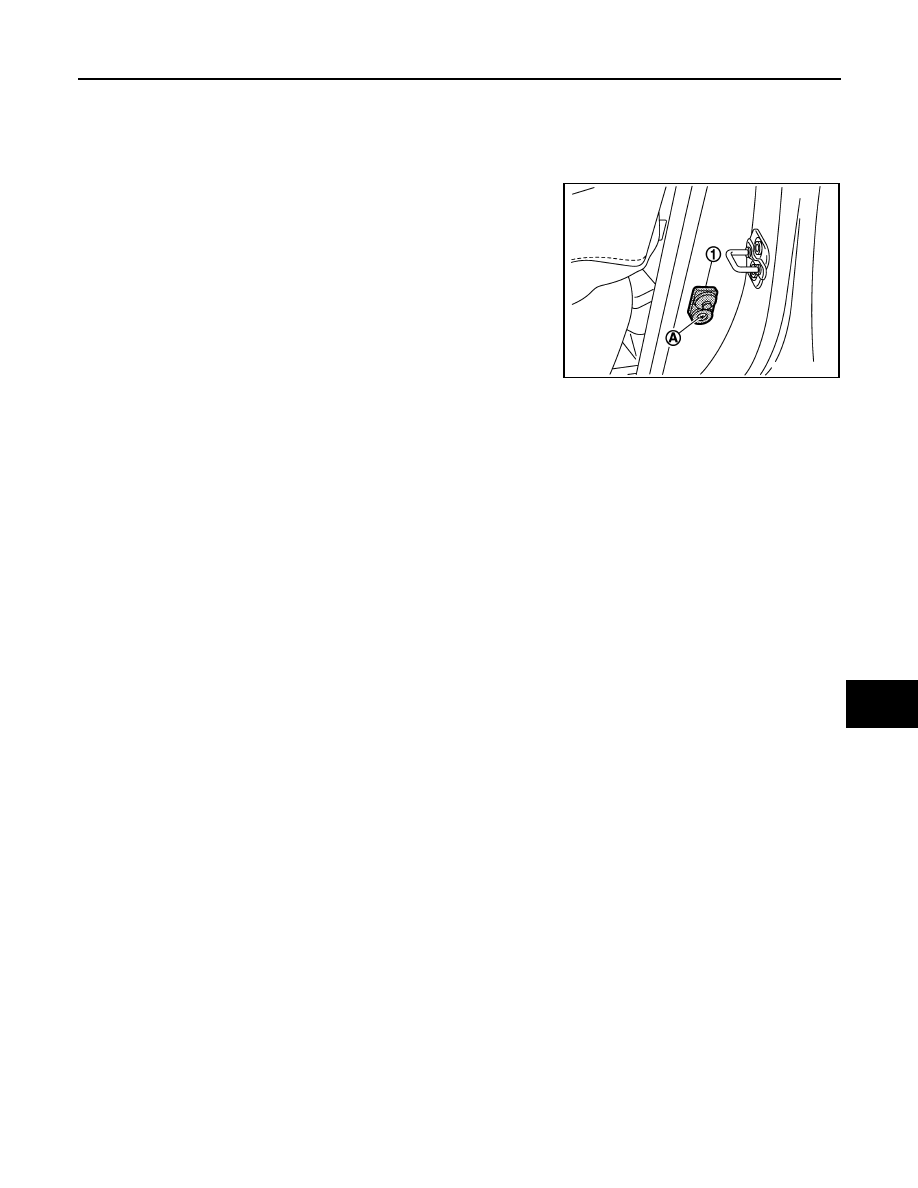

Remove the TORX bolt (A), and then remove door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2173ZZ

DLK-380

< REMOVAL AND INSTALLATION >

[TYPE 2]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

CONSOLE

CONSOLE : Removal and Installation

INFOID:0000000010504913

REMOVAL

1.

Remove the console rear finisher. Refer to

IP-19, "Removal and Installation"

.

2.

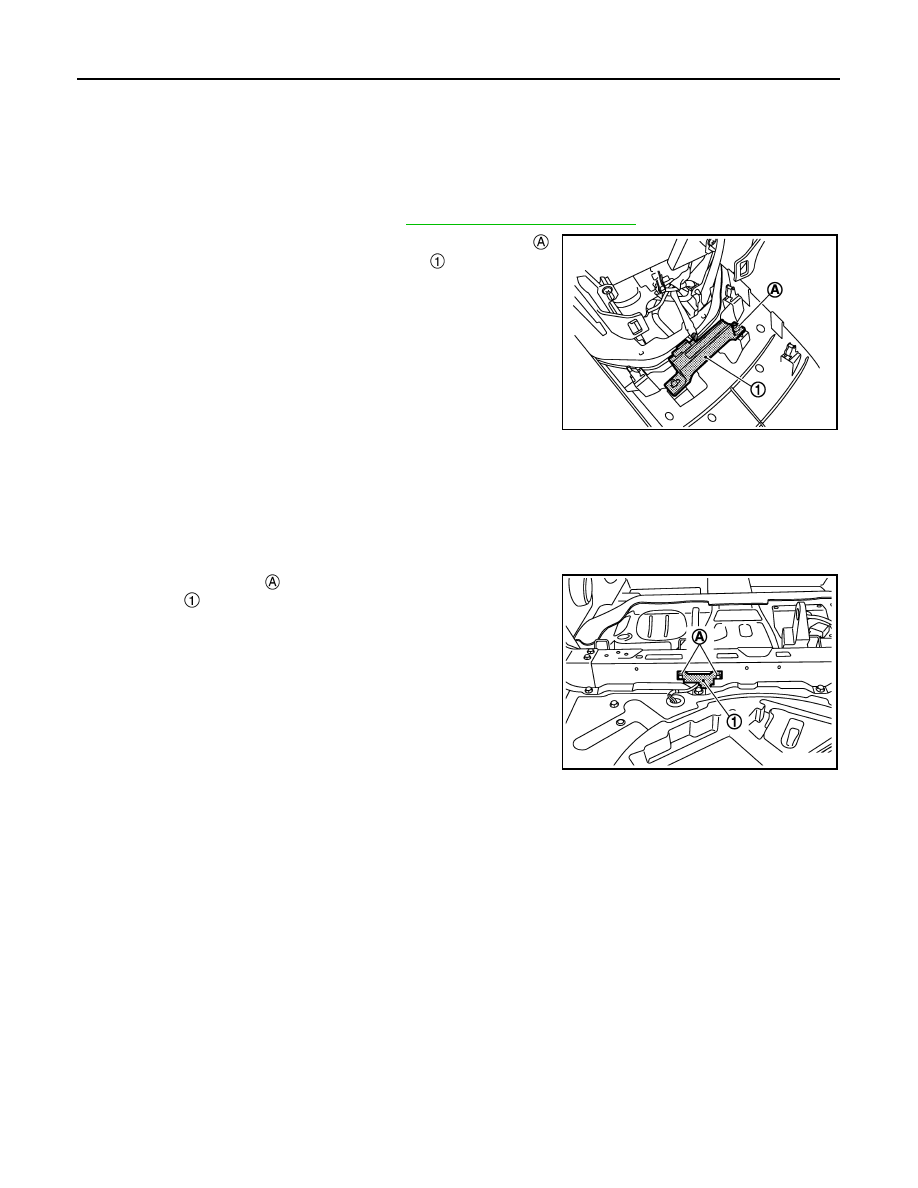

Remove the inside key antenna (console) mounting screw

,

and then remove inside key antenna (console)

.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Removal and Installation

INFOID:0000000010504914

REMOVAL

Remove the mounting clip

, and then remove inside key antenna

(luggage room)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3257ZZ

JMKIB3258ZZ
