HOOD LOCK

DLK-361

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

RHD models

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010478270

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove hood lock assembly mounting bolt and nuts, and then remove hood lock assembly from radiator
core support upper.

3.

Disconnect hood lock control cable assembly from hood lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• After installation, perform hood lock control inspection. Refer to

DLK-363, "Inspection"

.

• Check hood lock assembly for poor lubrication. Refer to

DLK-363, "Inspection"

.

• After installation, perform hood fitting adjustment. Refer to

DLK-331, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD LOCK CONTROL HANDLE

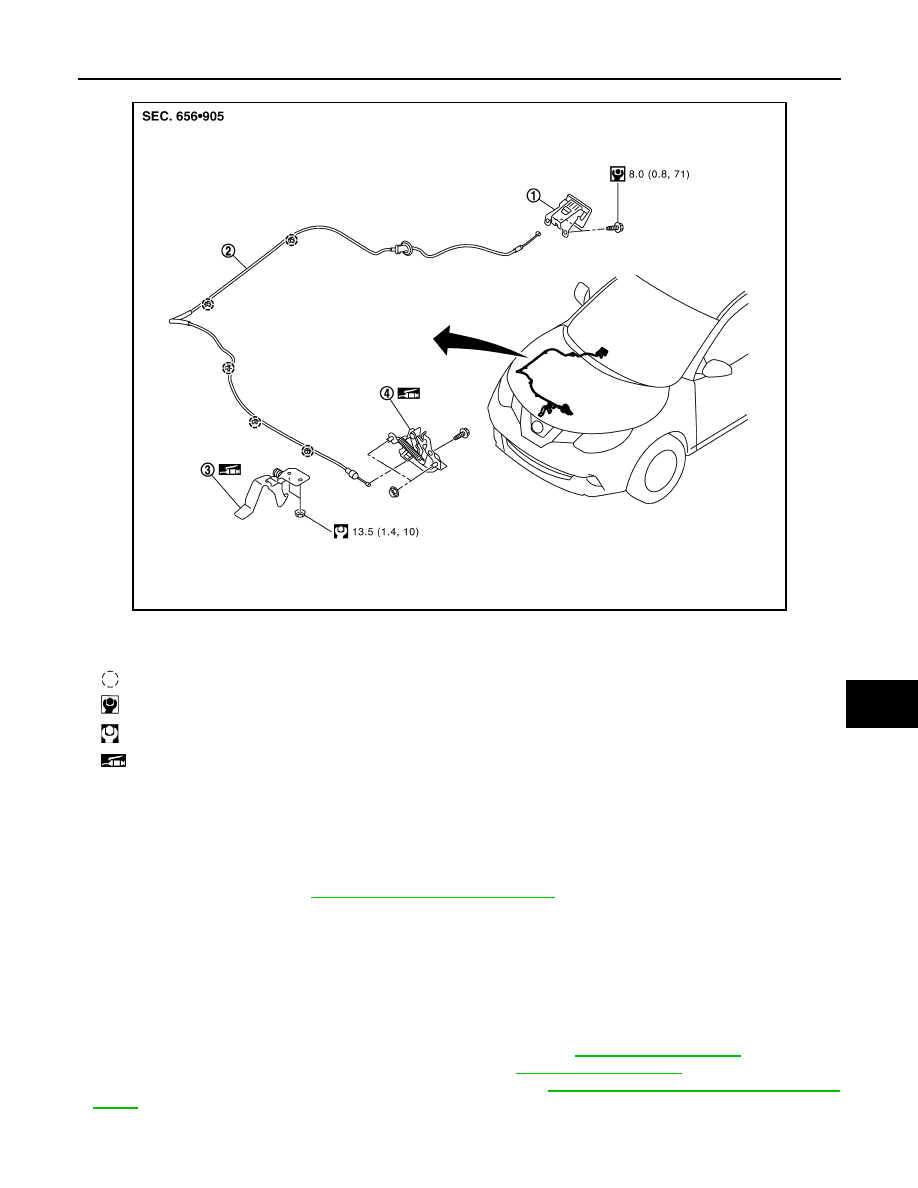

JMKIB3308GB

1.

Hood lock control handle

2.

Hood lock control cable

3.

Hood safety hook

4.

Hood lock assembly

: Clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

DLK-362

< REMOVAL AND INSTALLATION >

[TYPE 2]

HOOD LOCK

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000010478271

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

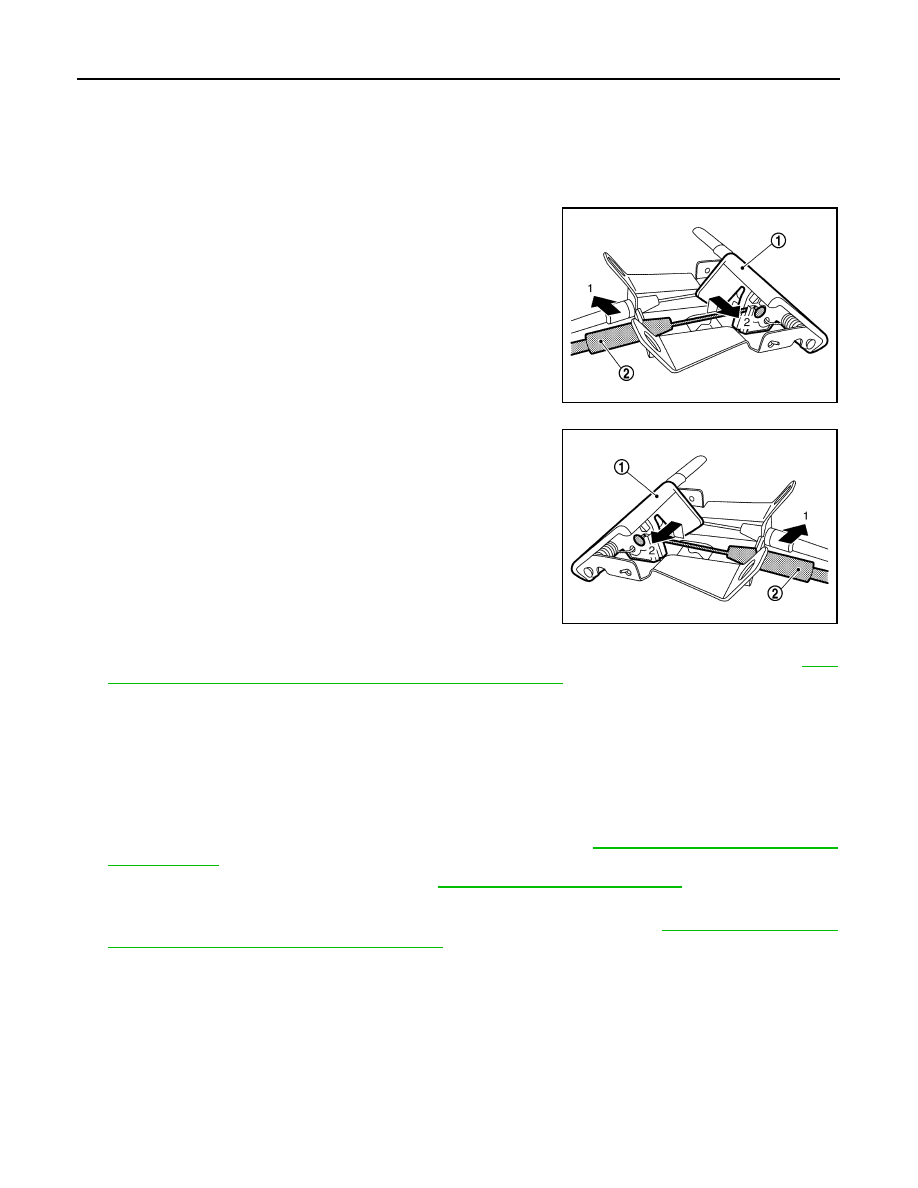

Disconnect hood lock control cable (2) from hood opener lever (1) according to the numerical order 1

2

indicated by arrows as shown in the figure.
• LHD models

• RHD models

3.

Disconnect fuel opener cable from fuel filler lid opener lever of hood lock control handle. Refer to

DLK-

377, "FUEL FILLER OPENER CABLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000010478272

REMOVAL

1.

Disconnect hood lock control cable from hood lock assembly. Refer to

DLK-361, "HOOD LOCK : Removal

and Installation"

.

2.

Remove fender protector (driver side). Refer to

EXT-33, "Removal and Installation"

.

3.

Remove hood lock control cable fixing clips.

4.

Disconnect hood lock control cable from hood lock control handle. Refer to

DLK-362, "HOOD LOCK

CONTROL HANDLE : Removal and Installation"

.

5.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

JMKIB0324ZZ

JMKIB0327ZZ

HOOD LOCK

DLK-363

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

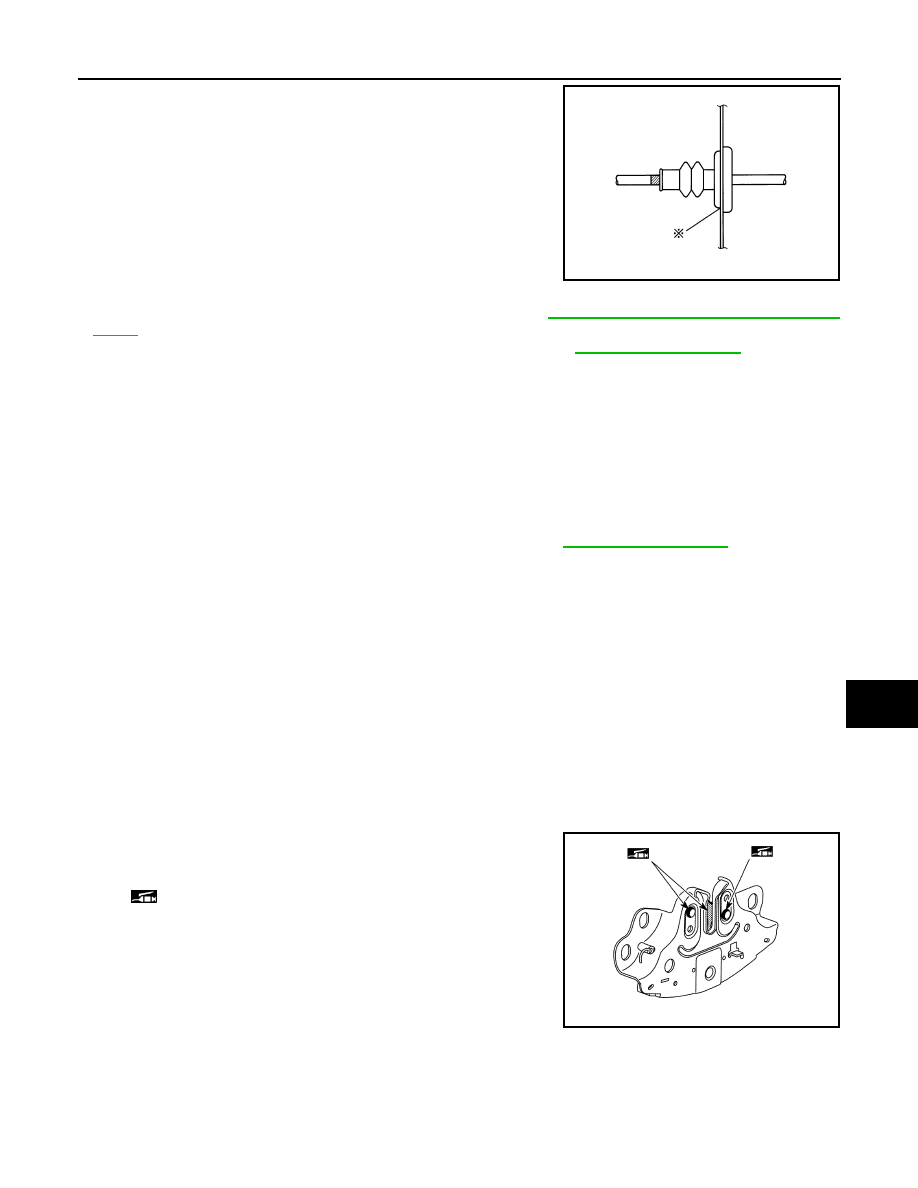

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• After installation, perform hood fitting adjustment. Refer to

DLK-331, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-363, "Inspection"

.

HOOD SAFETY HOOK

HOOD SAFETY HOOK : Removal and Installation

INFOID:0000000010497982

REMOVAL

Remove mounting nuts, and then remove hood lock secondary assembly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-363, "Inspection"

.

Inspection

INFOID:0000000010478274

NOTE:
If the hood lock cable is bent or deformed, replace it.
1.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

2.

Check that secondary latch is securely engaged with secondary striker from the dead load of the hood
assembly.

3.

Check that primary latch is securely engaged with primary striker when hood assembly is closed [free-fall
from approximately 200 mm (7.874 in) height].

CAUTION:

Never free-fall hood assembly from a height of 300 (11.811 in) mm or more.

4.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

5.

Check that secondary latch is properly engaged with secondary striker [4.0 mm (0.157 in)].

6.

Check the hood lock lubrication condition. If necessary, apply
body grease to hood lock assembly.

PIIB5801E

: Body grease

JMKIB1164ZZ

DLK-364

< REMOVAL AND INSTALLATION >

[TYPE 2]

FRONT DOOR LOCK

FRONT DOOR LOCK

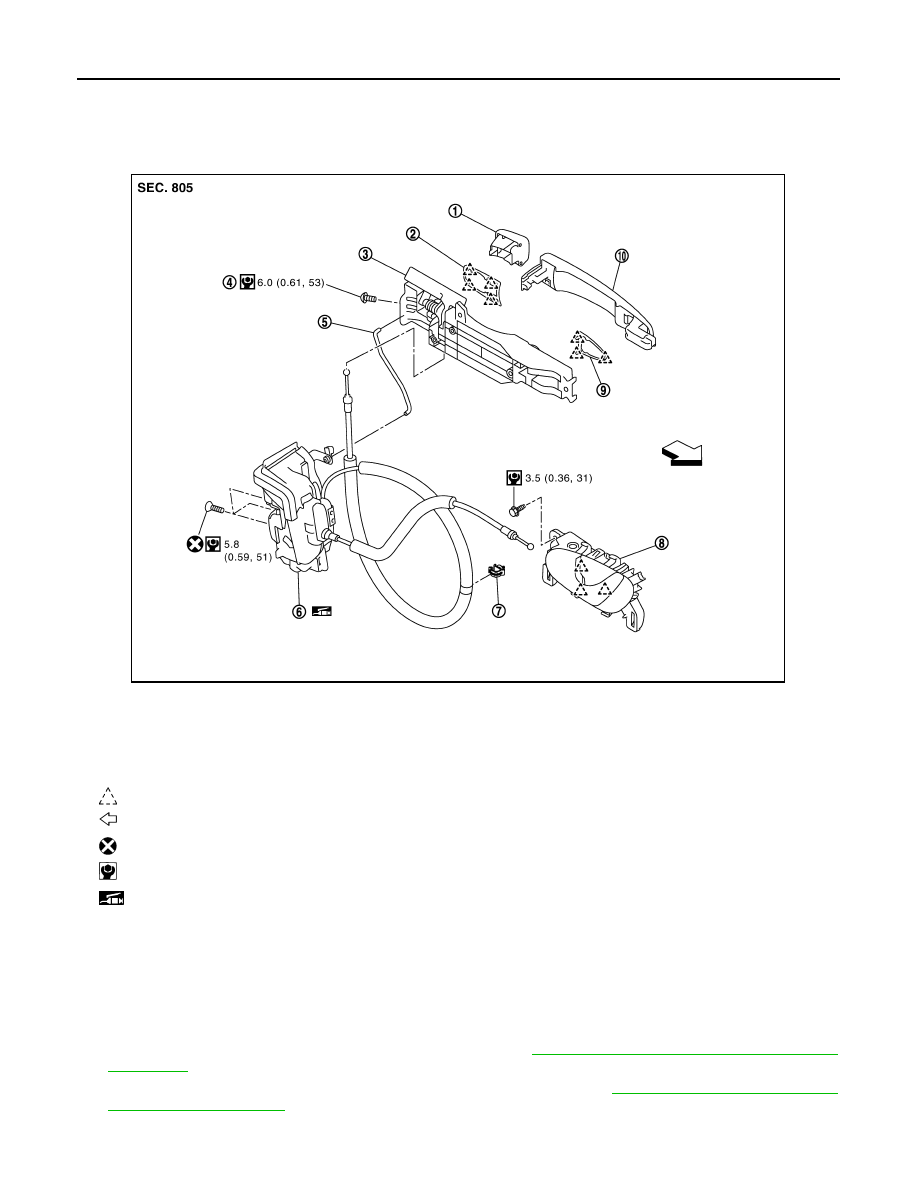

Exploded View

INFOID:0000000010478275

*

1

: Driver side only

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010478276

REMOVAL

1.

Disconnect inside handle cable from inside handle. Refer to

DLK-365, "INSIDE HANDLE : Removal and

Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-365, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly harness connector.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Key rod*

1

6.

Door lock assembly

7.

cable clip

8.

Inside handle

9.

Front gasket

10. Outside handle grip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3253GB
