REAR DOOR

DLK-353

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-353, "DOOR

CHECK LINK : Inspection"

.

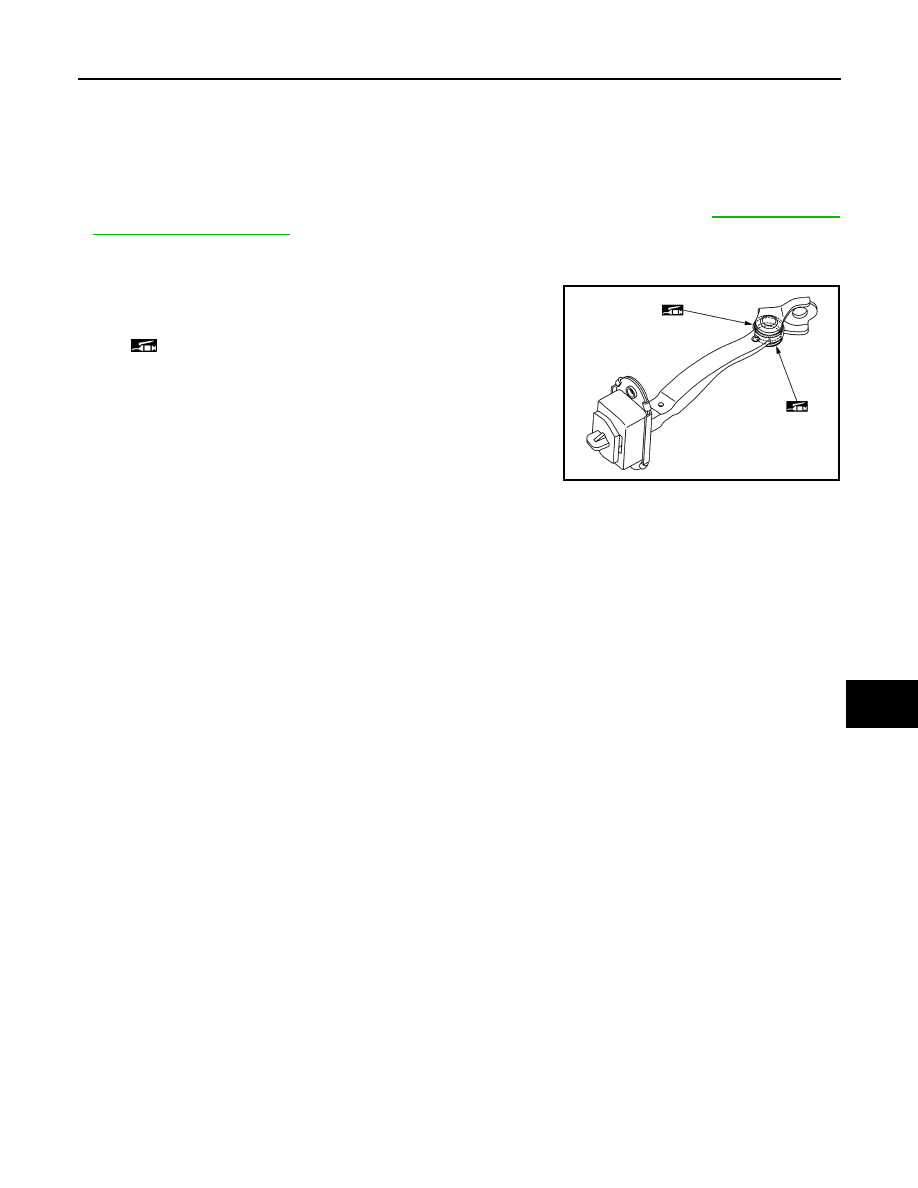

DOOR CHECK LINK : Inspection

INFOID:0000000010478259

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

DLK-354

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR

BACK DOOR

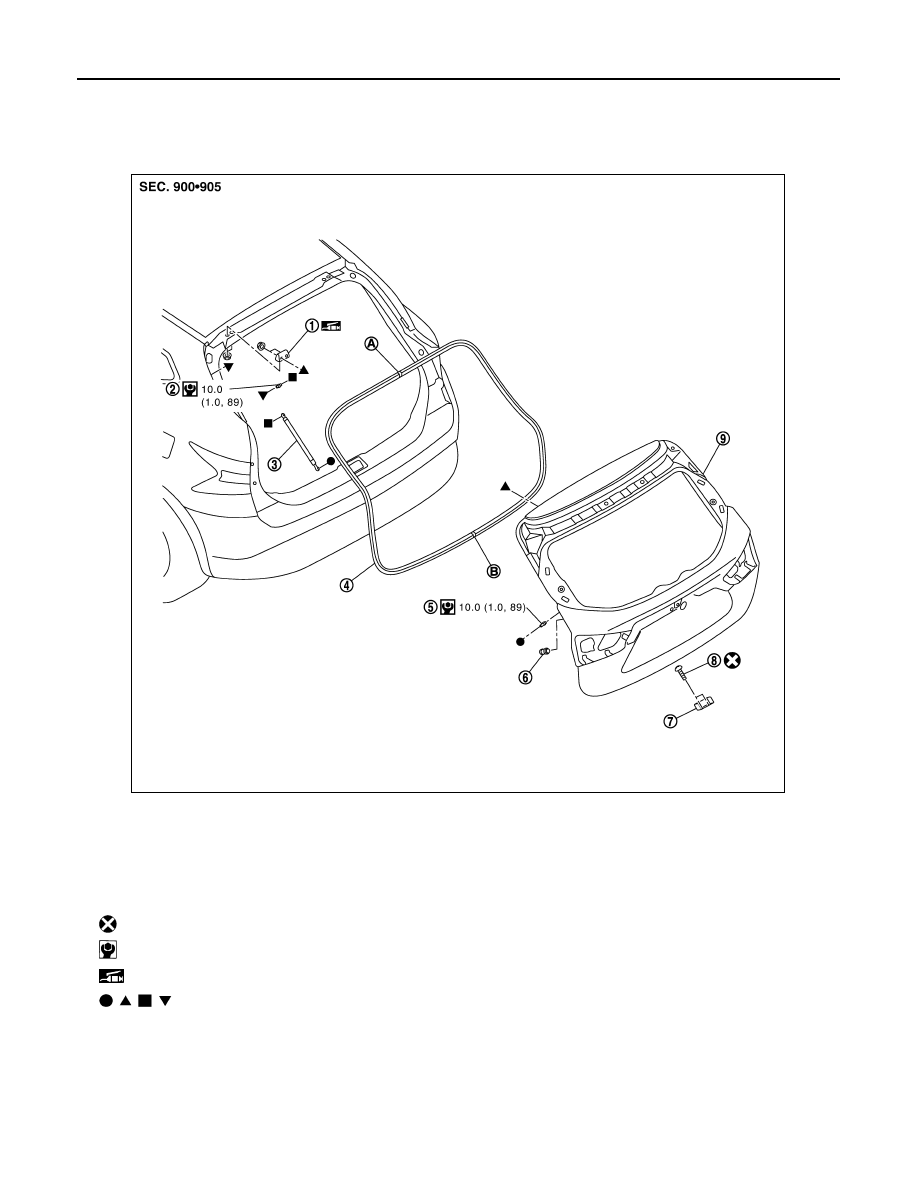

Exploded View

INFOID:0000000010478260

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010478261

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

1.

Back door hinge

2.

Stud ball

3.

Back door stay

4.

Back door weather-strip

5.

Stud ball

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

9.

Back door panel

A.

Center mark

B.

Seam

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3637GB

BACK DOOR

DLK-355

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL

1.

Remove back door trim finisher lower and back door trim finisher upper. Refer to

INT-31, "Removal and

Installation"

.

2.

Remove rear washer tube from back door panel. Refer to

WW-90, "WASHER TUBE : Removal and Instal-

lation"

.

3.

Disconnect back door harness connectors from body harness connectors.

4.

Remove harness grommet from back door panel.

5.

Pull out body harness LH from back door panel.

6.

Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

7.

Remove back door stay of back door side. Refer to

DLK-358, "BACK DOOR STAY : Removal and Installa-

tion"

.

8.

Remove back door mounting nuts, and then remove back door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-355, "BACK DOOR ASSEMBLY :

Adjustment"

.

• Apply touch-up paint to the body color if the paint around back door hinge is peeled off.
• Check back door hinge rotating part for poor lubrication. Refer to

DLK-358, "BACK DOOR HINGE :

Inspection"

.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010478262

FITTING ADJUSTMENT

DLK-356

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR

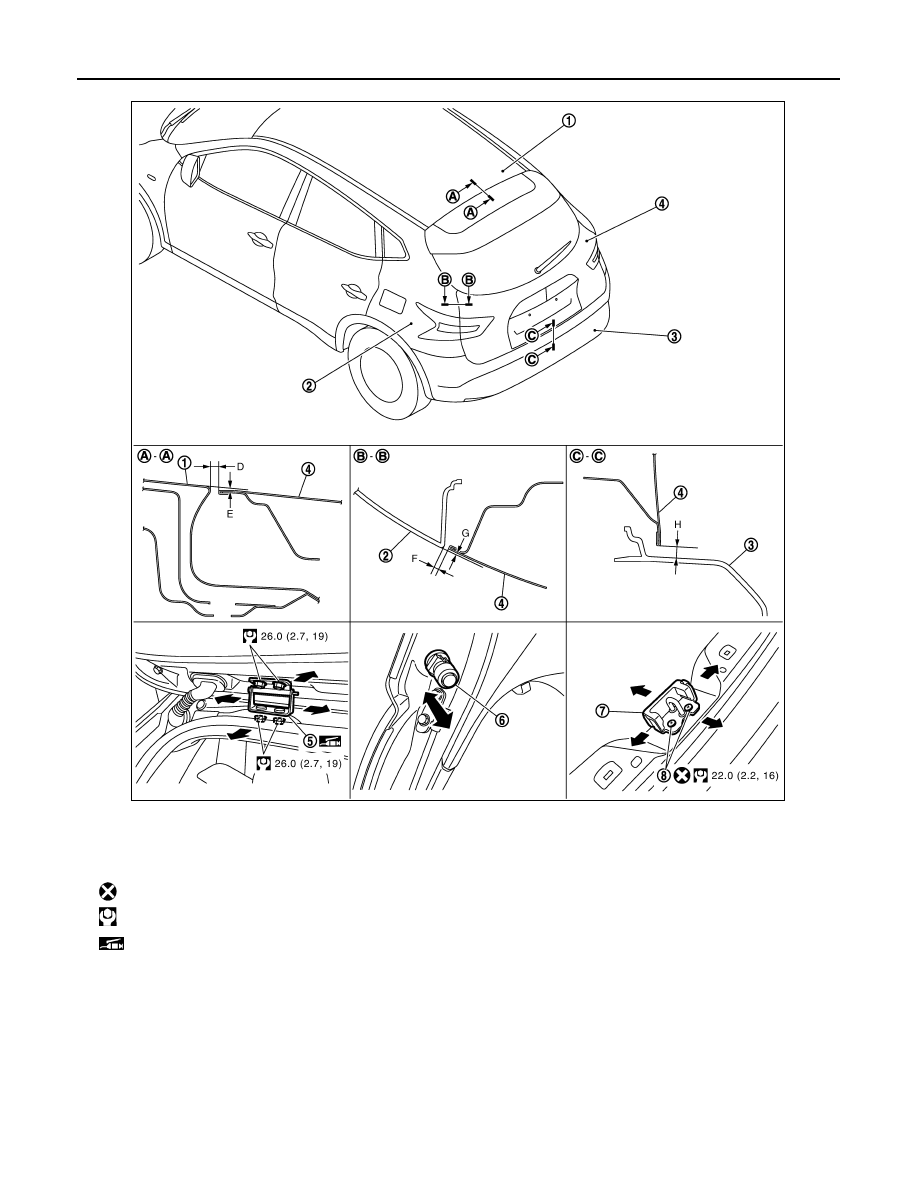

Fitting Adjustment Standard

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Roof panel

2.

Body side outer

3.

Rear bumper fascia

4.

Back door panel

5.

Back door hinge

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3321GB
