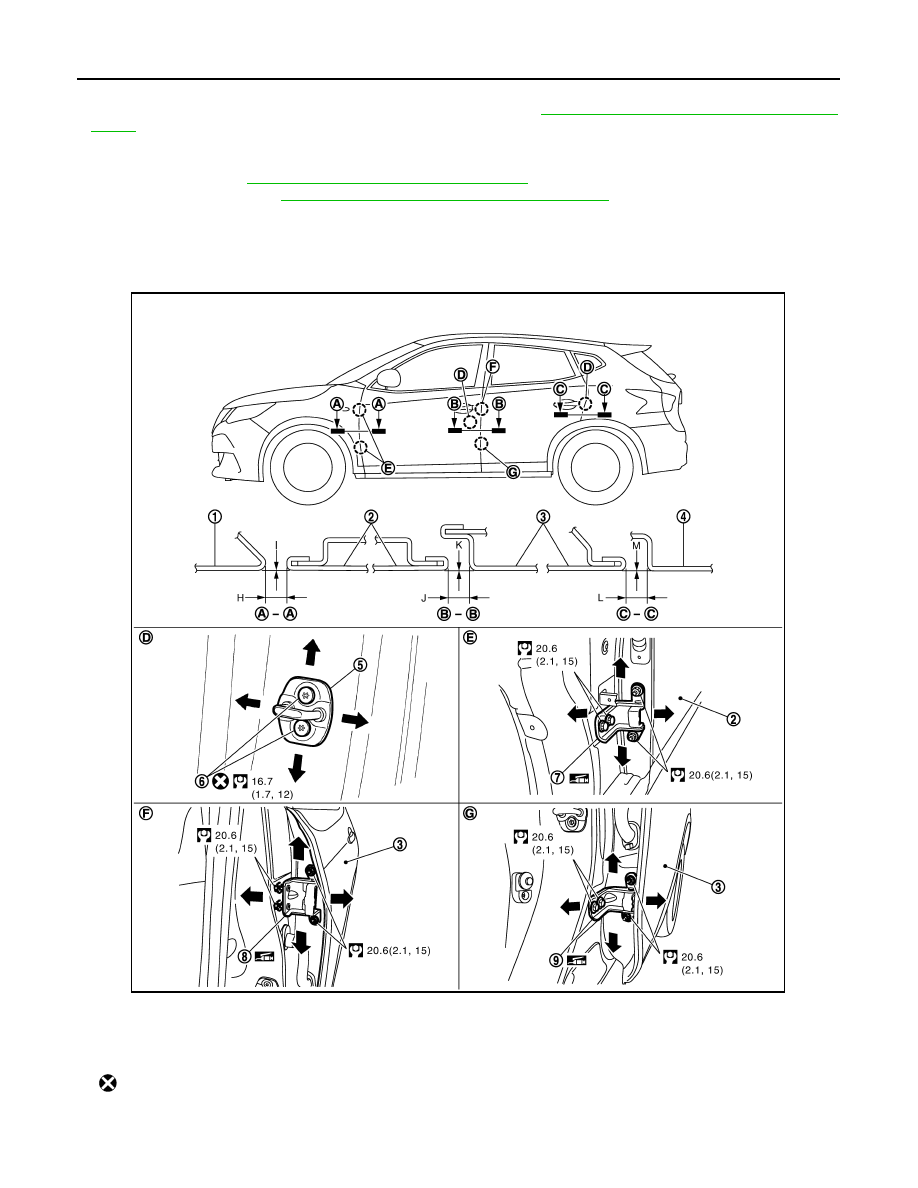

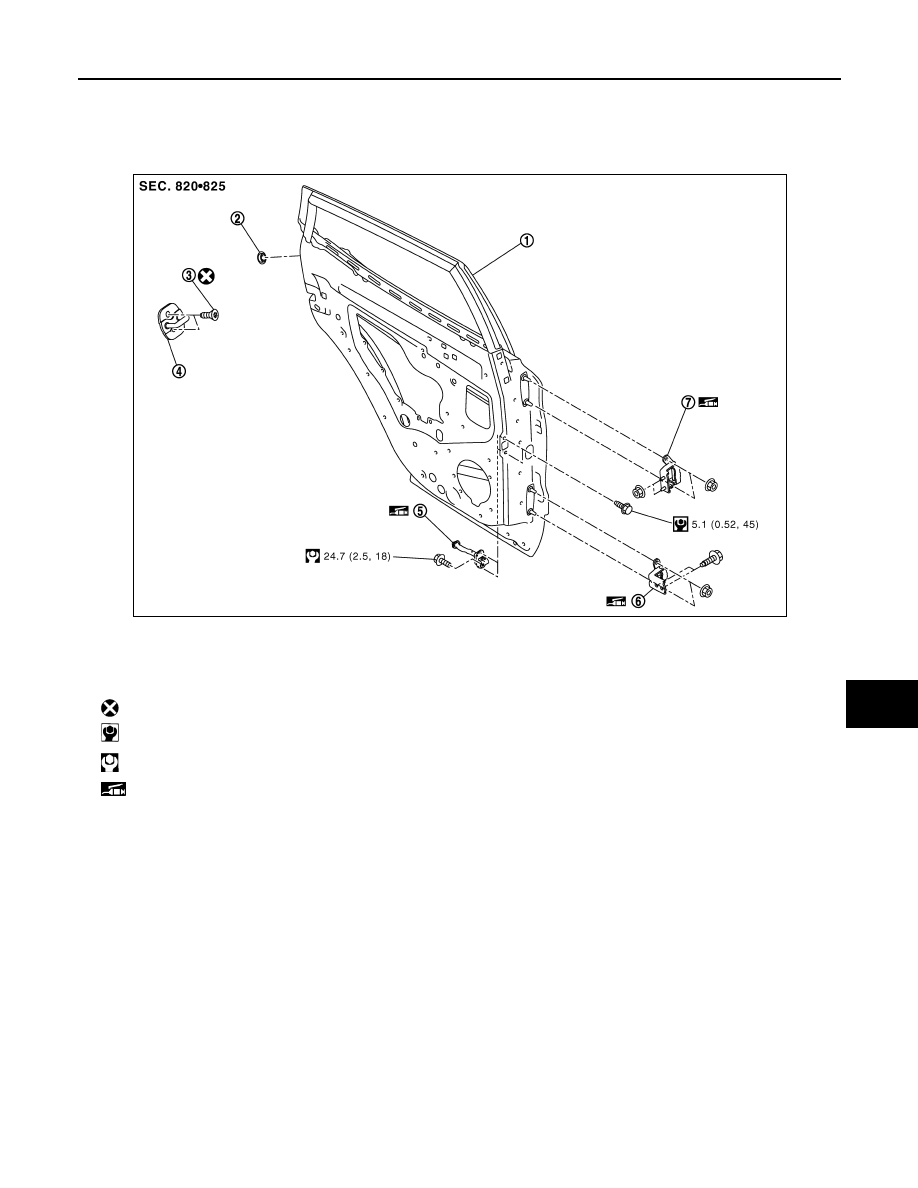

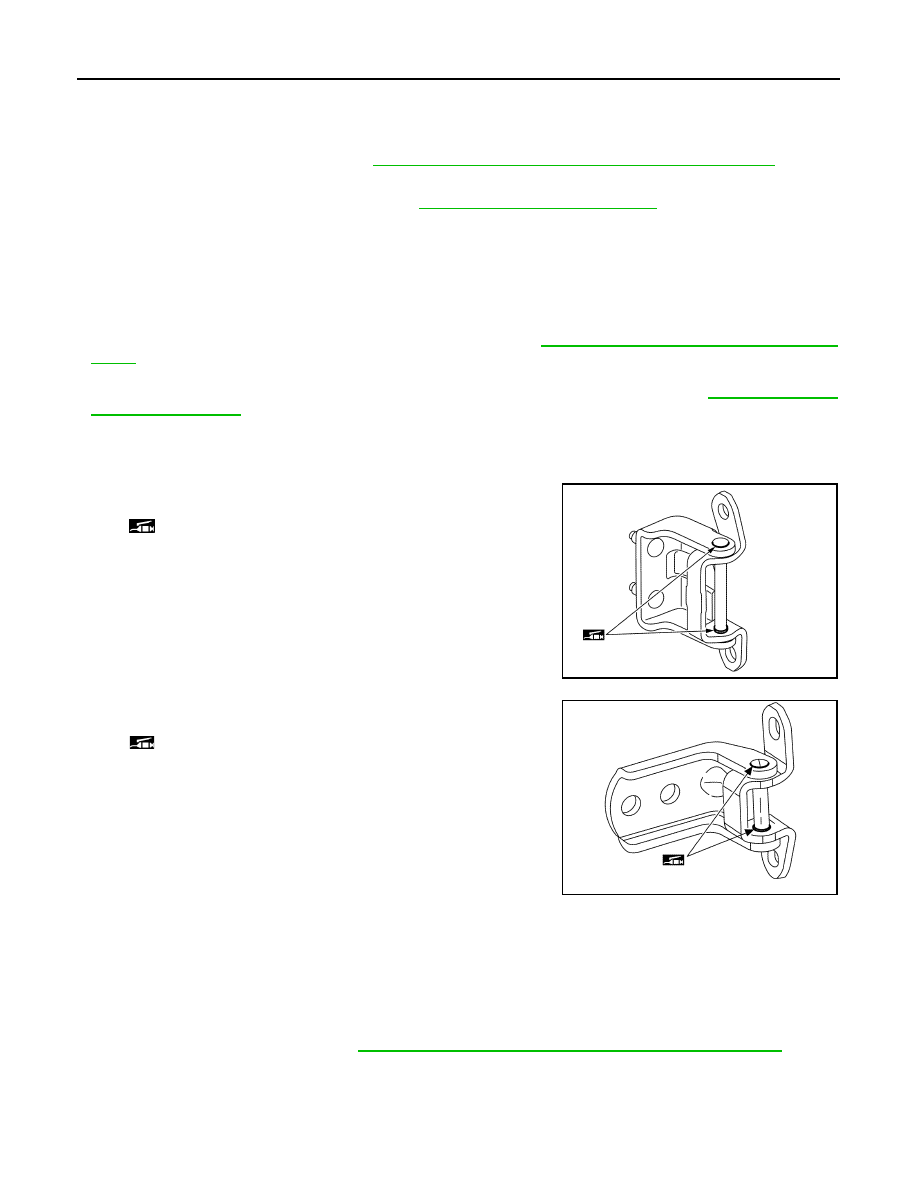

REAR DOOR DLK-349 < REMOVAL AND INSTALLATION > [TYPE 2] C D E F G H I J L M A B DLK N O P REAR DOOR Exploded View INFOID:0000000010478252 DOOR ASSEMBLY DOOR ASSEMBLY : Removal and Installation INFOID:0000000010478253 CAUTION: • Perform work with 2 workers, because of its heavy weight. tect door and body. REMOVAL 1. Remove rear door harness grommet from vehicle body side, and then pull out rear door harness. 2. Disconnect rear door harness connector. 3. Remove mounting bolt of door check link on the vehicle. 4. Remove door hinge mounting nuts of door side, and then remove rear door assembly. INSTALLATION Note the following items, and install in the reverse order of removal. CAUTION: 1. Rear door panel 2. Grommet 3. TORX bolt 4. Door striker 5. Door check link 6. Door hinge (lower) 7. Door hinge (upper) : Always replace after every disassembly. : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) : Body grease JMKIB3250GB |
