SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-213

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

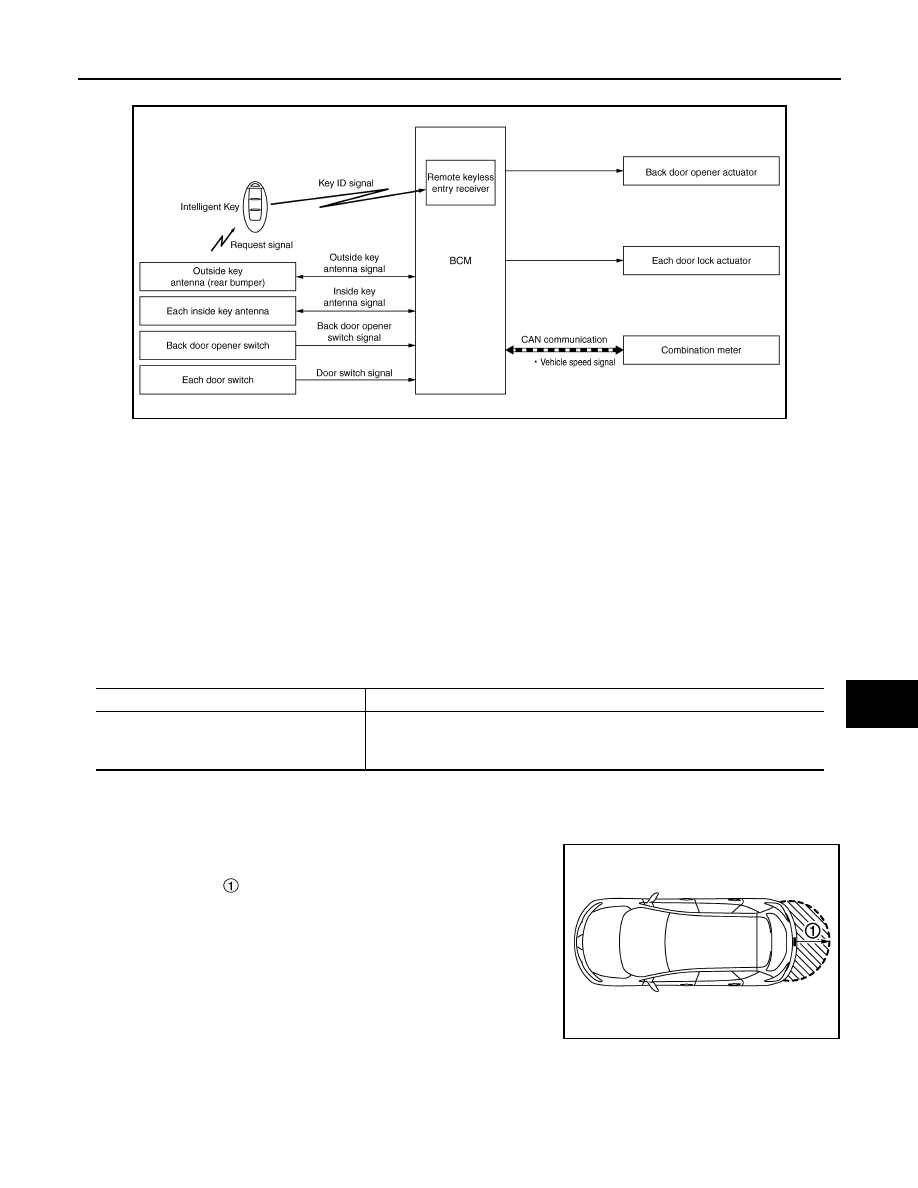

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000010683587

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010683588

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM opens back door.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

*

: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

JMKIB3635GB

Back door opener switch operation

Operation condition

Open

• All door: locked and closed
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

*

JMKIA1955ZZ

DLK-214

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

REMOTE KEYLESS ENTRY FUNCTION

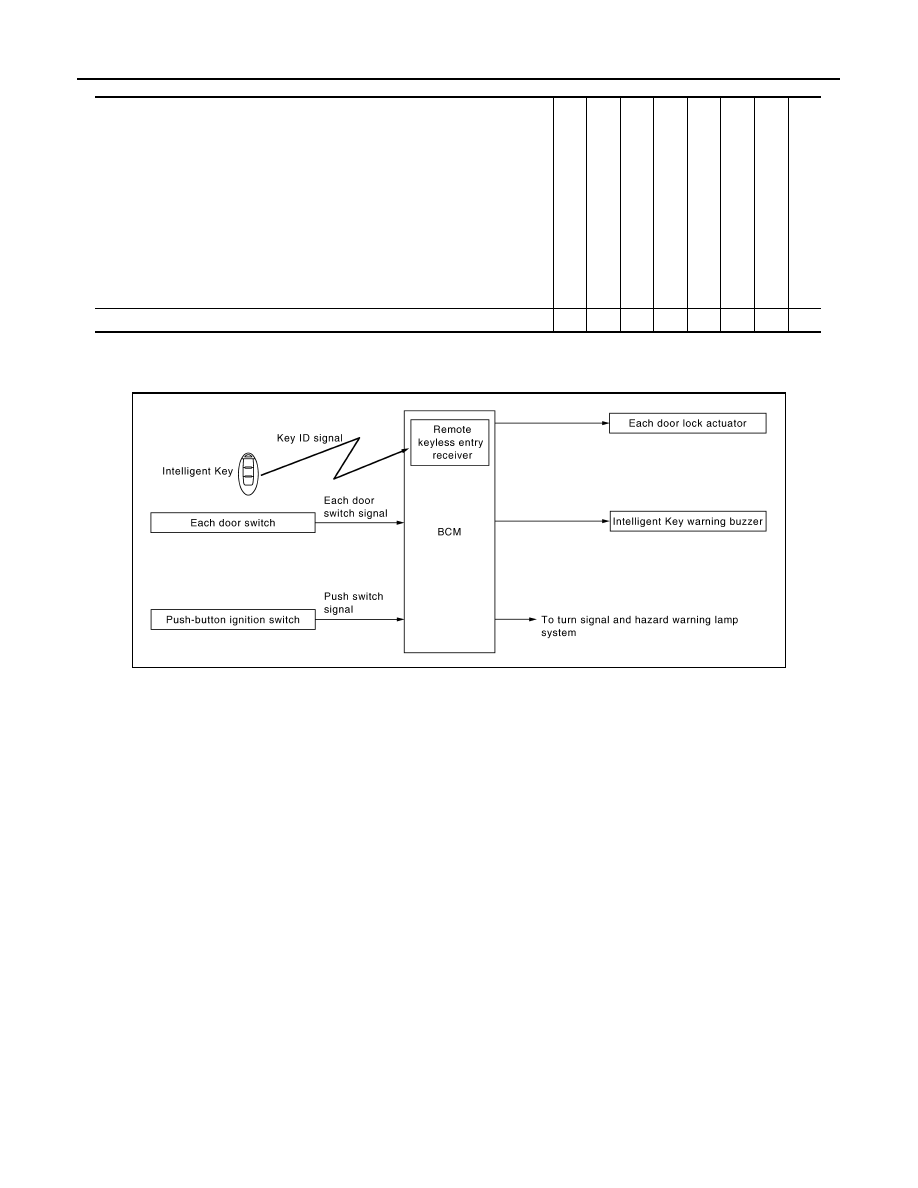

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010434767

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010434768

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Anti-hijack function
• Hazard reminder function
• Auto door lock
• Door lock status indicator operation

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM transmits door lock/unlock signal to each door lock actuator and operates each door lock actuator,

when key ID matches. At the same time, BCM blinks hazard warning lamps (lock: 1 time, unlock: 2 times).

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

Function

In

te

llige

n

t Key

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Ba

ck

 do

or op

en

e

r a

c

tu

a

tor

Ba

ck

 do

or swi

tch

In

si

de

 ke

y an

ten

n

a

Ou

ts

ide

 k

e

y

 an

te

nn

a (re

ar

bum

p

e

r)

BC

M

Ba

ck

 do

or op

en

e

r s

w

it

c

h

Back open function (back door opener switch)

×

×

×

×

×

×

×

×

JMKIB3318GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-215

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ANTI-HIJACK FUNCTION

• When an LOCK signal is transmitted from Intelligent Key, all doors are locked.
• When an UNLOCK signal is transmitted from Intelligent Key once, driver side door is unlocked.
• Then, if an UNLOCK signal is transmitted from Intelligent Key again within 5 seconds, all other doors (except

for back door) are unlocked.

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 30 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

224, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-207, "System Description"

.

HAZARD REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

KEY REMINDER FUNCTION

Remote controller operation

Operation condition

Lock

• All doors closed
• Ignition switch in the OFF position
• P position warning is not activated

Unlock

• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• P position warning is not activated

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock operation

(With Intelligent Key button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Remote keyless entry functions

In

te

llige

n

t Key

Do

or swit

ch

Do

or loc

k

 ac

tu

ato

r

P

u

s

h

-b

utt

o

n

 ig

nit

ion

 s

w

itc

h

CAN co

mm

un

ic

ati

o

n

 s

y

s

tem

BC

M

Combination meter

Hazard warning

lamp

Door lock/unlock function by remote control button

×

×

×

×

×

Hazard reminder function

×

×

×

×

×

×

Anti-hijack function

×

×

×

×

×

×

Auto door lock function

×

×

×

DLK-216

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

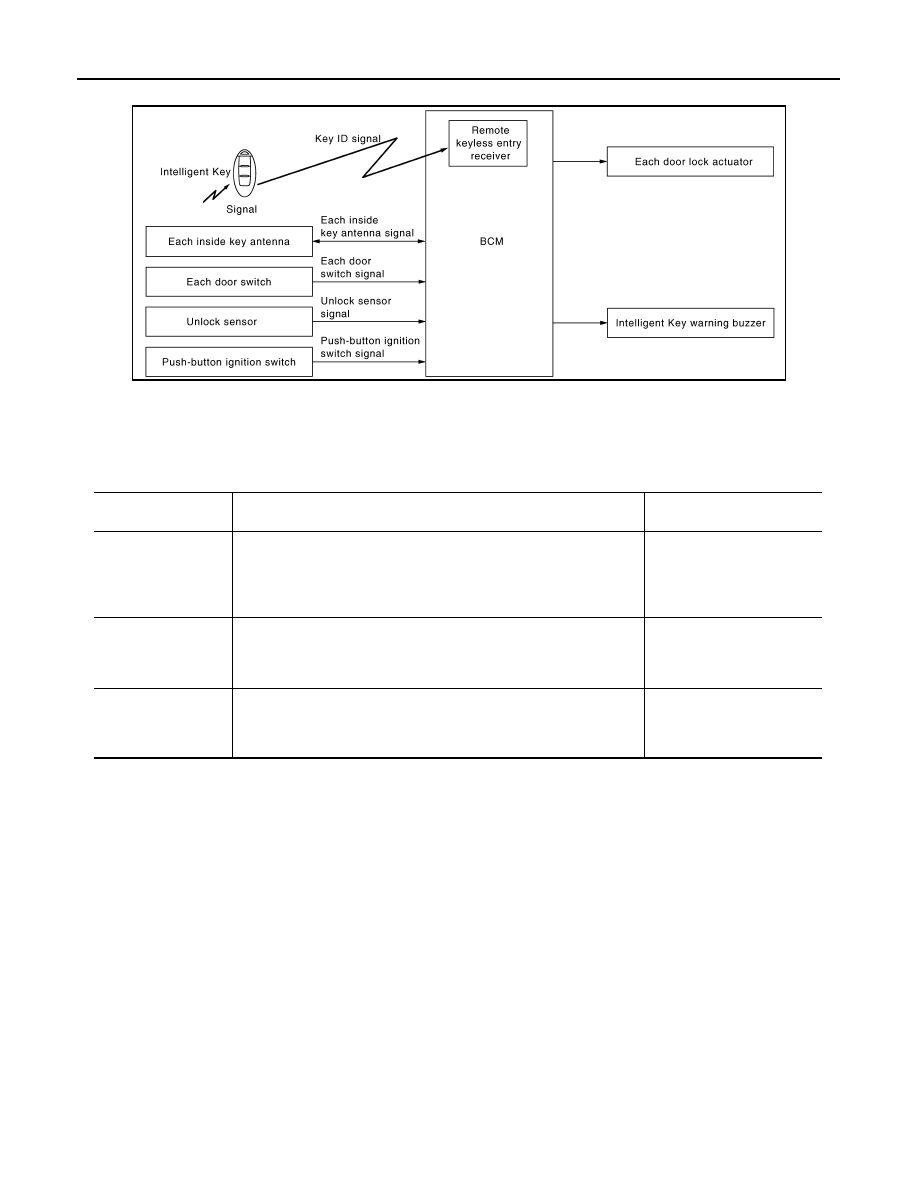

KEY REMINDER FUNCTION : System Diagram

INFOID:0000000010434769

KEY REMINDER FUNCTION : System Description

INFOID:0000000010434770

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation is perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function does not operate when the Intel-
ligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000010434771

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and
warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer and information dis-
play in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• Take away warning
• Door lock operation warning
• Engine start information

JMKIB3319GB

Key remainder func-

tion

Operation condition

Operation

Driver side door
opened

Right after door is locked by door lock/unlock switch or driver door lock
knob operation under the following conditions
• Ignition switch is in the OFF position
• Intelligent Key is inside the vehicle
• Driver side door is opened

All doors unlock

Driver side door
closed*

Right after driver side door is closed under the following conditions
• Intelligent Key is inside the vehicle
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked.

• All doors unlock
• Honk Intelligent Key warn-

ing buzzer
