Nissan Qashqai J11. Manual - part 1235

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-209

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

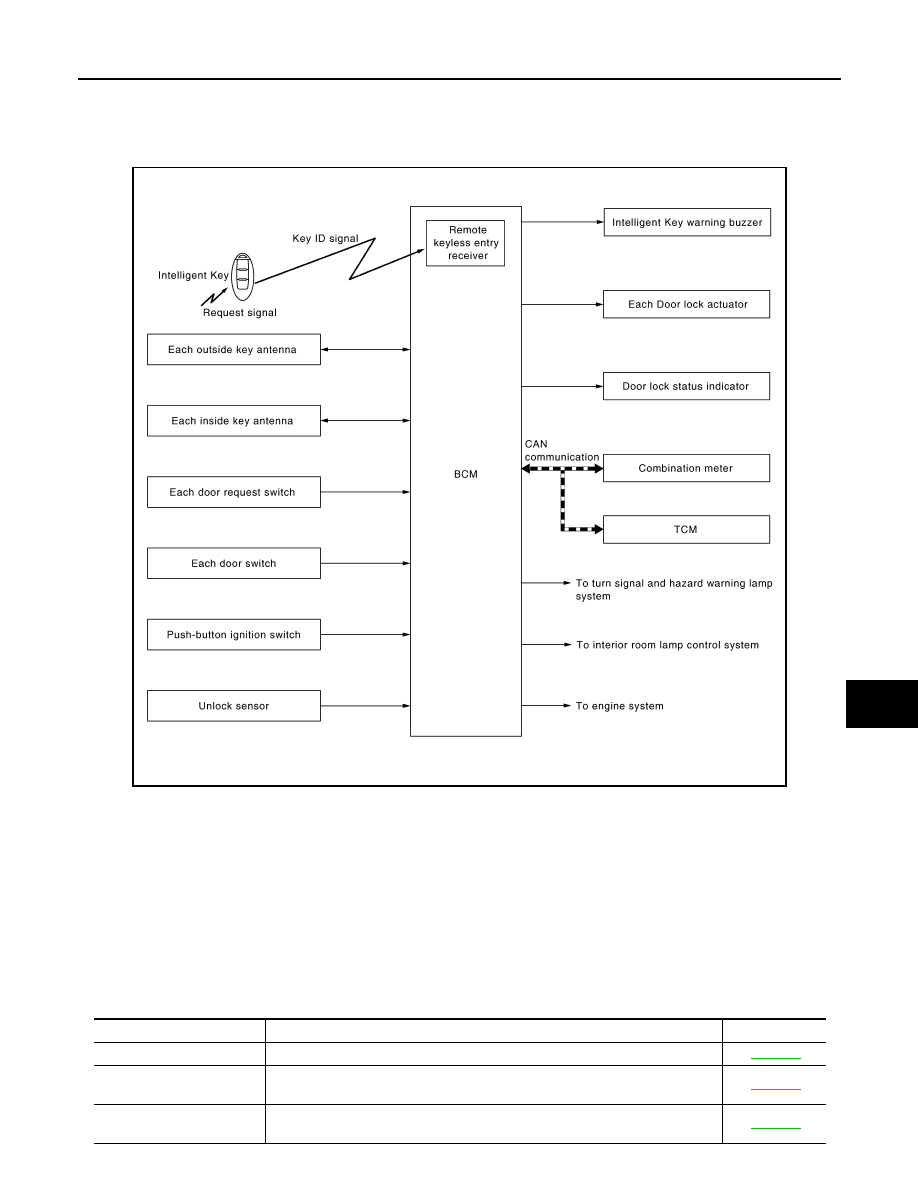

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010434763

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010434764

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3316GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-210

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-213

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-214

DLK-210

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

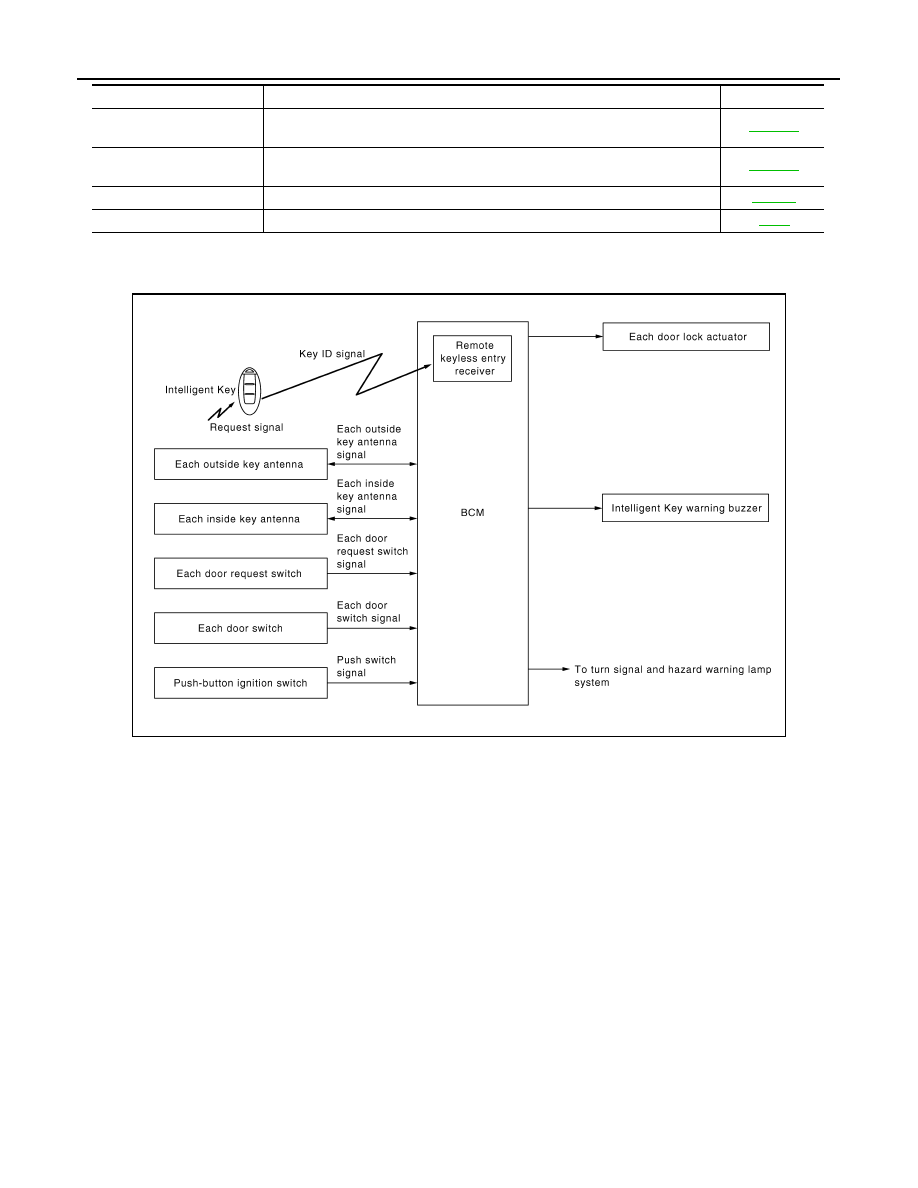

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010434765

DOOR LOCK FUNCTION : System Description

INFOID:0000000010434766

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door and blinks hazard warning lamps (lock: 1 time, unlock: 2 times) at the same time

as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-216

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-216

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3317GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-211

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

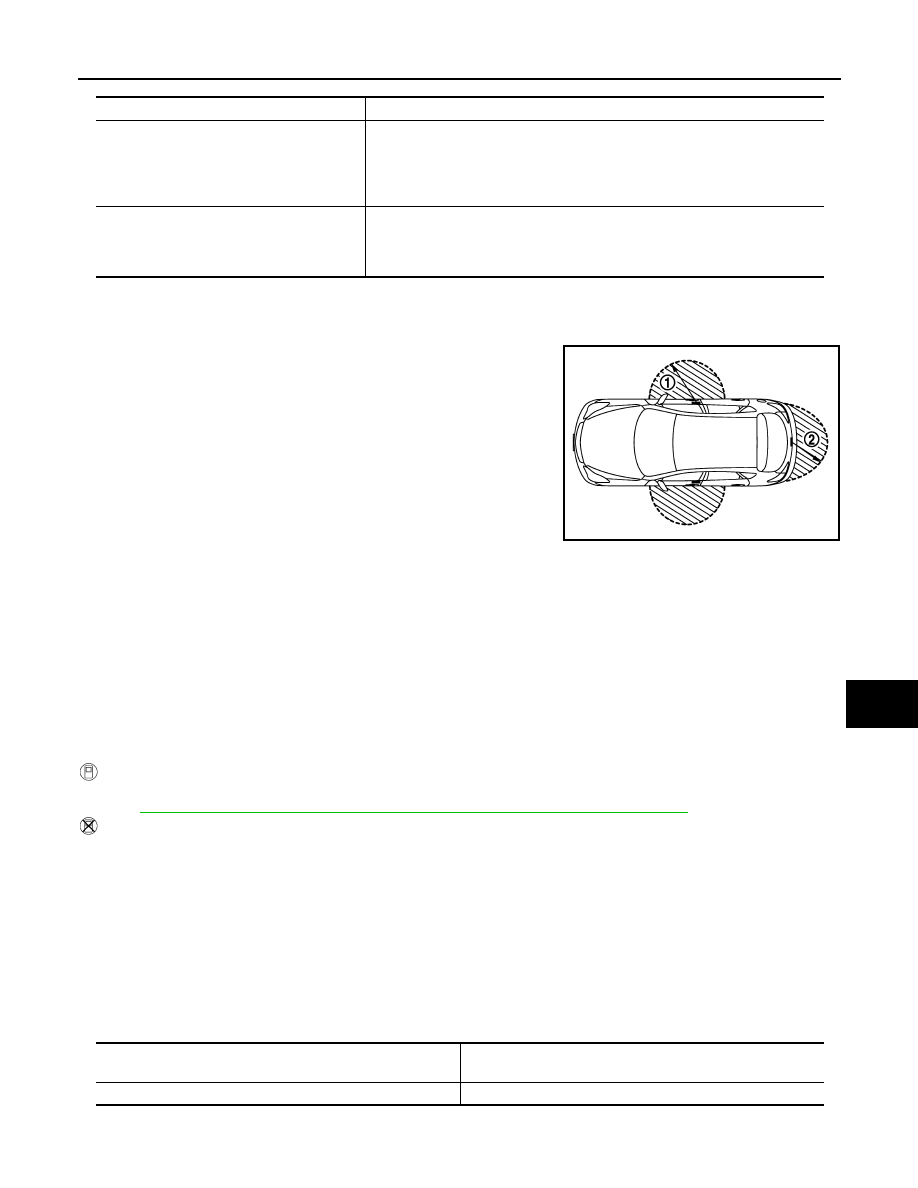

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

ANTI-HIJACK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side or back door), all doors
are locked.

Unlock Operation

• When an UNLOCK signal from front door request switch (driver side) is transmitted, driver side door

unlocks. When another UNLOCK signal is transmitted within 5 seconds, all door unlocks.

• When an UNLOCK signal from front door request switch (passenger side) is transmitted, all doors unlocks.
• When an UNLOCK signal from back door request switch is transmitted, back door open permission is set.

When another UNLOCK signal is transmitted within 5 seconds, all door unlocks (except back door).

How to change anti-hijack mode.

 With CONSULT

Anti-hijack mode can be set to ON or OFF using CONSULT.
Refer to

DLK-223, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 2)"

.

 Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

HAZARD REMINDER FUNCTION

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder.
Reminder function does not operate if ignition switch in ON position.

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4534ZZ

OFF

→

 ON

: 1 blink

ON

→

 OFF

: 3 blinks

Door lock operation

(With door request switch)

Hazard warning lamp blink

Lock

Once

DLK-212

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

224, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-207, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

BACK DOOR OPEN FUNCTION

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Door lock operation

(With door request switch)

Hazard warning lamp blink

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock function

In

tel

lig

en

t Ke

y

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Do

or swi

tch

Do

or req

u

e

st sw

itch

Doo

r lo

ck

 a

c

tuat

or

In

si

de

 ke

y

an

ten

n

a

O

u

ts

id

e ke

y

a

n

te

n

n

a

CAN co

mm

un

ic

ati

o

n

 sys

tem

BCM

Hazard warning lamp

Pu

sh

-bu

tto

n i

g

n

itio

n

 swit

ch

Co

mb

in

at

io

n

 me

te

r

Door lock/unlock function

×

×

×

×

×

×

×

×

Hazard reminder function

×

×

×

×

Door lock status indicator operation

×

Anti-hijack function

×

×

×

×

×

×

Auto door lock function

×

×

×

×
