OIL SEAL

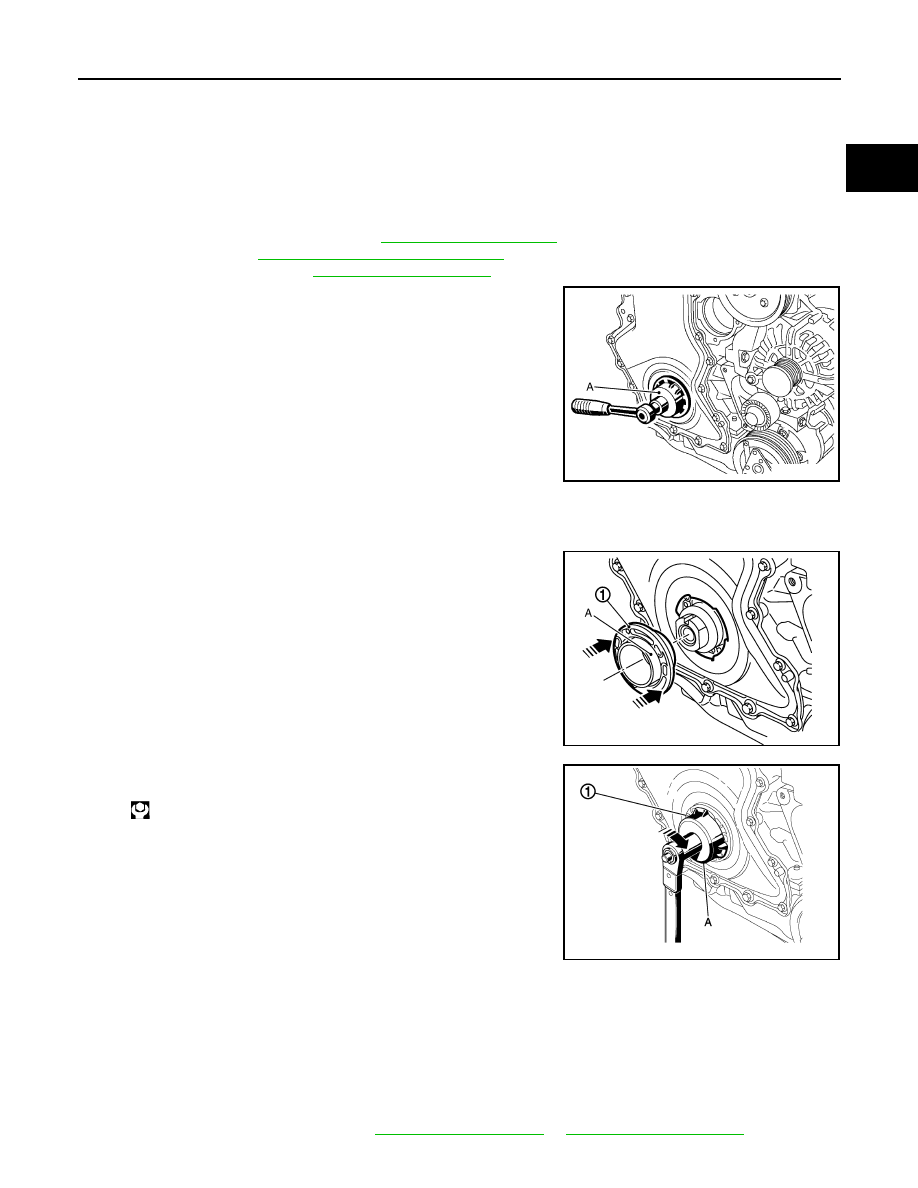

EM-427

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL SEAL

FRONT OIL SEAL

FRONT OIL SEAL : Removal and Installation

INFOID:0000000010282011

REMOVAL

1.

Remove the following parts.
• Front fender protector (RH): Refer to

EXT-31, "Exploded View"

.

• Drive belt: Refer to

EM-373, "Removal and Installation"

.

• Crankshaft pulley: Refer to

EM-377, "Exploded View"

.

2.

Remove front oil seal using service tool (A).
NOTE:
The service tool is supplied in the new seal parts kit.

INSTALLATION

1.

Install front oil seal with the following procedure:

a.

Fit the protector (A) to front oil seal (1).
• Align the front oil seal notches with front cover notches.

NOTE:
The protector is supplied in the new seal parts kit.

b.

Tighten to front oil seal (1) using service tool (A).

NOTE:
The service tool is supplied in the new seal parts kit.

c.

Remove the protector.

2.

Install in the reverse order of removal, for the rest of parts.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000010282012

REMOVAL

1.

Remove transaxle assembly. Refer to

TM-88, "Exploded View"

 or

TM-148, "Exploded View"

 .

JPBIA0765ZZ

JPBIA0778ZZ

: 47 N·m (4.8 kg-m, 35 ft-lb)

JPBIA0591ZZ

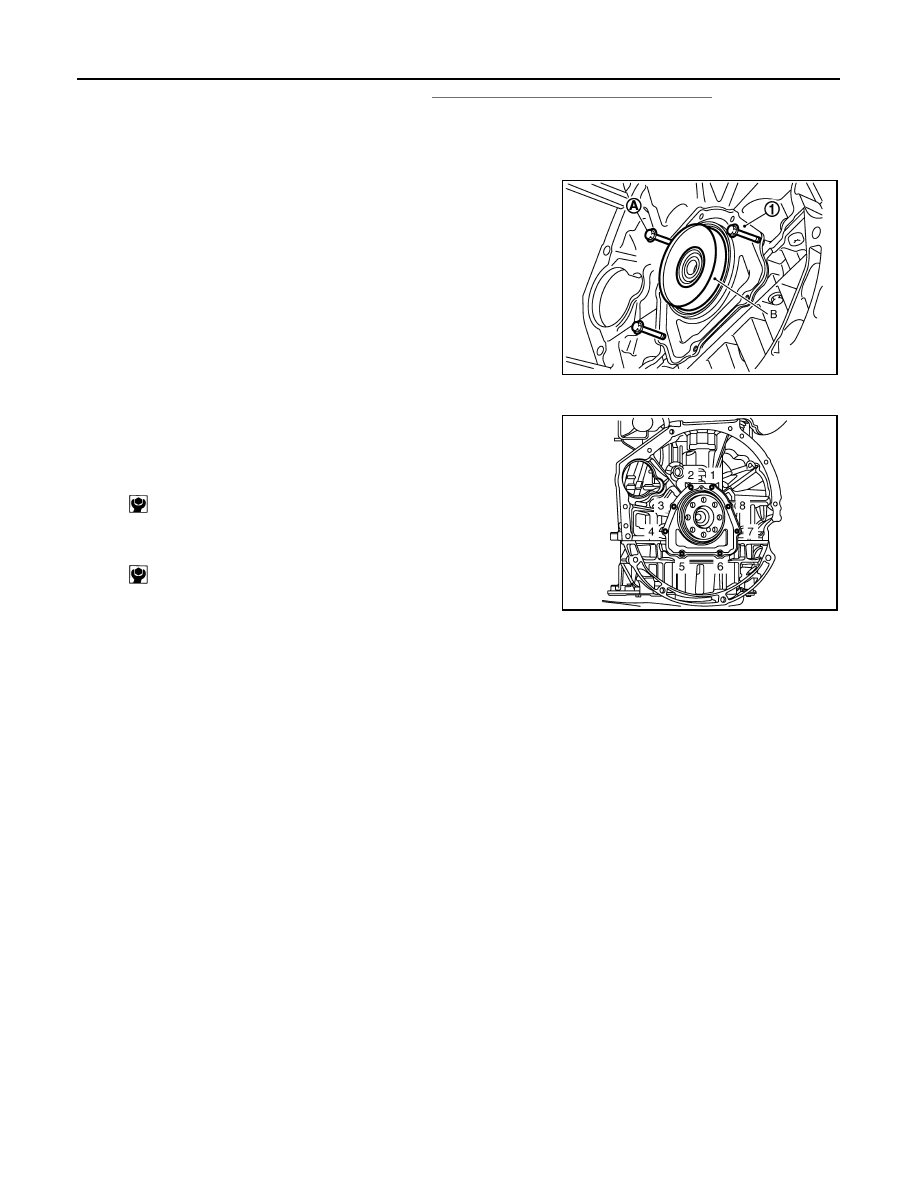

EM-428

< REMOVAL AND INSTALLATION >

[R9M]

OIL SEAL

2.

Remove clutch cover and clutch disk. Refer to

CL-26, "R9M : Removal and Installation"

.

3.

Remove rear oil seal retainer.

INSTALLATION

1.

Install rear oil seal retainer with the following procedure:

a.

Set guide bolt (A) and protector (B) to rear oil seal retainer (1).
NOTE:
The protector is supplied in the new seal parts kit.

b.

Move the rear oil seal retainer evenly by hand until it makes con-
tact with the cylinder block.

c.

Remove guide bolts and protector.

d.

Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.

i.

Tighten bolts No. 1and 5.

ii.

Tighten No. 1 to 8 in numerical order as shown.

2.

Install in the reverse order of removal, for the rest of parts.

JPBIA0777ZZ

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1,2 kg-m, 9 ft-lb)

JPBIA0645ZZ

ENGINE ASSEMBLY

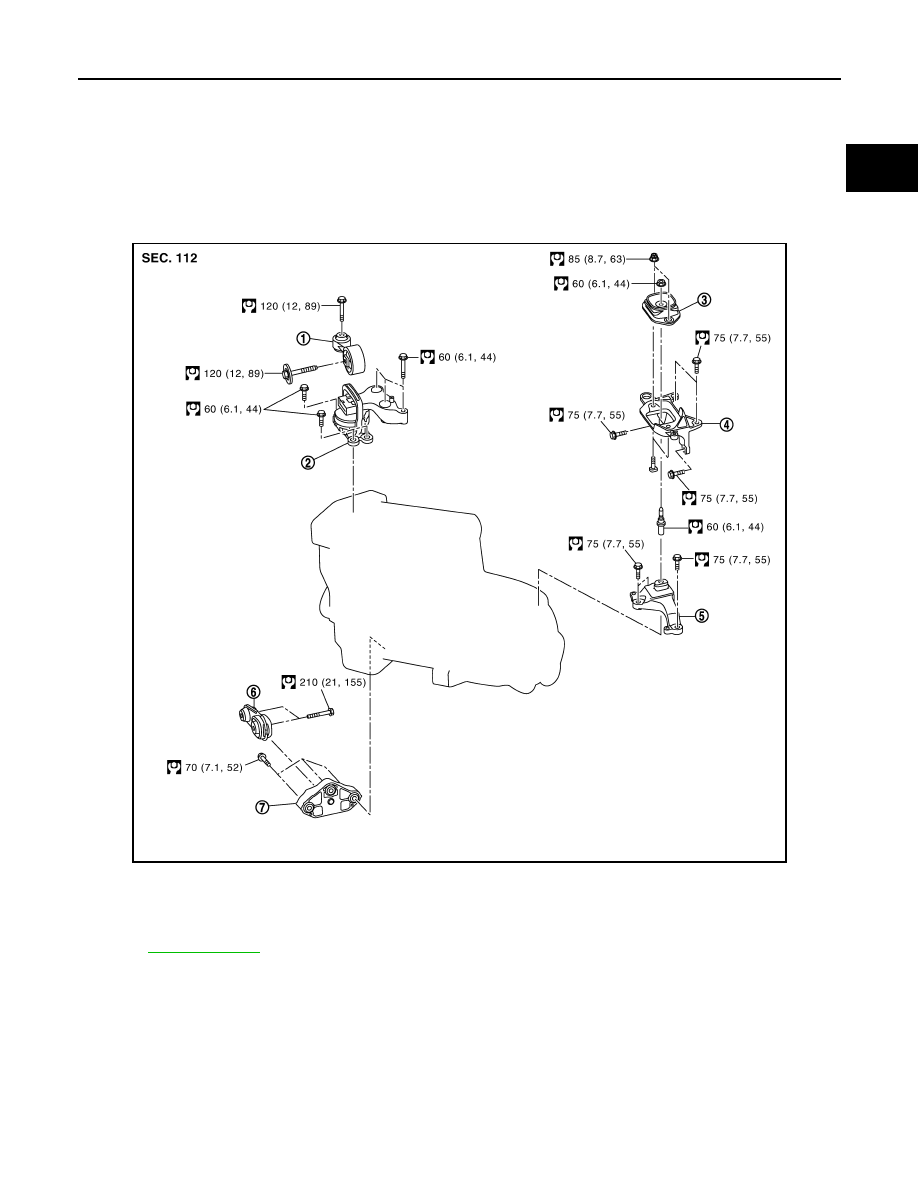

EM-429

< UNIT REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

Exploded View

INFOID:0000000010282013

2WD

4WD

E1BIA1212GB

1.

Upper torque rod

2.

Engine mounting insulator (RH)

3.

Engine mounting insulator (LH)

4.

Engine mounting frame support (LH) 5.

Engine mounting bracket (LH)

6.

Rear torque rod

7.

Rear engine mounting bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

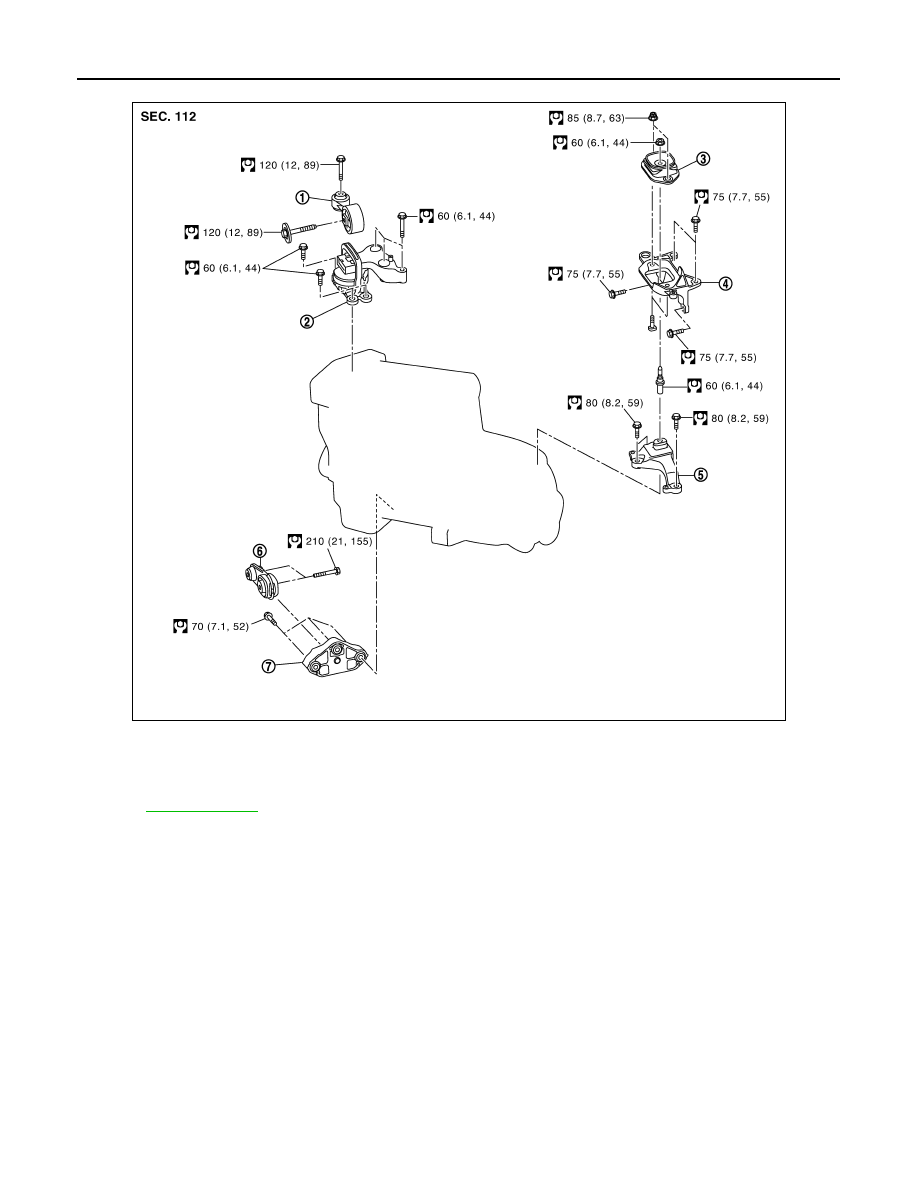

EM-430

< UNIT REMOVAL AND INSTALLATION >

[R9M]

ENGINE ASSEMBLY

CVT

E1BIA1213GB

1.

Upper torque rod

2.

Engine mounting insulator (RH)

3.

Engine mounting insulator (LH)

4.

Engine mounting frame support (LH) 5.

Engine mounting bracket (LH)

6.

Rear torque rod

7.

Rear engine mounting bracket

Refer to

GI-4, "Components"

 for symbols in the figure.
