Nissan Qashqai J11. Manual - part 121

CAMSHAFT

EM-423

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

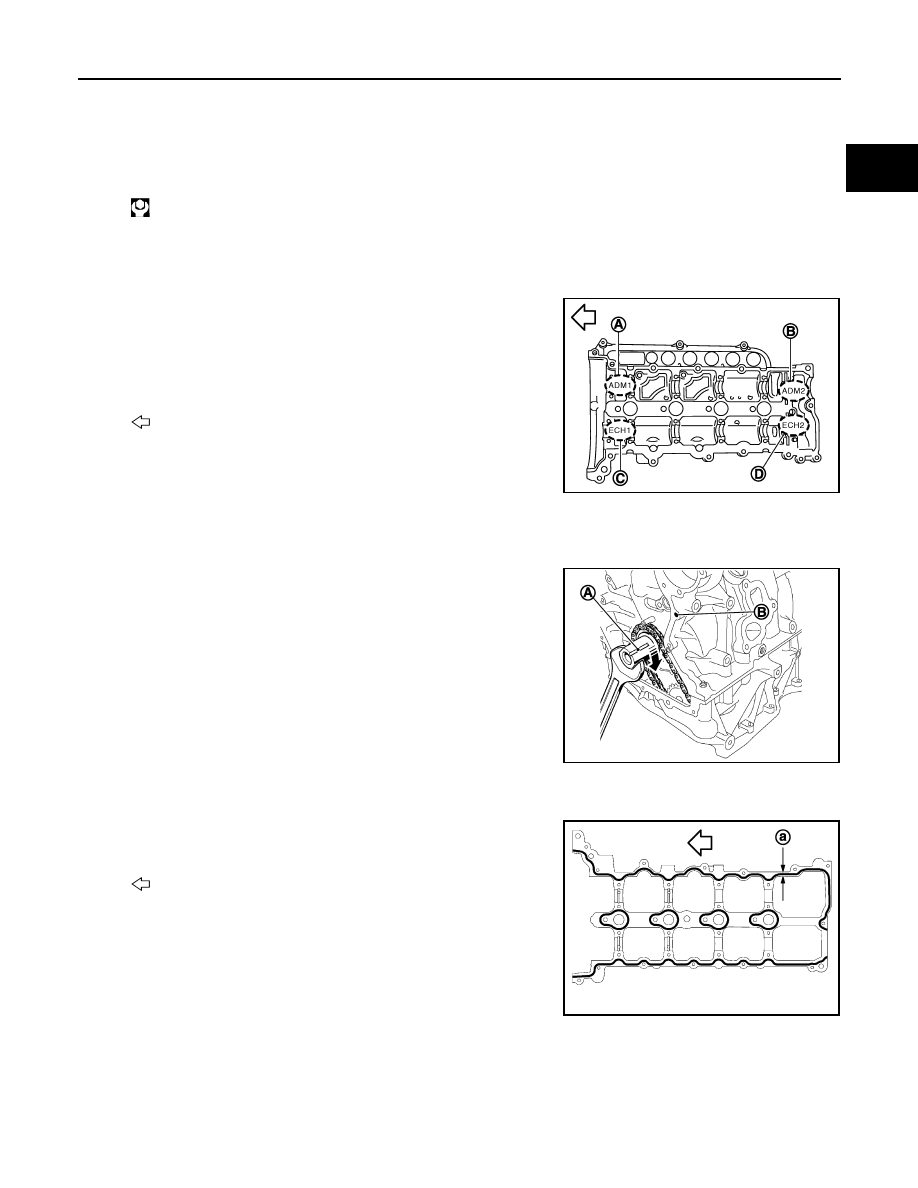

5.

Remove camshaft sprocket (for fuel pump) from camshaft (right side), if necessary.

INSTALLATION

1.

When camshaft sprocket (for fuel pump) is removed, install it.

a.

Tighten mounting bolt.

2.

Install camshaft to cylinder head housing with the following procedure:

a.

Clean camshaft journal to remove any foreign material.

b.

Install camshafts.

c.

Refer to the figure to install camshaft bracket in its original.

d.

Tighten camshaft bracket mounting bolts.
• Finger tighten the camshaft bracket mounting bolts, until they just make contact.

3.

Install cylinder head housing with the following procedure:

a.

Align the crankshaft groove (A) with the cylinder block hole (B).
NOTE:
This is for the purpose of preventing interferences of valve and
piston head.

b.

Remove foreign material completely from cylinder head housing backside and cylinder head installation
face.

c.

Apply liquid gasket to cylinder head as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

: 30 N·m (3.1 kg-m, 22 ft-lb)

A.

: Part marking ADM1

B.

: Part marking ADM2

C.

: Part marking ECH1

D.

: Part marking ECH2

: Engine front

JPBIA0761ZZ

JPBIA0610ZZ

a

: 0.5 - 2.5 mm (0.020 - 0.098 in)

: Engine front

JPBIA0609ZZ

EM-424

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

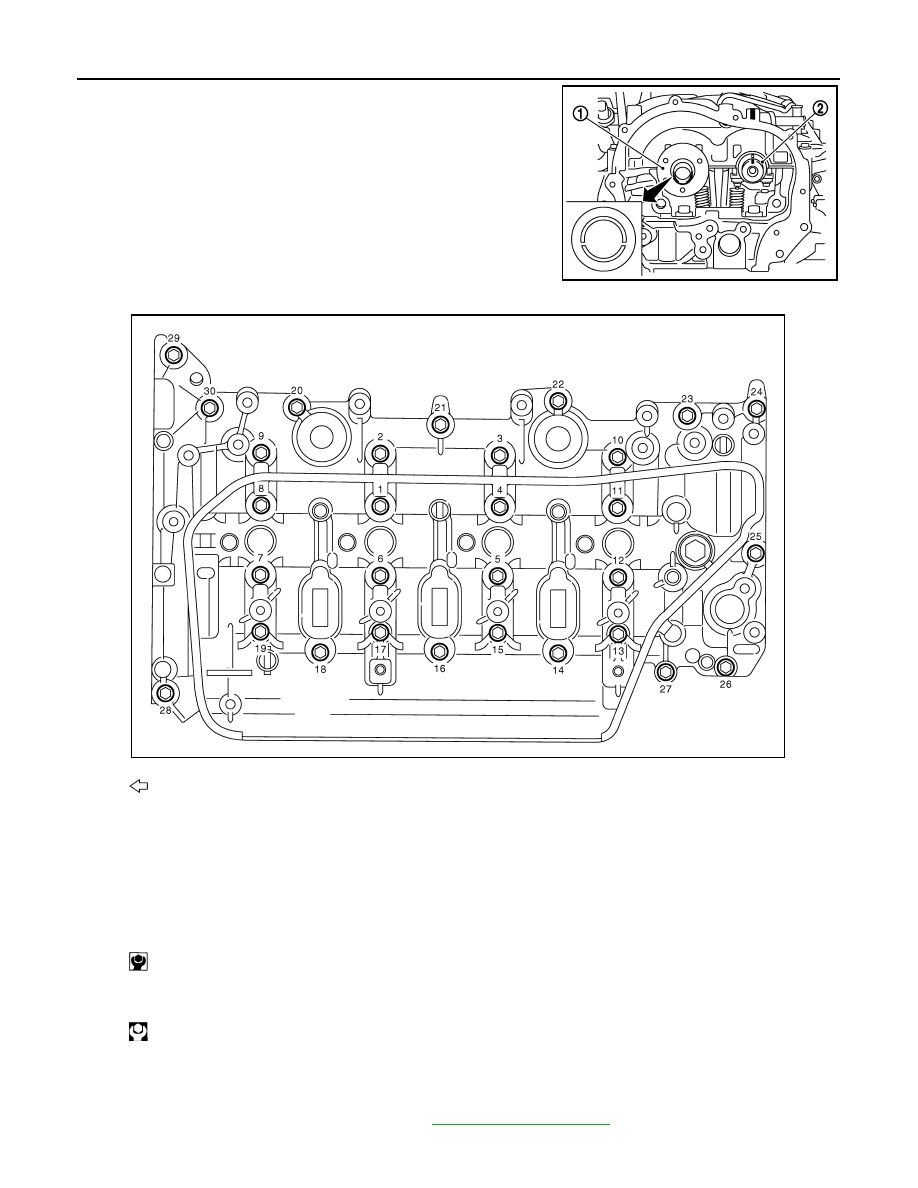

d.

Install so that camshafts are positioned in the directions shown
in the figure.
• Parallelize the groove of camshaft (right side) (1) to face the

offset side upward.

• Fit the groove of camshaft (left side) (2) and boss of cylinder

head housing.

e.

Tighten mounting bolts of cylinder head housing in the following steps.

i.

Tighten in order and successively, the cylinder head housing bolts No. 6, 4, 8 and 12 to gradually fit the
cylinder head housing on the cylinder head.

ii.

Tighten the remaining bolts (temporarily).

iii.

Loosen bolts No. 6, 4, 8 and 12.

iv.

Tighten the bolts No. 6, 4, 8 and 12 (temporarily).

v.

Tighten bolts in numerical order.

vi. Tighten bolts in numerical order.

CAUTION:

After tightening mounting bolts of cylinder head housing, be sure to wipe off excessive liquid gas-
ket from the mating surface of cylinder head.

4.

Install timing chain and related parts. Refer to

EM-412, "Exploded View"

.

JPBIA0729ZZ

: Engine front

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1.2 kg-m, 9 ft-lb)

E1BIA0605ZZ

CAMSHAFT

EM-425

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

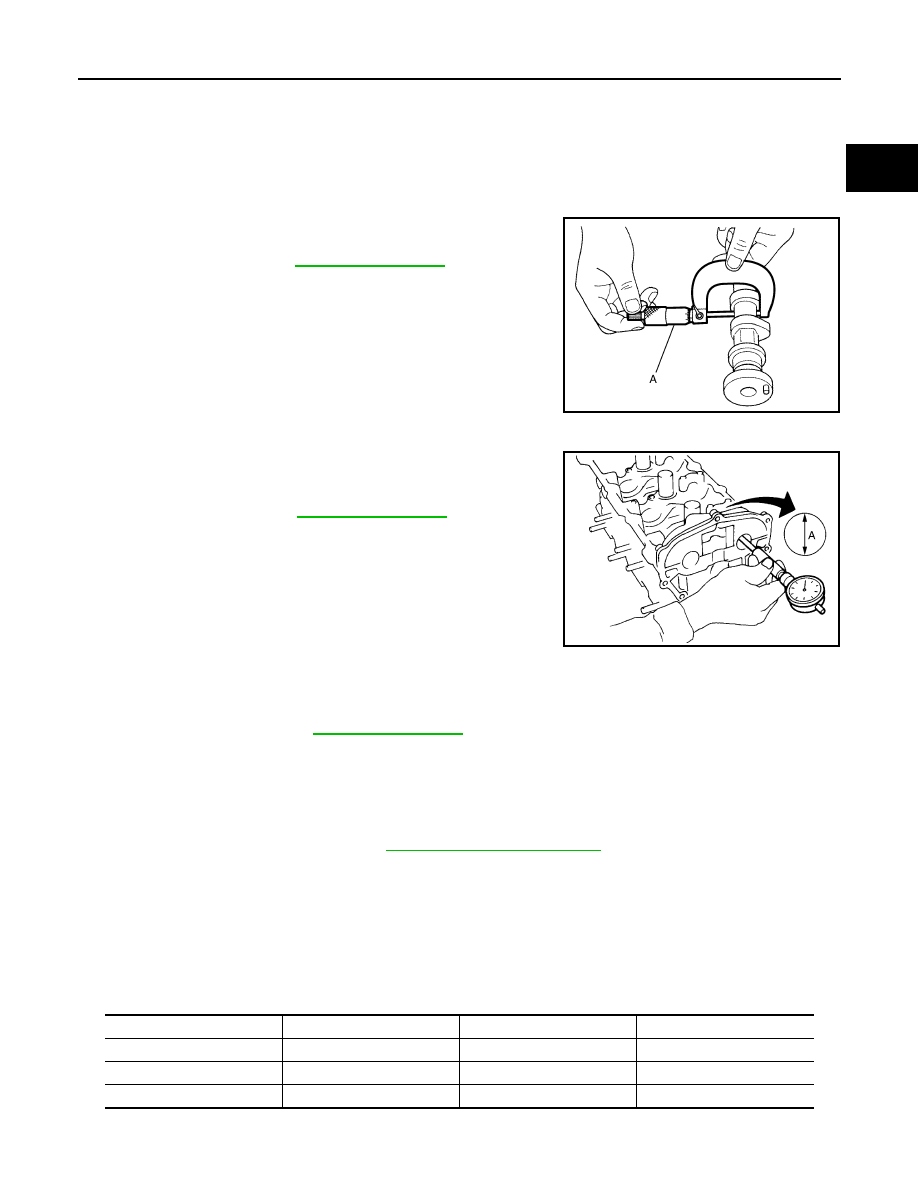

5.

Install in the reverse order of removal, for the rest of parts

Inspection

INFOID:0000000010282010

INSPECTION AFTER REMOVAL

Camshaft Journal oil clearance

CAMSHAFT JOURNAL
• Measure the camshaft journal with a micrometer (A).

CYLINDER HEAD HOUSING AND CAMSHAFT BRACKET INNER DIAMETER
• Measure the inner diameter (A) of cylinder head housing and cam-

shaft bracket with a bore gauge.

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the standard, replace camshaft or/and cylinder head housing and cylinder head assembly.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-59, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

Standard

: Refer to

EM-473, "Camshaft"

.

JPBIA0122ZZ

Standard

: Refer to

EM-473, "Camshaft"

.

PBIC1645E

Standard

: Refer to

EM-473, "Camshaft"

.

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

EM-426

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—
