: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

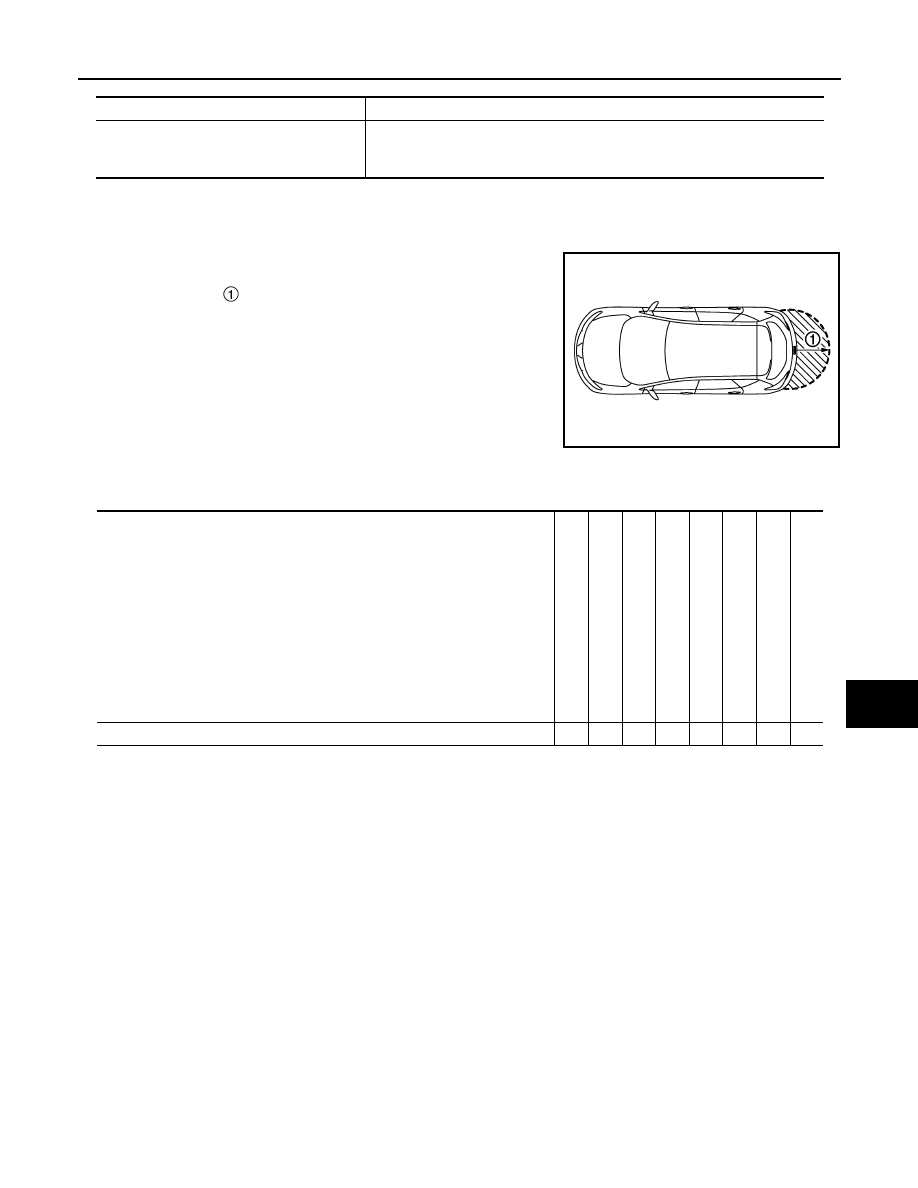

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

SUPER LOCK FUNCTION

SUPER LOCK FUNCTION : System Description

INFOID:0000000010434552

• Super lock provides a higher anti-theft performance than a conventional door lock function.
• BCM controls the super lock function.
• When all doors are closed super lock system can be set/release by Intelligent Key or door request switch.
• When super lock is set, inside handle of doors do not work.

SUPER LOCK SET OPERATION (LOCK OPERATION)

Super Lock Set by Intelligent Key

When Intelligent Key lock button is operated while all doors are in unlock state, super lock of all doors is set,
and simultaneously, all doors are locked.

Super Lock Set by Door Request Switch

When door request switch (driver side, passenger side, or back door) is operated while all doors are in unlock
state, super lock of all doors is set, and simultaneously, all doors are locked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITH ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

Back door opener switch operation

Operation condition

Open

• All door: locked and closed
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

*

JMKIA1955ZZ

Function

Int

e

llig

en

t Ke

y

Re

mo

te ke

yl

es

s e

n

try rec

e

iv

er

Ba

ck d

o

o

r op

en

er ac

tu

a

to

r

Ba

ck d

o

o

r swi

tc

h

In

si

de

 k

e

y

 an

te

nn

a

Out

s

id

e k

e

y

 a

n

tenn

a

(rea

r bu

mp

er)

BCM

Ba

ck d

o

o

r op

en

er swi

tch

Back open function (back door opener switch)

×

×

×

×

×

×

×

×

DLK-38

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When Intelligent Key unlock button is operated again
within 5 seconds of the 1st unlock button operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Driver Side)

When driver side door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, driver door are unlocked. When driver side door request switch is operated
again within 5 seconds of the 1st driver side door request switch operation, all doors are unlocked.

Super Lock Release by Door Request Switch (Passenger Side)

When passenger side door request switch is operated while super lock of all doors is set, super lock of all
doors is released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch (Back Door)

When back door request switch is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, back door are unlocked. When back door request switch is operated again
within 5 seconds of the 1st back door request switch operation, all doors are unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITHOUT ANTI-HIJACK MODE

Super Lock Release by Intelligent Key

When Intelligent Key unlock button is operated while super lock of all doors is set, super lock of all doors is
released, and simultaneously, all doors are unlocked.

Super Lock Release by Door Request Switch

When door request switch (driver side, passenger side or back door) is operated while super lock of all doors
is set, super lock of all doors is released, and simultaneously, all doors are unlocked.

ANTI-HIJACK FUNCTION SETTING

 With CONSULT

Anti-hijack function can be set to ON/OFF using CONSULT.
Refer to

DLK-47, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 1)"

.

 Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

REMOTE KEYLESS ENTRY FUNCTION

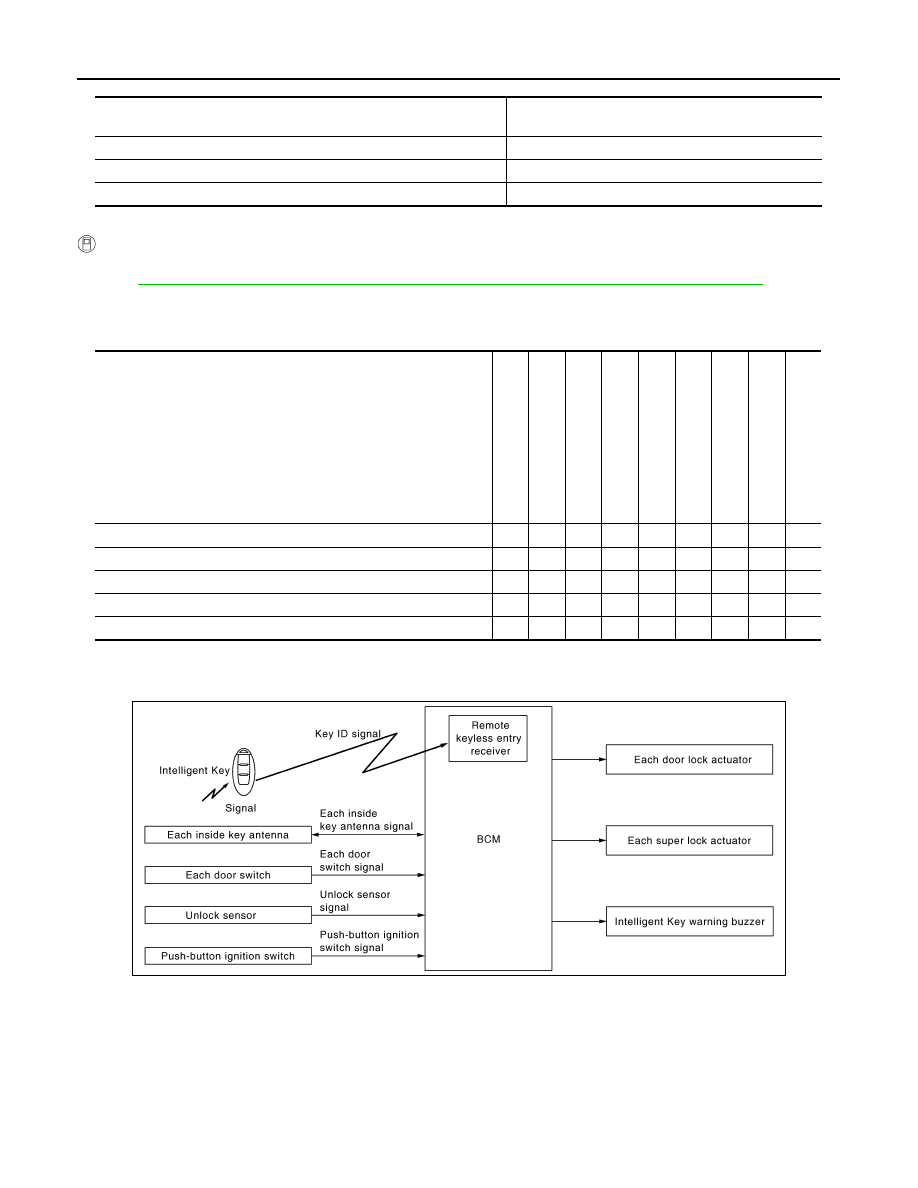

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010434553

OFF

→

 ON

: 1 blink

ON

→

 OFF

: 3 blinks

JMKIB3313GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-39

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010434554

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Super lock set/release
• Anti-hijack function
• Hazard reminder function
• Auto door lock
• Door lock status indicator operation

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM transmits door lock/unlock signal to each door lock actuator, super lock actuator and operates each

door lock actuator, when key ID matches. At the same time, BCM blinks hazard warning lamps (lock: 1 time,
unlock: 2 times).

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

ANTI-HIJACK FUNCTION

Information of super lock system with anti-hijack function.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 30 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-31, "System Description"

.

HAZARD REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder.

Remote controller operation

Operation condition

Lock/set

• All doors closed
• Ignition switch in the OFF position
• P position warning is not activated

Unlock/release

• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• P position warning is not activated

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

DLK-40

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

How to Change Reminder Function Operation Mode

 With CONSULT

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

KEY REMINDER FUNCTION

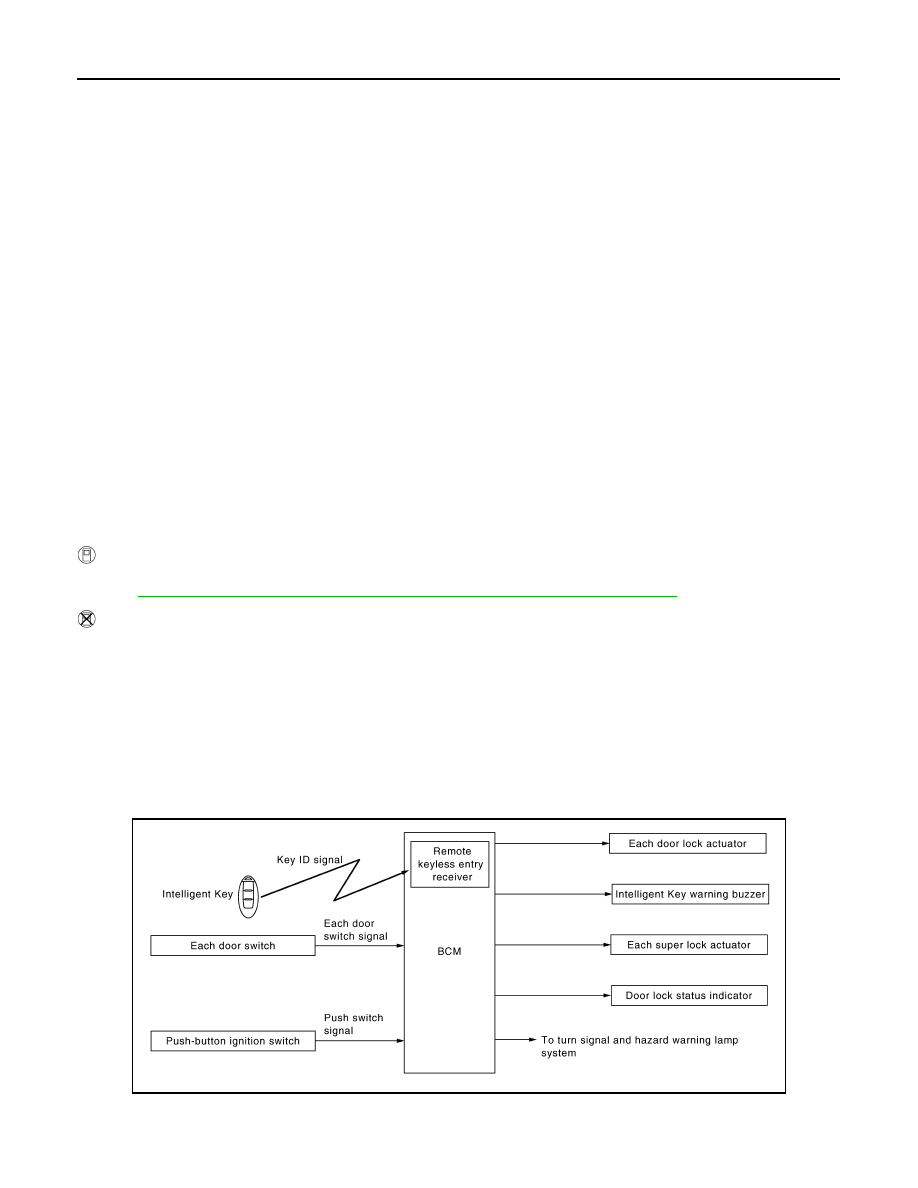

KEY REMINDER FUNCTION : System Diagram
