Nissan Qashqai J11. Manual - part 1190

COMPONENT PARTS

DLK-29

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010434543

1.

Power window main switch (door lock
and unlock switch)

2.

Push-button ignition switch

3.

Combination meter

4.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Location"

5.

Front power window switch (passen-
ger side) (door lock and unlock switch)

6.

Door switch

7.

Door lock assembly

8.

Back door lock assembly

9.

Back door opener switch assembly

10. Inside key antenna (luggage room)

11.

Inside key antenna (console)

12. Indicator unit (door lock status indica-

tor)

13. Intelligent Key warning buzzer

14. Outside key antenna

15. Door request switch

16. Outside antenna (rear bumper)

A.

View with luggage room

B.

View with center console assembly re-
moved

C.

View with instrument panel

D.

View with front bumper removed

E.

View with door panel

F.

View with rear bumper removed

JMKIB3265ZZ

DLK-30

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

Component Description

INFOID:0000000010434544

Item

Function

Door lock and unlock switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the power window main switch and center console assembly.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Push-button ignition switch

• BCM transmits the change in the power supply position with the push-button ignition switch

to IPDM E/R via CAN communication line. IPDM E/R transmits the power supply position
status via CAN communication line to BCM.

• Immobilizer antenna amp checks Intelligent Key transponder.

BCM

BCM detects the vehicle status according to signals from each door switch and each outside/
inside key antenna. BCM transmits drive signal to door lock actuator when BCM receives op-
eration signal from remote keyless entry receiver and each switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door request switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the outside handle (driver side, passenger side and back door).

Door switch

Detects door open/close condition.

Inside key antenna

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the instrument center, console and luggage room.

Intelligent Key warning buzzer

Warns for an inappropriate operation.

Outside key antenna

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle.

Intelligent Key

The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Engine start
• Remote control entry function is available when operating on button.

Super lock actuator

• Inputs super lock set/release signal from BCM and set/release super lock function.
• Integrated in each door lock assembly.

Unlock sensor

Built-in in driver side door lock assembly
• Detects door lock condition of driver door

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-31

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (POWER DOOR LOCK SYSTEM)

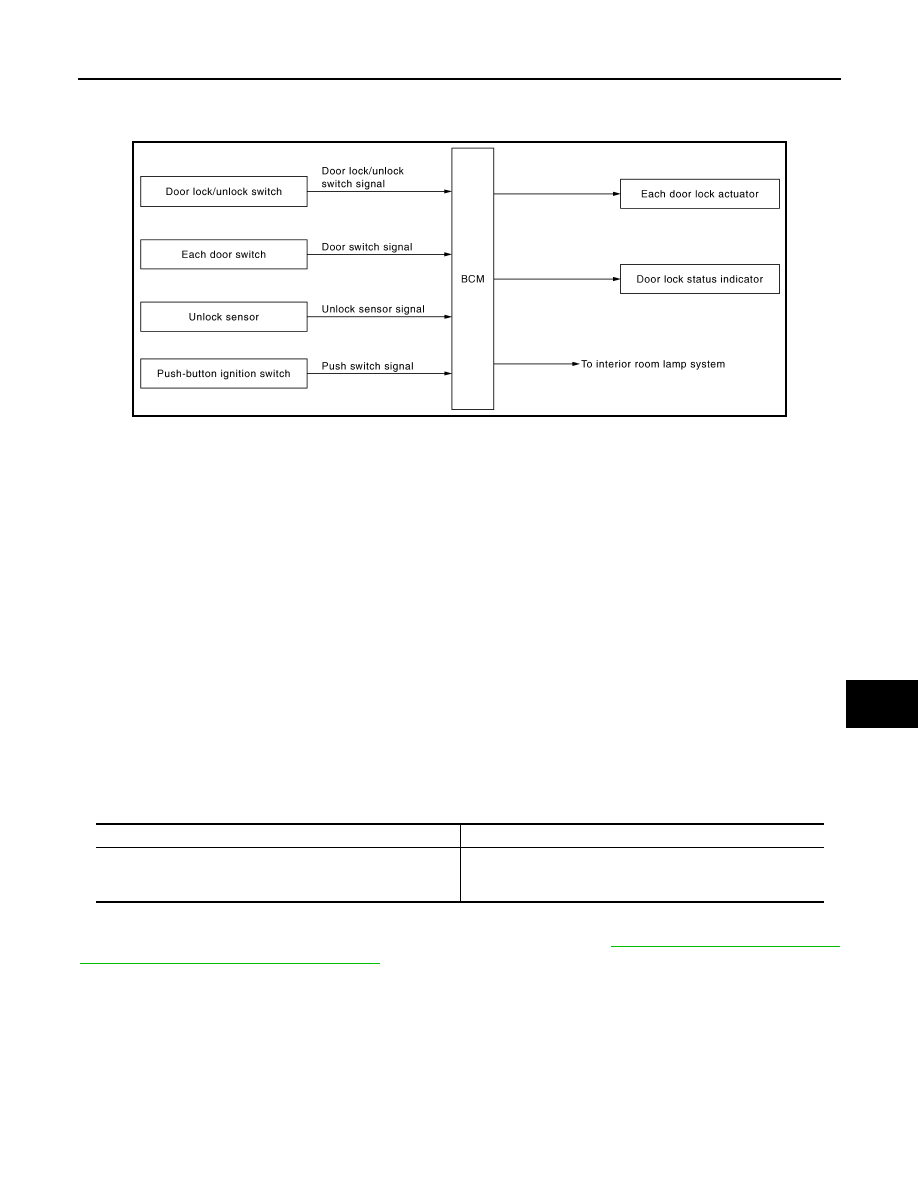

System Diagram

INFOID:0000000010434545

System Description

INFOID:0000000010434546

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives shock status signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the shock status signal to BCM via CAN communication.

IGNITION POSITION WARNING FUNCTION

All doors are locked once, but BCM immediately unlocks all doors, according to driver door lock status
detected by unlock sensor, when door lock operation is performed, driver door is open, and ignition position is
ON.

DOOR LOCK STATUS INDICATOR OPERATION

JMKIB2435GB

Door lock and unlock switch operation

Operation condition

LOCK/UNLOCK

• Doors are not locked by Intelligent Key, door request switch

and auto door lock function

• Ignition position warning function is not activated

DLK-32

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (POWER DOOR LOCK SYSTEM)

The door lock status indicator indicates door lock status under the following condition.

UNLOCK LINK FUNCTION

When driver door or passenger door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door or passenger door is open while all of the following conditions are
satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

→

 OFF

–

(All doors are closed

→

 any

door is open) or (All doors are
locked

→

 any door is un-

locked)

–

ON (timer is running)

→

 ON

(timer is stop)

OFF

→

 ON

–

–

ON

→

 ON (30 minutes timer)

ON

→

 OFF

–

Door lock and unlock switch

ON

→

 ON (1 minute timer)

ON

→

 OFF

–

Intelligent Key, door request

switch or auto door lock func-

tion

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver or passenger door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less
