CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000010478170

DISASSEMBLY

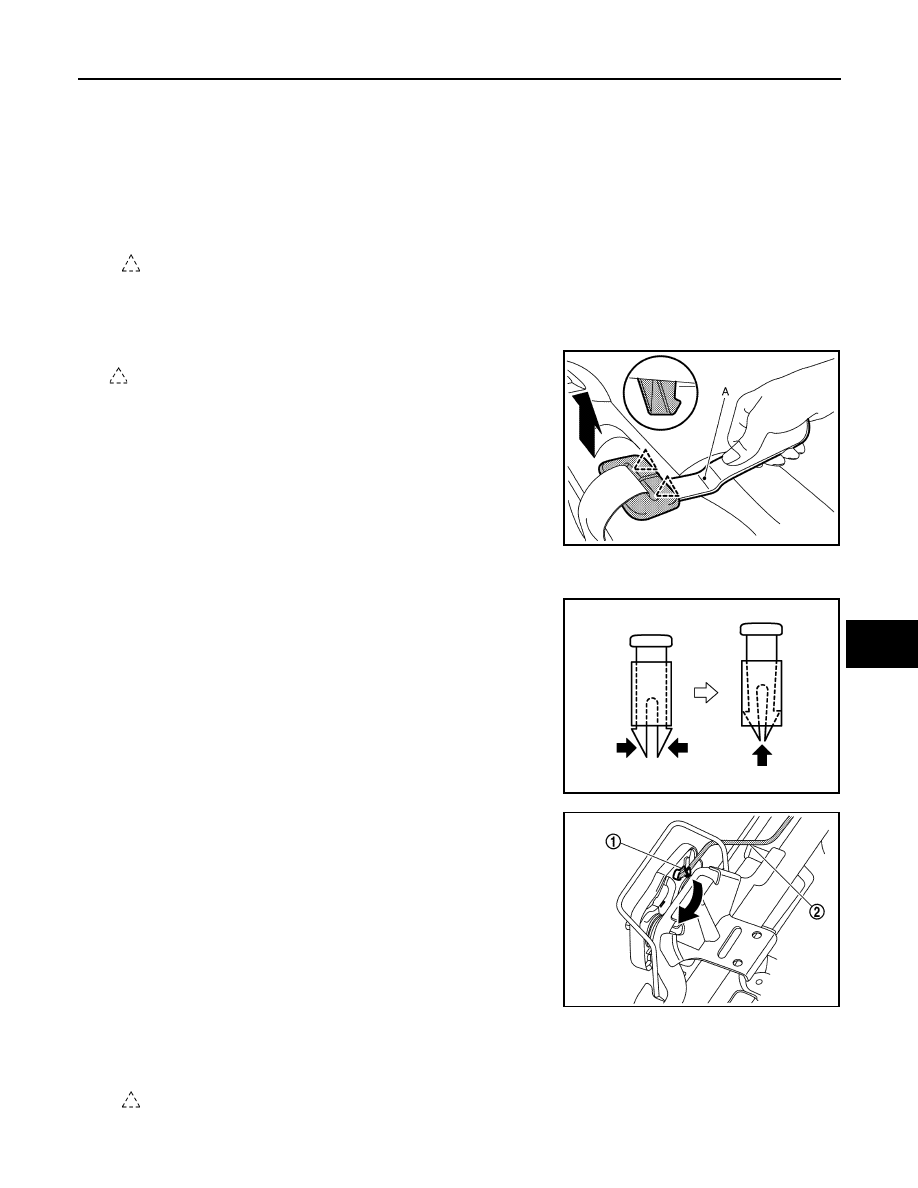

1.

Remove armrest.
• Unclip cup holder.

: Pawl

• Remove spring clip. Using suitable tool.
• Push armest towards the left side of the vehicle to disengage LH pivot pin from bracket.
• Twist and disengage RH hinge pin to remove armest.

2.

Using a suitable tool remove seat belt finisher.

: Pawl

3.

Sqeeze clips and push up to remove.

CAUTION:

Wear protective gloves and sleeves to prevent injury from
sharp edges on frame.

4.

Remove seat lock knob finisher.
• Remove seat lock knob.
- Remove the mating (1) by the rotation of the rod holder (2).

- Remove rod holder (2) from seat lock knob (1).

- Remove seat lock knob finisher.

: Pawl

5.

6.

Remove in one piece seatback pad and trim.

JMJIA9700ZZ

PIIB4084J

JMJIA9704ZZ

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

7.

Remove hog ring to separate seatback pad and trim.

ASSEMBLY

Assembly is in the reverse order of disassembly.

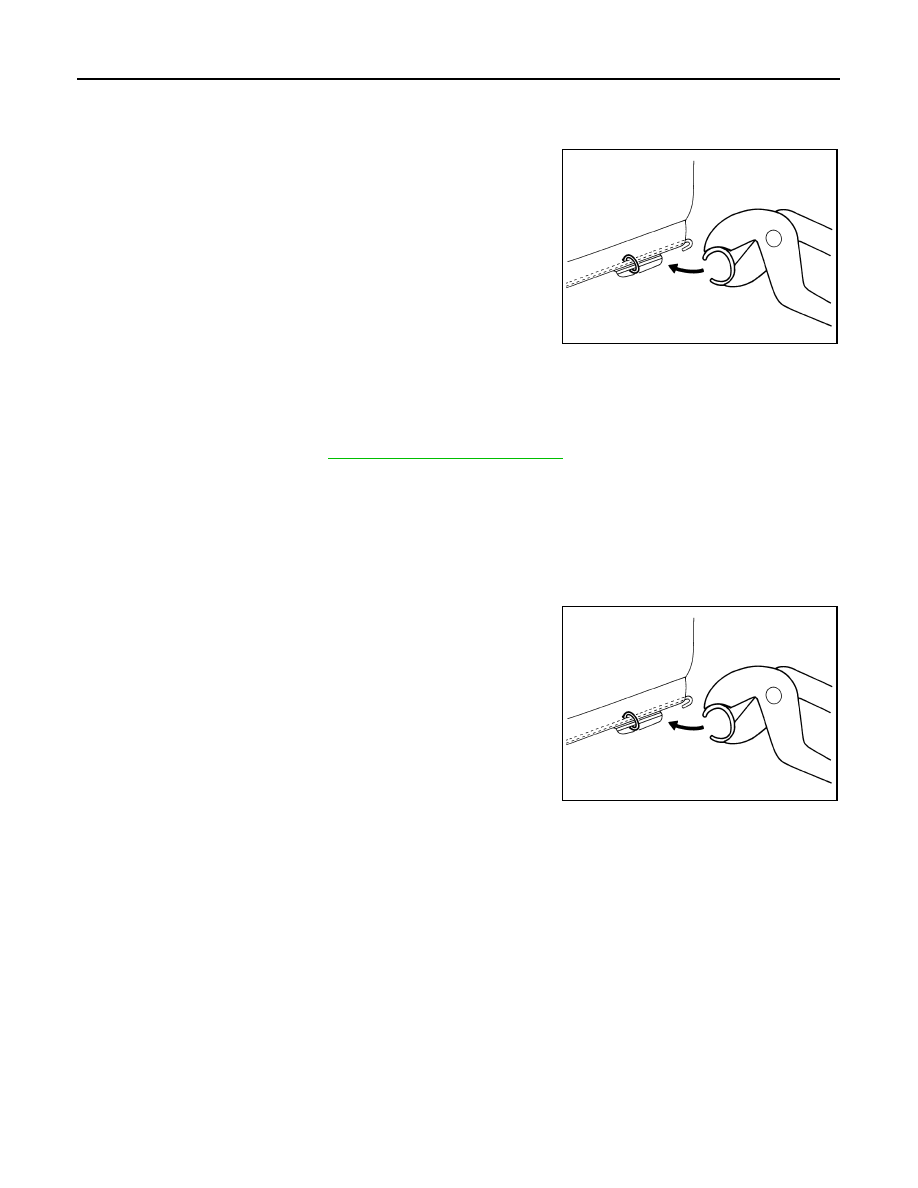

• Install new hog rings on the seatback trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000010478171

DISASSEMBLY

1.

Remove seat cushion. Refer to

SE-34, "Removal and Installation"

.

2.

Remove hog rings on the bottom side of seat cushion.

3.

Remove hog rings on the top side of seat cushion and separate the seat cushion trim from the seat cush-
ion pad.
NOTE:
Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.
• Install new hog rings on the seat cushion trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

PIIB3356J

PIIB3356J

POWER SEAT SWITCH

SE-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

POWER SEAT SWITCH

Removal and Installation

INFOID:0000000010436343

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

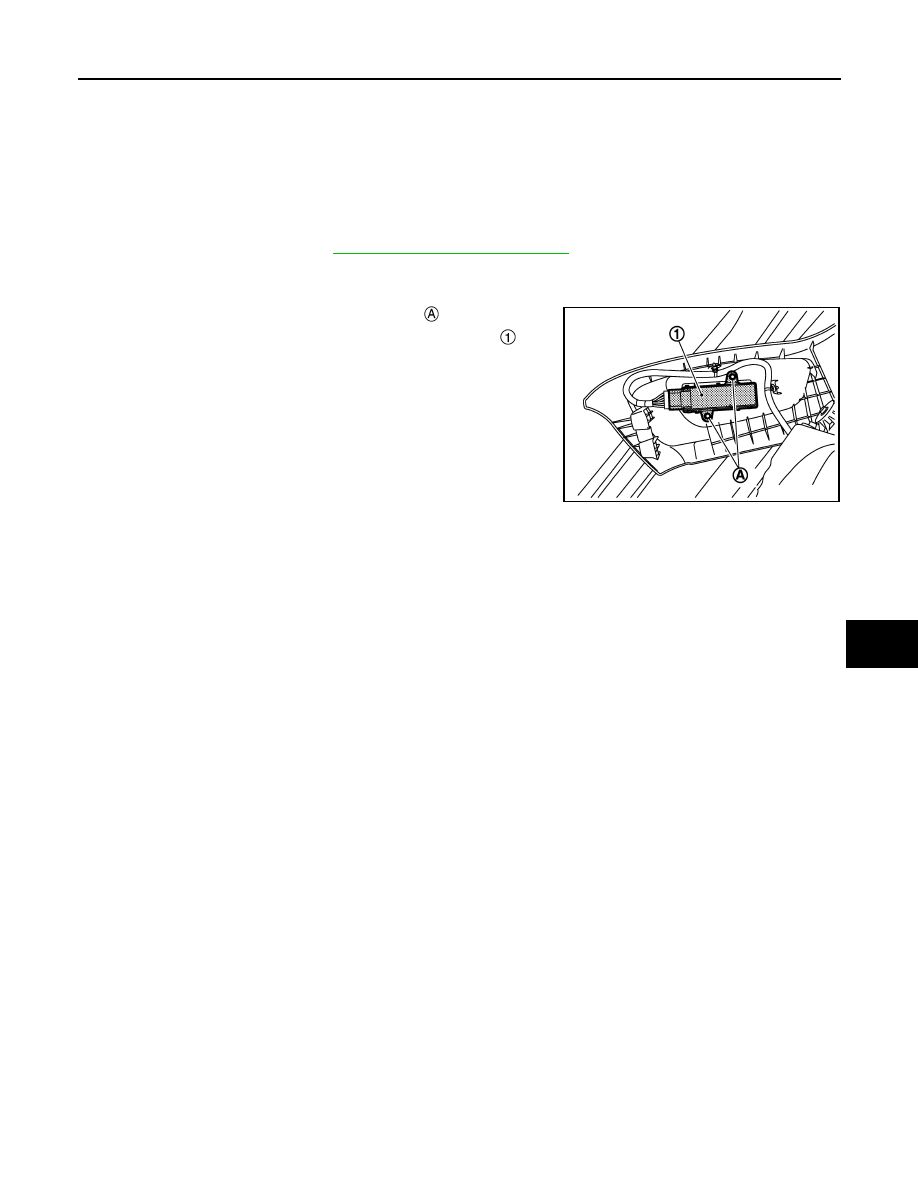

1.

Remove the front seat. Refer to

SE-28, "Removal and Installation"

.

2.

Remove the seat cushion outer finisher inside.

3.

Disconnect power seat switch connector.

4.

Remove power seat switch mounting screws

.

5.

Remove harness clip and remove power seat switch

 from

seat cushion outer finisher.

INSTALLATION

Install in the reverse order of removal.

JMJIA9931ZZ

SE-38

< REMOVAL AND INSTALLATION >

HEATED SEAT SWITCH

HEATED SEAT SWITCH

Removal and Installation

INFOID:0000000010436338

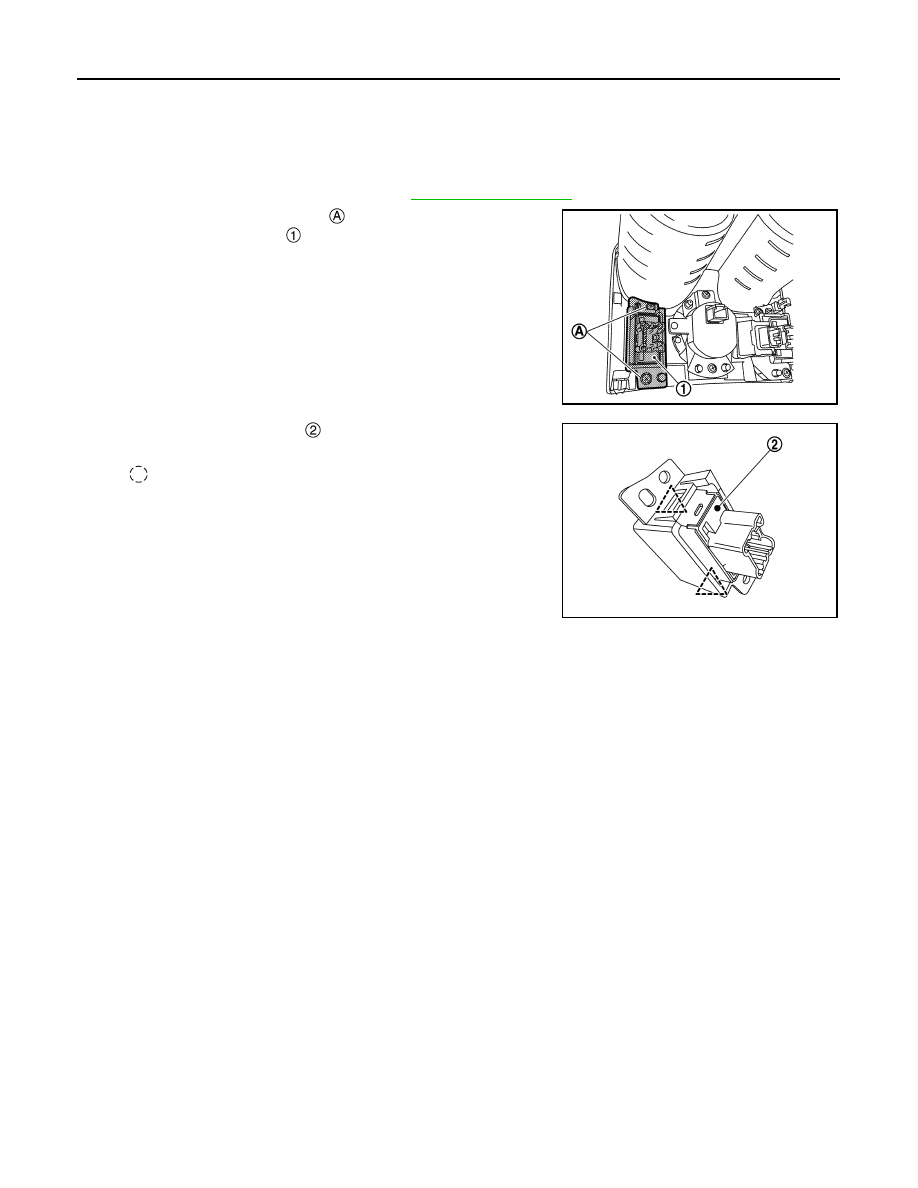

REMOVAL

1.

Remove the console switch panel. Refer to

IP-18, "Exploded View"

.

2.

Remove the mounting screws

, and then remove heat seat

switch and switch bracket

.

3.

Remove heated seat switch

 from switch bracket.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA9647ZZ

: Pawl

JMJIA9648ZZ
