FRONT SEAT

SE-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000010478135

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead
to personal injury if the side air bag module should accidentally deploy.

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Always work from the side or back of the seatback assembly, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.

1.

Remove seat cushion outer finisher (LH).

2.

Remove seat cushion outer finisher (LH).

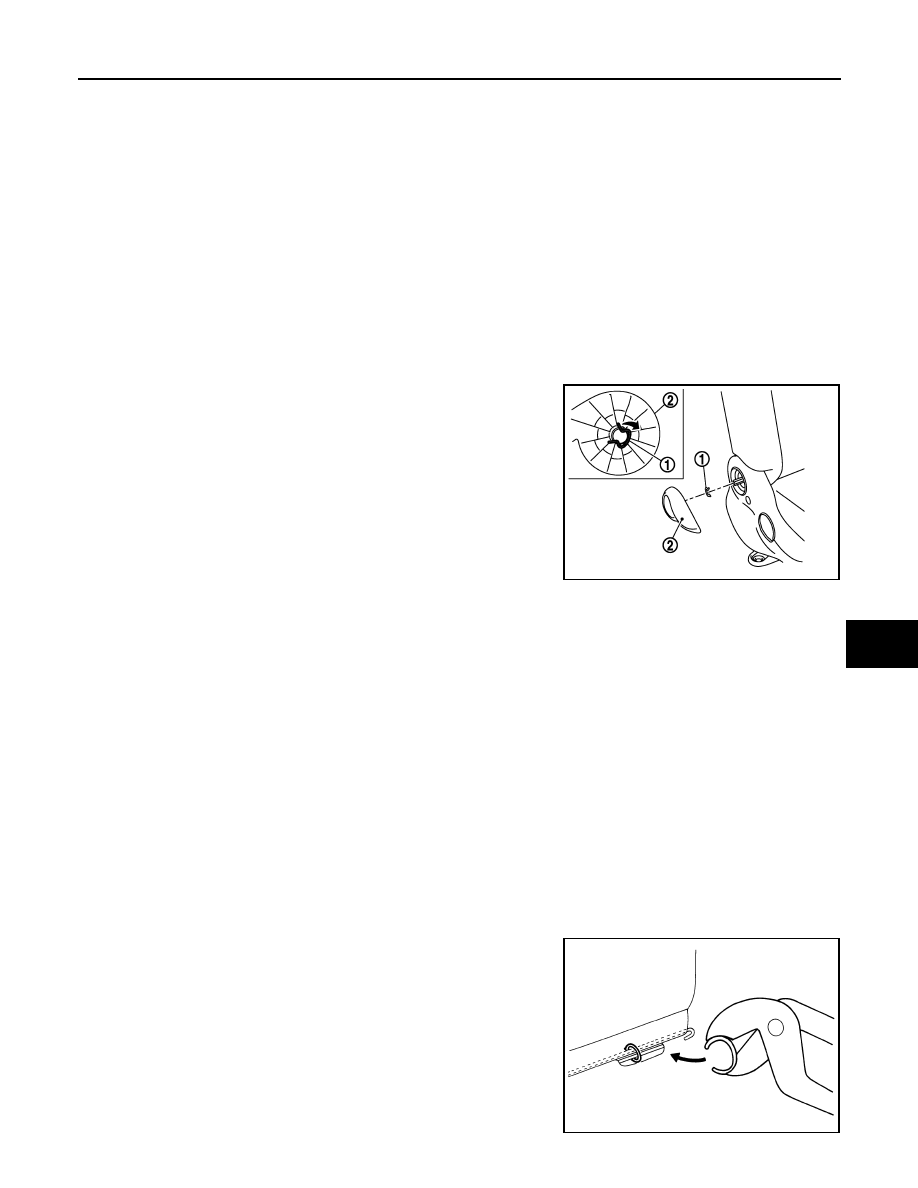

a.

Manual seat:

i.

Remove cap with suitable trim tool.

ii.

Pull handle to remove.

iii.

Lift handle to access clip on inside.

iv.

Disengage clip with suitable tool and slide off.

b.

Power seat (Driver seat only):

i.

Remove the seat cushion outer finisher (LH).

ii.

Release metal clips from seat frame.

iii.

Release pawls and remove.

iv.

Disconnect harness connectors from the power seat switch and lumbar support switch (if equipped).

3.

Release pawls and clips, and remove seat cushion outer finisher (RH).

4.

Release two seatback retainers from the seat frame.

5.

Partially release seatback fasteners (LH/RH).

6.

Release the seat cushion holding the seat cushion trim to the seat frame.

7.

Remove seat cushion trim and seat cushion pad as an assembly from the seat frame.

8.

Remove hog rings and separate seat cushion trim and seat cushion pad.
NOTE:
Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.
• Install new hog rings on the seat cushion trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

JMJIA3940ZZ

PIIB3356J

SE-32

< REMOVAL AND INSTALLATION >

FRONT SEAT

CAUTION:

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check.

REAR SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

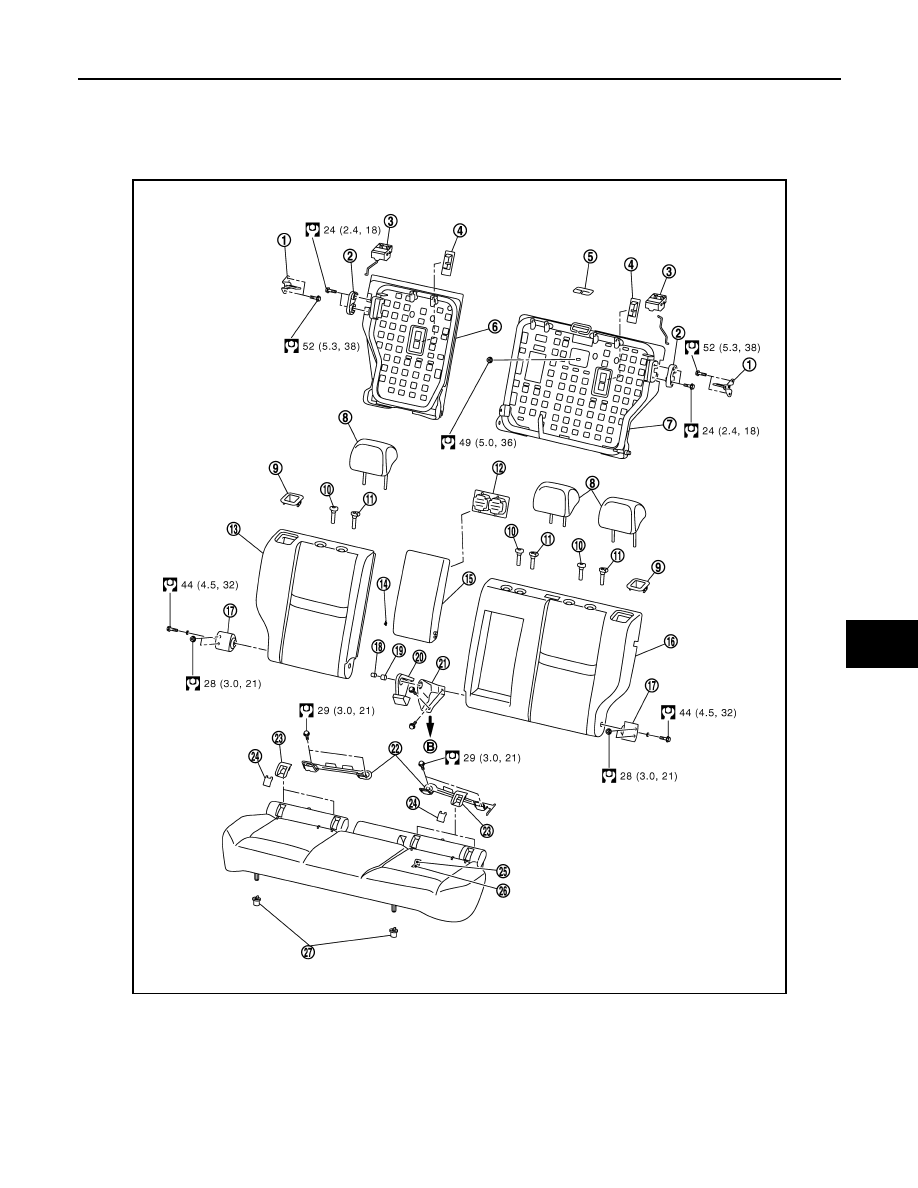

Exploded View

INFOID:0000000010478075

E1JIA0315GB

1.

Striker

2.

Seatback lock assembly

3.

Seatback lock knob

4.

Tether child cover

5.

Rear seat belt escutcheon

6.

Seatback frame RH

7.

Seatback frame LH

8.

Headrest

9.

Seatback lock knob finisher

10. Headrest holder (free)

11.

Headrest holder (locked)

12. Cup holder

13. Armrest assembly

14. Spring clip

15. Seatback trim & pad RH

16. Seatback trim & pad LH

17. Seatback side bracket

18. Bearing

SE-34

< REMOVAL AND INSTALLATION >

REAR SEAT

Removal and Installation

INFOID:0000000010478076

REMOVAL

SEAT CUSHION

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.
1.

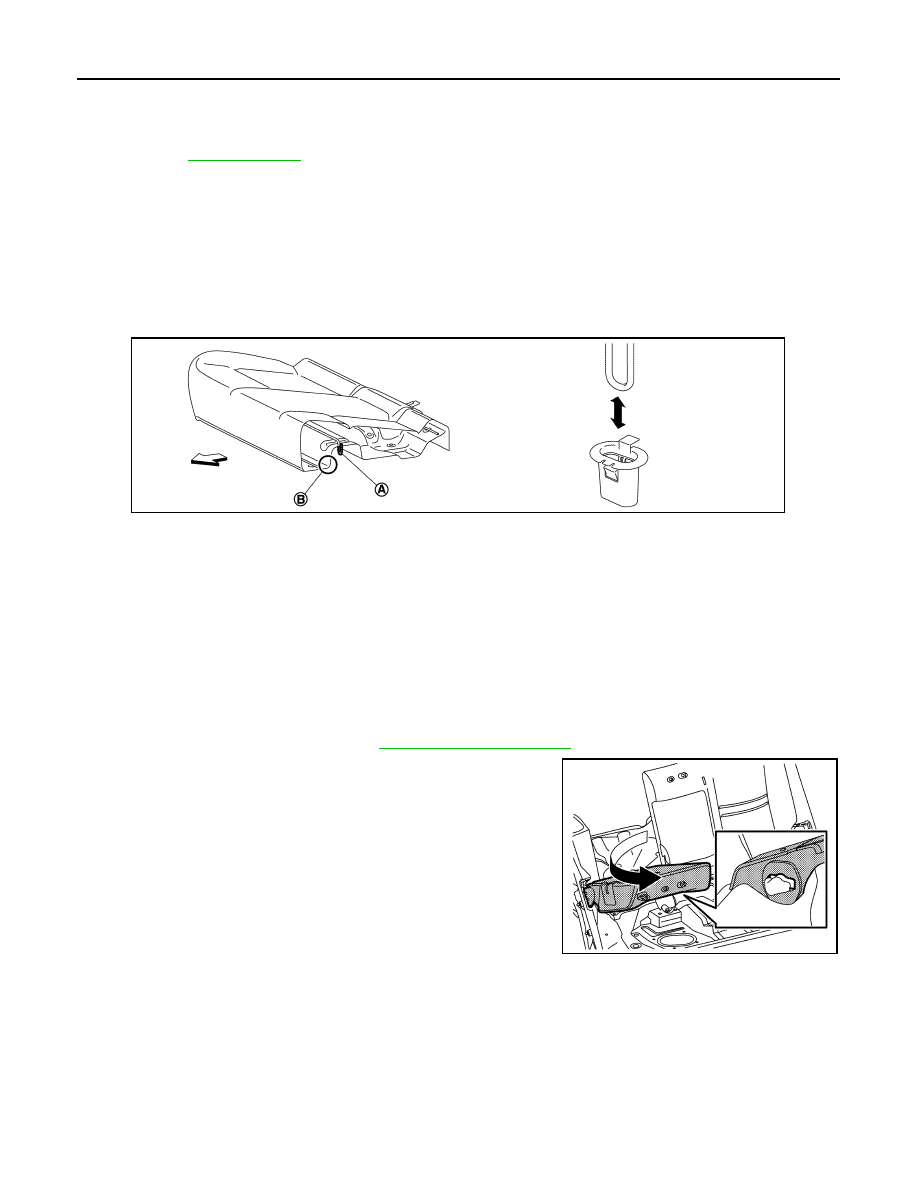

Lift up front end portion of seat cushion (B) and disengage seat cushion hook (A).

2.

Pull out seat belt buckle from seat cushion.

3.

Remove seat cushion from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEATBACK

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.

1.

Remove rear seat cushion.

2.

Remove headrest.

3.

Remove uggage side finisher. Refer to

INT-29, "Luggage side trim"

4.

Remove seatback:

a.

Remove seatback mounting bolts

b.

Unlock and tilt seatback.

c.

Remove seatback.

INSTALLATION

Note the following item, and install in the reverse order of removal.

19. Bearing

20. Center hinge cover

21. Center hinge

22. Isofix bracket

23. Isofix cover

24. Isofix cover cap

25. Seat cushion trim

26. Seat cushion pad

27. Seat cushion hook

Refer to

GI-4, "Components"

 for symbpls in the figure.
