SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

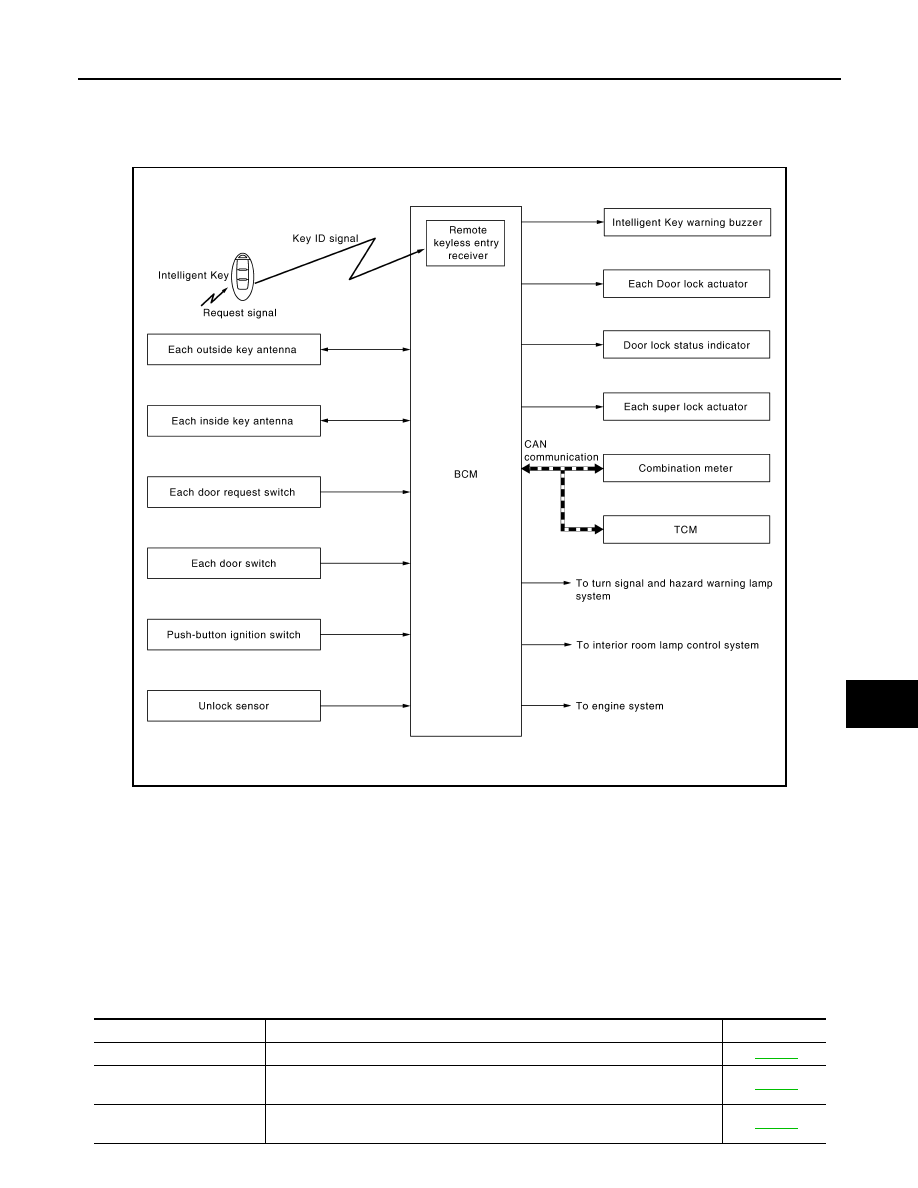

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010434547

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010434548

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3310GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-34

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-36

Super lock

When all doors are closed super lock system can be set/release by Intelligent
Key or door request switch

DLK-37

DLK-34

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

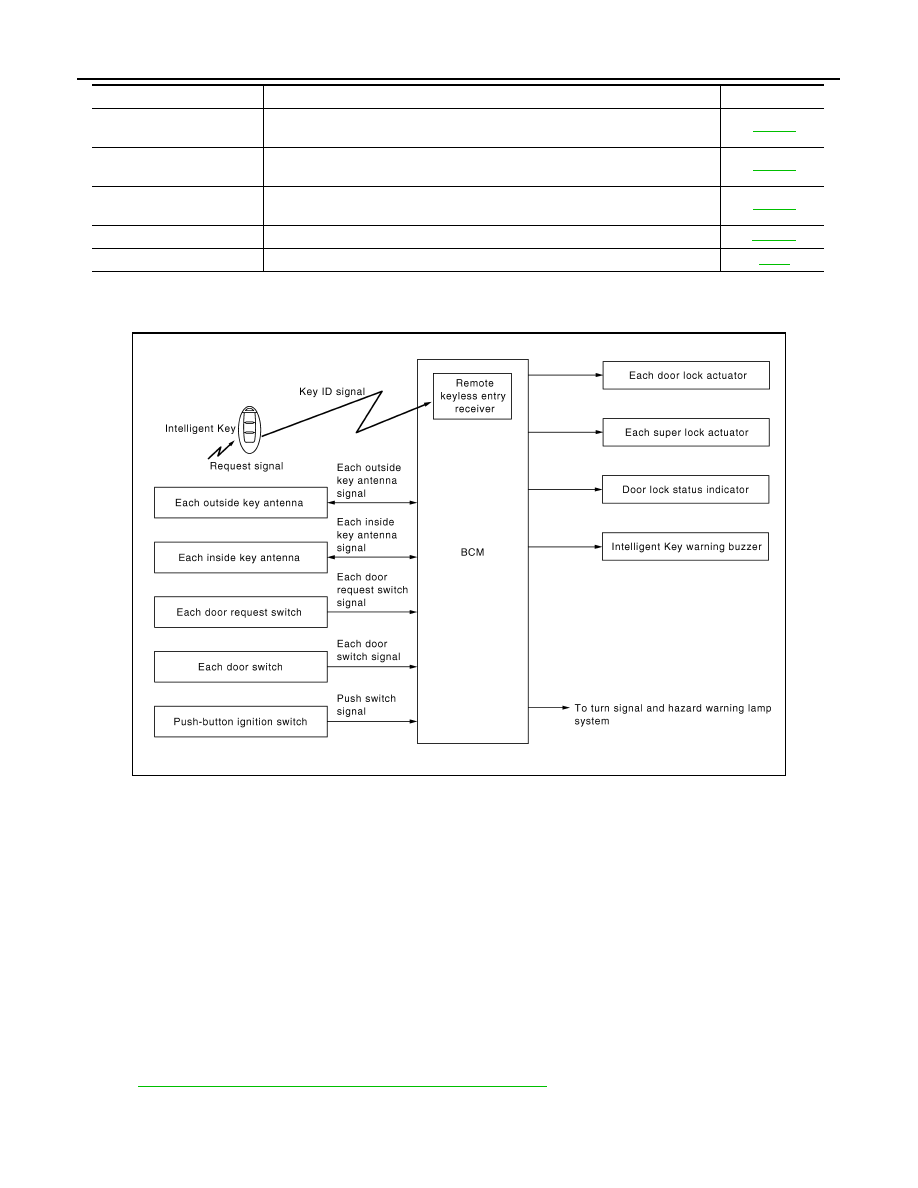

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010434549

DOOR LOCK FUNCTION : System Description

INFOID:0000000010434550

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door, sets/releases super lock, and blinks hazard warning lamps (lock: 1 time, unlock:

2 times) at the same time as a reminder.

NOTE:
Information of super lock function.
Refer to

DLK-37, "SUPER LOCK FUNCTION : System Description"

.

OPERATION CONDITION

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-39

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-40

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-41

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3311GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-35

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

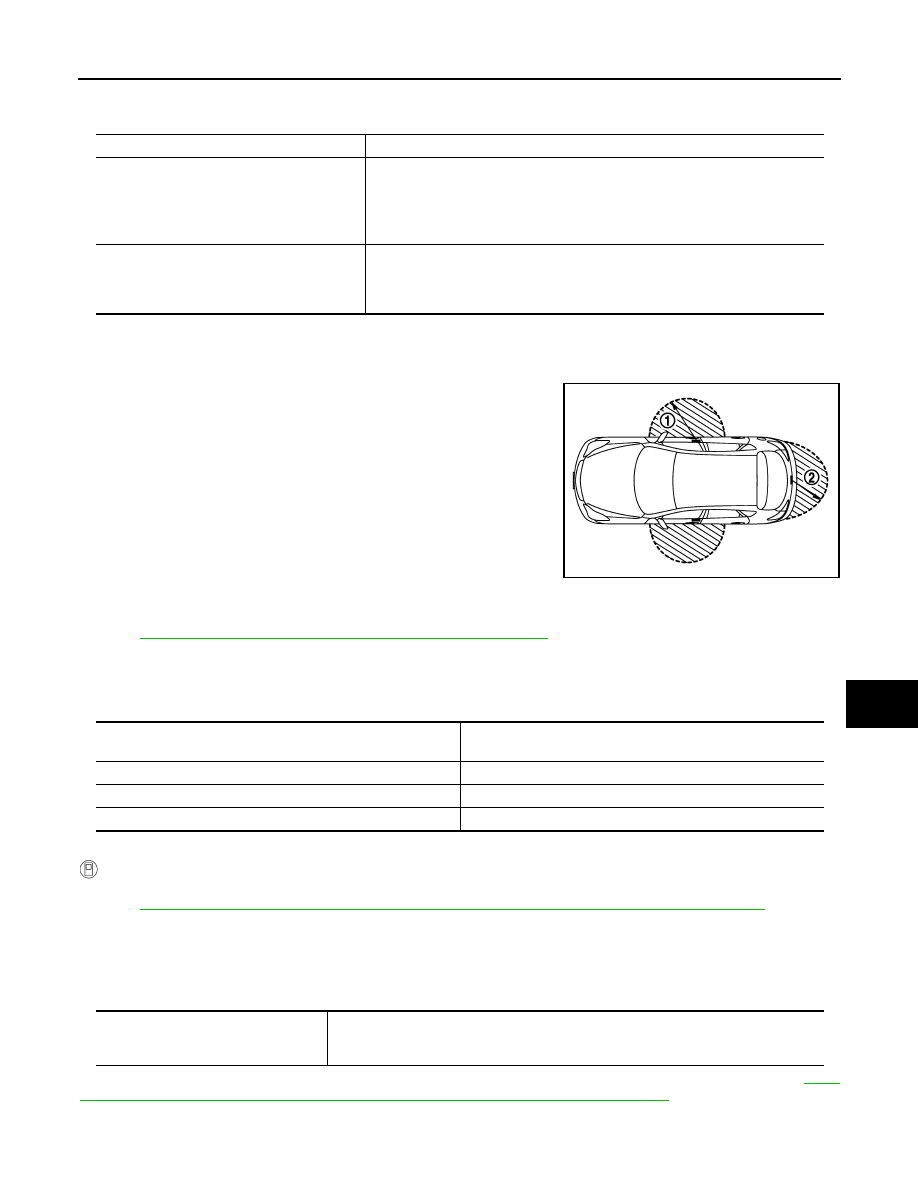

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

ANTI-HIJACK FUNCTION

Information of super lock system with anti-hijack function.
Refer to

DLK-37, "SUPER LOCK FUNCTION : System Description"

.

HAZARD REMINDER FUNCTION

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder.
Reminder function does not operate if ignition switch in ON position.

How to Change Reminder Function Operation Mode

 With CONSULT

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

48, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)"

.

DOOR LOCK STATUS INDICATOR OPERATION

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4534ZZ

Door lock operation

(With door request switch)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

DLK-36

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-31, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

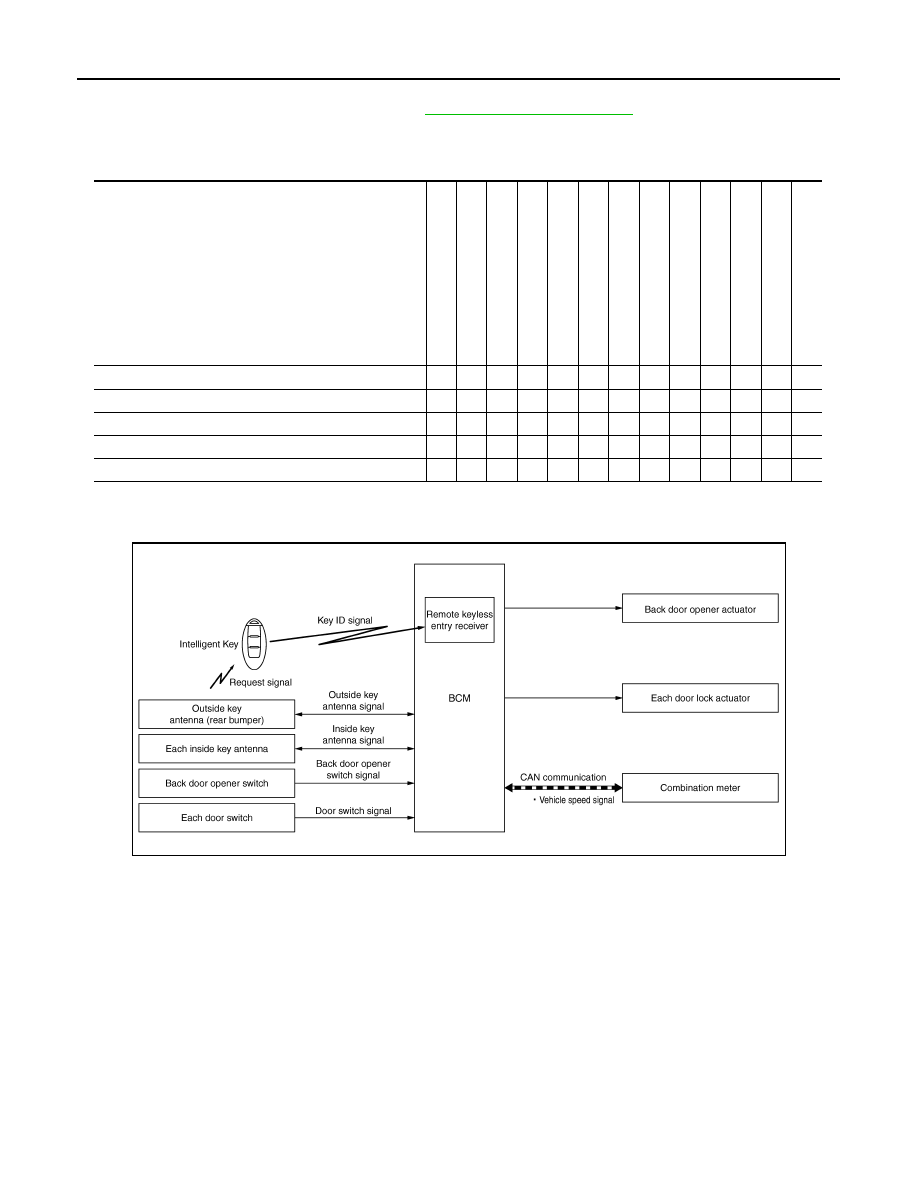

BACK DOOR OPEN FUNCTION

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000010683500

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010683393

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM opens back door.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

Door lock function

In

te

lli

ge

nt

 Key

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Door switch

Do

or re

qu

es

t s

w

it

ch

Do

or l

o

c

k

 ac

tua

to

r

In

si

d

e

 ke

y an

ten

n

a

Out

s

id

e ke

y a

n

ten

n

a

CAN co

mm

un

ic

ati

o

n

 sy

s

tem

BC

M

Do

or

lo

c

k

 st

atu

s

 ind

ic

a

to

r

Hazard w

a

rning

lamp

P

u

s

h

-b

utt

on ig

nit

ion

 s

w

itc

h

Co

mb

in

ati

o

n

 me

te

r

Door lock/unlock function

×

×

×

×

×

×

×

×

Hazard reminder function

×

×

×

×

Door lock status indicator operation

×

×

Anti-hijack function

×

×

×

×

×

×

Auto door lock function

×

×

×

×

JMKIB3635GB
