ENGINE ASSEMBLY

EM-319

< UNIT REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• If items or work required are not covered by the engine main body section, refer to the applicable

sections.

• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with transmission jack or similar tool before
starting work, in preparation for the backward shift of center of gravity.

• For supporting points for lifting and jacking point at rear axle, refer to

GI-36, "Garage Jack and

Safety Stand and 2-Pole Lift"

 or

GI-37, "Board-On Lift"

.

NOTE:
When removing components such as hoses, tubes / lines, etc., cap or plug openings to prevent fluid from spill-
ing.

REMOVAL

Description of Work

Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.

Preparation

Remove the following parts.
• Battery ground cable
• Undercover
• Right side splash cover
• LH/RH front wheel
• RH head light assembly

Engine Room

1.

Drain engine coolant. Refer to

CO-65, "Draining"

.

CAUTION:

Perform when engine is cold.

2.

Remove engine cover.

3.

Remove air cleaner case and air duct (suction). Refer to

EM-279, "Exploded View"

.

4.

Remove radiator upper hose. Refer to

CO-70, "Exploded View"

.

5.

Remove reservoir tank and hoses.

6.

Remove fuel feed and return tubes.

7.

Remove vacuum hose.

8.

Remove turbocharger air duct. Refer to

EM-281, "Exploded View"

.

9.

Disconnect heater hoses.

10. Disconnect engine room harness from the engine side and set it aside for easier work.

11. Disconnect transaxle side harness and clutch hose.
12. Disconnect drain hose transaxle side.

13. Disconnect shift cable and select cable. Refer to

TM-28, "Removal and Installation"

.

14. Loosen wire bracket.
15. Disconnect all the body-side vacuum hoses and air hoses at engine side.

16. Disconnect fuel feed and return hoses, and plug it to prevent fuel from draining.

Vehicle Underbody

1.

Remove drive shaft lock pin and lock nut. Refer to

FAX-22, "Removal and Installation (LH)"

 and

FAX-26,

"Removal and Installation (RH)"

.

2.

Remove ABS sensor from brake caliper.

3.

Remove strut lower bolts.

4.

Remove drive shaft assembly RH and LH.

5.

Remove drive belt. Refer to

EM-278, "Removal and Installation"

.

6.

Remove A/C compressor with piping connected from engine. Temporarily secure it on body with a rope to
avoid putting load on it.

7.

Remove exhaust front tube. Refer to

EX-15, "Exploded View"

.

8.

Remove engine rear mounting bracket.

EM-320

< UNIT REMOVAL AND INSTALLATION >

[K9K]

ENGINE ASSEMBLY

9.

Remove front suspension member stay. Refer to

FSU-21, "Removal and Installation"

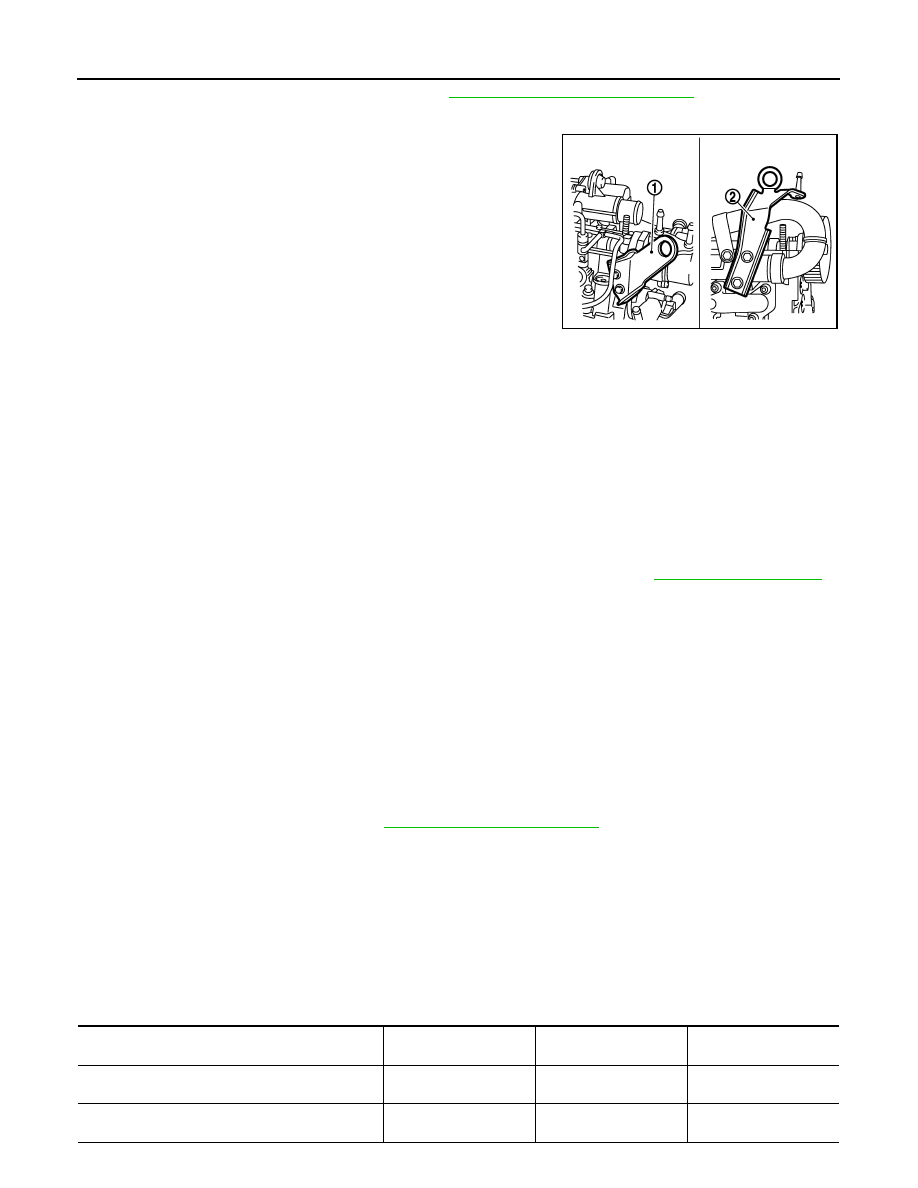

Removal

1.

Install engine slingers (1) into front right of cylinder head and
engine slinger (2) into rear left of cylinder head.

2.

Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a jack or trestle. Securely support bot-
tom of engine and transaxle.

CAUTION:

Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.

3.

Remove RH and LH engine mounting bolts.

4.

Remove engine and transaxle assembly from vehicle downward
by carefully operating supporting tools.

CAUTION:

• During the operation, make sure that no part interferes with body side.
• Before and during this lifting, always check if any harnesses are left connected.
• During the removal operation, always be careful to prevent vehicle from falling off the lift due to

changes in the center of gravity.

• If necessary, support vehicle by setting a jack or equivalent tool at the rear.

Separation Work

CAUTION:

During the operation, secure support the engine by placing a piece of wood under the engine oil pan,
transaxle oil pan and suspended the engine slinger by baby crane (movable hoist) etc.
1.

Remove starter motor.

2.

Separate engine and transaxle.

3.

Lift with a hoist and separate the engine from the transaxle assembly. Refer to

TM-35, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.
• Do not allow oil to get on mounting insulator. Be careful not to damage mounting insulator.
• When installation directions are specified, install parts according to the direction marks on them referring to

components illustration.

• Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.

Inspection

INFOID:0000000010282097

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-59, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids includ-

ing engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

MBIB9022E

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

ENGINE ASSEMBLY

EM-321

< UNIT REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Power steering fluid, brake fluid, etc.

Transmission / transaxle
fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

Transmission / transaxle
fluid

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—

EM-322

< UNIT DISASSEMBLY AND ASSEMBLY >

[K9K]

ENGINE STAND SETTING

UNIT DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

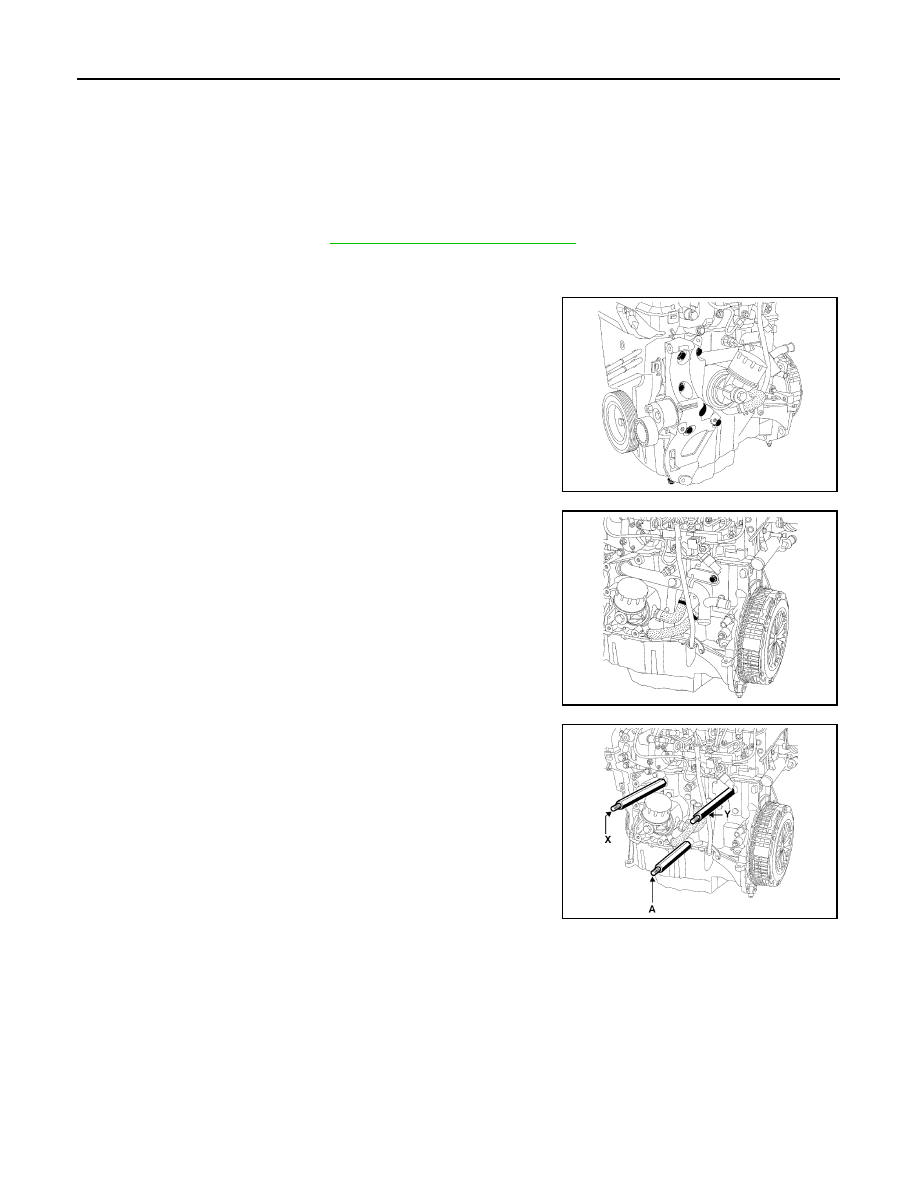

Setting

INFOID:0000000010282098

Before the engine is mounted on the engine sub-attachment, the engine's electrical harness must be removed
and the engine oil drained.

1.

Remove the drive belt. Refer to

EM-273, "Removal and Installation"

.

2.

Remove the alternator.

3.

Remove the air conditioning compressor.

4.

Remove the multifunction support.

5.

Remove the coolant inlet pipe on the water pump.

6.

Place the rods (A), (X), (Y) on the cylinder block.

MBIB0355E

MBIB0356E

MBIB0357E
