Nissan Qashqai J11. Manual - part 93

TIMING BELT

EM-311

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

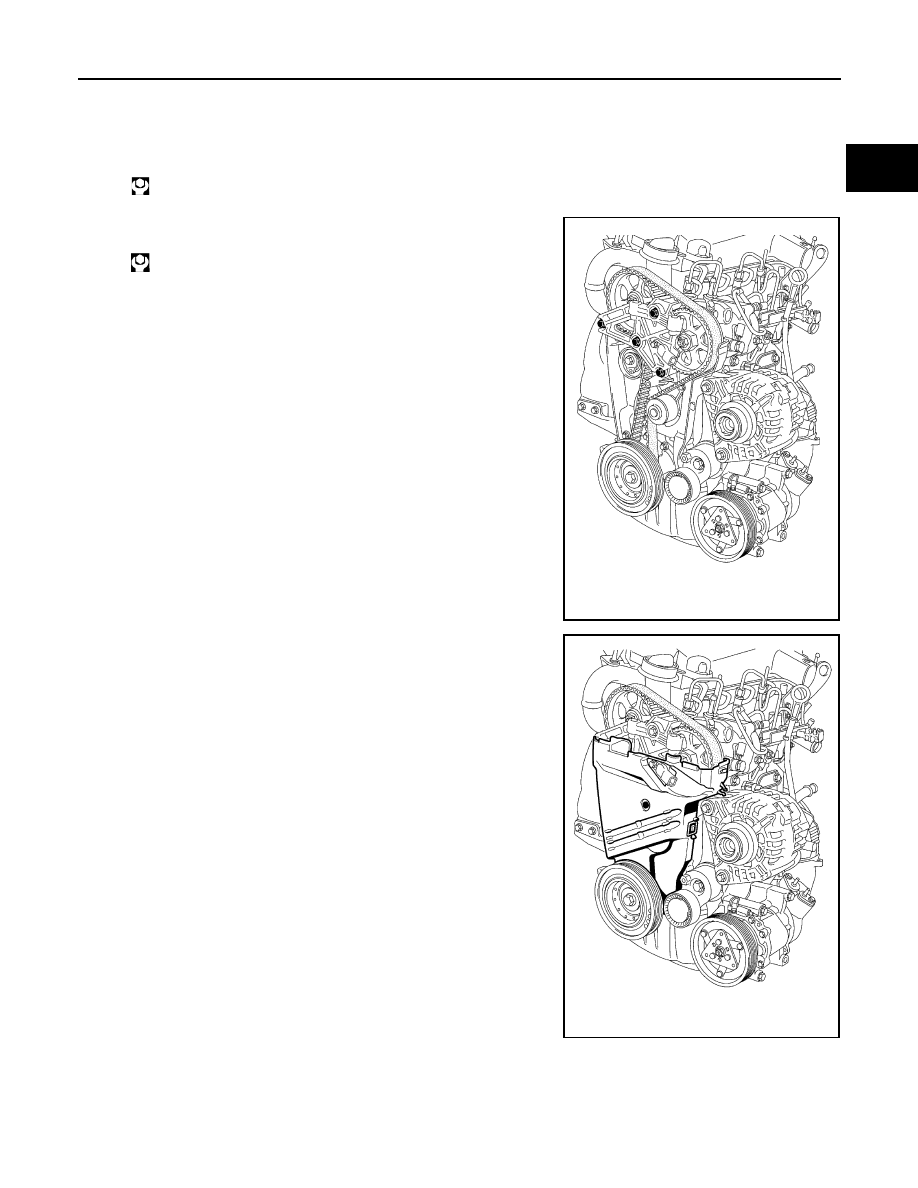

18. Remove TDC set pin [SST: KV113B0130 (Mot. 1489)] and TDC set pin [SST: KV113B0110 (Mot. 1430)].

19. Apply liquid gasket to the thread of TDC pin plug.

20. Install TDC pin plug.

21. Install the cylinder head suspended bracket.

22. Install the lower timing cover by positioning the tab (M) into the

hole (N) on the inner timing cover.

: 20 N·m (2.0 kg-m, 15 ft-lb)

: 21 N·m (2.1 kg-m, 15 ft-lb)

MBIB0512E

MBIB0513E

EM-312

< REMOVAL AND INSTALLATION >

[K9K]

TIMING BELT

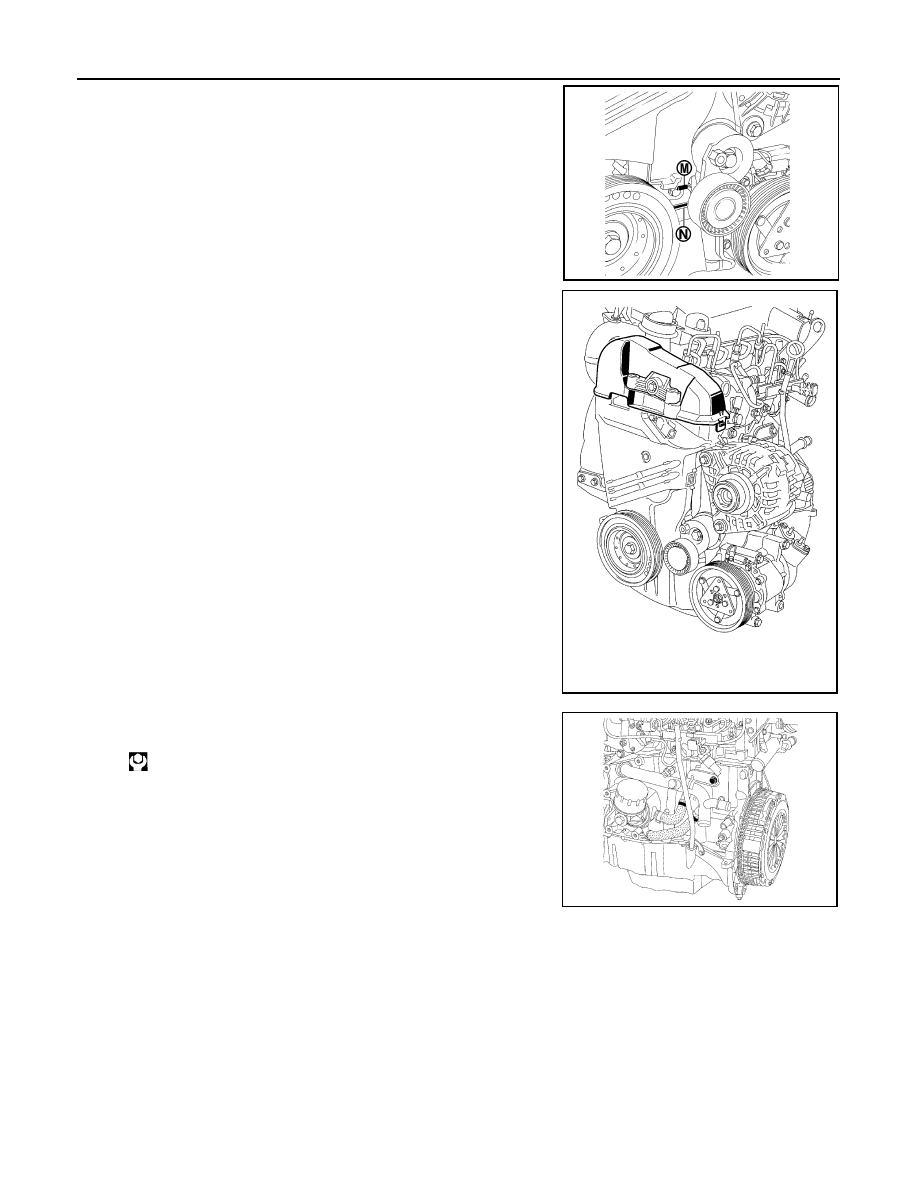

23. Install the upper timing cover.

24. Install the water pipe.

25. Install the two water hoses.

26. Install the drive belt.

CAUTION:

• Make sure belt is correctly engaged with the pulley groove.
• Check for oil and coolant on belt and each pulley groove.

27. Make sure that tension of each belt is within the standard.

MBIB0514E

MBIB0515E

: 22 N·m (2.2 kg-m, 16 ft-lb)

MBIB0356E

CAMSHAFT

EM-313

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

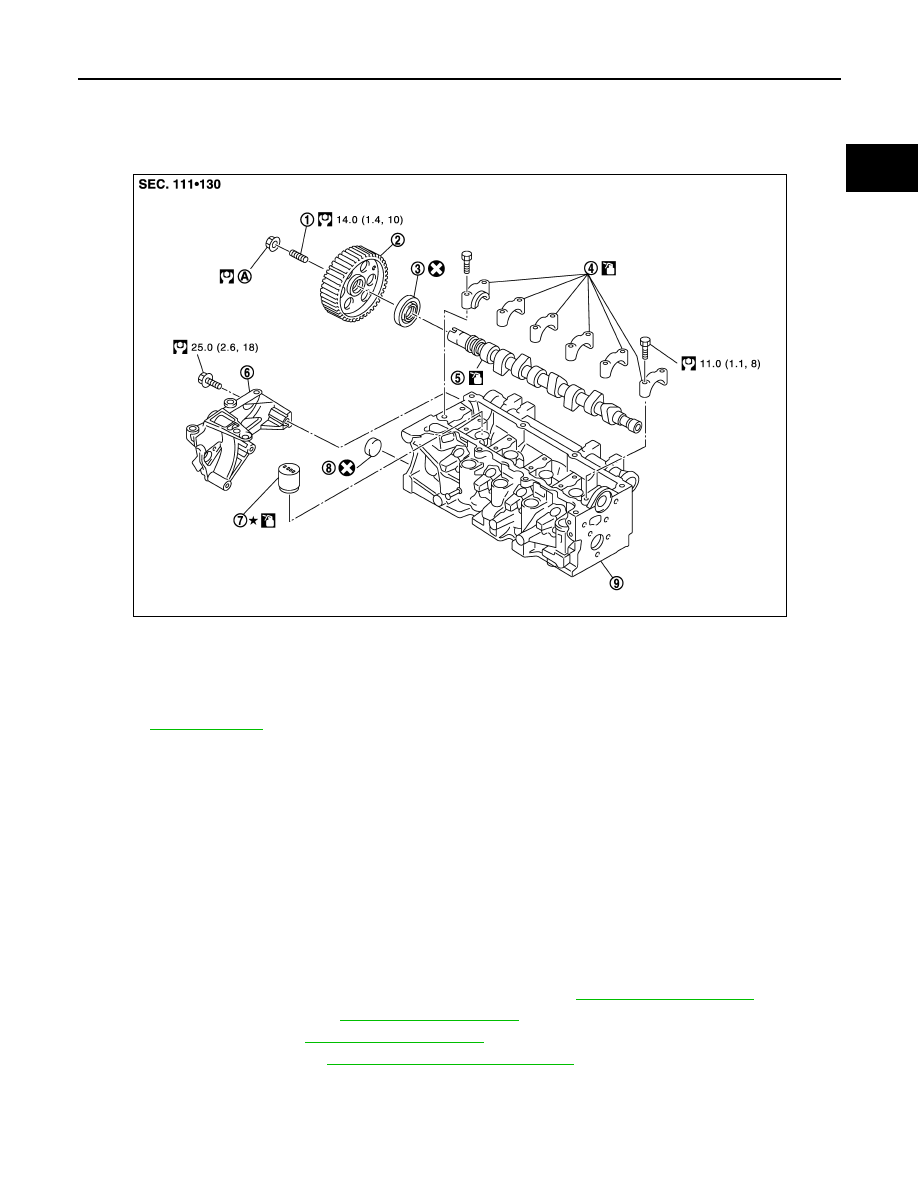

CAMSHAFT

Exploded View

INFOID:0000000010282092

Removal and Installation

INFOID:0000000010282093

CAUTION:

Apply new engine oil to parts marked in illustration before installation.

REMOVAL

1.

Remove the following parts.
• Battery ground cable
• Undercover
• RH front wheel
• RH head light assembly

2.

Remove right side splash cover.

3.

Remove engine cover.

4.

Remove air inlet tube and electric throttle control actuator. Refer to

EM-281, "Exploded View"



5.

Remove vacuum pump. Refer to

EM-292, "Exploded View"

.

6.

Remove drive belt. Refer to

EM-277, "Exploded View"

.

7.

Remove rocker cover. Refer to

EM-303, "Removal and Installation"

.

8.

Support underneath of engine by setting a manual lift table caddy (commercial service tool) or equivalent
tool.

CAUTION:

1.

Camshaft sprocket stud bolt

2.

Camshaft sprocket

3.

Oil seal

4.

Camshaft bracket

5.

Camshaft

6.

Cylinder head suspended bracket

7.

Valve lifter

8.

Cap

9.

Cylinder head

A.

30.0 N·m (3.1 kg-m, 22 ft-lb) and 86 degrees

Refer to

GI-4, "Components"

 for symbols in the figure.

E1BIA0023GB

EM-314

< REMOVAL AND INSTALLATION >

[K9K]

CAMSHAFT

Put a piece of wood or something similar as supporting surface, secure a completely stable condi-
tion.

9.

Remove timing belt. Refer to

EM-305, "Removal and Installation"

.

10. Remove camshaft brackets.

11. Remove camshaft.
12. Remove valve lifter.

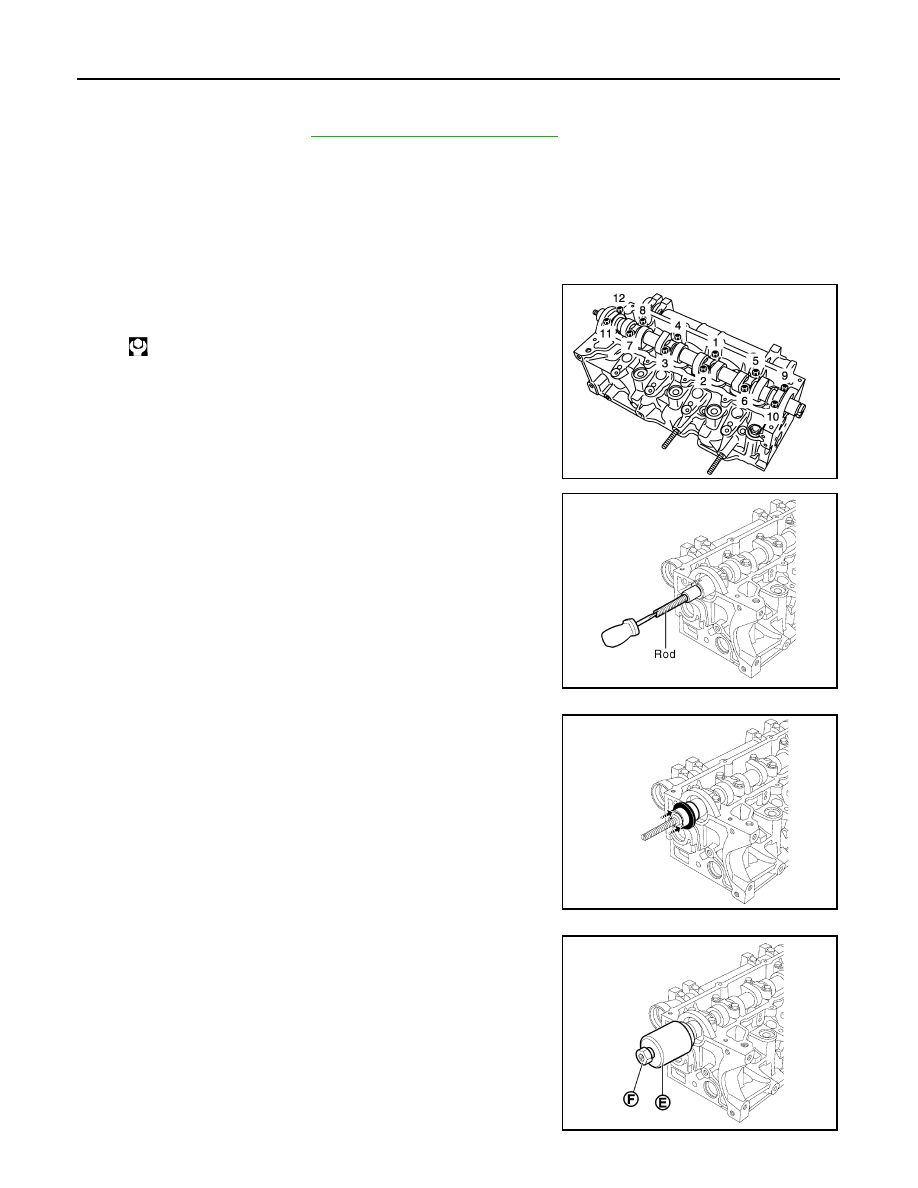

INSTALLATION

1.

Install valve lifter.

2.

Install camshaft.

3.

Install camshaft bracket and tighten bolts in numerical order as
shown in the figure.

4.

Screw the shouldered rod of camshaft seal insert [SST:
KV113B0230 (Mot. 1632)] onto the stud of the camshaft.

5.

Install the old seal on the camshaft.

6.

For the new seal, put the protector with the seal on the cam-
shaft, taking care not to touch the seal.

7.

Install the cover (E) and the collar nut (F) of camshaft seal insert
[SST: KV113B0230 (Mot. 1632)].

: 11 N·m (1.1 kg-m, 8 ft-lb)

E1BIA0050ZZ

MBIB0430E

MBIB0431E

MBIB0432E
