12. Insert TDC set pin [SST: KV113B0110 (Mot. 1430)] (A) into the

camshaft pulley and cylinder head hole.

13. Screw in the TDC pin (special service tool).

14. Turn the engine clockwise (timing side) until the crankshaft

reaches the TDC pin (special service tool).

15. The pin [SST: KV113B0110 (Mot. 1430)] (A) must engage in the

camshaft pulley and cylinder head holes.

16. Insert flat-bladed screwdriver into the place of crankshaft posi-

tion sensor to block crankshaft and loosen crankshaft pulley bolt
(1).

17. Remove crankshaft pulley.

CAUTION:

Never remove fixing bolts. Keep loosened fixing bolts in
place to protect removed crankshaft pulley from dropping.

MBIB1924E

MBIB0394E

MBIB0395E

MBIB1924E

MBIB1925E

EM-308

< REMOVAL AND INSTALLATION >

[K9K]

TIMING BELT

18. Slacken the timing belt by loosening the bolt of tensioner (1),

then remove timing belt.

INSTALLATION

Install in the reverse order of removal paying attention to the following.

TIMING ADJUSTMENT

CAUTION:

It is essential to degrease the end of the crankshaft, the bore of the crankshaft sprocket and the bear-
ing faces of the drive belt pulley to prevent any slip between the timing and the crankshaft which
would risk destroying the engine.
1.

Install timing belt tensioner.
NOTE:
Put the timing belt tensioner spigot (1) in the cylinder head
groove.

2.

Insert Tool KV113B0110 (Mot. 1430) (A) in the camshaft pulley
and cylinder head holes.

3.

Check that the mark on the high pressure pump pulley (2) has
shifted one tooth to the right of vertical axle.

4.

Turn crankshaft to set Tool KV113B0130 (Mot. 1489) (the crank-
shaft groove (1) must be facing upwards).

5.

Tighten old crankshaft pulley bolt with a spacer (1) (which does
not cover the timing sprocket mark).

MBIB1926E

MBIB1927E

MBIB1928E

MBIB1929E

TIMING BELT

EM-309

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

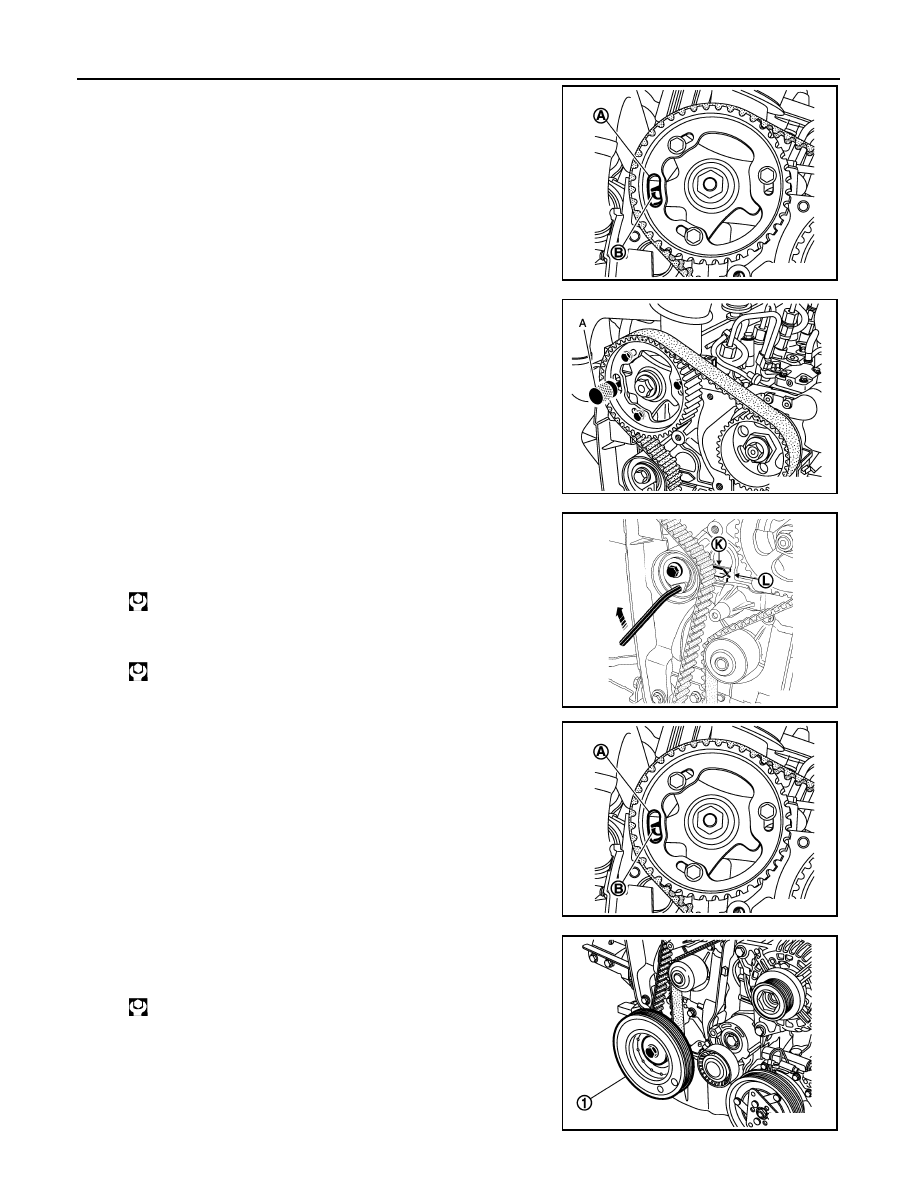

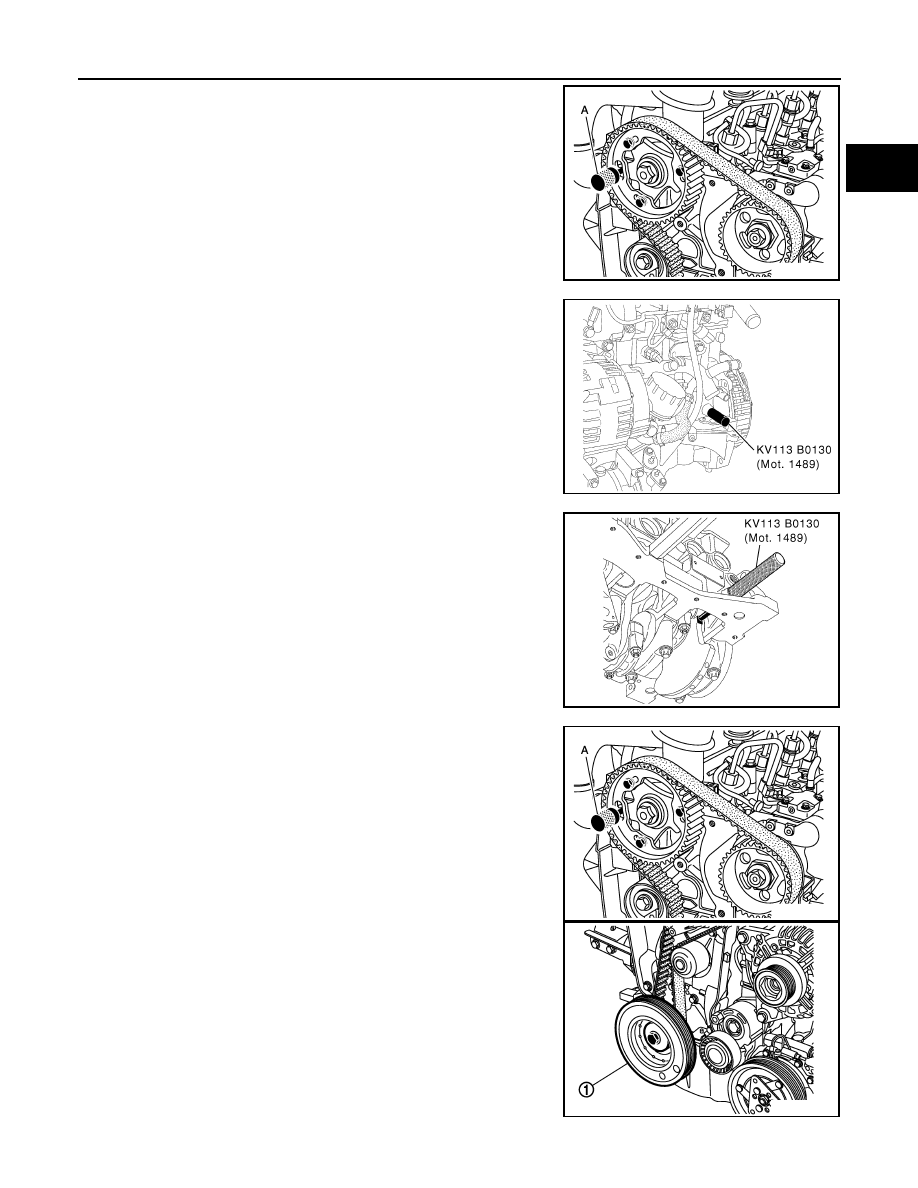

6.

Insert tool KV113B0130 (Mot. 1489) to crankshaft.

7.

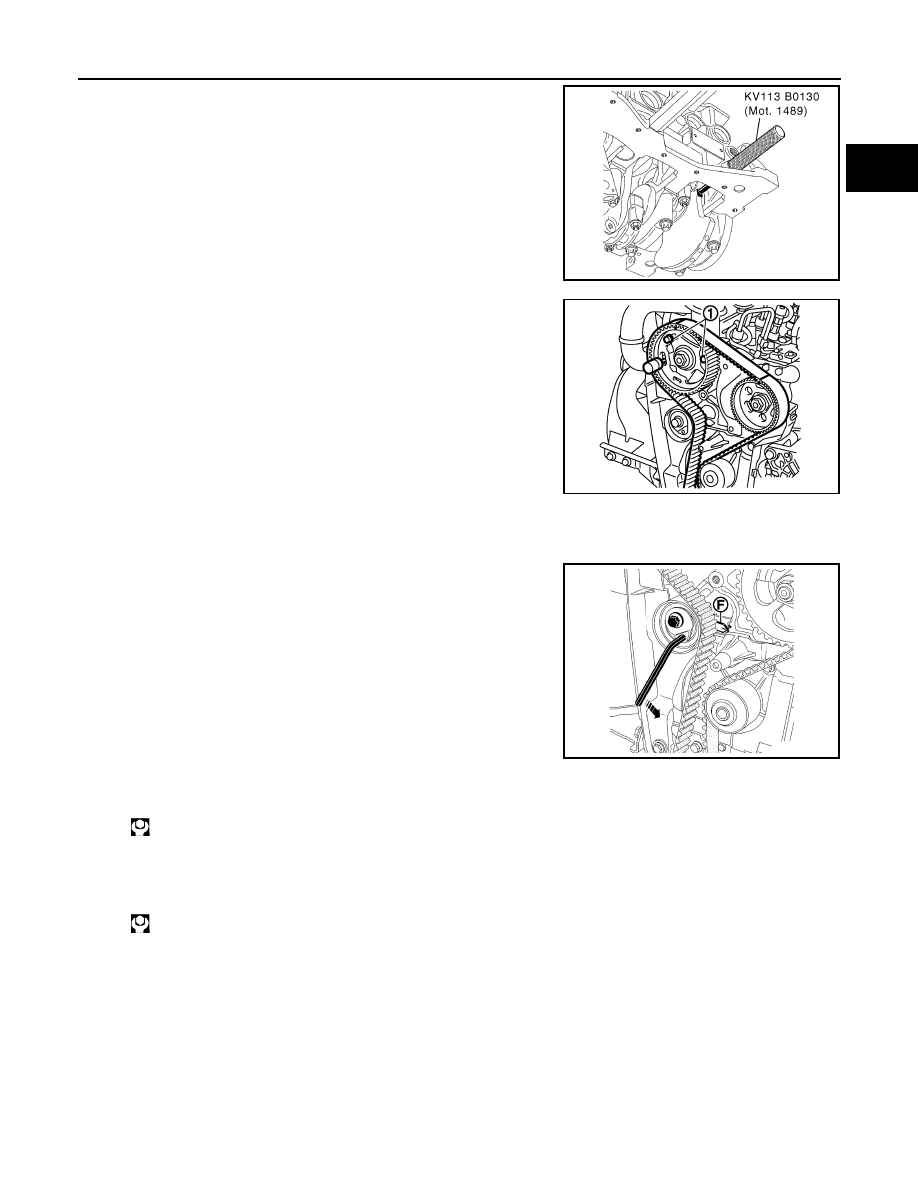

Remove one wheel bolt from crankshaft pulley, and then loosen
the other two bolts (1).

8.

Install the timing belt, aligning the marks on the belt with those on the camshaft and fuel injection pump
sprockets (19 teeth spaces on the belt between the marks on the camshaft and pump sprockets).

9.

Using a 6 mm (0.24 in) Allen key, move the movable index (F) of
the tension wheel into the position shown below, by turning the
key counterclockwise.

10. Tighten the tension wheel bolt.

11. Check that the camshaft pulley wheel bolts are not fully up against the camshaft pulley wheel.
12. Install and tighten camshaft pulley wheel bolt.

13. Remove Tool KV113B0130 (Mot. 1489) and Tool KV113B0110 (Mot. 1430).

MBIB0395E

MBIB1930E

MBIB0509E

: 27 N·m (2.8 kg-m, 20 ft-lb)

: 14 N·m (1.4 kg-m, 10 ft-lb)

EM-310

< REMOVAL AND INSTALLATION >

[K9K]

TIMING BELT

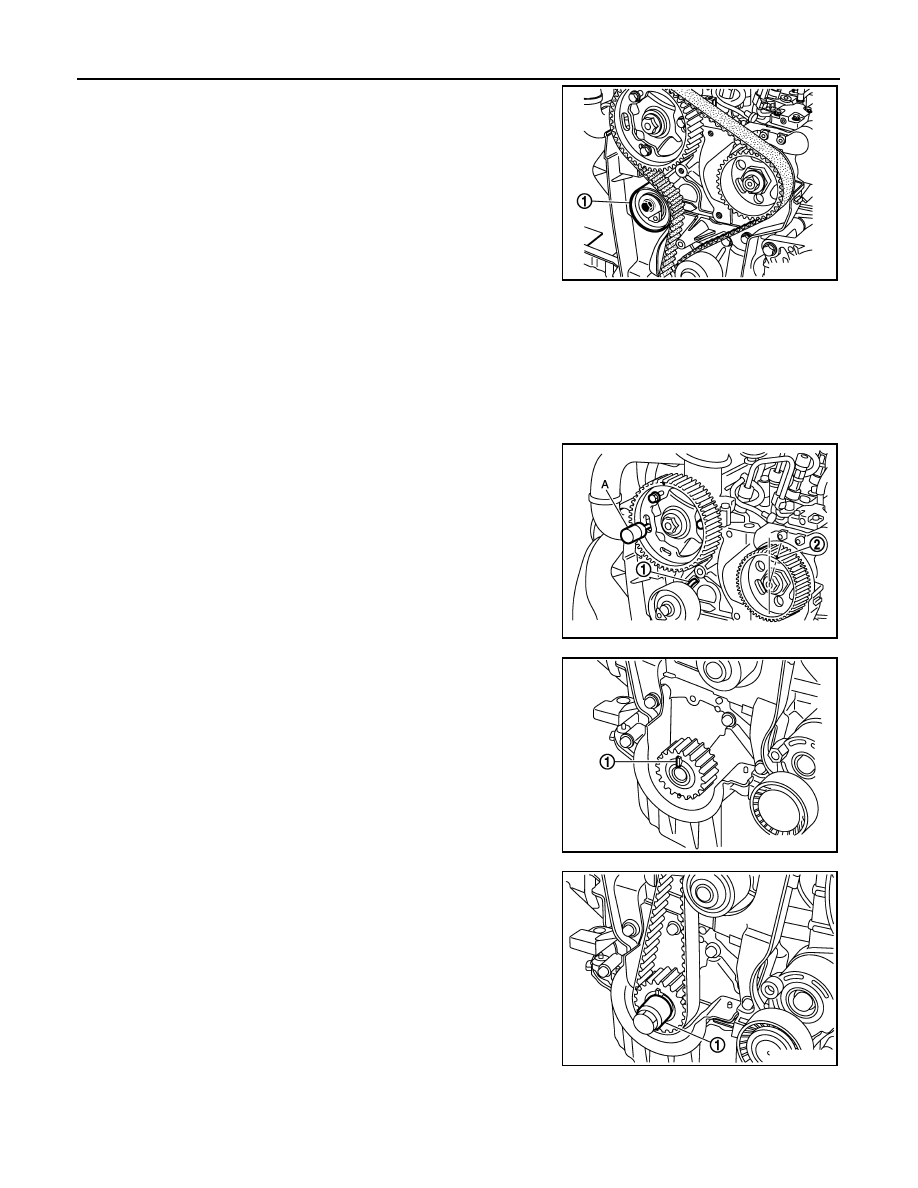

14. Turn the crankshaft two full turns in a clockwise direction (timing

side). Just before the hole (A) of the camshaft pulley is opposite
the cylinder head hole (B), insert tool KV113B0130 (Mot. 1489)
into the cylinder block.

15. Then turn the crankshaft slowly and smoothly against TDC set

pin.

16. Insert TDC set pin [SST: KV113B0110 (Mot. 1430)] (A).

If the pin cannot be inserted, perform the following.

a.

Remove TDC set pin [SST: KV113B0130 (Mot. 1489)].

b.

Loosen camshaft pulley wheel bolts.

c.

Turn camshaft pulley to adjust.

d.

Confirm that the crankshaft sprocket groove is facing upward.

e.

Loosen timing belt tensioner bolt.

f.

Move the movable index of the drive belt tensioner into the posi-
tion as shown in the figure, by turning the key clockwise.

g.

Tighten timing belt tensioner bolt.

h.

Install and tighten camshaft sprocket wheel bolts.

i.

Turn the crankshaft two revolutions in a clockwise direction (tim-
ing side). Just before the hole (A) of the camshaft pulley is oppo-
site the cylinder head hole (B), insert TDC set pin [SST:
KV113B0130 (Mot. 1489)] into the cylinder block.

j.

Then turn the crankshaft slowly and smoothly against TDC set
pin.

17. Install crankshaft pulley (1), and tighten the bolts as follows:

a.

Tighten the bolt.

b.

Turn the bolt 95 degrees

±

15 degrees clockwise (angle tighten-

ing).

MBIB1923E

MBIB1924E

: 27 N·m (2.8 kg-m, 20 ft-lb)

: 14 N·m (1.4 kg-m, 10 ft-lb)

MBIB0511E

MBIB1923E

: 120 N·m (12 kg-m, 89 ft-lb)

MBIB1925E
