AIR CLEANER AND AIR DUCT

EM-279

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER AND AIR DUCT

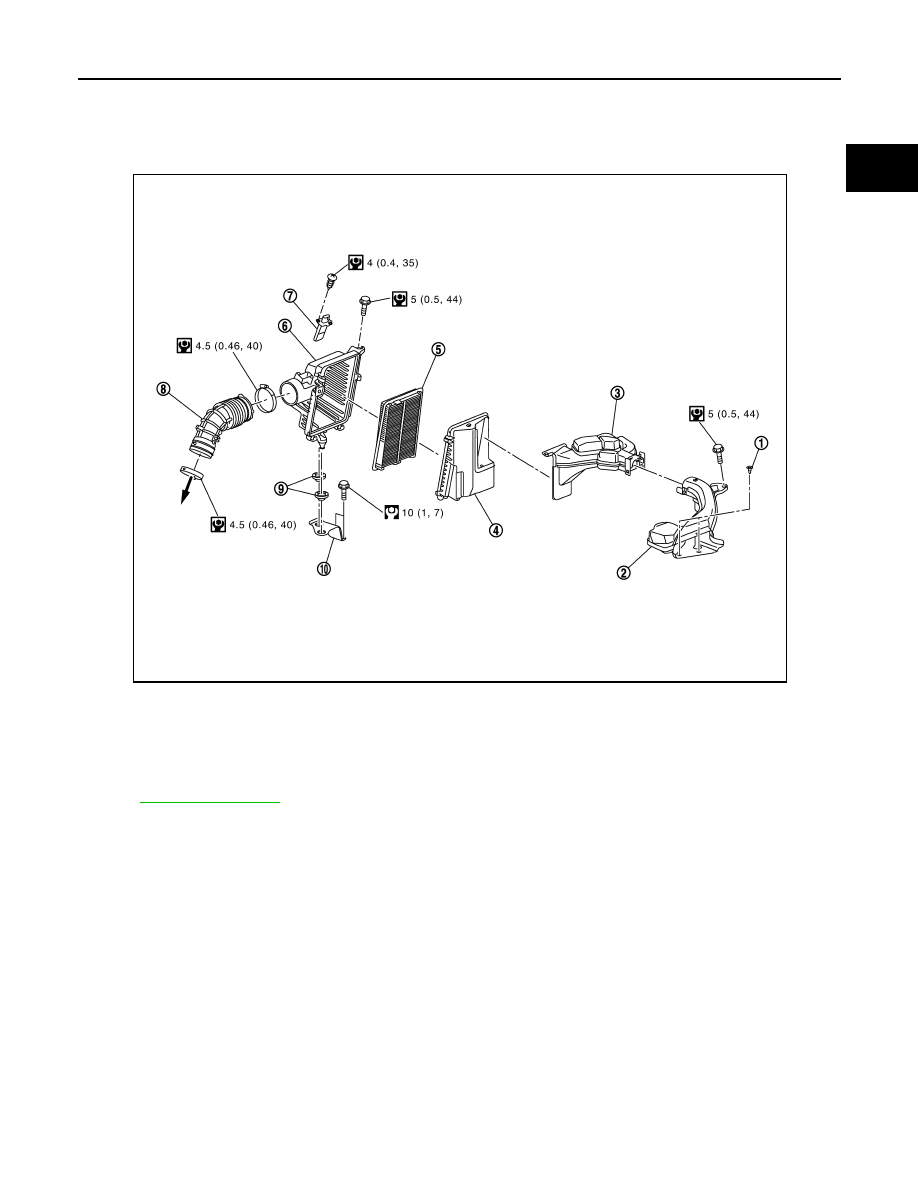

Exploded View

INFOID:0000000010478308

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010282060

REMOVAL

1.

Remove air duct (air cleaner side).

2.

Remove air duct (inlet side).

3.

Disconnect mass air flow sensor.

4.

Disconnect air hose from air cleaner filter unit.

5.

Remove air cleaner filter unit.

6.

Remove air hose.

7.

Remove air filter element if necessary.

INSTALLATION

• Install in the reverse order of removal.

Inspection

INFOID:0000000010287198

INSPECTION AFTER REMOVAL

1.

Clip

2.

Air duct (inlet side)

3.

Air duct (air cleaner side)

4.

Holder

5.

Air filter element

6.

Air cleaner filter unit

7.

Mass air flow sensor

8.

Air hose

9.

Mounting rubber

10. Air cleaner filter unit bracket

E1BIA1158GB

EM-280

< REMOVAL AND INSTALLATION >

[K9K]

AIR CLEANER AND AIR DUCT

Inspect air ducts, air cleaner and hose for crack or tear.
• If anything found, replace air duct and resonator assembly.

CHARGE AIR COOLER

EM-281

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CHARGE AIR COOLER

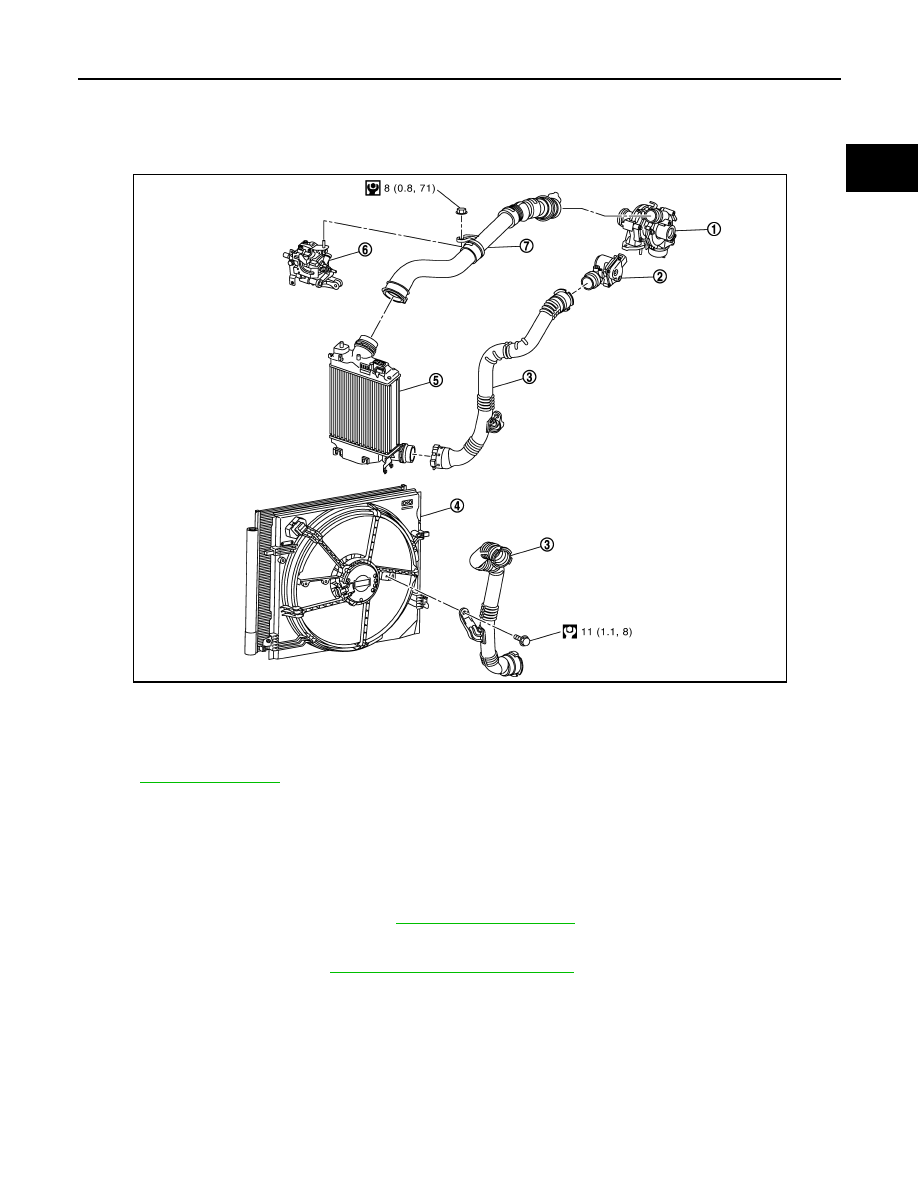

Exploded View

INFOID:0000000010287199

Refer to

GI-4, "Components"

 for symbols description.

Removal and Installation

INFOID:0000000010282062

REMOVAL

Air inlet hose and tube.

1.

Remove engine cover.

2.

Remove air inlet hose and tube. Refer to

EM-281, "Exploded View"

.

Charge air cooler.

1.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

1.

Turbocharger

2.

Electric throttle control actuator

3.

Air inlet tube

4.

Cooling fan

5.

Charge air cooler

6.

High pressure pump

7.

Air inlet hose

E1BIA1152GB

EM-282

< REMOVAL AND INSTALLATION >

[K9K]

CHARGE AIR COOLER

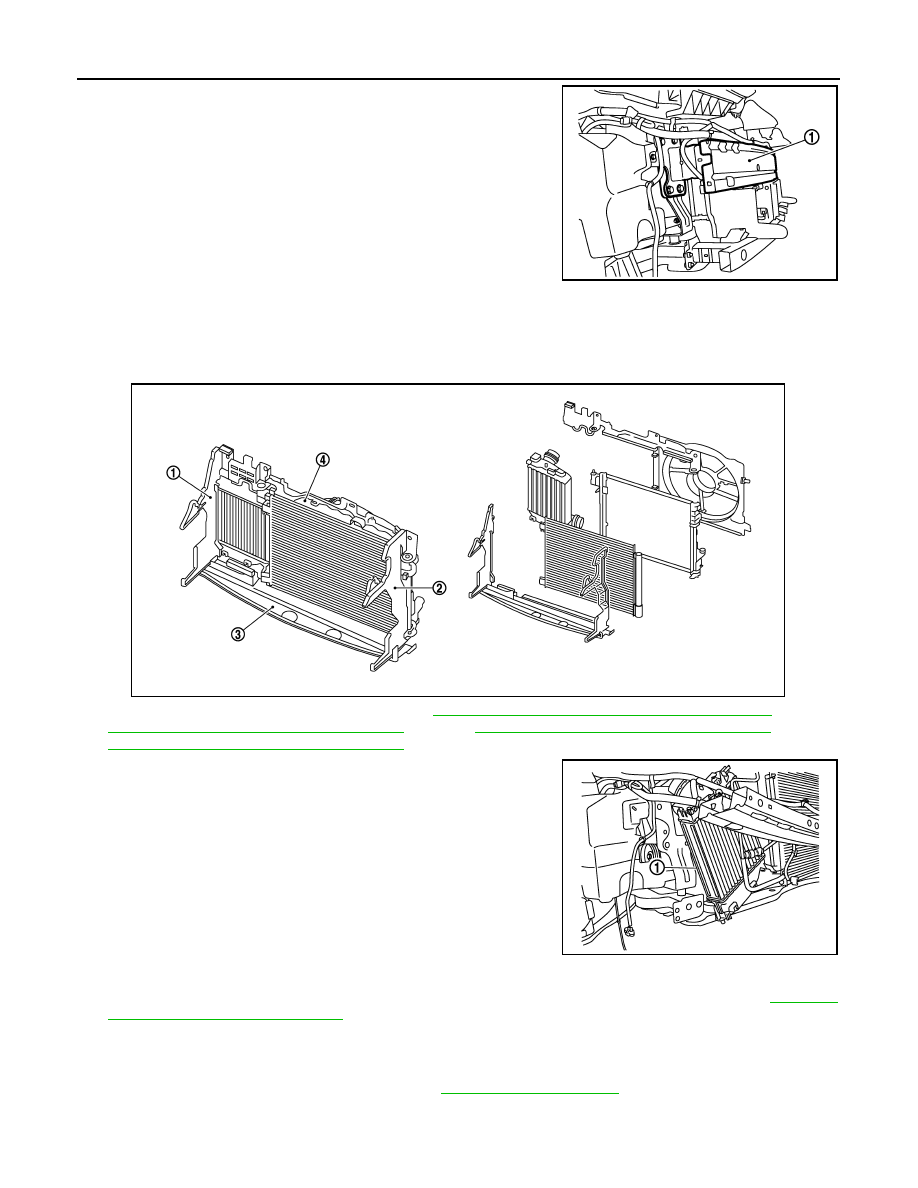

2.

Put aside front bumper reinforcement (1) with harness assem-
bly.

3.

Remove:
• Radiator air guide RH (1).
• Radiator air guide LH (2).
• Radiator air guide lower (3).
• Radiator bracket mounting upper (4)

4.

Put aside radiator core support upper. Refer to

DLK-155, "HRA2DDT : Removal and Installation"

 (Type 1),

DLK-336, "K9K : Removal and Installation"

 (Type 2),

DLK-467, "K9K : Removal and Installation"

 (Type 3),

DLK-605, "K9K : Removal and Installation"

 (Type 4).

5.

Unhook and rotate charge air cooler (1).

6.

Remove charge air cooler.

CAUTION:

• Avoid interference between the charge air cooler and radiator.
• When removing charge air cooler, close opening on turbo

charger and intake manifold with shop cloth or other suitable
material.

INSTALLATION

1.

When replacing the electric throttle control actuator, this procedure must be performed. Refer to

ECK-130,

"Special Repair Requirement List"

.

Install in the reverse order of removal paying attention to the following points:
• Apply a neutral detergent (fluid) to the joint between hoses and pipes (oil is not permissible).
• Pay attention to identification mark and direction.
• When installing air inlet hoses and tubes. Refer to

EM-281, "Exploded View"

.

E1BIA1038ZZ

E1BIA1037ZZ

E1BIA1039ZZ
