PREPARATION

EM-271

< PREPARATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

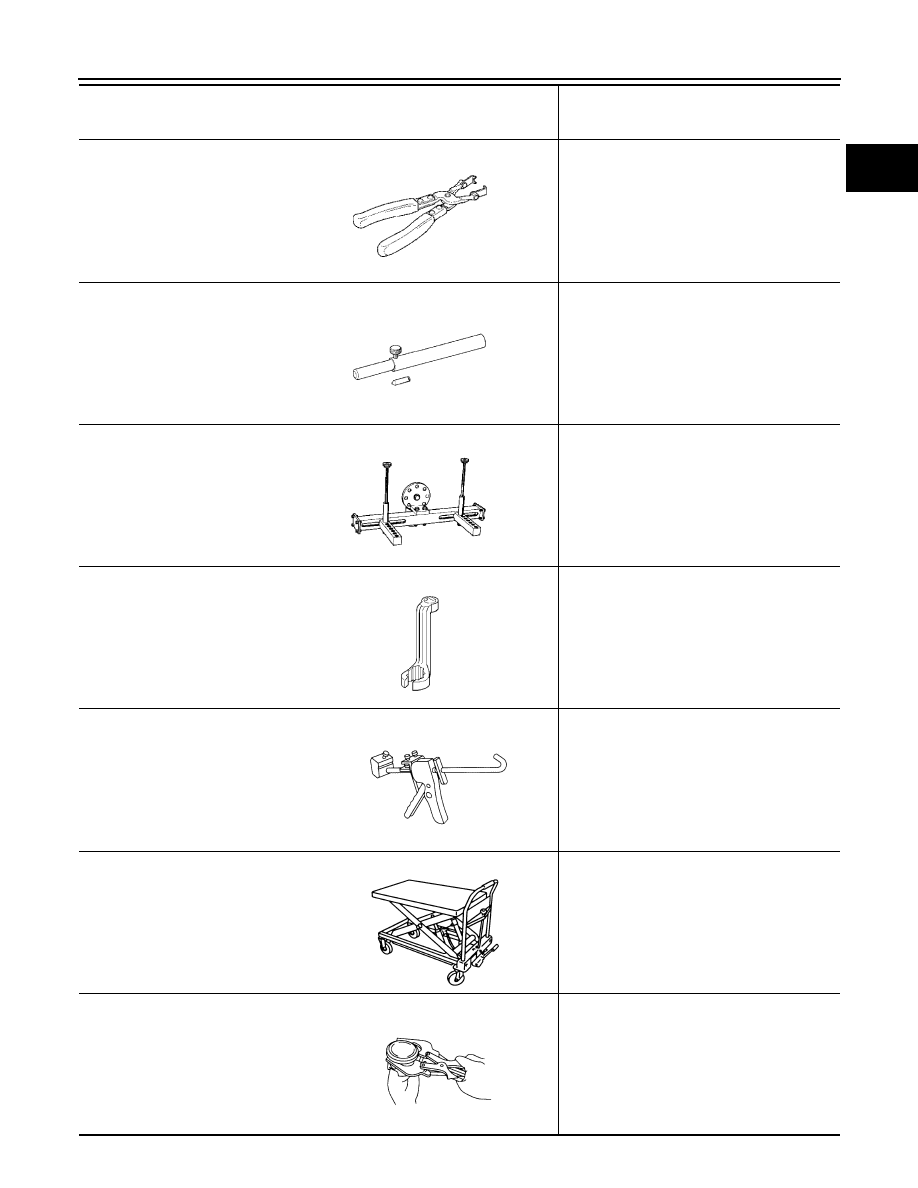

KV113B0090
(Mot. 1335)
Valve seal remover

Tool for removing valve stem seals

KV113B0180
(Mot. 1511-01)
Valve seal drift

Tool for installing valve stem seals

KV113B0200
(Mot. 1573)
Cylinder head stand

Cylinder head support

KV113E0010
(Mot. 1566)
Fuel spill tube spanner

Spanner for installing and removing high pres-
sure pipes

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

Manual lift table caddy

Removing and installing engine

Piston ring expander

Removing and installing piston ring

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

MBIB0370E

MBIB0378E

MBIB0380E

MBIB0379E

NT052

ZZA1210D

NT030

EM-272

< PREPARATION >

[K9K]

PREPARATION

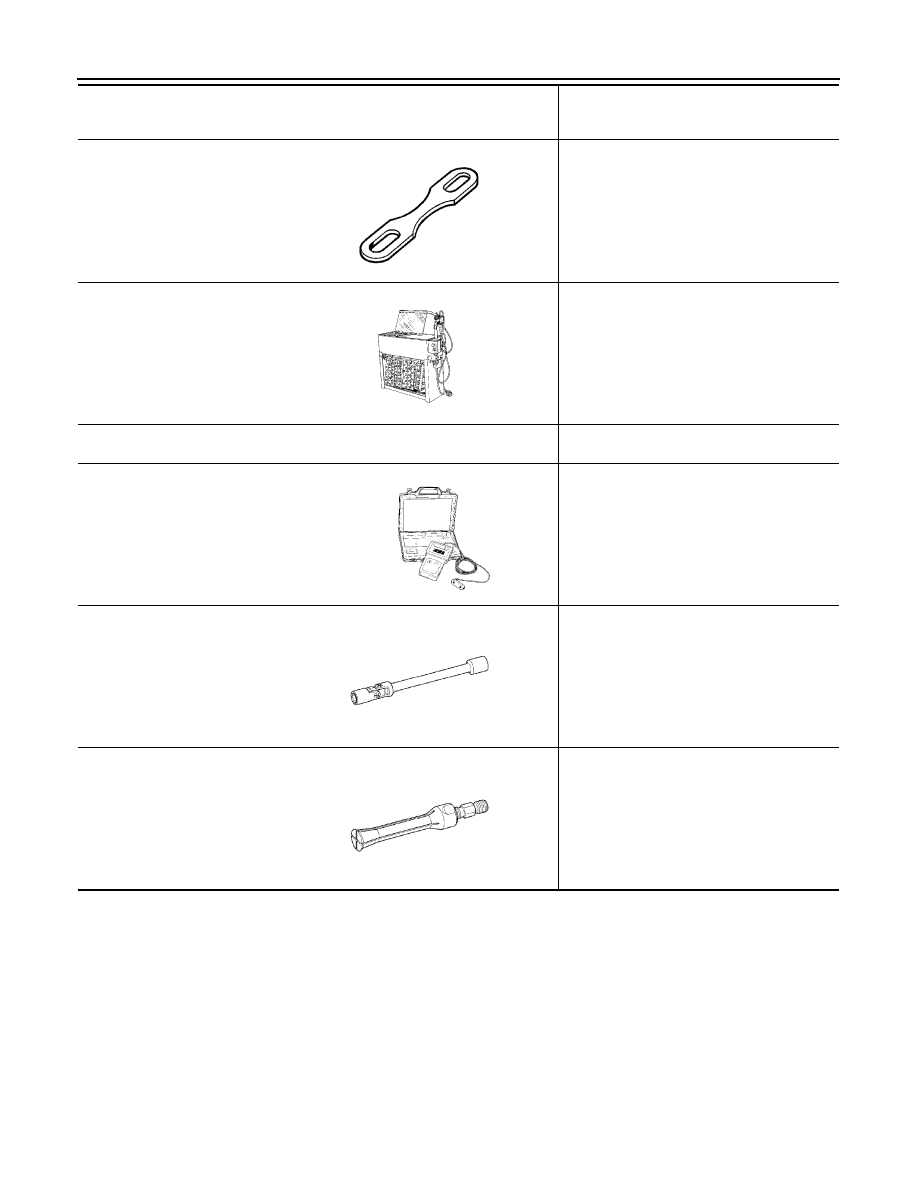

(Mot. 588)

Liner retaining strap

(664000)
Cylinder head test container

Tool for testing the cylinder head, including: a
tray and the various kits suited for each model
of cylinder head (plug, sealing plate, blanking
plate).

Torx socket

Standard 1/2" (12.7 mm) square drive 8/12 /14
female torx socket.

(Mot. 1505)
(Mot. 1715)
Frequency meter

Tool for belt tension checking with frequency

Glow plug wrench

Articulated wrench for removing and installing
the glow plugs

Main bearing wrench

Wrench for removing main bearings

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

MBIB0364E

MBIB0383E

MBIB1423E

MBIB0387E

MBIB0388E

DRIVE BELT

EM-273

< PERIODIC MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

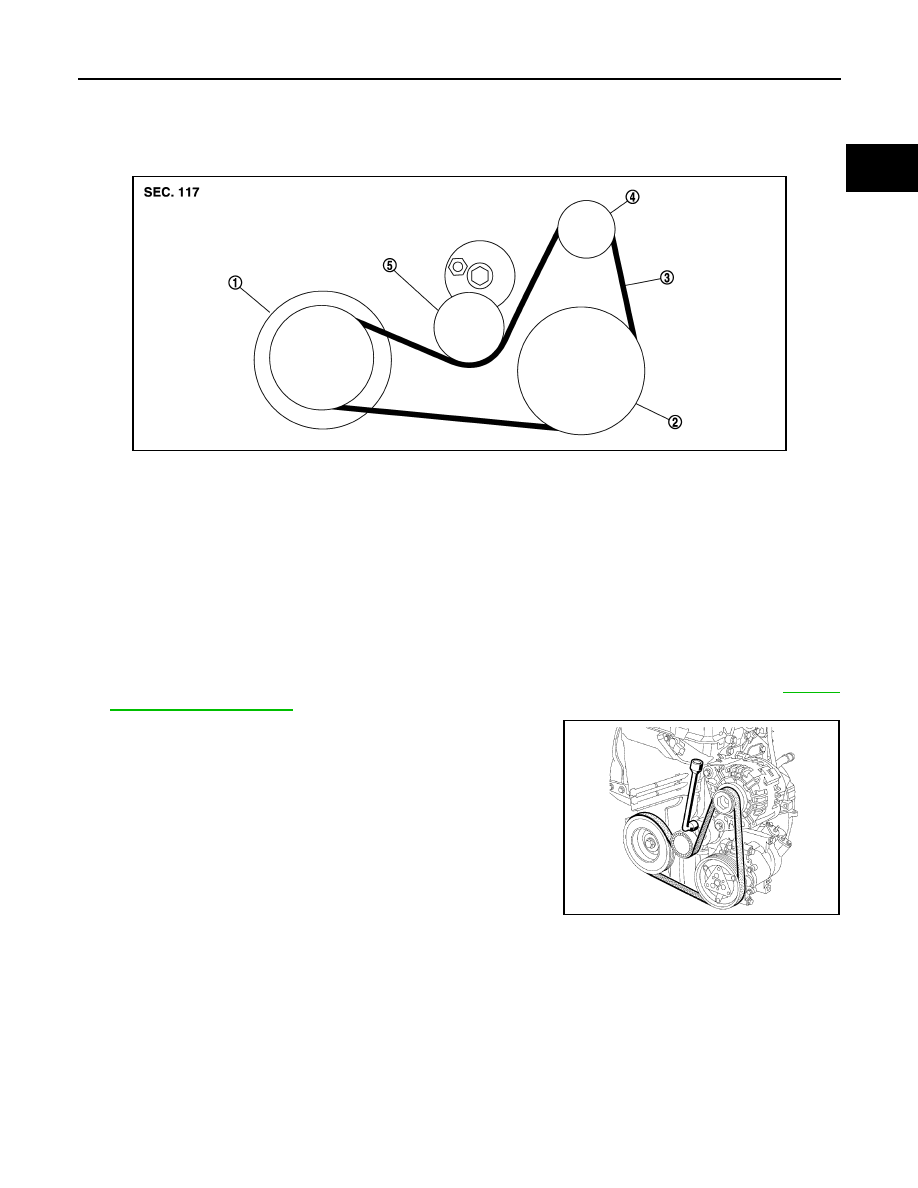

PERIODIC MAINTENANCE

DRIVE BELT

Exploded View

INFOID:0000000010287182

Removal and Installation

INFOID:0000000010287183

CAUTION:

• Replace any belt that has been removed with a new one.
• Auto-tensioner must be replaced with new ones when the belt is replaced.
• Never run the engine without the drive belts to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove RH front wheel.

2.

Remove front fender protector (RH) front side bolts and clips. And keep a service area. Refer to

EXT-29,

"Removal and Installation"

.

3.

Remove drive belt.

• Turn clockwise adjusting bolt.

4.

If necessary, remove auto-tensioner.

INSTALLATION

1.

Install auto-tensioner mounting bolt.

2.

Install the drive belt.

CAUTION:

• Make sure belt is correctly engaged with the pulley groove.
• Check for oil and coolant on belt and each pulley groove.

E1BIA0021ZZ

1.

Crankshaft pulley

2.

A/C compressor or Idler pulley

3.

Drive belt

4.

Alternator

5.

Drive belt auto-tensioner

MBIB0353E

Auto-tensioner mounting bolt

: 40 N·m (4.1 kg-m, 30 ft-lb)

EM-274

< PERIODIC MAINTENANCE >

[K9K]

DRIVE BELT

3.

Make sure that tension of each belt is within the standard.

Inspection

INFOID:0000000010287184

INSPECTION

WARNING:

Be sure to perform when the engine is stopped.

1.

Inspect drive belt for cracks, fraying, wear and oil. Replace drive belt if necessary.

2.

Manually evaluate the drive belt tension (tension cannot be measured using frequency meter).

3.

Replace drive belt when tension is beyond normal operating limit.

CAUTION:

Auto-tensioner must be replaced with a new one when the belt is replaced.

Adjustment

INFOID:0000000010287186

Belt tensioning is not necessary, as it is automatically adjusted by auto-tensioner.
