LU-34

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

OIL PUMP

UNIT DISASSEMBLY AND ASSEMBLY

OIL PUMP

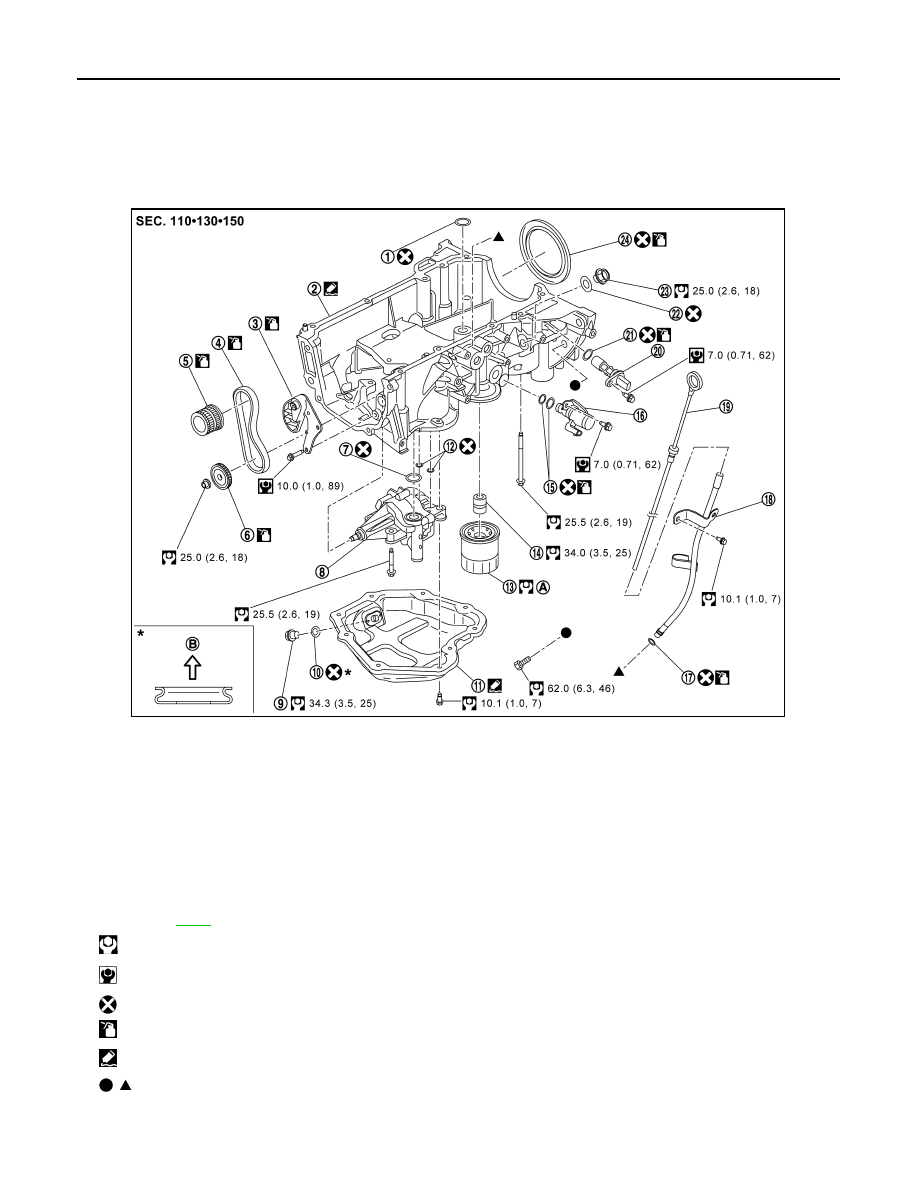

Exploded View

INFOID:0000000012197501

1.

O-ring

2.

Oil pan (upper)

3.

Oil pump drive chain tensioner

4.

Oil pump drive chain

5.

Crankshaft sprocket

6.

Oil pump sprocket

7.

O-ring

8.

Oil pump

9.

Oil pan drain plug

10. Drain plug washer

11. Oil pan (lower)

12. O-ring

13. Oil filter

14. Oil filter stud

15. O-ring

16.

Engine oil pressure control solenoid
valve

17. O-ring

18. Oil level gauge guide

19. Oil level gauge

20. Crankshaft position sensor

21. O-ring

22. Gasket

23. Plug

24. Rear oil seal

A.

Refer to

LU-27

.

B.

Oil pan side

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

 : Should be lubricated with oil.

 : Sealing point

,   : Indicates that the parts is connected at points with same symbols in actual vehicle.

JSBIA5724GB

OIL PUMP

LU-35

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Removal and Installation

INFOID:0000000012197502

REMOVAL

1. Remove the engine unit by lowering it from the vehicle. Refer to

EM-217, "2WD : Removal and Installa-

tion"

 (2WD) or

EM-221, "AWD : Removal and Installation"

 (AWD).

2. Remove oil pan (lower). Refer to

EM-282, "Removal and Installation"

.

3. Remove front cover. Refer to

EM-249, "Removal and Installation"

.

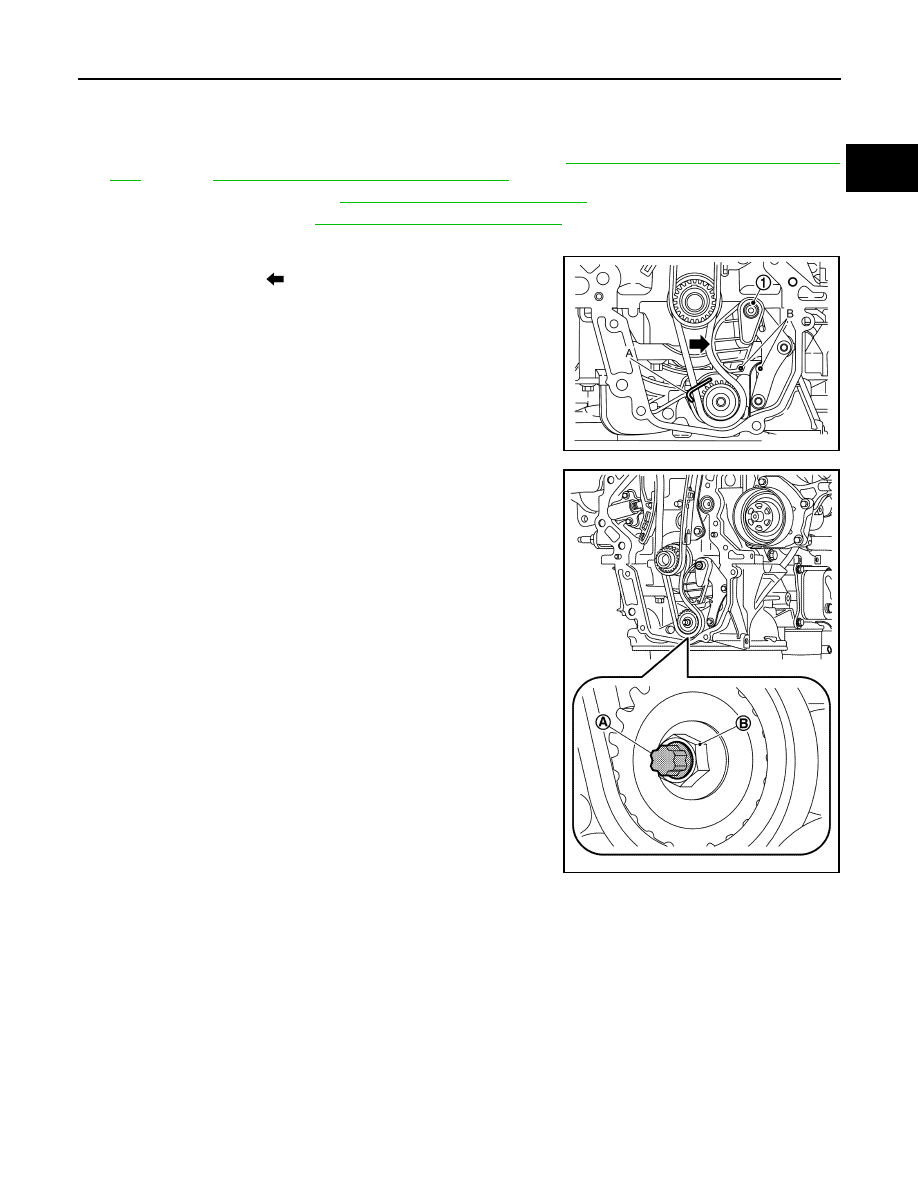

4. Remove the oil pump sprocket with the following procedure.
a. Push the cam (1) of the oil pump drive chain tensioner in the

direction of the arrow (

) as shown in the figure, and then push

the plunger into the tensioner.

b. Insert the stopper pin (A) into the chain tensioner hole (B), and

then fix it in place with the plunger pushed in.

c. Remove the oil pump drive chain tensioner.

d. Hold the oil pump shaft end (A), and then loosen and remove

the oil pump sprocket mounting nut (B).

CAUTION:

• Be sure to hold the end of the shaft.

• The chain tension must not loosen the oil pump sprocket

mounting nut.

e. Remove the oil pump sprocket.

5. Remove oil pump.

JSBIA5725ZZ

JSBIA5726ZZ

LU-36

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

OIL PUMP

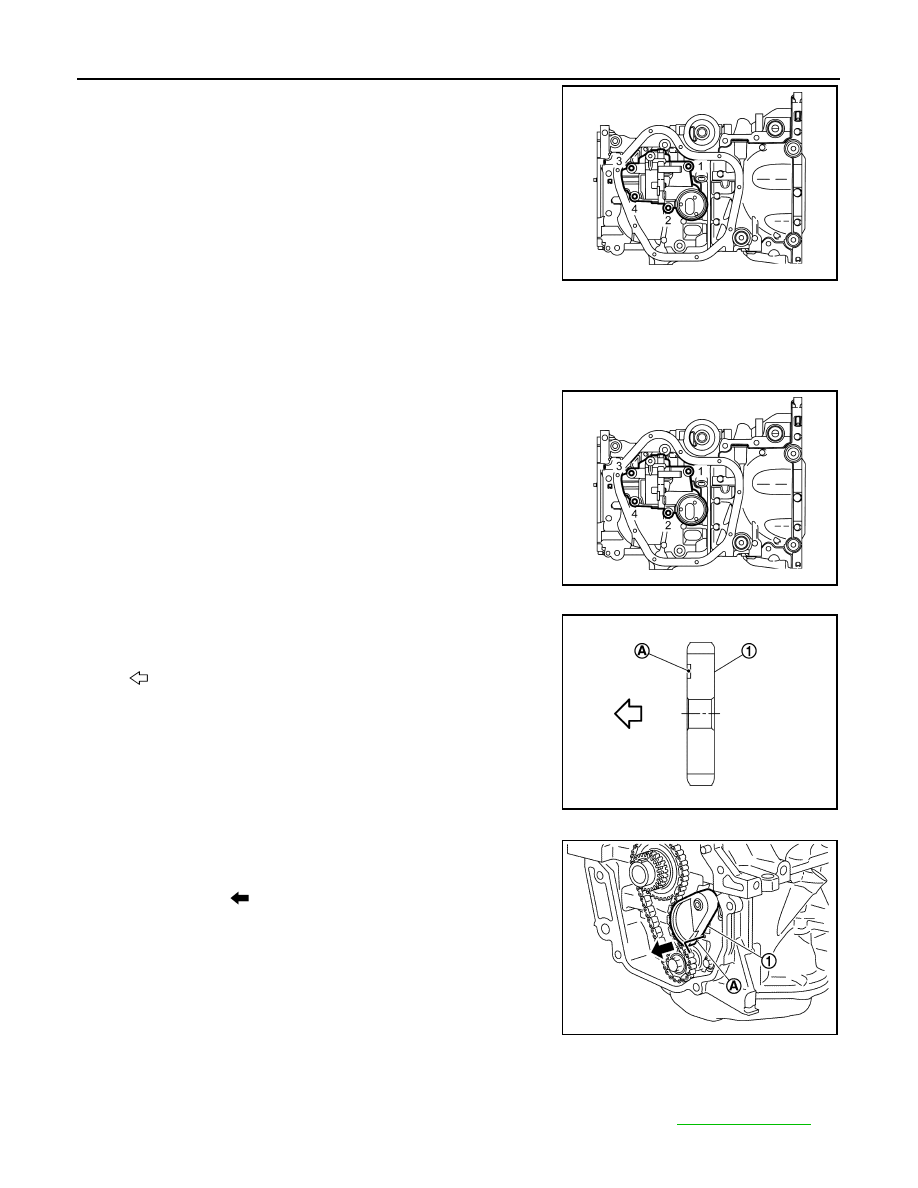

• Loosen bolts in the reverse order of the numerical order as

shown in the figure.

INSTALLATION

Note the following, and install in the reverse order of removal.

Oil Pump

CAUTION:

Never reuse O-ring. Always replace it with a new one.

• Tighten the mounting bolts in numerical order as shown in the fig-

ure.

Oil Pump Sprocket

• Install the oil pump sprocket (1) in the direction shown in the figure.

Oil Pump Drive Chain Tensioner

• Fix the tensioner surface at the most compressed position using a

stopper pin (A), and then install it.

• After installing the oil pump drive chain tensioner (1), securely pull

out the stopper pin (

).

Inspection

INFOID:0000000012197503

INSPECTION AFTER INSTALLATION

1. Use the oil level gauge and check that the oil level is within the standard. Refer to

LU-28, "Inspection"

.

JSBIA5727ZZ

JSBIA5727ZZ

A

: Identification mark

: Engine front

JSBIA5729ZZ

JPBIA4401ZZ

OIL PUMP

LU-37

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

2. Start the engine. Check for fuel leakage.
3. Stop the engine. After stopping it, leave it for 10 minutes or more.
4. Check the engine oil level again, and fill with engine oil if necessary. Refer to

LU-28, "Inspection"

.
