ENGINE OIL

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3. Warm up engine and check area around drain plug and oil filter for engine oil leakage.
4. Stop engine and wait for 10 minutes.
5. Check the engine oil level. Refer to

LU-28, "Inspection"

.

OIL COOLER

LU-31

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

REMOVAL AND INSTALLATION

OIL COOLER

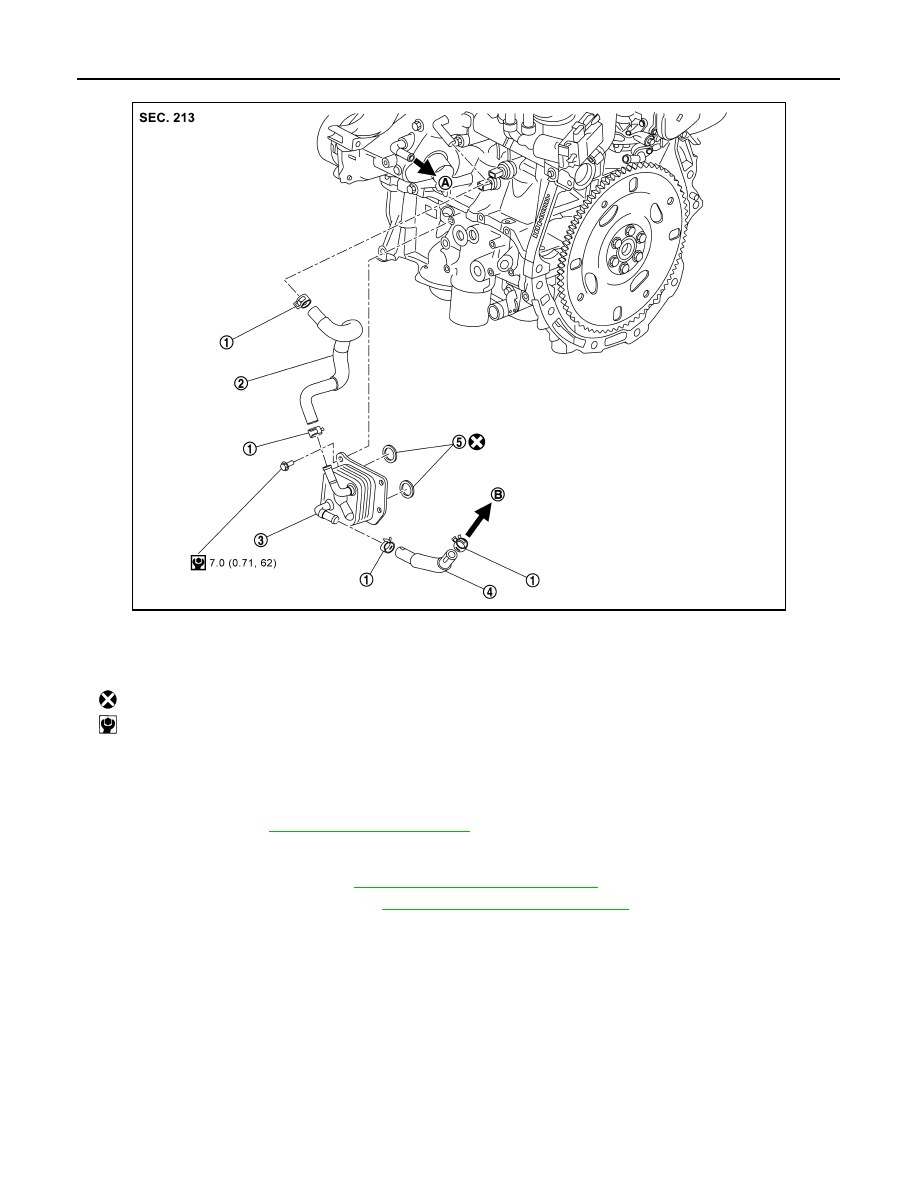

Exploded View

INFOID:0000000012197498

M/T models

JSBIA5996GB

1.

Clamp

2.

Water hose

3.

Oil cooler

4.

Water hose

5.

O-ring

6.

Hose clip

7.

Water hose bracket

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

LU-32

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

OIL COOLER

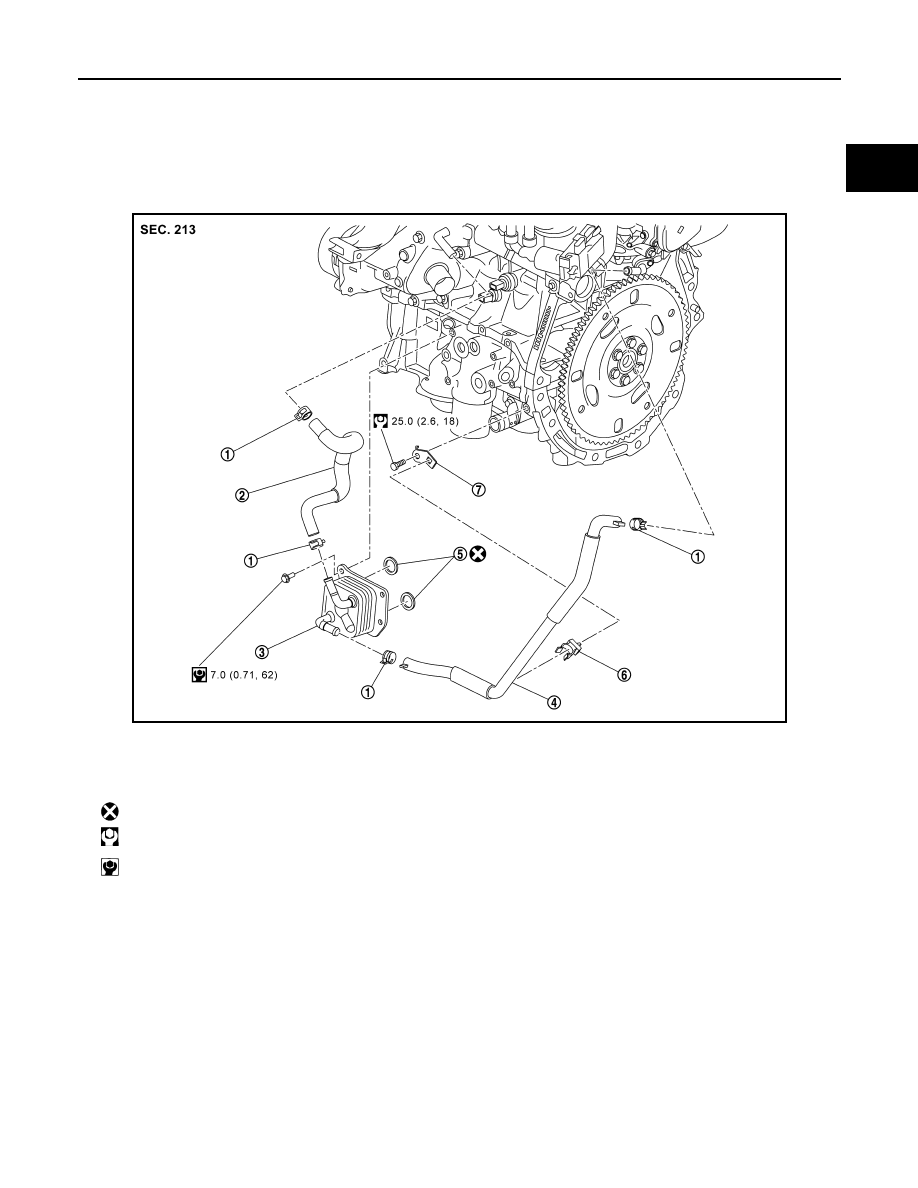

CVT models

Removal and Installation

INFOID:0000000012197499

REMOVAL

1. Drain coolant. Refer to

CO-40, "Draining and Filling"

.

CAUTION:

Allow the engine to cool before beginning.

2. Remove the front bumper. Refer to

EXT-17, "Removal and Installation"

.

3. Remove the charge air cooler. Refer to

EM-194, "Removal and Installation"

.

4. Disconnect each water hose.
5. Remove the oil cooler.

JSBIA5722GB

1.

Clamp

2.

Water hose

3.

Oil cooler

4.

Water hose

5.

O-ring

A.

To CVT fluid warmer

B.

To multi-way valve

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

OIL COOLER

LU-33

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

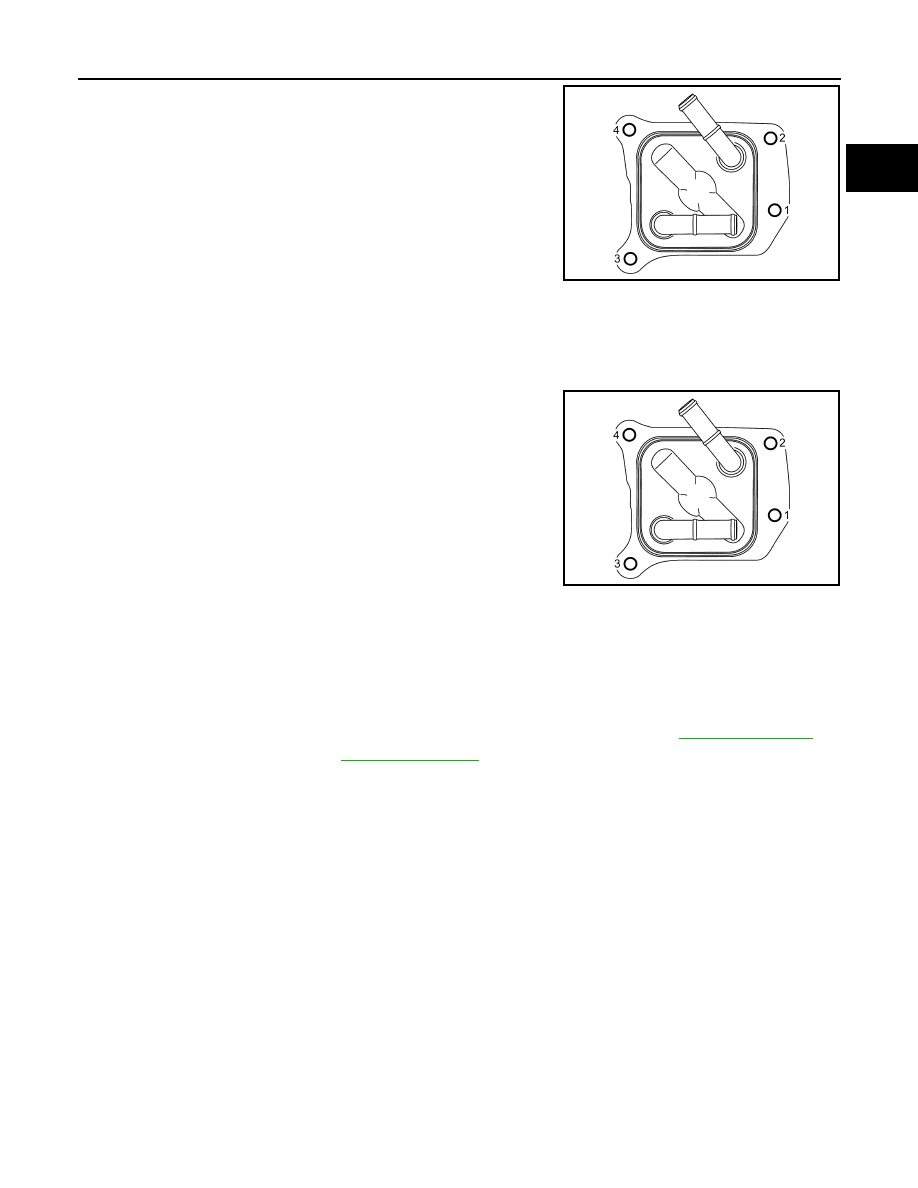

• Loosen bolts in the reverse order of the numerical order as

shown in the figure.

INSTALLATION

Note the following, and install in the reverse order of removal.

Oil Cooler

CAUTION:

Never reuse-ring. Always replace it with a new one.

• Tighten the oil cooler mounting bolts in numerical order as shown

in the figure.

Inspection

INFOID:0000000012197500

INSPECTION AFTER REMOVAL

Check visually and by other means for cracks or damage of the oil cooler. If any abnormality is found, replace

the oil cooler.

INSPECTION AFTER INSTALLATION

1. Use the oil level gauge and check that the oil level is within the standard. Refer to

LU-28, "Inspection"

.

2. Check the coolant level. Refer to

CO-40, "Inspection"

.

3. Start the engine. Check for engine oil or coolant leakage.
4. Stop the engine. After stopping it, leave it for 10 minutes or more.
5. Check the engine oil level and coolant level again. Fill or adjust fluid levels if necessary.

JSBIA5723ZZ

JSBIA5723ZZ
