Nissan Juke F15. Manual - part 974

LU-26

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

SYSTEM

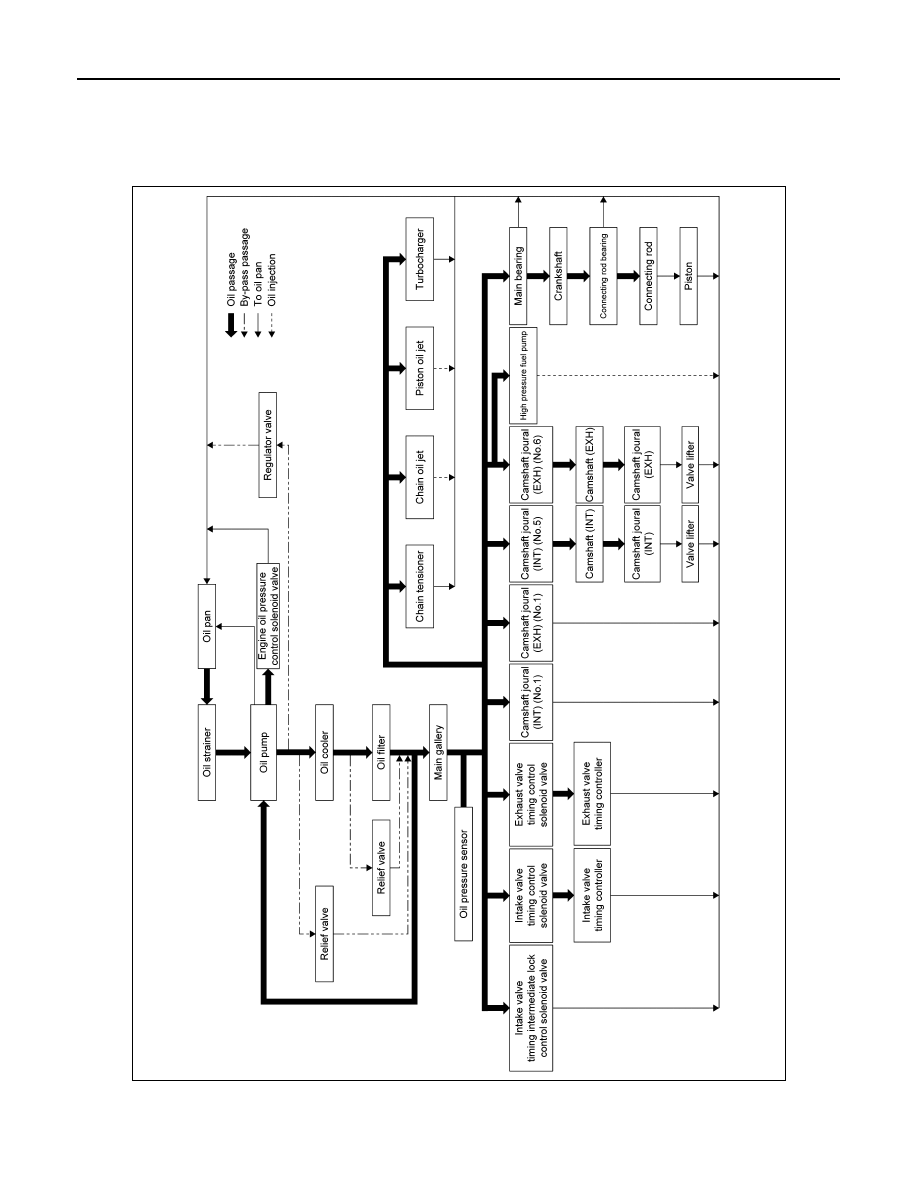

Engine Lubrication System Schematic

INFOID:0000000012197492

19.

Camshaft (INT)

20.

Camshaft sprocket (INT)

High-pressure fuel pump

22.

Camshaft (EXH)

JPBIA7037GB

OIL FILTER

LU-27

< BASIC INSPECTION >

[MR EXCEPT FOR NISMO RS MODELS]

BASIC INSPECTION

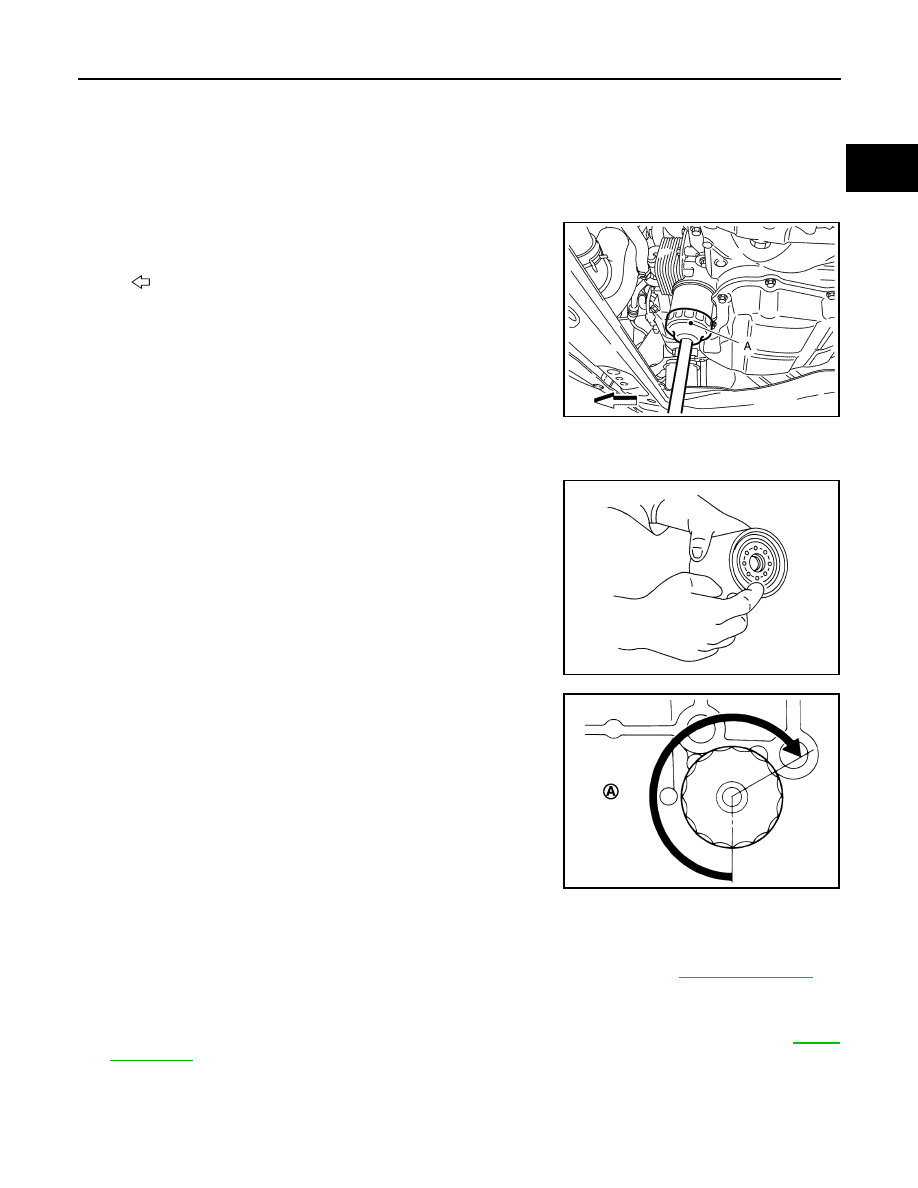

OIL FILTER

Removal and Installation

INFOID:0000000012197493

REMOVAL

1. Remove oil filter using an oil filter wrench [SST: KV10115801]

(A).

CAUTION:

• Never get burned when engine or engine oil is heated.

• Use a shop cloth to absorb engine oil leakage when

removing.

• Never spill engine oil on the drive belt.

• Completely wipe away any engine oil spilled on the

engine and vehicle.

INSTALLATION

1. Eliminate foreign materials on the oil filter mounting surface.
2. Apply engine oil to the full circumference of the oil seal on a new

oil filter.

3. Screw in oil filter by hand until it contacts mounting surface on

the engine, and then screw in another 2/3 of a turn (A).

NOTE:

Tightening torque is 17.7 N·m (1.8 kg-m).

Inspection

INFOID:0000000012197494

INSPECTION AFTER INSTALLATION

1. Use the oil level gauge and check that the oil level is within the standard. Refer to

LU-28, "Inspection"

2. Start the engine. Check for fuel leakage.
3. Stop the engine. After stopping it, leave it for 10 minutes or more.
4. Check the engine oil level again. Fill with engine oil to adjust oil level if necessary. Refer to

LU-28,

"Inspection"

: Vehicle front

JPBIA4450ZZ

SMA010

JPBIA0077ZZ

LU-28

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE OIL

PERIODIC MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000012197495

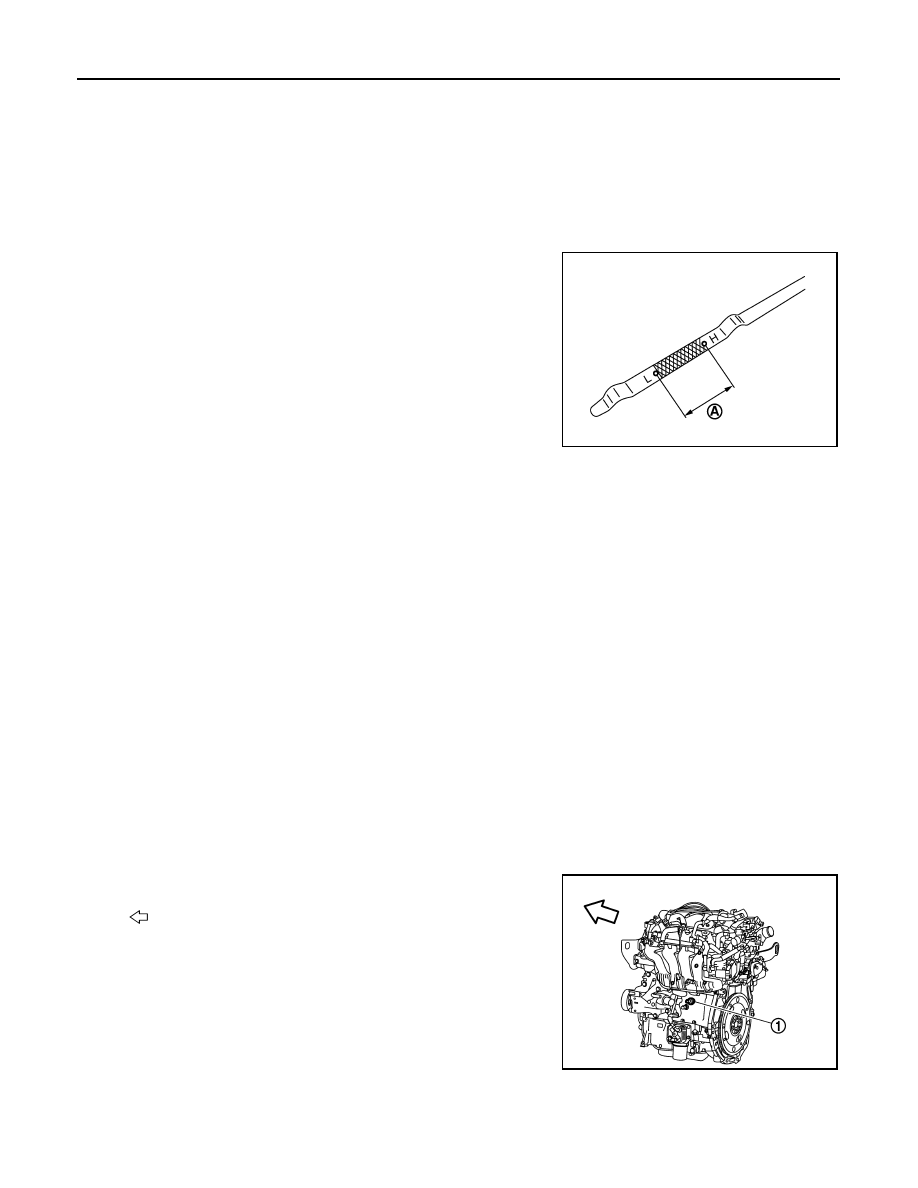

ENGINE OIL LEVEL AND CONTAMINATION

• Check engine oil level on a horizontal area before starting the engine. Wait for 10 minutes or more to check

oil level when the engine is started.

• Check that oil level is within the range between level L and level H.

• Fill with engine oil if oil level is outside the range.

• Check for white contamination or significant dirt in the engine oil.

• If the oil contains white contamination, the most likely cause is con-

tamination from engine coolant. Repair the cause of the contami-

nation.

• When inserting the oil level gauge into the oil level gauge guide,

apply engine oil to the rubber seal on the grip.

ENGINE OIL LEAKAGE

Check for engine oil leakage at the following parts.

• Oil pan

• Oil pan drain plug

• Oil filter

• Oil cooler

• Oil pressure sensor

• Oil temperature sensor

• Front cover

• VTC cover

• Intake valve timing control solenoid valve

• Intake valve timing intermediate-lock control solenoid valve

• Exhaust valve timing control solenoid valve

• Turbocharger assembly

• Turbocharger oil tube and hose

• Mating surface of cylinder head and rocker cover

• Mating surface of high-pressure fuel pump and camshaft bracket

• Mating surface of camshaft bracket and cylinder head

• Mating surface of cylinder block and cylinder head

• Crankshaft oil seal (front, rear)

ENGINE OIL PRESSURE CHECK

CAUTION:

Be careful not to get burned, as engine oil may be hot.
1. Remove the oil pressure sensor (1).

CAUTION:

Handle parts carefully and never subject them to impact.

2. Check the engine oil level.

A : Level must be within this range.

JPBIA0554ZZ

: Engine front

JSBIA5728ZZ

ENGINE OIL

LU-29

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

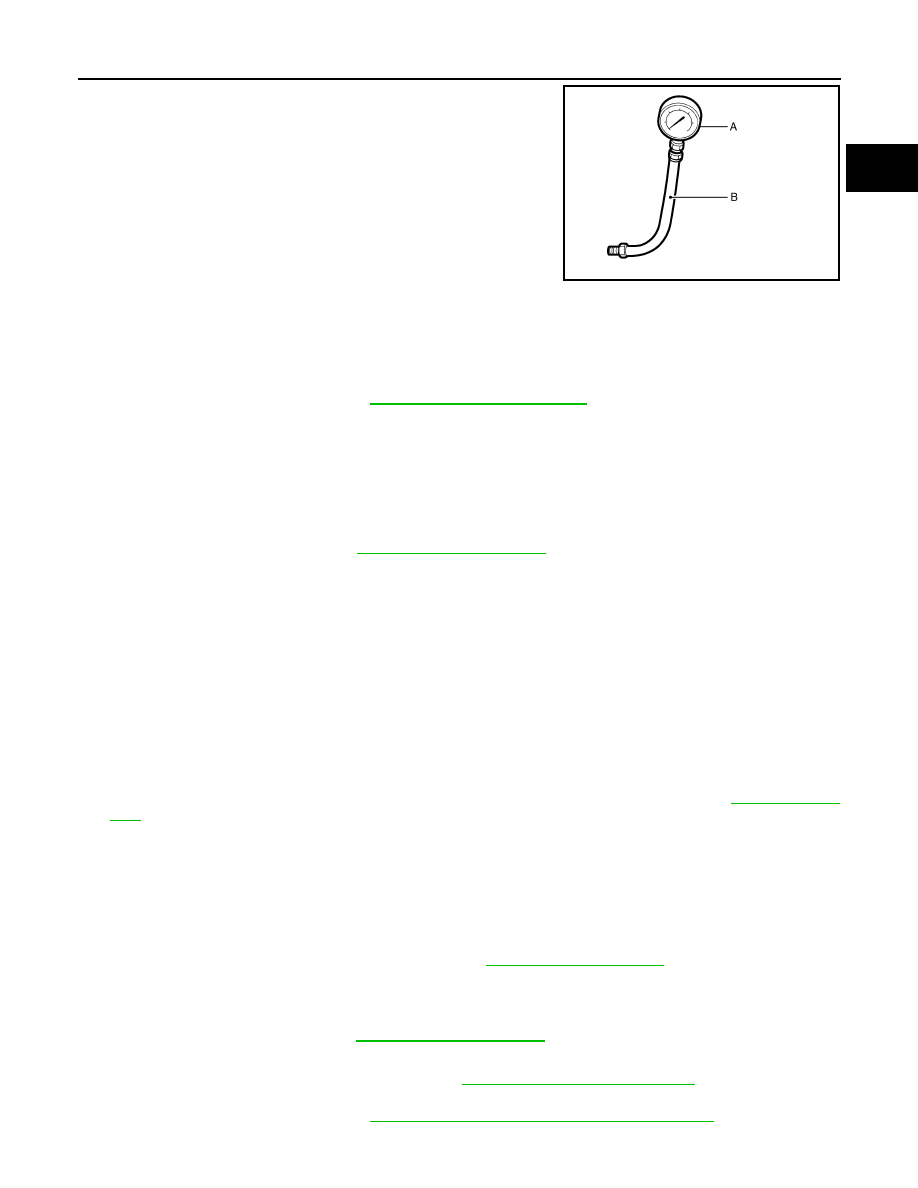

3. Install oil pressure gauge [SST: ST25051001 (J-25695-1)] (A)

and hose [SST: ST25052000 (J-25695-2)] (B).

4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.

NOTE:

When engine oil temperature is low, engine oil pressure becomes high.

If difference is extreme, check oil passage and oil pump for oil leakage.

6. After the inspections, install oil pressure sensor as follows:
a. Remove old liquid gasket adhering to oil pressure sensor and engine.
b. Apply liquid gasket and tighten oil pressure sensor to specification.

Use Genuine RTV Silicon Sealant or equivalent.

c. Check engine oil level.
d. After warming up engine, check that there is no leakage of engine oil with running engine.
e. Check engine oil level.
f.

After warming up engine, check that there is no leakage of engine oil with running engine.

Draining

INFOID:0000000012197496

WARNING:

• Be careful not to get burned, as engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as

soon as possible.

1. Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-28, "Inspec-

tion"

2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove drain plug and then drain engine oil.
