PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

Description

INFOID:0000000012197018

Provides the power supply and the ground to control the push-button ignition switch illumination.

Component Function Check

INFOID:0000000012197019

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION

CONSULT ACTIVE TEST

1. Turn the ignition switch ON.

2. Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.

3. With operating the test items, check that the push-button ignition switch illumination turns ON/OFF.

Does the push-button ignition switch illumination turn ON/OFF?

YES

>> Push-button ignition switch illumination circuit is normal.

NO

>> Refer to

INL-43, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012197020

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OUTPUT

CONSULT ACTIVE TEST

1. Turn ignition switch ON.

2. Select ENGINE SW ILLUMI of BCM (INTELLIGENT KEY) active test item.

3. With operating the test item, check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

2.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND

CONSULT ACTIVE TEST

With operating the test item, check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO-1 >> Continuity exists and remains unchanged: GO TO 4.

NO-2 >> Continuity does not exist and remains unchanged: Replace BCM. Refer to

BCS-94, "Removal and

Installation"

.

3.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and push-button ignition switch connector.

On

: Push-button ignition switch illumination ON

Off

: Push-button ignition switch illumination OFF

(+)

(–)

Condition

Voltage

BCM

Connector

Terminal

M70

90

Ground

ENGINE SW ILLUMI

On

12 V

Off

0 V

BCM

Ground

Test item

Continuity

Connector

Terminal

M70

92

ENGINE SW ILLUMI

On

Existed

Off

Not existed

INL-44

< DTC/CIRCUIT DIAGNOSIS >

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

3. Check continuity between BCM harness connector and push-button ignition switch harness connector.

Is the inspection result normal?

YES

>> Replace push-button ignition switch.

NO

>> Repair or replace harnesses.

4.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION SHORT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and push-button ignition switch connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Repair or replace harnesses.

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M70

90

M101

5

Existed

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M70

92

M101

6

Existed

Push-button ignition switch

Ground

Continuity

Connector

Terminal

M70

92

Not existed

INTERIOR LIGHTING SYSTEM SYMPTOMS

INL-45

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000012197021

NOTE:

Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagnosis if any

DTC is detected.

Symptom

Possible cause

Inspection item

All the following lamps do not turn ON.
• Map  lamp
• Luggage room lamp

• Harness between BCM and each

interior room lamp

• BCM

Interior room lamp power supply cir-
cuit
Refer to

INL-38

.

• Interior room lamp does not turn ON even

though the door is open.
(It turns ON when turning the interior room
lamp ON.)

• Interior room lamp does not turn OFF even

though the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and each

interior room lamp

• BCM

Door switch circuit
Refer to

DLK-77

.

Interior room lamp control circuit
Refer to

INL-40

.

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

DLK-77

.

•  Luggage room lamp does not turn ON even

though the back door is open.

• Luggage room lamp does not turn OFF even

though the back door is closed.

• Harness between BCM and back

door switch

• Harness between BCM and lug-

gage room lamp

• BCM

Back door switch circuit
Refer to

DLK-77

.

Luggage room lamp circuit
Refer to

INL-42

.

Push-button ignition switch illumination does not
illuminate.

• Harness between BCM and push-

button ignition switch

• BCM

Push-button ignition switch illumina-
tion circuit
Refer to

INL-43

.

Interior room lamp battery saver does not acti-
vate.

BCM

Replace BCM.
Refer to

BCS-94

.

INL-46

< REMOVAL AND INSTALLATION >

MAP LAMP

REMOVAL AND INSTALLATION

MAP LAMP

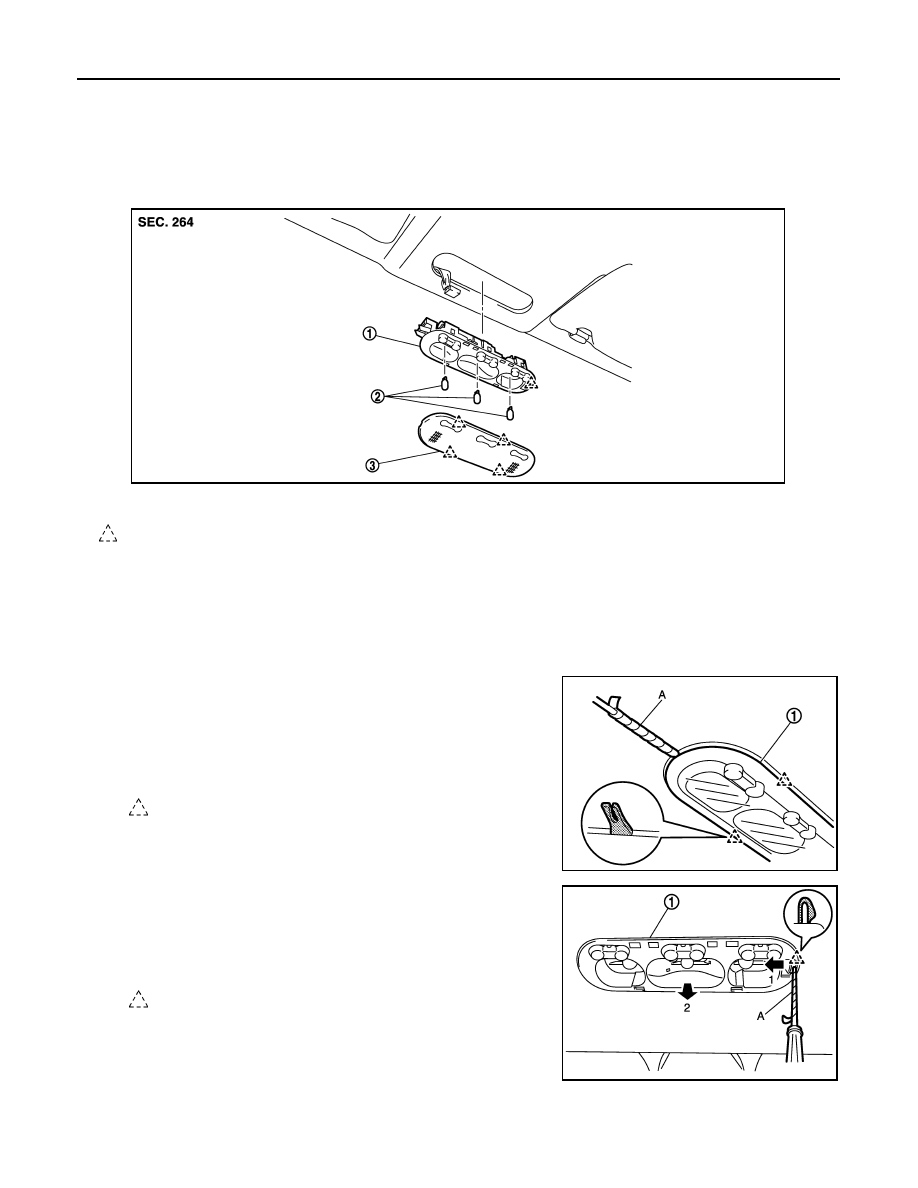

Exploded View

INFOID:0000000012197022

Removal and Installation

INFOID:0000000012197023

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage.
1. Disengage lens fixing pawls using a remover tool (A), and then

remove lens (1).

CAUTION:

• Use a remover tool wrapped in tape.

• Insert a remover tool into the gap between bulb housing

and lens.

2. Disengage bulb housing (1) fixing pawl using a remover tool (A)

according to numerical order 1

→2 indicated by the arrows as

shown in the figure.

CAUTION:

Use a remover tool wrapped in tape.

3. Disconnect map lamp harness connector, and then remove bulb housing.

1.

Bulb housing

2.

Bulb

3.

Lens

: Pawl

JMLIA1062ZZ

: Pawl

JMLIA1063ZZ

: Pawl

JMLIA1064ZZ
