POWER TRANSISTOR

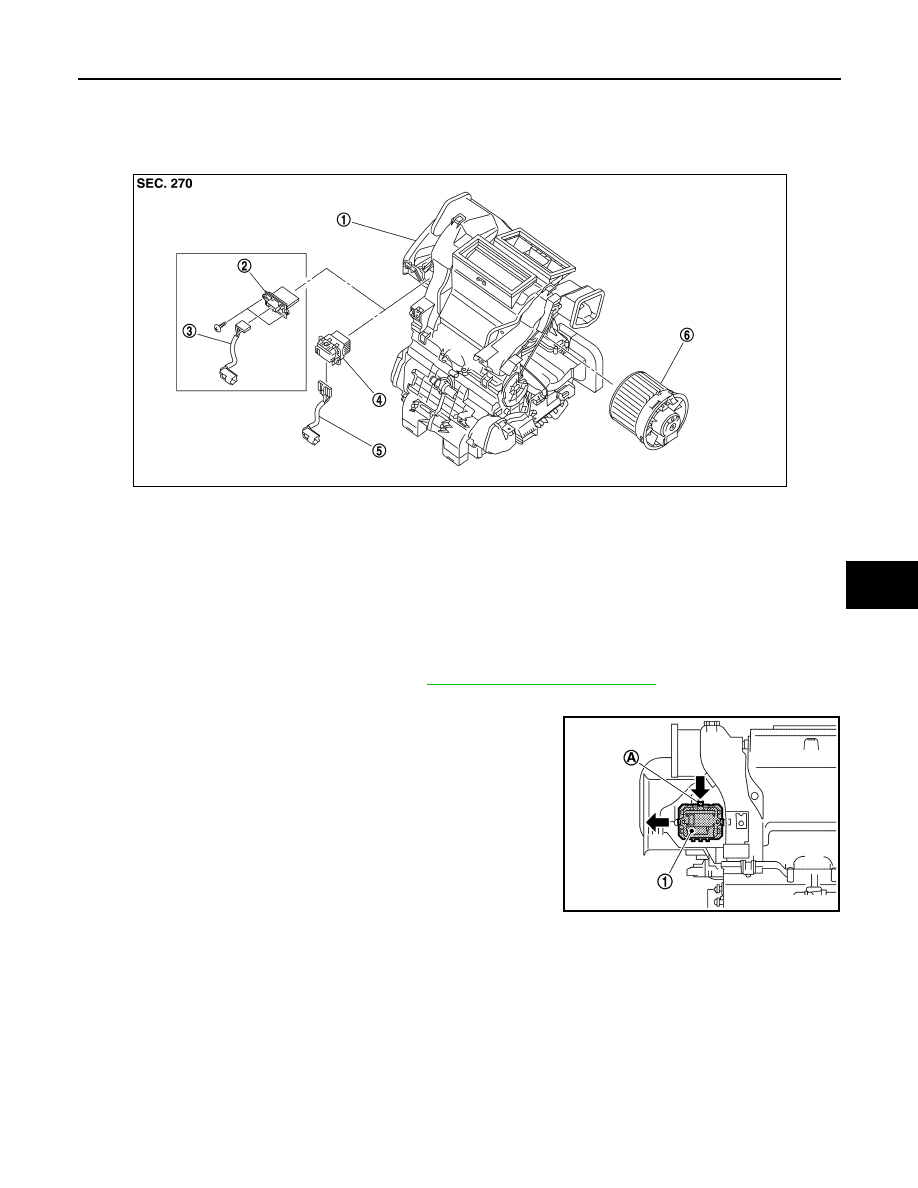

Exploded View

INFOID:0000000012200090

• *1: Manual air conditioning
• *2: Automatic air conditioning

Removal and Installation

INFOID:0000000012200091

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2. Disconnect power transistor connector.
3. Slide power transistor (1) to the left while pressing lever (A), and

then remove power transistor.

INSTALLATION

Install in the reverse order of removal.

1.

A/C unit assembly

2.

Blower fan resistor*

1

3.

Sub harness*

1

4.

Power transistor*

2

5.

Sub harness*

2

6.

Blower motor

JPIIA1549ZZ

JPIIA1636ZZ

HAC-100

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

DOOR MOTOR

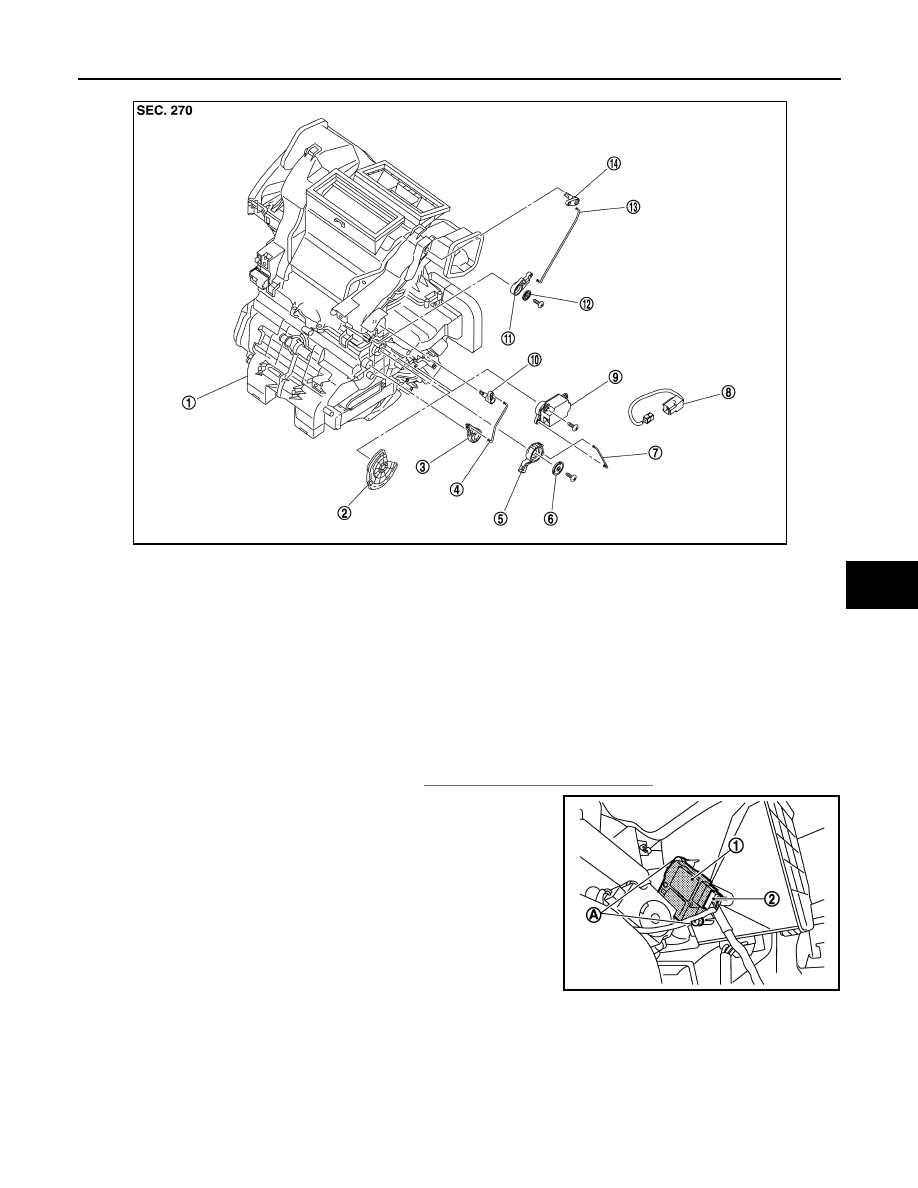

Exploded View

INFOID:0000000012200092

LEFT SIDE

RIGHT SIDE

1.

A/C unit assembly

2.

Intake door lever

3.

Intake door motor

4.

Air mix door motor

5.

Upper air mix door rod

6.

Upper air mix door lever

7.

Lower air mix door lever

8.

Lower air mix door rod

JPIIA1557ZZ

DOOR MOTOR

HAC-101

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000012200093

REMOVAL

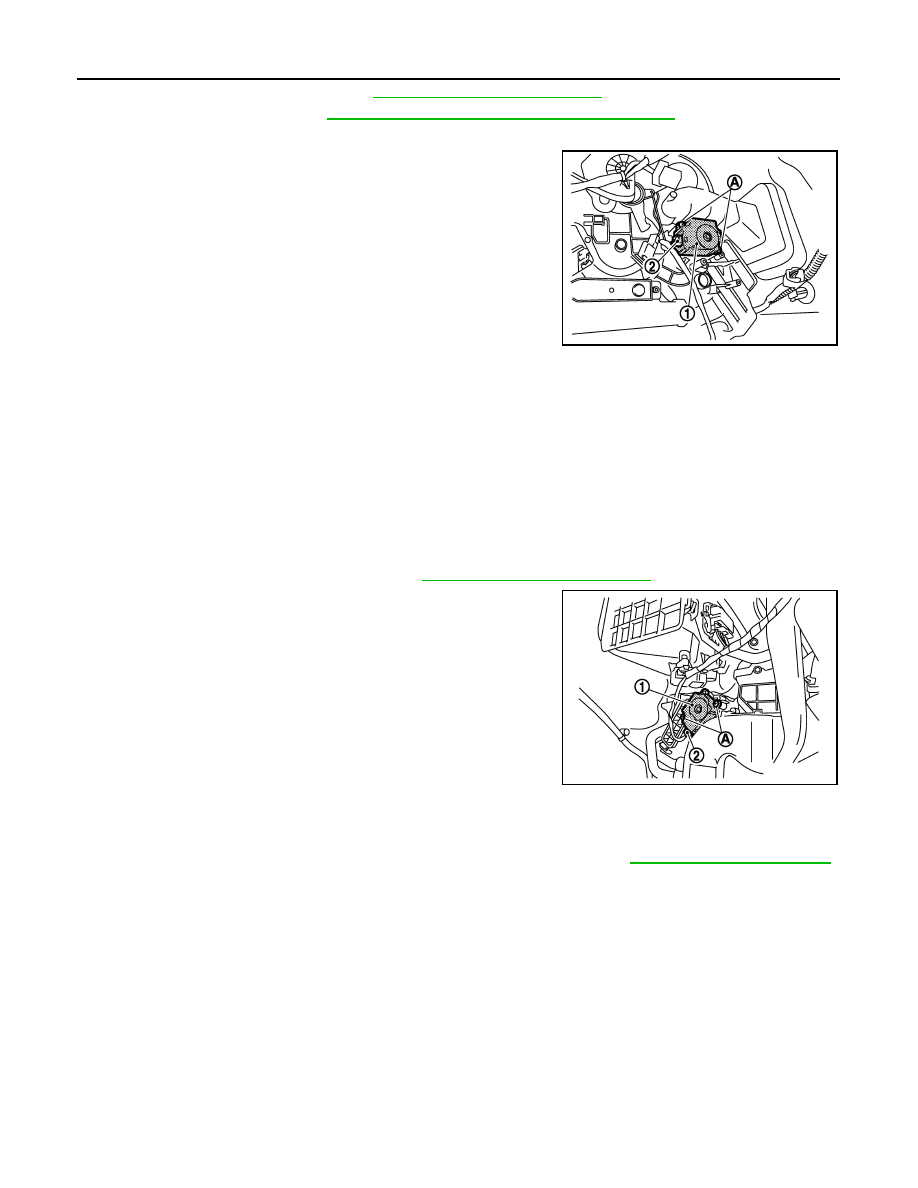

1. Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

.

2. Remove fixing screws (A), and then remove intake door motor

(1).

3. Disconnect intake door motor connector (2).

INSTALLATION

Install in the reverse order of removal.

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation

INFOID:0000000012200094

REMOVAL

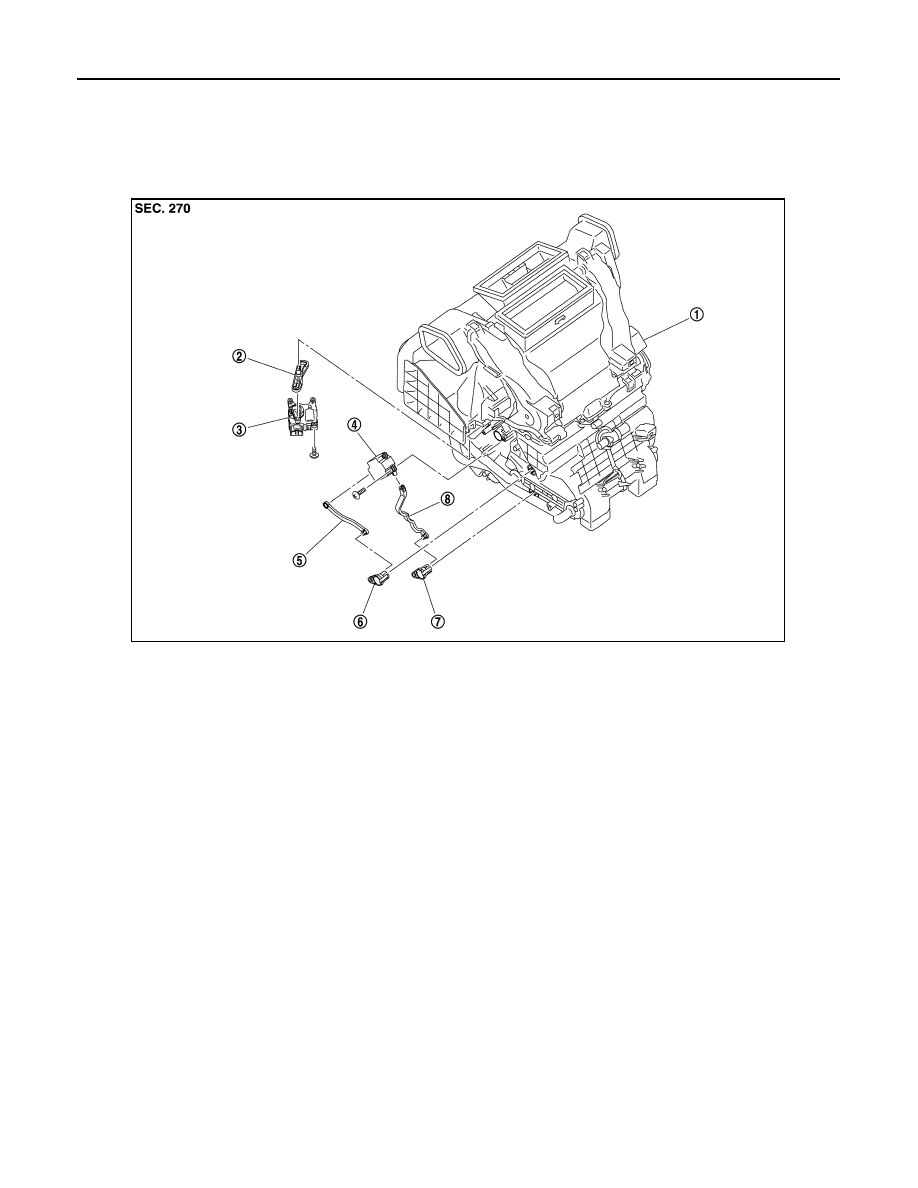

1.

A/C unit assembly

2.

Main link

3.

Sub defroster door link

4.

Sub defroster door rod

5.

Mode link

6.

Plate

7.

Mode link rod

8.

Sub harness

9.

Mode door motor

10. Sub defroster door lever

11. Center ventilator and defroster door link

12. Plate

13. Center ventilator and defroster door rod 14. Center ventilator and defroster door lever

JPIIA1558ZZ

JMIIA0897ZZ

HAC-102

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

1. Remove glove box assembly Refer to

IP-13, "Removal and Installation"

.

2. Remove foot duct RH. Refer to

VTL-13, "FOOT DUCT : Removal and Installation"

.

3. Disconnect mode link rod from mode door motor.
4. Remove fixing screws (A), and then remove mode door motor

(1).

5. Disconnect mode door motor connector (2).

INSTALLATION

Install in the reverse order of removal.

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000012200095

REMOVAL

1. Set the temperature at full cold.

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door

may interfere in A/C unit assembly may be damaged.

2. Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

.

3. Remove fixing screws (A), and then remove air mix door motor

(1).

4. Disconnect air mix door motor connector (2).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-52, "Work Procedure"

.

JMIIA0896ZZ

JMIIA0898ZZ
