Nissan Juke F15. Manual - part 867





PRECAUTIONS

HAC-103

< PRECAUTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012200096

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

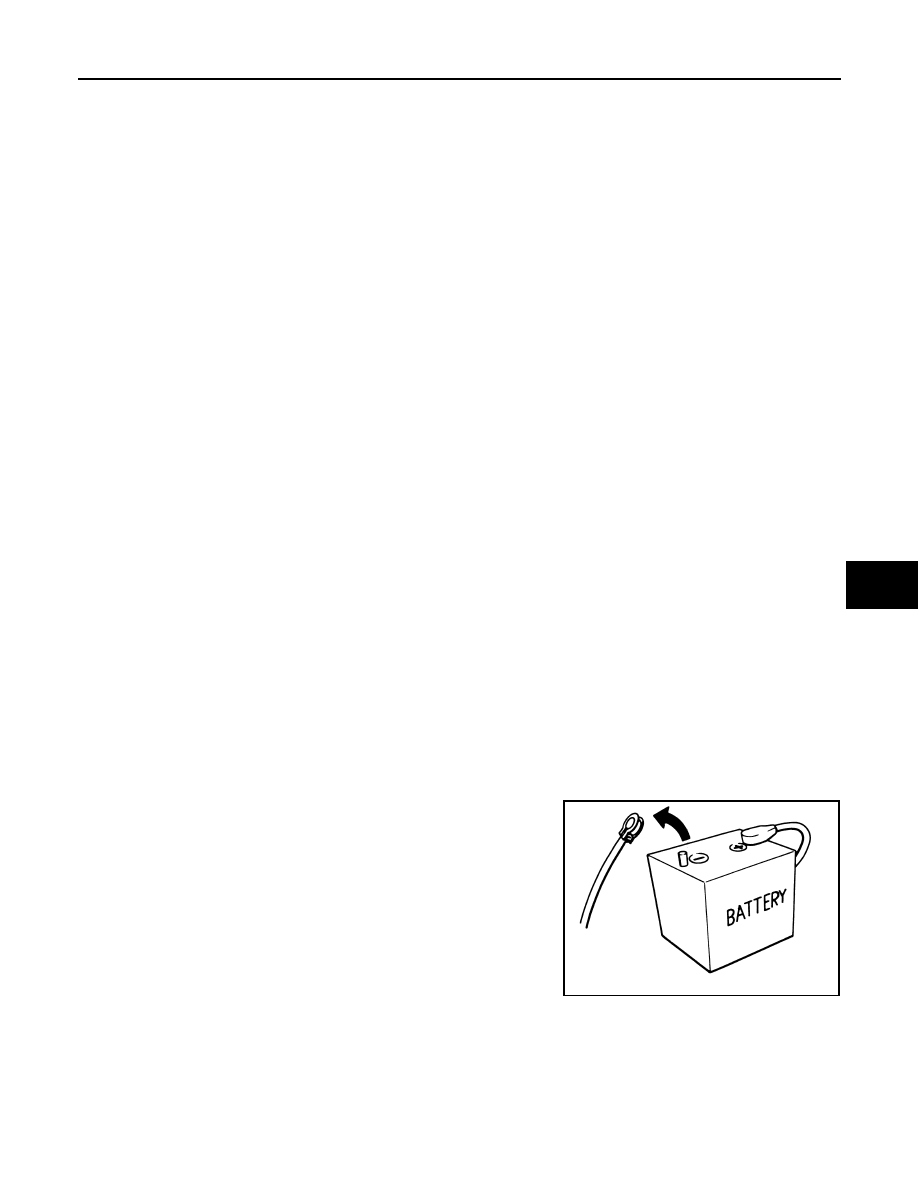

Precautions for Removing Battery Terminal

INFOID:0000000012963104

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

HAC-104

< PRECAUTION >

[MANUAL AIR CONDITIONING]

PRECAUTIONS

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

COMPONENT PARTS

HAC-105

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

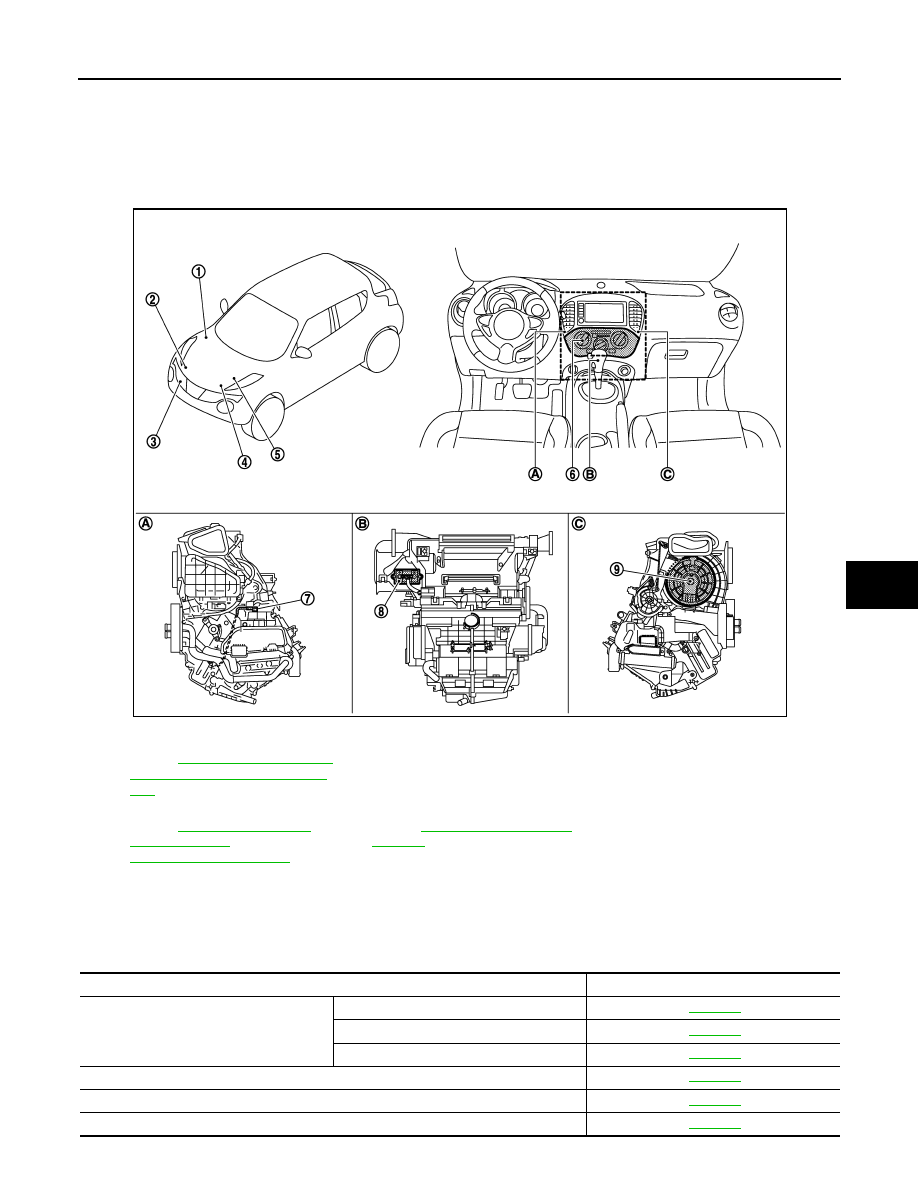

Component Part Location

INFOID:0000000012200098

Component Description

INFOID:0000000012200099

1.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

2.

Magnet clutch

3.

Refrigerant pressure sensor

4.

ECM
Refer to

EC-27, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

.

5.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

6.

A/C control

7.

Thermo control amp.

8.

Blower fan resistor

9.

Blower motor

A.

Left side of A/C unit assembly

B.

Back side of A/C unit assembly

C.

Right side of A/C unit assembly

JMIIA1052ZZ

Component

Description

A/C unit assembly

Thermo control amp.

HAC-106

Blower motor

HAC-106

Blower fan resistor

HAC-106

A/C control

HAC-106

BCM

HAC-107

ECM

HAC-107

HAC-106

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

COMPONENT PARTS

A/C UNIT ASSEMBLY
A/C UNIT ASSEMBLY : Thermo Control Amp.

INFOID:0000000012200100

• Thermo control amp. is composed of thermistor and amplifier. Thermistor is installed on evaporator, and

amplifier is attached to foot duct.

• When the thermistor detecting temperature of the evaporator fin is extremely low, thermo control amp. sends

the thermo control amp. OFF signal to BCM, and stops the compressor.

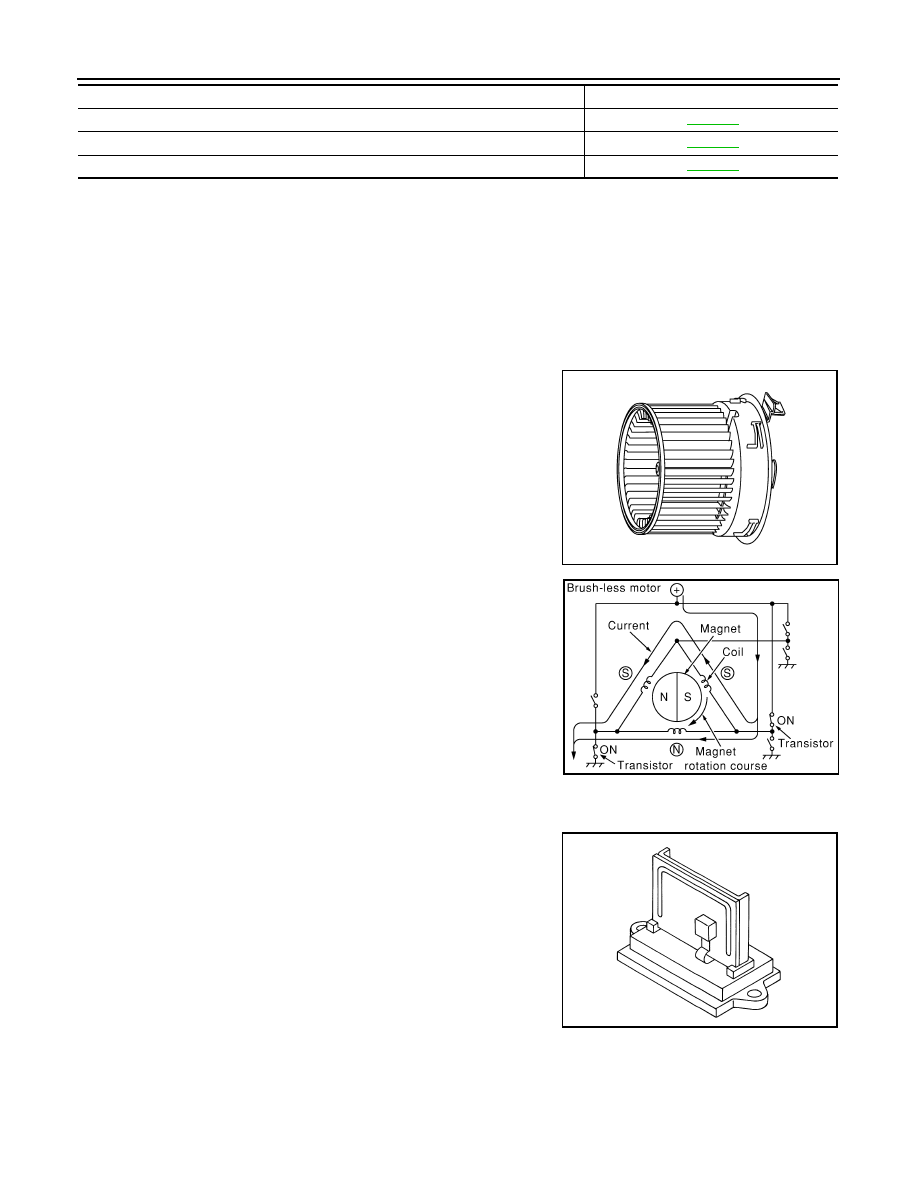

A/C UNIT ASSEMBLY : Blower Motor

INFOID:0000000012200101

• The blower motor utilizes a brush-less motor with a rotating mag-

net.

• Quietness is improved over previous motors where the brush was

the point of contact and the coil rotated.

A/C UNIT ASSEMBLY : Blower Fan Resistor

INFOID:0000000012200102

• Compact and lightweight resistor is adopted with outstanding venti-

lation.

• Temperature fuse is installed to protects the blower motor circuit.

A/C Control

INFOID:0000000012200103

Controls the air conditioning function.

IPDM E/R

HAC-107

Refrigerant pressure sensor

HAC-107

Magnet clutch

HAC-107

Component

Description

JPIIA1575ZZ

ZHA152H

ZJIA0545J
