COMPRESSOR DOES NOT OPERATE
HAC-91
< SYMPTOM DIAGNOSIS >
[AUTOMATIC AIR CONDITIONING]
C
D
E
F
G
H
J
K
L
M
A
B
HAC
N
O
P
COMPRESSOR DOES NOT OPERATE
Description
INFOID:0000000012200079
SYMPTOM
Compressor does not operate.
Diagnosis Procedure
INFOID:0000000012200080
NOTE:
• Perform self-diagnoses with CONSULT before performing symptom diagnosis. If any DTC is detected, per-
form the corresponding diagnosis.
• Check that refrigerant is enclosed in cooler cycle normally. If refrigerant amount is shortage from proper
amount, perform the inspection of refrigerant leakage.
1.
CHECK MAGNET CLUTCH OPERATION
Check magnet clutch. Refer to
HAC-85, "Component Function Check"
.
Does it operate normally?
YES
>> GO TO 2.
NO
>> Repair or replace malfunctioning parts.
2.

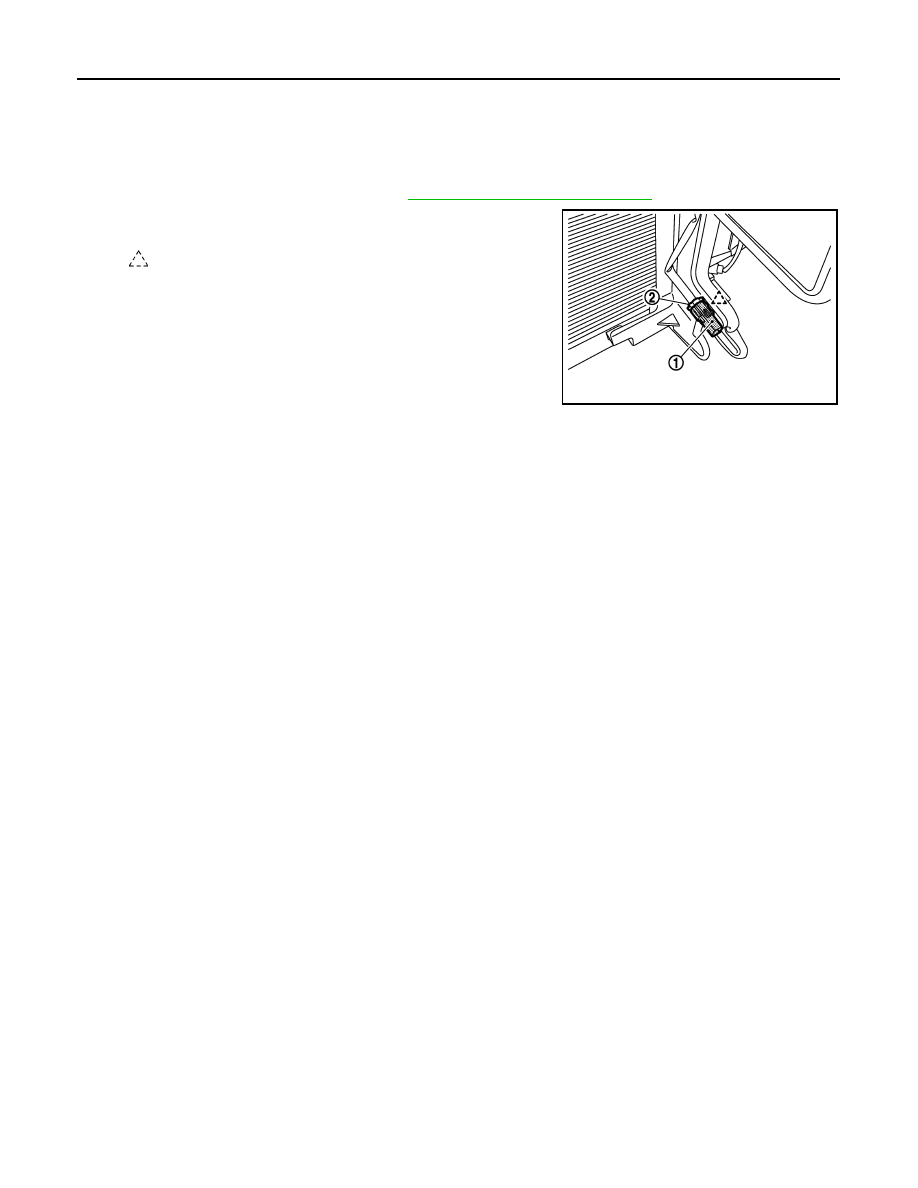

CHECK REFRIGERANT PRESSURE SENSOR
Check refrigerant pressure sensor. Refer to
EC-568, "Component Function Check"
.
Is the inspection result normal?
YES
>> GO TO 3.
NO
>> Repair or replace malfunctioning parts.
3.
CHECK A/C ON SIGNAL
Check A/C ON signal. Refer to
HAC-77, "Component Function Check"
Is inspection result normal?
YES
>> GO TO 4.
NO
>> Repair or replace malfunctioning parts.
4.
CHECK BLOWER FAN ON SIGNAL
Check blower fan ON signal. Refer to
HAC-79, "Component Function Check"
Is the inspection result normal?
YES
>> GO TO 5.
NO
>> Repair or replace malfunctioning parts
5.
CHECK BCM OUTPUT SIGNAL
With CONSULT
1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2. Select “AIR COND SIG” and “HEATER FAN SW”, and check status under the following conditions.
Is the inspection result normal?
YES

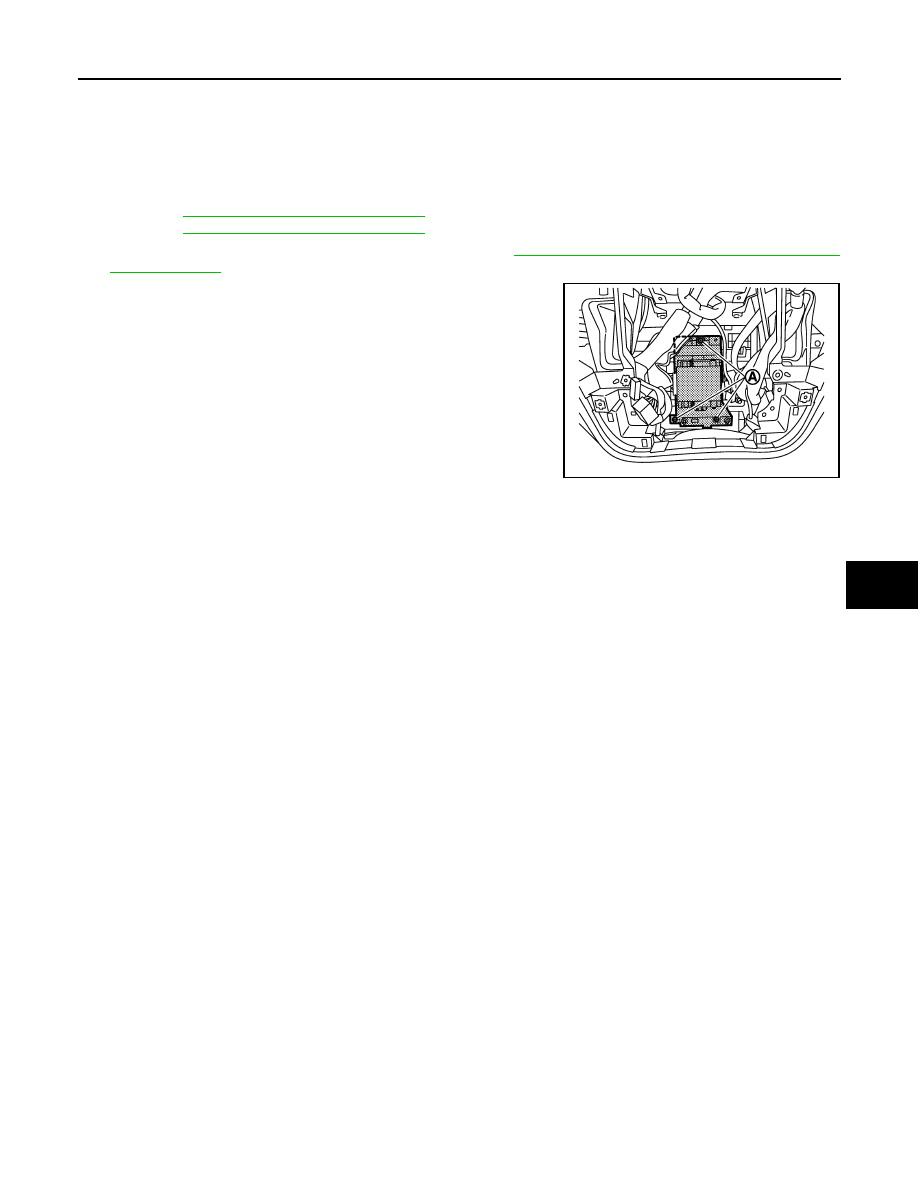

>> Replace IPDM E/R. Refer to
PCS-37, "Removal and Installation"
.
NO
>> Replace BCM. Refer to
BCS-94, "Removal and Installation"
Monitor item
Condition
Status
AIR COND SIG
A/C switch
OFF (A/C indicator: OFF)
Off
ON (A/C indicator: ON)
On
HEATER FAN SW
Blower motor
OFF
Off
ON
On
