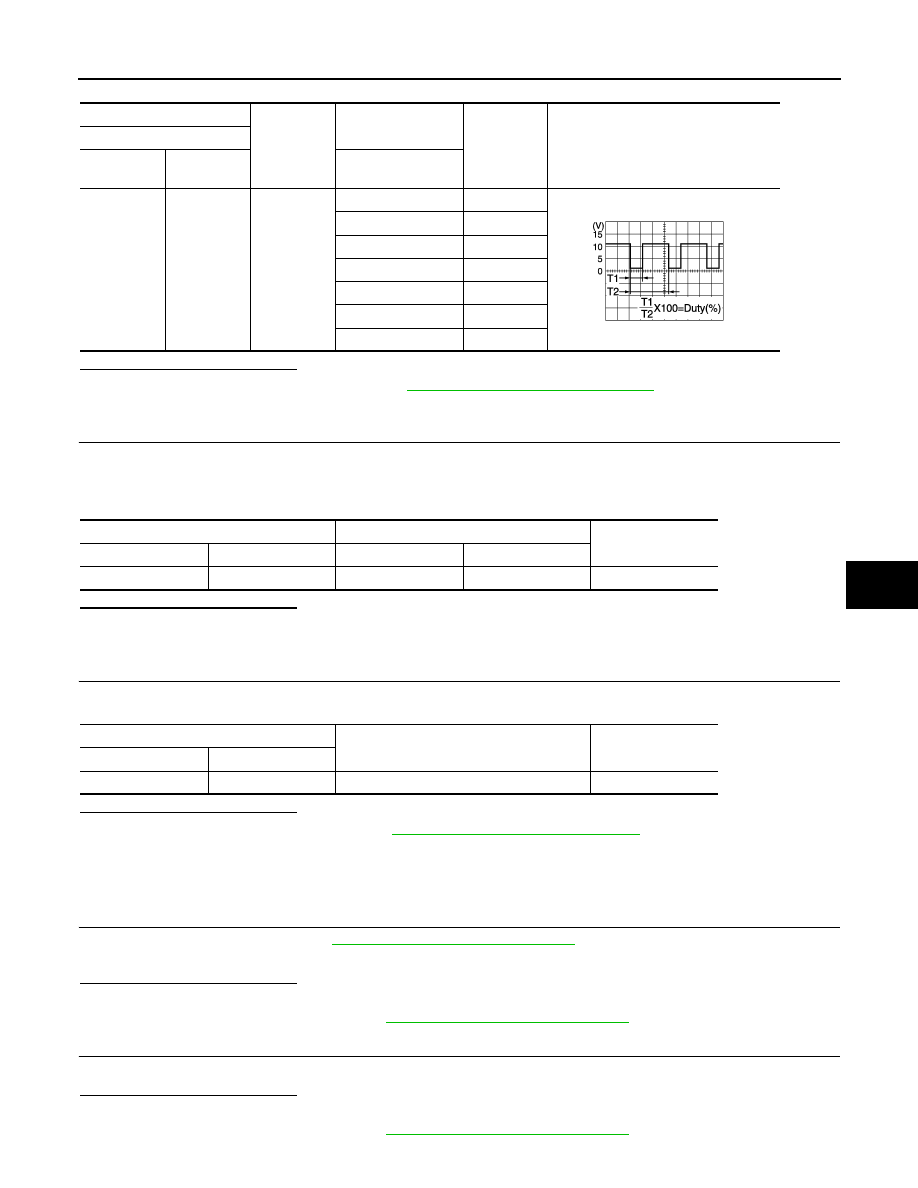

BLOWER MOTOR

HAC-83

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> Replace power transistor. Refer to

HAC-99, "Removal and Installation"

.

NO

>> GO TO 10.

10.

CHECK POWER TRANSISTOR CONTROL SIGNAL CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect power transistor connector and A/C auto amp. connector.

3. Check continuity between power transistor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair harness or connector.

11.

CHECK POWER TRANSISTOR CONTROL SIGNAL CIRCUIT FOR SHORT

Check continuity between power transistor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-93, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection (Blower Motor)

INFOID:0000000012200070

1.

CHECK BLOWER MOTOR

1. Remove blower motor. Refer to

VTL-14, "Removal and Installation"

.

2. Check that there is not any mixing foreign object in the blower motor.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace blower motor. Refer to

VTL-14, "Removal and Installation"

.

2.

CHECK BLOWER MOTOR

Check that there is not breakage or damage in the blower motor.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace blower motor. Refer to

VTL-14, "Removal and Installation"

.

+

Condition

Duty ratio

(Approx.)

Output waveform

Power transistor

Connector

Terminal

Fan speed (manual)

Air outlet: VENT

M344

2

Ground

1st

26%

2nd

34%

3rd

41%

4th

51%

5th

62%

6th

73%

7th

82%

JPIIA1646GB

Power transistor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M344

2

M50

13

Existed

Power transistor

Continuity

Connector

Terminal

M344

2

Ground

Not existed

HAC-84

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

BLOWER MOTOR

3.

CHECK BLOWER MOTOR

Check that blower motor turns smoothly.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace blower motor. Refer to

VTL-14, "Removal and Installation"

.

Component Inspection (Blower Relay)

INFOID:0000000012200071

1.

CHECK BLOWER RELAY

1. Remove blower relay. Refer to

PG-80, "Fuse, Connector and Terminal Arrangement"

2. Check continuity between blower relay terminal 3 and 5 when

the voltage is supplied between terminal 1 and 2.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace blower relay.

Terminal

Voltage

Continuity

3

5

ON

Existed

OFF

Not existed

JSIIA1551ZZ

MAGNET CLUTCH

HAC-85

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MAGNET CLUTCH

Component Function Check

INFOID:0000000012200072

1.

CHECK MAGNET CLUTCH OPERATION

Perform auto active test of IPDM E/R. Refer to

PCS-12, "Diagnosis Description"

Does it operate normally?

YES

>> INSPECTION END

NO

>> Refer to

HAC-85, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012200073

1.

CHECK FUSE

1. Turn ignition switch OFF.

2. Check 10A fuse (No. 49, located in IPDM E/R).

NOTE:

Refer to

PG-82, "Fuse, Connector and Terminal Arrangement"

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2.

CHECK MAGNET CLUTCH

1. Disconnect compressor connector.

2. Directly apply battery voltage to the magnet clutch. Check for operation visually and by sound.
Does it operate normally?

YES

>> GO TO 3.

NO

>> Replace magnet clutch. Refer to

HA-30, "MAGNET CLUTCH : Removal and Installation of Com-

pressor Clutch"

.

3.

CHECK MAGNET CLUTCH POWER SUPPLY CIRCUIT FOR OPEN

1. Disconnect IPDM E/R connector.

2. Check continuity between IPDM E/R harness connector and compressor harness connector.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-37, "Removal and Installation"

.

NO

>> Repair harness or connector.

IPDM E/R

Compressor

Continuity

Connector

Terminal

Connector

Terminal

E15

56

F17

1

Existed

HAC-86

< SYMPTOM DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

AUTOMATIC AIR CONDITIONER SYSTEM

SYMPTOM DIAGNOSIS

AUTOMATIC AIR CONDITIONER SYSTEM

Symptom Table

INFOID:0000000012200074

NOTE:

Perform self-diagnoses with CONSULT before performing the symptom diagnosis. If any DTC is detected,

perform the corresponding diagnosis.

Symptom

Corresponding malfunction part

Check item/Reference

• Air conditioning system does

not activate.

• Air conditioning system can-

not be controlled.

• Operation status of air condi-

tioning system is not indicat-
ed on display.

Fail-safe activates

Multi display unit

AV-230, "Symptom Table"

Fail-safe does not acti-
vate

• A/C auto amp. ignition power supply

and ground circuit

• A/C auto amp.

HAC-75, "A/C AUTO AMP. : Di-
agnosis Procedure"

Discharge air temperature does not change.

Air mix door motor system installation
condition

Check air mix door motor sys-
tem is properly installed. Refer
to

HAC-100, "Exploded View"

.

Air outlet does not change.

Mode door motor system installation
condition

Check mode door motor system
is properly installed. Refer to

HAC-100, "Exploded View"

.

Air inlet does not change.

Intake door motor system installation
condition

Check intake door motor system
is properly installed. Refer to

HAC-100, "Exploded View"

.

Blower motor does not operates or operation speed is not
normal.

• Blower motor power supply circuit
• Blower motor control circuit
• A/C auto amp. ignition power supply

circuit

• Power transistor power supply and

ground circuit

• Power transistor control signal cir-

cuit

• Blower  motor
• Power transistor
• A/C auto amp.

HAC-81, "Diagnosis Procedure"



Compressor does not operate.

• Magnet clutch
• The circuit between magnet clutch

and IPDM E/R

• IPDM E/R (A/C relay)
• The circuit between ECM and refrig-

erant pressure sensor

• Refrigerant pressure sensor
• A/C ON signal circuit
• Blower fan ON signal circuit
• A/C auto amp.

HAC-85, "Diagnosis Procedure"

• Insufficient cooling
• No cool air comes out. (Air flow volume is normal.)

• Magnet clutch control system
• Drive belt slipping
• Cooler cycle
• Air leakage from each duct
• A/C auto amp. connection recogni-

tion signal circuit

• Temperature setting trimmer

HAC-88, "Diagnosis Procedure"

• Insufficient heating
• No warm air comes out. (Air flow volume is normal.)

• Engine cooling system
• Heater hose
• Heater core
• Air leakage from each duct
• Temperature setting trimmer

HAC-90, "Diagnosis Procedure"
