Nissan Juke F15. Manual - part 828

FRONT REGULATOR

GW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

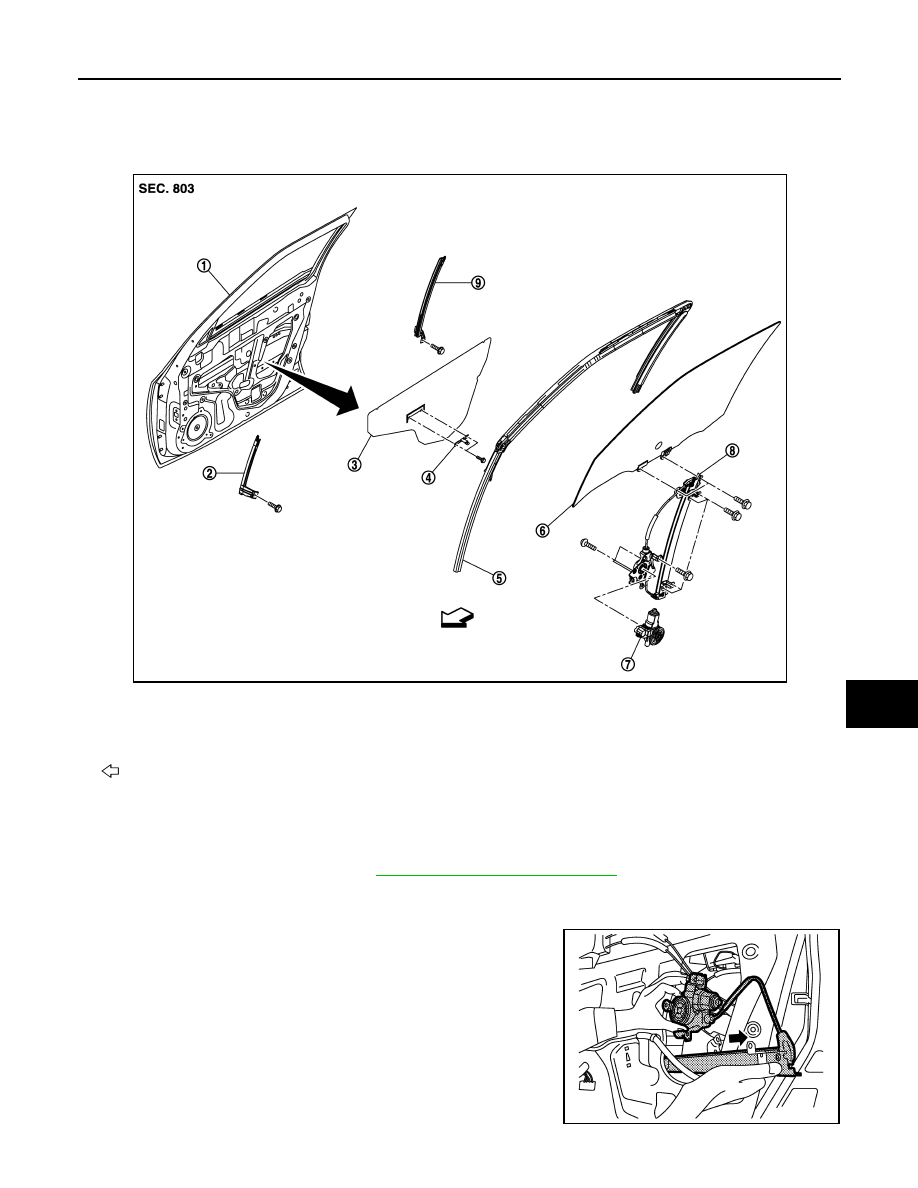

FRONT REGULATOR

Exploded View

INFOID:0000000012199897

Removal and Installation

INFOID:0000000012199898

REMOVAL

1. Remove the front door glass. Refer to

GW-17, "Removal and Installation"

.

2. Disconnect the power window motor harness connector and harness fixing clip.
3. Remove the regulator assembly mounting bolts.
4. Remove the regulator assembly from the door panel as shown

in the figure.

1.    Front door panel

2.

Lower sash (front)

3.

Sealing screen

4.

Pull handle bracket

5.

Front door glass run

6.

Front door glass

7.

Power window motor

8.

Front door regulator assembly

9.

Lower sash (rear)

: Vehicle front

JMKIA5589ZZ

JMKIA5808ZZ

GW-20

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000012199899

DISASSEMBLY

Remove the power window motor from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.

• Wire wear

• Regulator deformation

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000012199900

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PWC-24, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail

mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

REAR DOOR GLASS

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

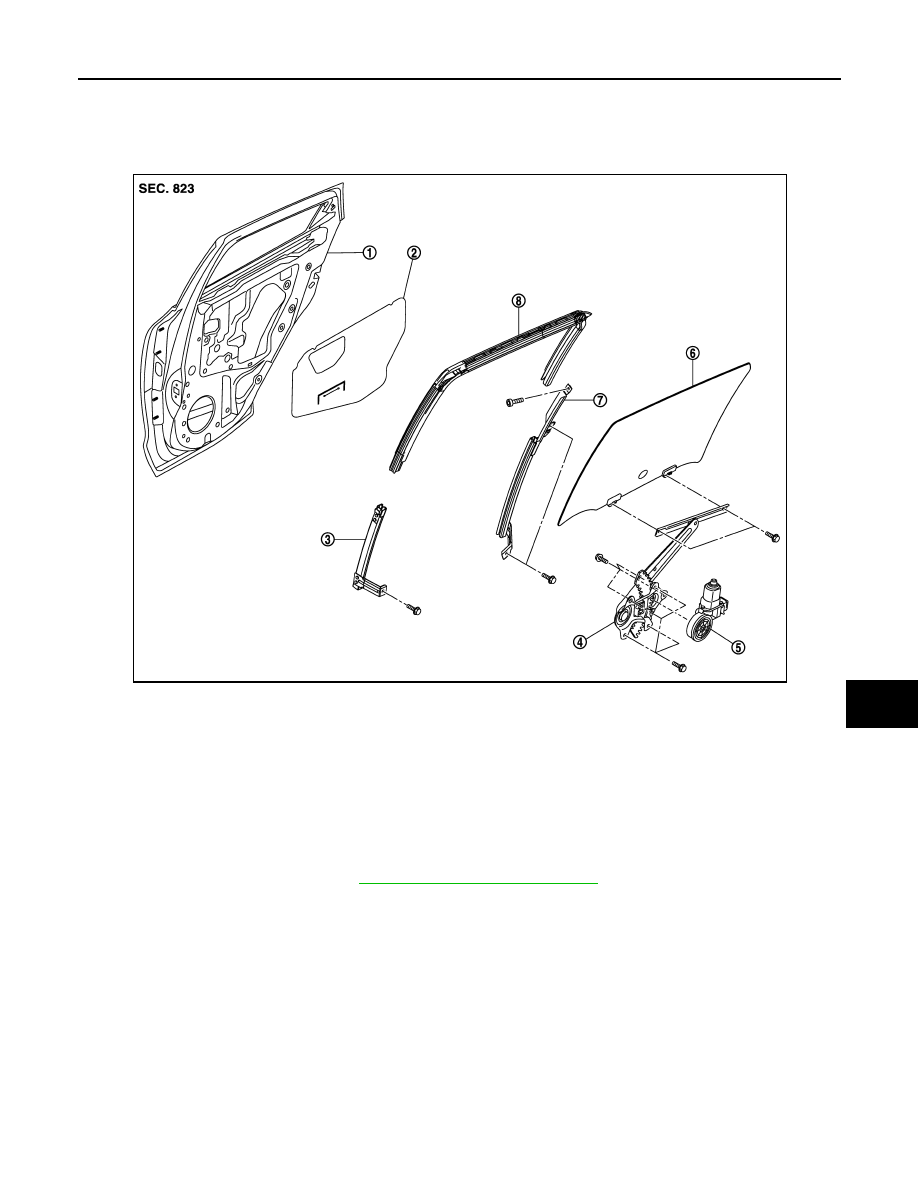

REAR DOOR GLASS

Exploded View

INFOID:0000000012199901

Removal and Installation

INFOID:0000000012199902

REMOVAL

1. Fully open rear door glass.
2. Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

3. Remove rear door speaker harness connector and the remove the sealing screen.

NOTE:

Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing

screen is reused.

4. Remove the rear door outside molding.
5. Remove rear door glass run.
6. Operate the power window main switch or regulator handle to raise or lower the door window until the

glass mounting bolts can be seen.

7. Remove rear door glass mounting bolts.

1.

Rear door panel

2.

Sealing screen

3.

Lower sash (front)

4.

Rear door regulator assembly

5.

Power window motor

6.

Rear door glass

7.

Lower sash (rear)

8.

Rear door glass run

JMKIA5590ZZ

GW-22

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

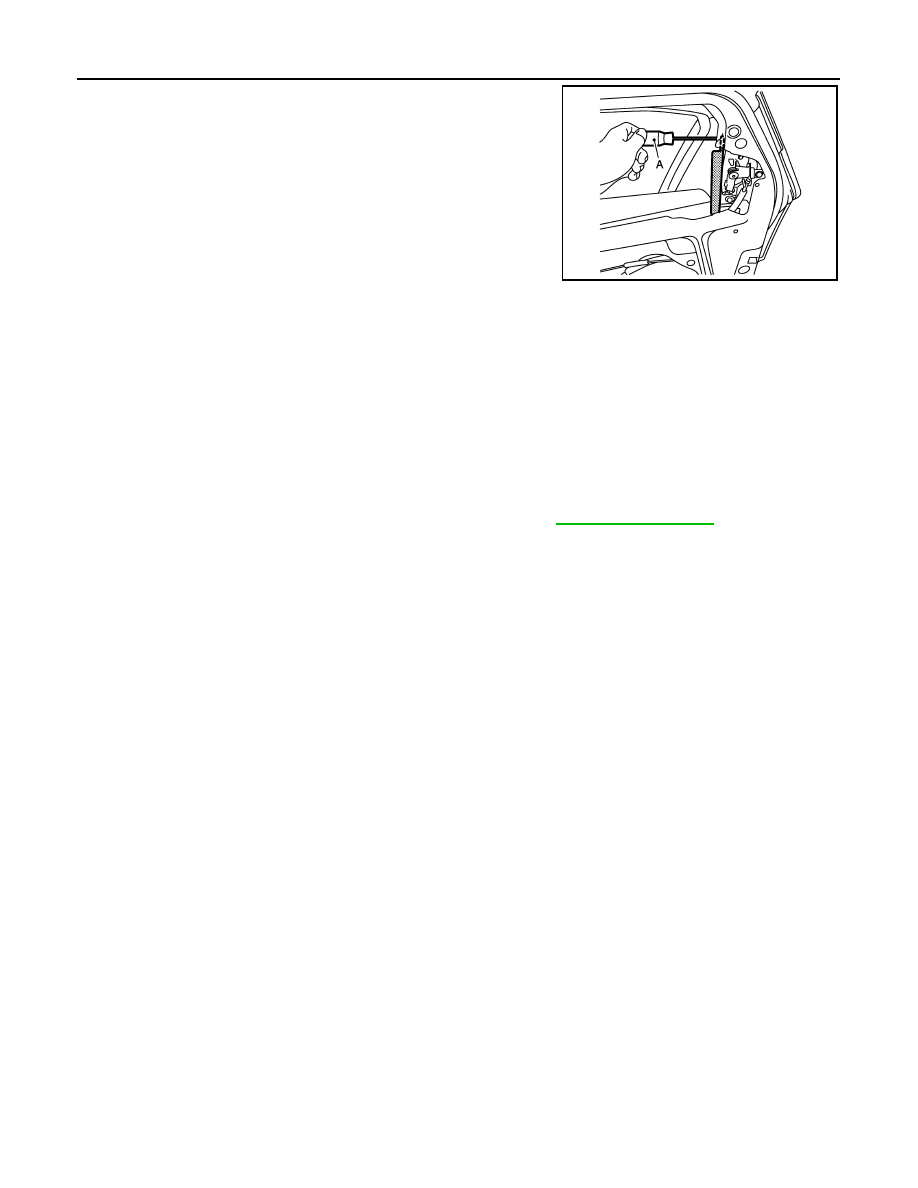

8. Remove lower sash (rear) mounting bolts and TORX bolt with a

screwdriver (A) as shown in the figure.

9. Remove lower sash (rear) from the rear door panel.

CAUTION:

Avoid contact between lower sash (rear) and rear door glass when removing.

10. Remove rear door glass from the rear panel.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000012199903

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PWC-24, "Description"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail

mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

JMKIA5591ZZ
