REAR REGULATOR

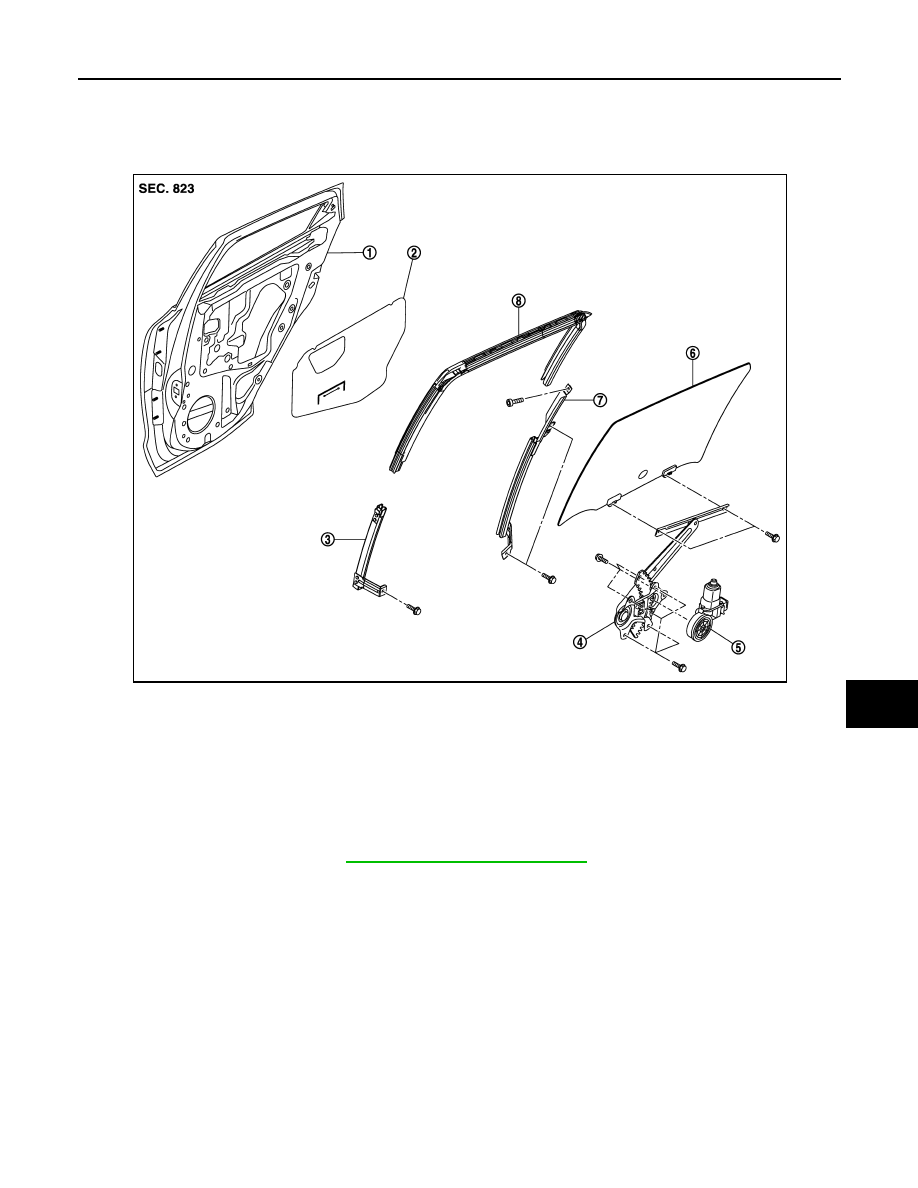

Exploded View
INFOID:0000000012199904
Removal and Installation
INFOID:0000000012199905
REMOVAL
1. Remove rear door glass. Refer to
GW-21, "Removal and Installation"
.
2. Disconnect the power window motor harness connector.
3. Remove rear door regulator mounting bolts and then remove rear door regulator from door panel.
4. Remove lower sash (front) mounting bolt and then remove lower sash (front) from rear door panel.
INSTALLATION
Install in the reverse order of removal.
Disassembly and Assembly
INFOID:0000000012199906
DISASSEMBLY
Remove the power window motor from the regulator assembly.
INSPECTION AFTER REMOVAL
Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation
1.
Rear door panel
2.
Sealing screen
3.
Lower sash (front)
4.
Rear door regulator assembly
5.
Power window motor
6.
Rear door glass
7.
Lower sash (rear)
8.
Rear door glass run
JMKIA5590ZZ
