7. Apply protective tape around the windshield glass to protect the painted surface from damage.

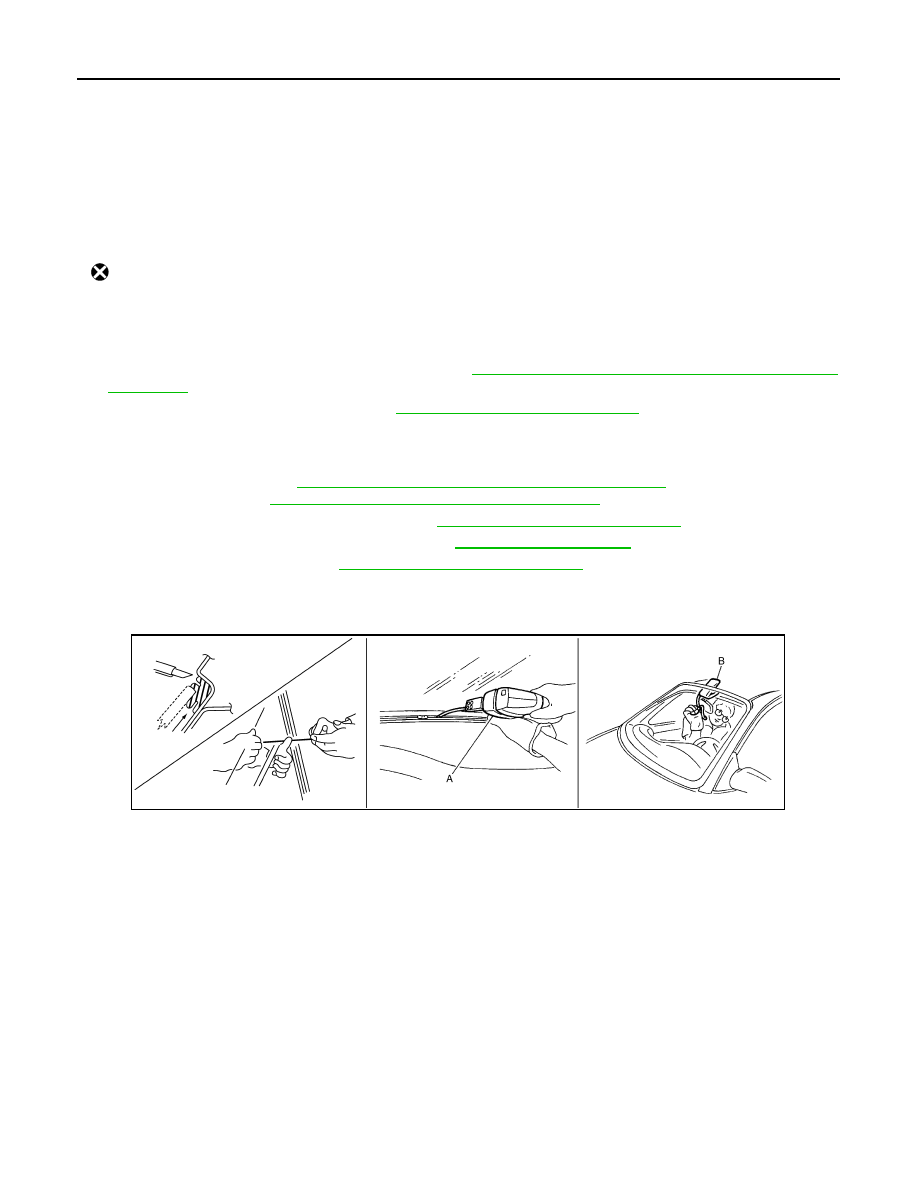

8. Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B) after removing

moldings.

NOTE:

Mark the body and the glass with matching marks if the windshield glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to help prevent injuries.

CAUTION:

• Never use a cutting knife or power cutting tool when the glass is reused.

• Be careful not to scratch the glass when removing.

• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam sealant rubber should be installed in position.

• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive is completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

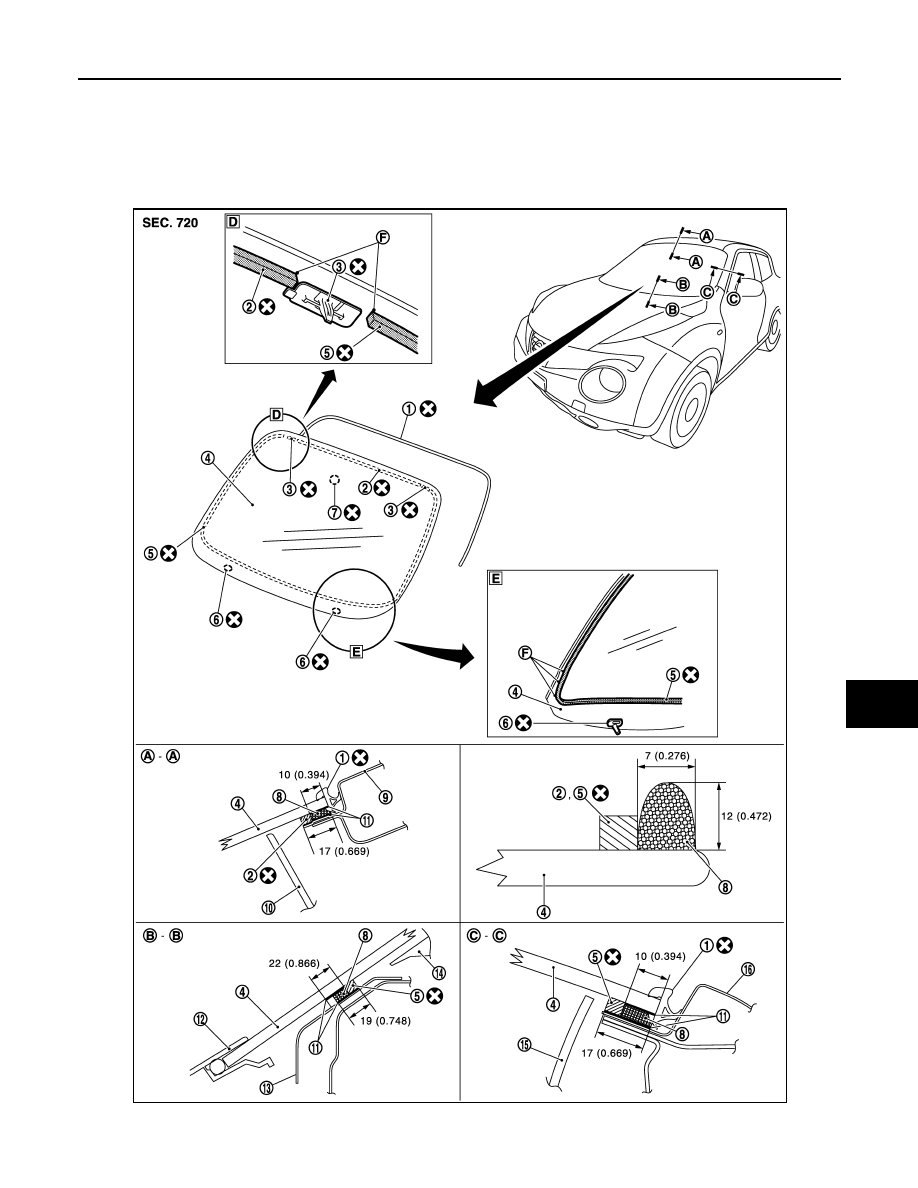

Windshield glass molding

Dam rubber (upper)

Upper clip

Windshield glass

Dam rubber (lower)

Lower clip

Mirror base

Adhesive

Roof panel

10.

Headlining assembly

11. Primer

12. Cowl top cover

13.

Cowl top panel

14. Instrument panel assembly

15. Front pillar finisher

16.

Body side outer panel

: Black print mark

Unit : mm (in)

: Always replace after every disassembly.

PIIB5779E

WINDSHIELD GLASS

GW-13

< REMOVAL AND INSTALLATION >

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them come in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of

the windshield in an accident.

CAUTION:

• Perform adjustment of front wiper arms stop location. Refer to

WW-51, "Adjustment"

• Never use an adhesive that is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the

box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Never leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for 24 hours or more or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under

lower temperature and lower humidity.

Inspection

INFOID:0000000012199890

REPAIRING WATER LEAKAGE FOR WINDSHIELD GLASS

Leakage can be repaired without removing the windshield glass.

Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

This can be done by applying water to the windshield area while pushing glass outward.

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GW-14

< REMOVAL AND INSTALLATION >

BACK DOOR WINDOW GLASS

BACK DOOR WINDOW GLASS

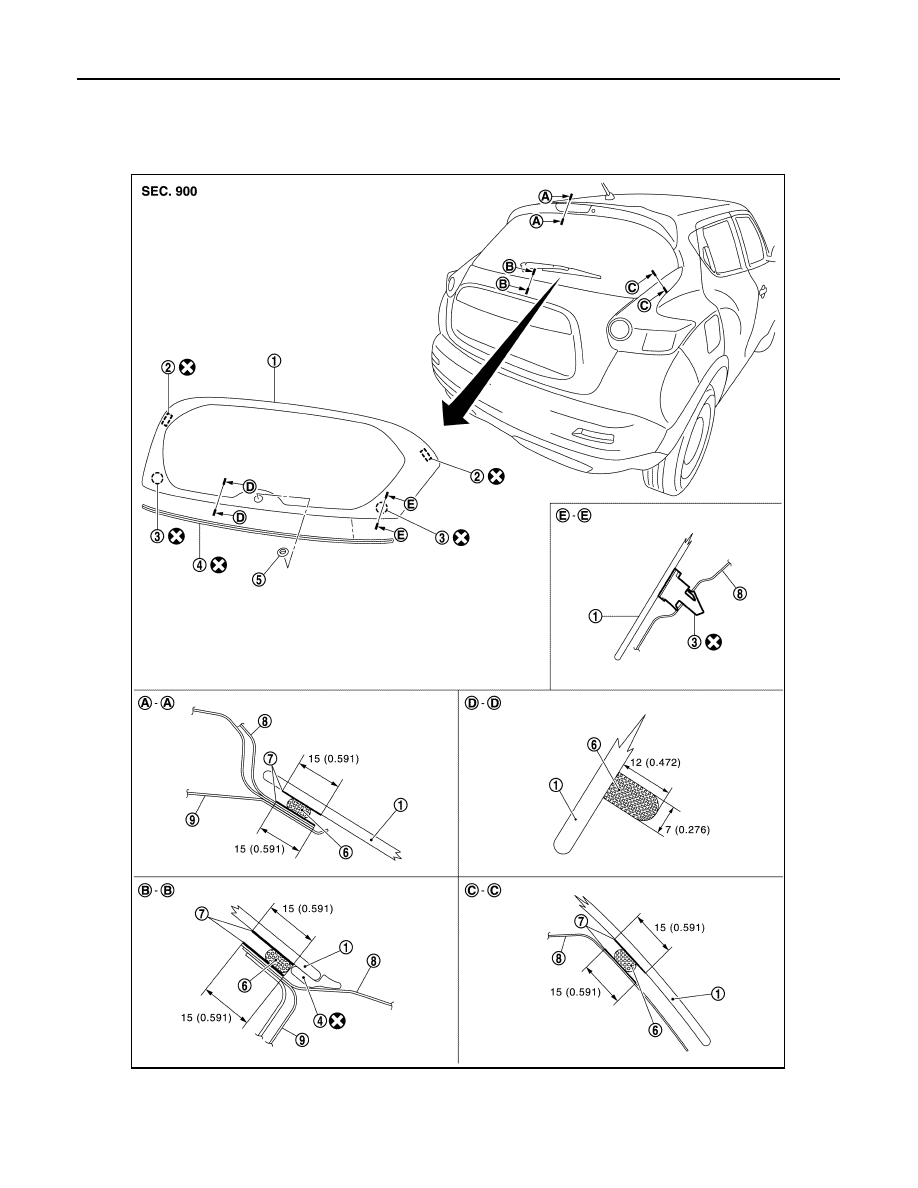

Exploded View

INFOID:0000000012199891

Back door window glass

Spacer

Back door window glass holder

Back door window glass molding

Pivot seal

Adhesive

Primer

Back door outer

Back door inner

JMKIA6169GB
