Nissan Juke F15. Manual - part 805





FSU-18

< REMOVAL AND INSTALLATION >

FRONT SUSPENSION MEMBER

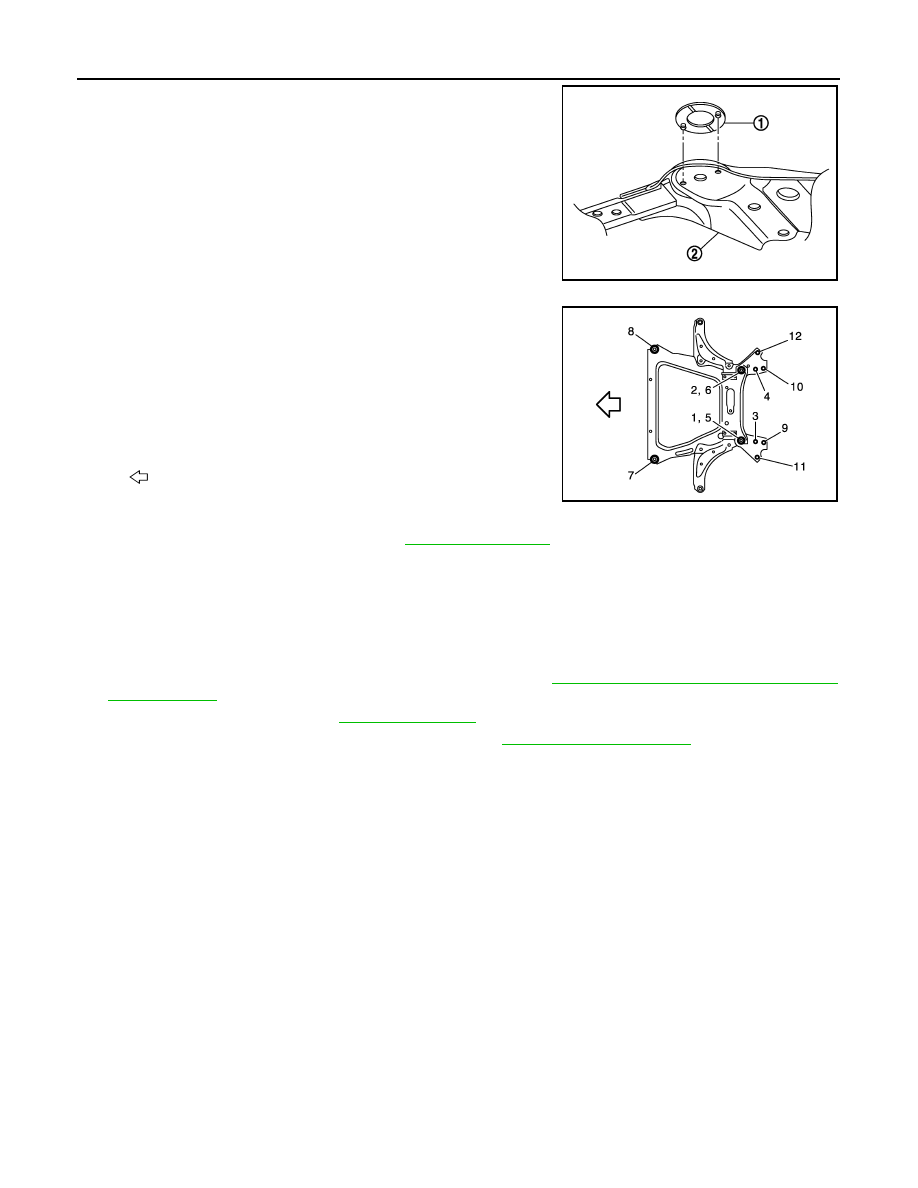

• To install rebound stopper (1), insert it with the protrusion aligned

with the hole of member stay (2).

• To install member stay and mounting bolts of front suspension

member, temporarily tighten the bolts before tightening to the

specified torque, referring to the tightening method and the numer-

ical order shown below:

• Perform final tightening of bolts and nuts at the vehicle installation

position (rubber bushing), under unladen conditions with tires on level ground.

• Perform inspection after installation. Refer to

FSU-13, "Inspection"

.

Inspection

INFOID:0000000012199129

INSPECTION AFTER REMOVAL

Check front suspension member for cracks, wear or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connector. Refer to

BRC-147, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

JPEIA0248ZZ

Temporary tightening

: 1

→ 2

Final tightening
(Specified torque)

: 3

→ 4 → 5 → 6 → 7 → 8 → 9 → 10 → 11 → 12

: Vehicle front

JPEIA0249GB

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000012199130

Measure value under unladen*

2

 conditions.

*1: A difference when assuming the left side a standard.
*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Ball Joint

INFOID:0000000012199131

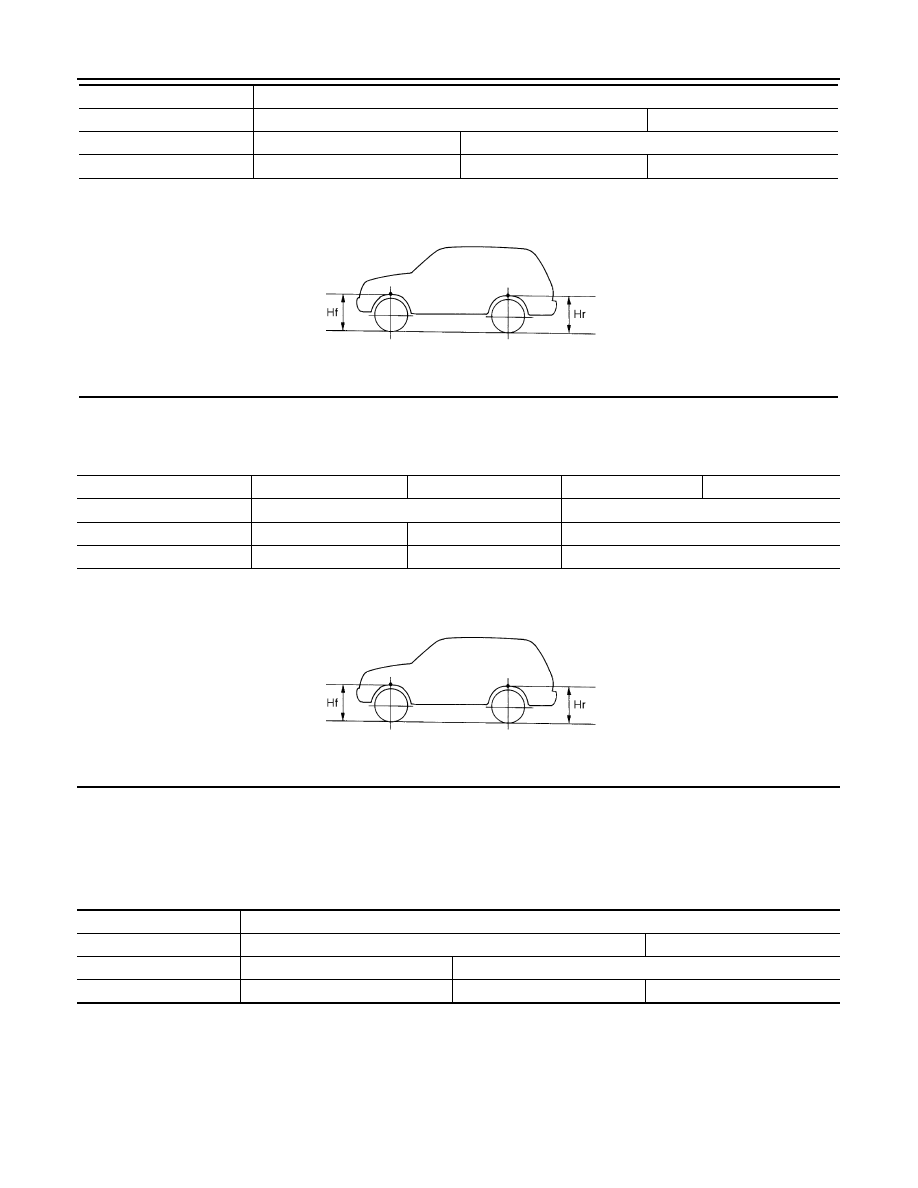

Wheelarch Height

INFOID:0000000012199132

FOR USA MODELS

EXCEPT NISMO

Item

Standard

Axle type

2WD

AWD

Camber
Degree minute (Decimal degree)

Minimum

–1

° 10′ (–1.16°)

Nominal

–0

° 25′ (–0.42°)

Maximum

0

° 20′ (0.33°)

Left and right difference*

1

–0

° 45′ (–0.75°) - 0° 45′ (0.75°)

Caster
Degree minute (Decimal degree)

Minimum

3

° 45′ (3.75°)

3

° 50′ (3.84°)

Nominal

4

° 30′ (4.50°)

4

° 35′ (4.58°)

Maximum

5

° 15′ (5.25°)

5

° 20′ (5.33°)

Left and right difference*

1

–0

° 45′ (–0.75°) - 0° 45′ (0.75°)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

10

° 40′ (10.67°)

Nominal

11

° 25′ (11.42°)

Maximum

12

° 10′ (12.16°)

Toe-in

Total toe-in
Distance

Minimum

0 mm (0.00 in)

Nominal

In 2 mm (In 0.08 in)

Maximum

In 4 mm (In 0.16 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

Out 0

° 02′ 00″ (Out 0.03°)

Nominal

In 0

° 10′ 00″ (In 0.17°)

Maximum

In 0

° 22′ 00″ (In 0.36°)

Item

Standard

Swing torque

0.5 – 4.9 N·m (0.06 – 0.49 kg-m, 5 – 43 in-lb)

Measurement on spring balance

15.4 – 150.8 N (1.6 – 15.3 kg, 3.5 – 33.8 lb)

Axial end play

0 mm (0 in)

Item

Standard

Axle type

2WD

AWD

Transmission

M/T

CVT

Front (Hf)

734 mm (28.90 in)

735 mm (28.94 in)

734 mm (28.90 in)

FSU-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

NISMO

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR CANADA MODELS

EXCEPT NISMO

Rear (Hr)

745 mm (29.33 in)

746 mm (29.37 in)

741 mm (29.17 in)

Item

Standard

Axle type

2WD

AWD

Transmission

M/T

CVT

SFA746B

Item

NISMO

NISMO RS

NISMO

NISMO RS

Axle type

2WD

AWD

Front (Hf)

724 mm (28.50 in)

725 mm (28.54 in)

724 mm (28.50 in)

Rear (Hr)

738 mm (29.06 in)

739 mm (29.09 in)

735 mm (28.94 in)

SFA746B

Item

Standard

Axle type

2WD

AWD

Transmission

M/T

CVT

Front (Hf)

735 mm (28.94 in)

735 mm (28.94 in)

735 mm (28.94 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

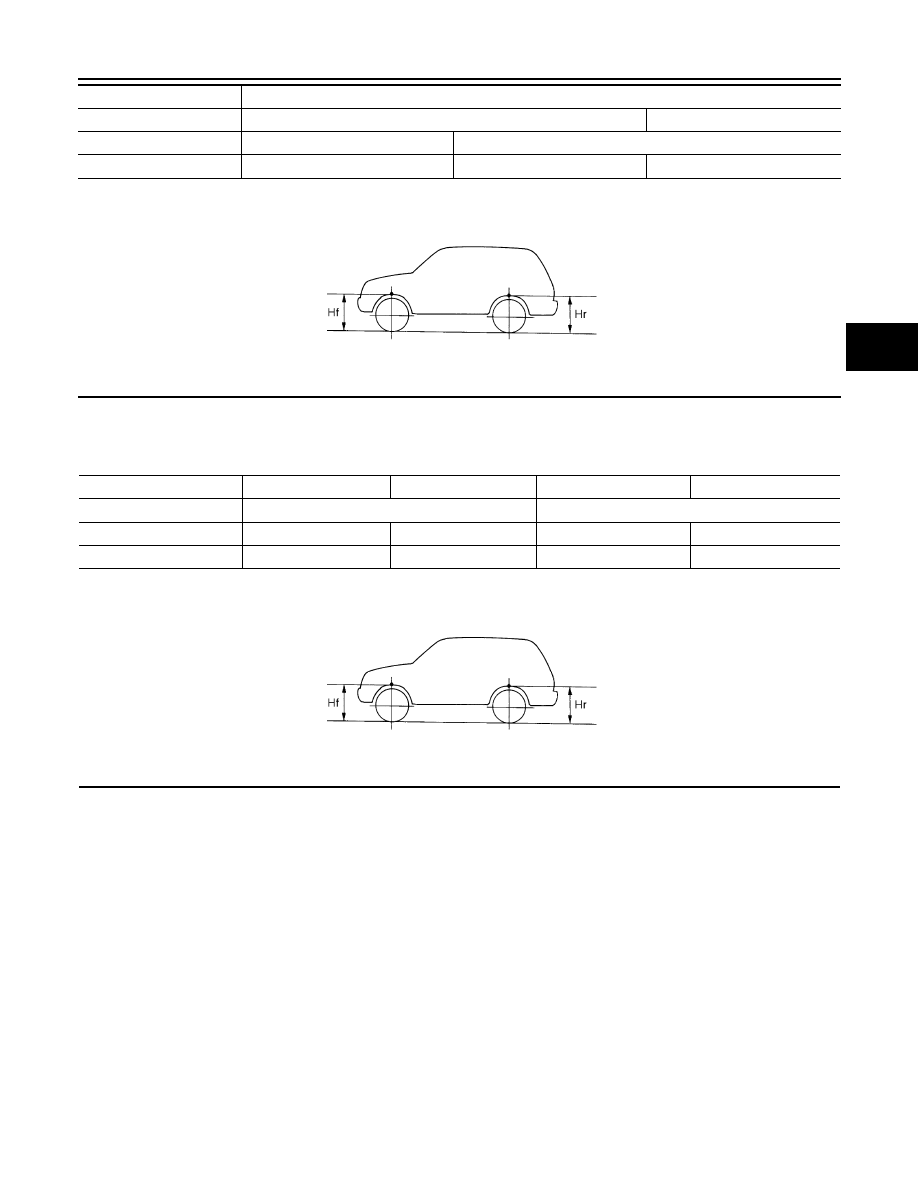

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

NISMO

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Rear (Hr)

745 mm (29.33 in)

746 mm (29.37 in)

741 mm (29.17 in)

Item

Standard

Axle type

2WD

AWD

Transmission

M/T

CVT

SFA746B

Item

NISMO

NISMO RS

NISMO

NISMO RS

Axle type

2WD

AWD

Front (Hf)

727 mm (28.62 in)

725 mm (28.54 in)

726 mm (28.58 in)

724 mm (28.50 in)

Rear (Hr)

740 mm (29.13 in)

740 mm (29.13 in)

735 mm (28.94 in)

735 mm (28.94 in)

SFA746B
